IMO 10-16 0100/0-08003 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the IMO 10-16 0100/0-08003 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The IMO 10-16 0100/0-08003 reference belongs to the 116 Series and uses a four-point contact ball, ungeared slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

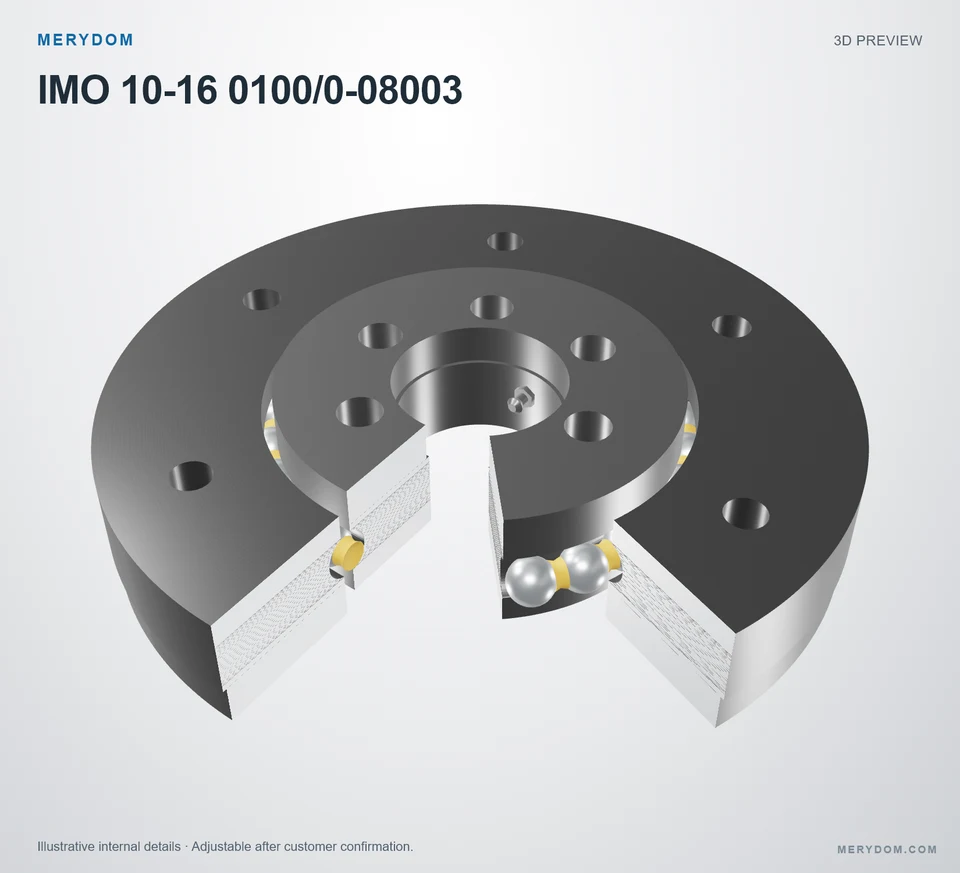

Internal-view preview of the MERYDOM replacement slewing bearing for IMO 10-16 0100/0-08003.
MERYDOM BRAND · CERTIFIED REPLACEMENT

10-16 0100/0-08003

MERYDOM-manufactured slewing bearing certified for interchange with IMO 10-16 0100/0-08003.

Certified product dataView complete specifications ↓
Overall OD (Do)
180 mm
Overall ID (di)
40 mm
Overall height
35 mm
Gear arrangement
Ungeared
Mounting holes
6 / 6 outer / inner
Bearing design
Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
Factory assurance
  • Certified dimensional interchange
  • Controlled materials
  • Factory documentation

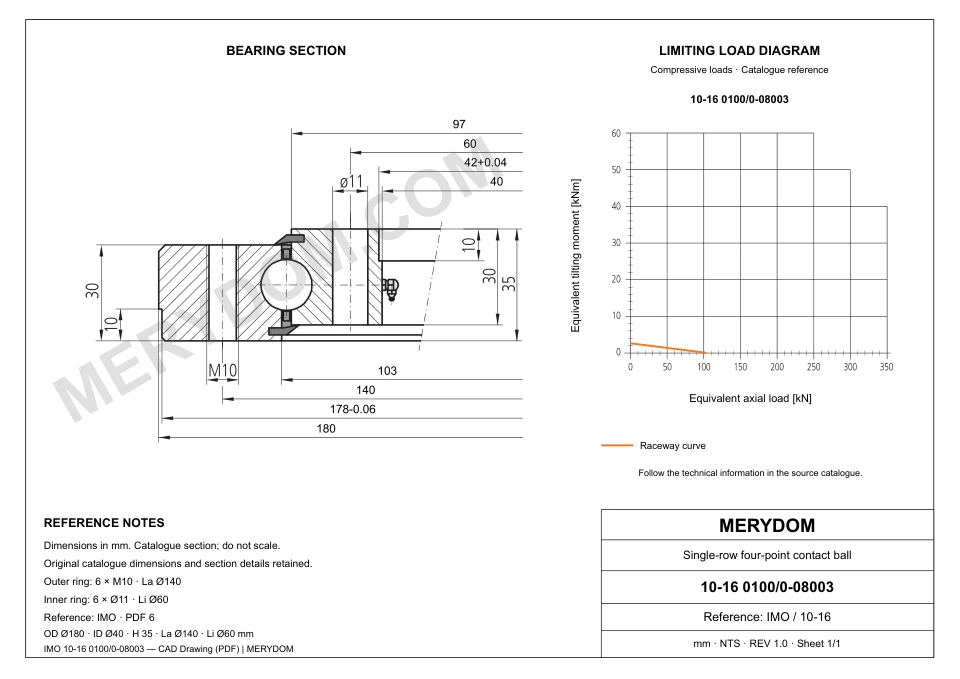

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Da)
180 mm
Overall inside diameter (di)
40 mm
Assembly weight (G)
5 kg
Overall height (H)
35 mm
Outside centring diameter (Daz)
178-0.06 mm
Inside centring diameter (diz)
42+0.04 mm
Outer ring inner diameter (Di)
103 mm
Inner ring outer diameter (da)
97 mm
Catalogue outer ring height
30 mm
Catalogue inner ring height
30 mm

Mounting

Outer ring bolt circle (La)
140 mm
Outer ring mounting-hole count (na)
6
Inner ring bolt circle (Li)
60 mm
Inner ring mounting-hole count (ni)
6
Outer ring mounting-hole specification (Ma)
M10
Inner ring mounting-hole diameter (Øi)
11 mm
MERYDOM CERTIFIED SPECIFICATION

IMO 10-16 0100/0-08003 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model10-16 0100/0-08003
Certified interchangeable withIMO 10-16 0100/0-08003
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandIMO
Series116 Series
Reference model10-16 0100/0-08003
System of measurementMetric
Bearing structureFour-point contact ball
Gear arrangementUngeared
Dimensions
Overall outside diameter (Da)180 mm
Overall inside diameter (di)40 mm
Assembly weight (G)5 kg
Overall height (H)35 mm
Outside centring diameter (Daz)178-0.06 mm
Inside centring diameter (diz)42+0.04 mm
Outer ring inner diameter (Di)103 mm
Inner ring outer diameter (da)97 mm
Catalogue outer ring height30 mm
Catalogue inner ring height30 mm
Mounting
Outer ring bolt circle (La)140 mm
Outer ring mounting-hole count (na)6
Inner ring bolt circle (Li)60 mm
Inner ring mounting-hole count (ni)6
Outer ring mounting-hole specification (Ma)M10
Inner ring mounting-hole diameter (Øi)11 mm
Ratings
Static radial load rating (Co_rad)51 kN
Static axial load rating (Co_ax)103 kN
Dynamic radial load rating (C_rad)71 kN
Dynamic axial load rating (C_ax)61 kN
Miscellaneous
Catalogue grease point count1
Catalogue grease point ringInner ring
Catalogue grease interface specificationTaper type grease nipple, form C, in filling plug
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

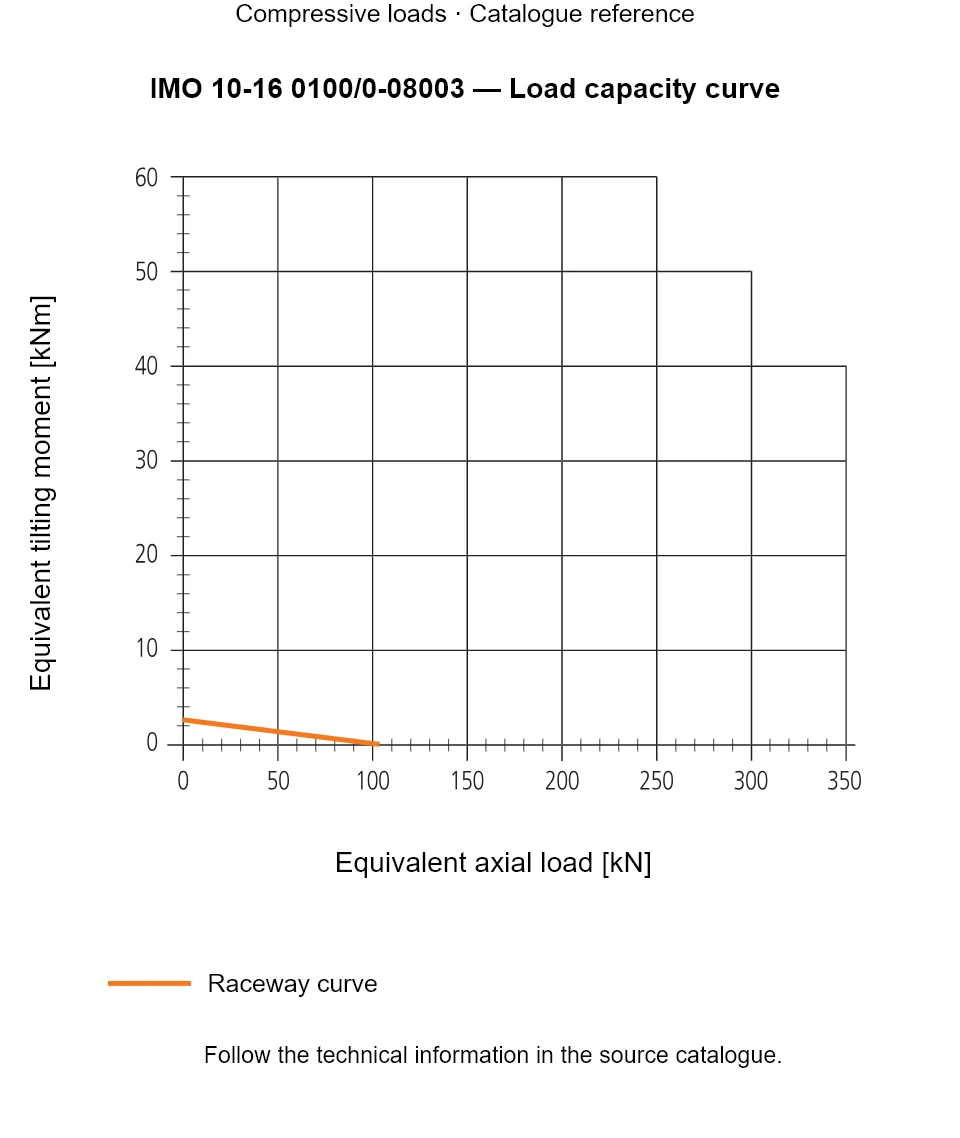

IMO 10-16 0100/0-08003 — Load capacity curve

IMO 10-16 0100/0-08003 — Load capacity curve

IMO 10-16 0100/0-08003 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.

IMO 10-16 0100/0-08003 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for IMO 10-16 0100/0-08003

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

  • Matching model designation and installation envelope
  • Reviewed mounting-hole and bolt-circle interfaces
  • Gear arrangement matched to the referenced configuration

MERYDOM construction

  • Configurable 42CrMo or 50Mn ring material options
  • NBR nitrile-rubber sealing system
  • Configurable engineering nylon or brass spacer options

Factory documentation

  • Engineering verification by MERYDOM Engineering Department
  • Verification evidence is maintained in the controlled internal record
  • Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

  • Confirm support flatness, bolt grade and preload
  • Verify applied loads, duty cycle and lubrication
  • Confirm temperature, environment and installation conditions
