IMO 10-20 0541/0-02023 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the IMO 10-20 0541/0-02023 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The IMO 10-20 0541/0-02023 reference belongs to the 120 Series and uses a four-point contact ball, ungeared slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

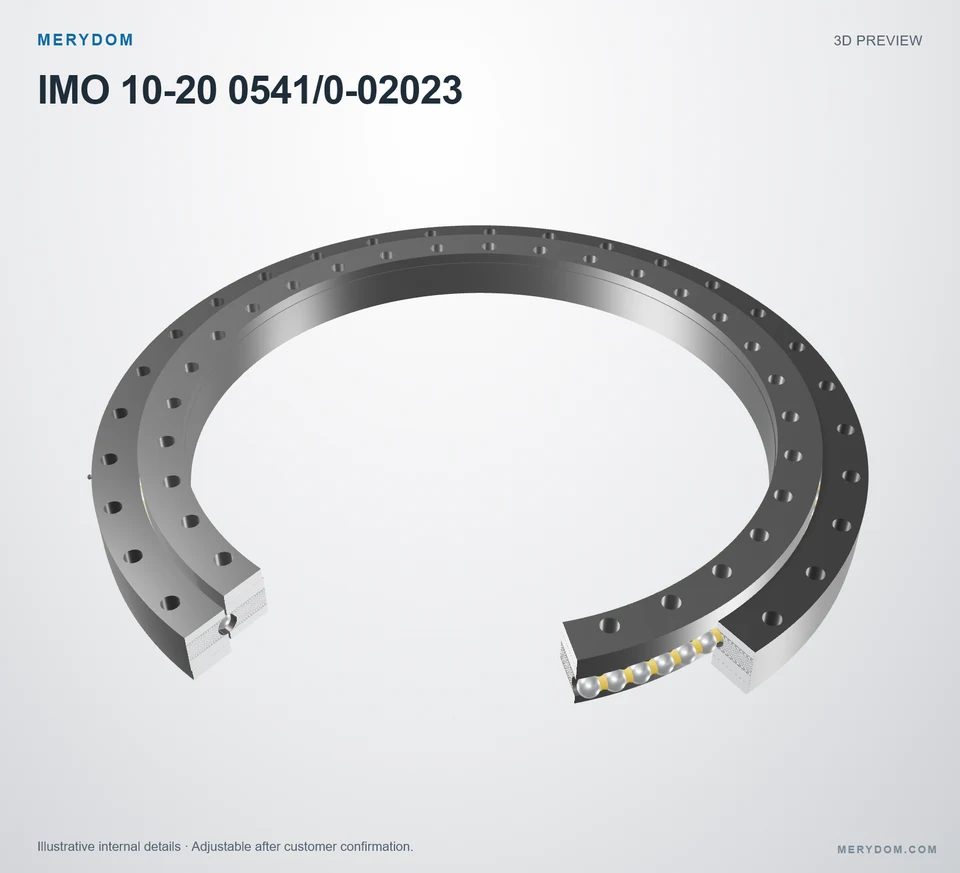

Internal-view preview of the MERYDOM replacement slewing bearing for IMO 10-20 0541/0-02023.
MERYDOM BRAND · CERTIFIED REPLACEMENT

10-20 0541/0-02023

MERYDOM-manufactured slewing bearing certified for interchange with IMO 10-20 0541/0-02023.

Certified product dataView complete specifications ↓
Overall OD (Do)
616 mm
Overall ID (di)
472 mm
Overall height
56 mm
Gear arrangement
Ungeared
Mounting holes
32 / 32 outer / inner
Bearing design
Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
Factory assurance
  • Certified dimensional interchange
  • Controlled materials
  • Factory documentation
PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Da)
616 mm
Overall inside diameter (di)
472 mm
Assembly weight (G)
37 kg
Overall height (H)
56 mm
Outside centring diameter (Daz)
614.5-0.11 mm
Inside centring diameter (diz)
473.5+0.10 mm
Outer ring inner diameter (Di)
545.5 mm
Inner ring outer diameter (da)
542.5 mm
Catalogue outer ring height
44 mm
Catalogue inner ring height
44 mm

Mounting

Outer ring bolt circle (La)
590 mm
Outer ring mounting-hole count (na)
32
Inner ring bolt circle (Li)
498 mm
Inner ring mounting-hole count (ni)
32
Outer ring mounting-hole diameter (Øa)
14 mm
Inner ring mounting-hole diameter (Øi)
14 mm
MERYDOM CERTIFIED SPECIFICATION

IMO 10-20 0541/0-02023 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model10-20 0541/0-02023
Certified interchangeable withIMO 10-20 0541/0-02023
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandIMO
Series120 Series
Reference model10-20 0541/0-02023
System of measurementMetric
Bearing structureFour-point contact ball
Gear arrangementUngeared
Dimensions
Overall outside diameter (Da)616 mm
Overall inside diameter (di)472 mm
Assembly weight (G)37 kg
Overall height (H)56 mm
Outside centring diameter (Daz)614.5-0.11 mm
Inside centring diameter (diz)473.5+0.10 mm
Outer ring inner diameter (Di)545.5 mm
Inner ring outer diameter (da)542.5 mm
Catalogue outer ring height44 mm
Catalogue inner ring height44 mm
Mounting
Outer ring bolt circle (La)590 mm
Outer ring mounting-hole count (na)32
Inner ring bolt circle (Li)498 mm
Inner ring mounting-hole count (ni)32
Outer ring mounting-hole diameter (Øa)14 mm
Inner ring mounting-hole diameter (Øi)14 mm
Ratings
Static radial load rating (Co_rad)334 kN
Static axial load rating (Co_ax)780 kN
Dynamic radial load rating (C_rad)173 kN
Dynamic axial load rating (C_ax)174 kN
Miscellaneous
Catalogue grease point count4
Catalogue grease point ringOuter ring
Catalogue grease interface specificationTaper type grease nipples on circumference
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

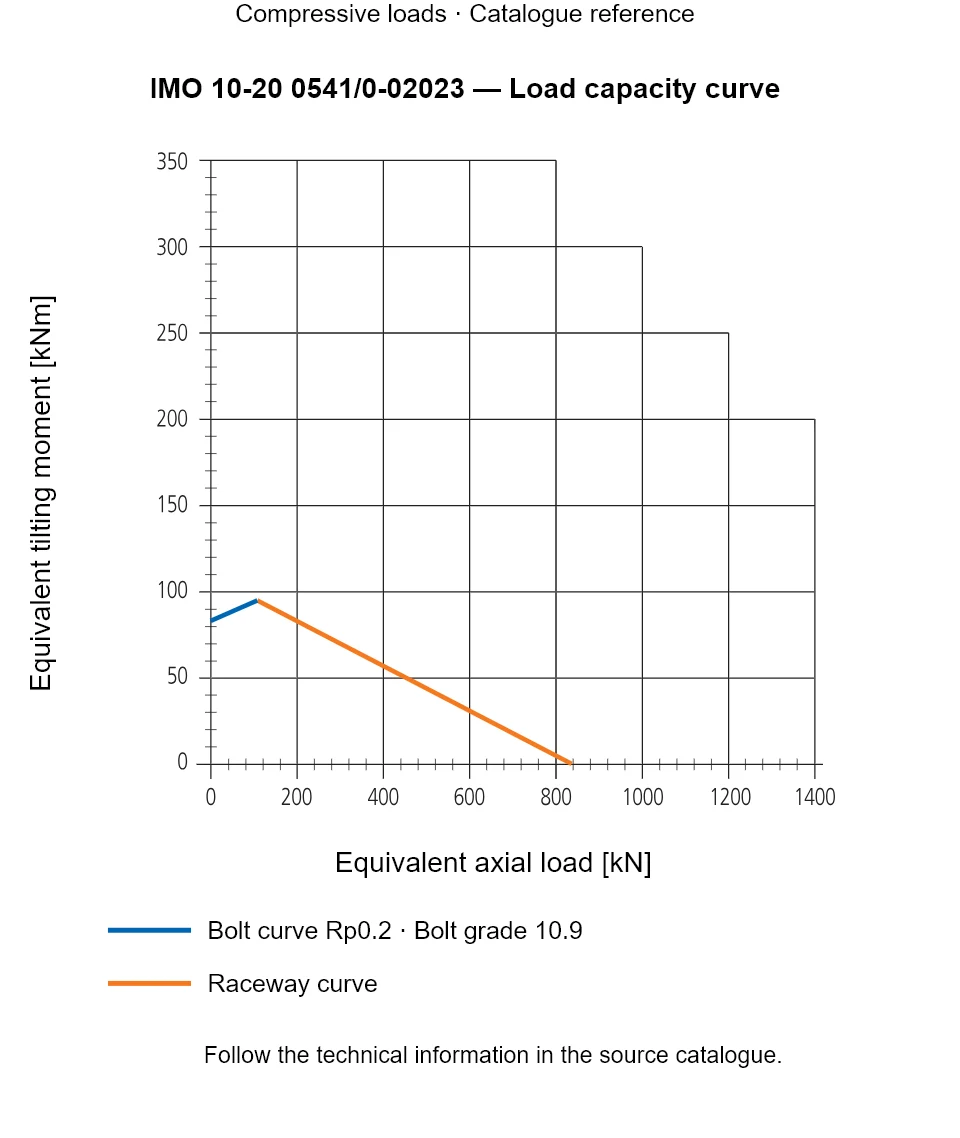

IMO 10-20 0541/0-02023 — Load capacity curve

IMO 10-20 0541/0-02023 — Load capacity curve

IMO 10-20 0541/0-02023 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.

IMO 10-20 0541/0-02023 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for IMO 10-20 0541/0-02023

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

  • Matching model designation and installation envelope
  • Reviewed mounting-hole and bolt-circle interfaces
  • Gear arrangement matched to the referenced configuration

MERYDOM construction

  • Configurable 42CrMo or 50Mn ring material options
  • NBR nitrile-rubber sealing system
  • Configurable engineering nylon or brass spacer options

Factory documentation

  • Engineering verification by MERYDOM Engineering Department
  • Verification evidence is maintained in the controlled internal record
  • Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

  • Confirm support flatness, bolt grade and preload
  • Verify applied loads, duty cycle and lubrication
  • Confirm temperature, environment and installation conditions
MERYDOM REPLACEMENT SUPPORT

Ready for price, delivery and application confirmation?

Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 10-20 0541/0-02023.
