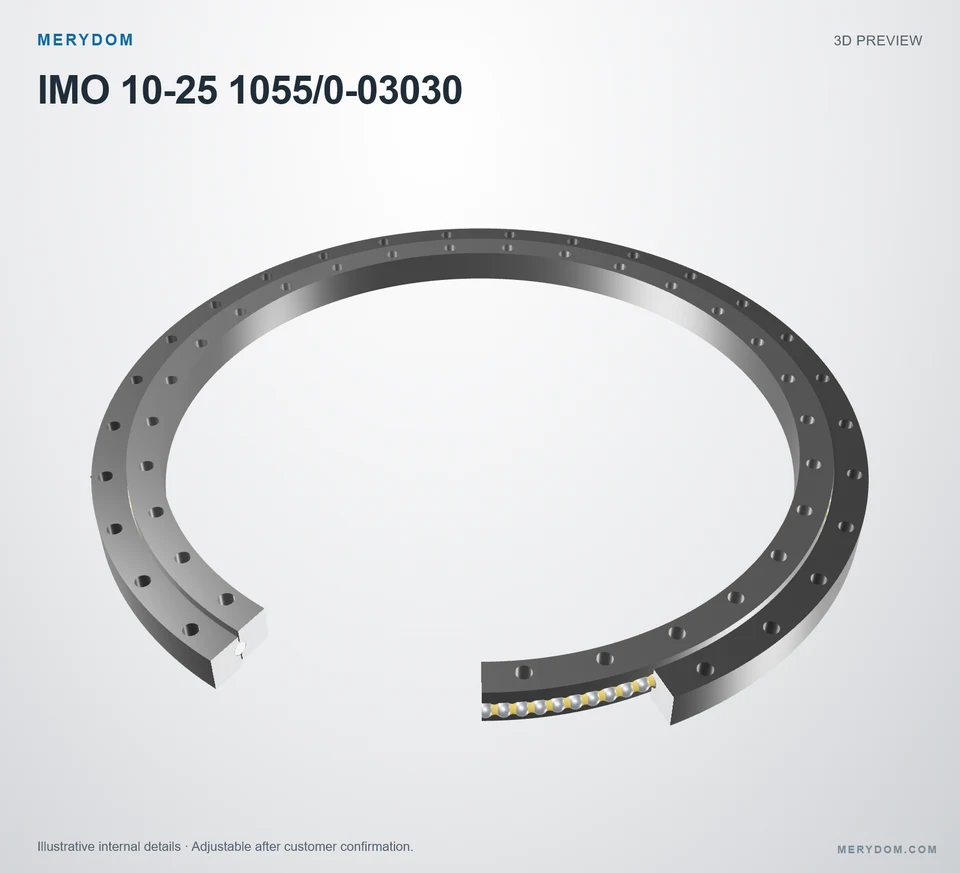

IMO 10-25 1055/0-03030 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 10-25 1055/0-03030 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 10-25 1055/0-03030 reference belongs to the 125 Series and uses a four-point contact ball, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
10-25 1055/0-03030
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with IMO 10-25 1055/0-03030.
- Overall OD (Do)
- 1155 mm
- Overall ID (di)
- 955 mm
- Overall height
- Not published
- Gear arrangement
- Ungeared
- Mounting holes
- 30 / 30 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

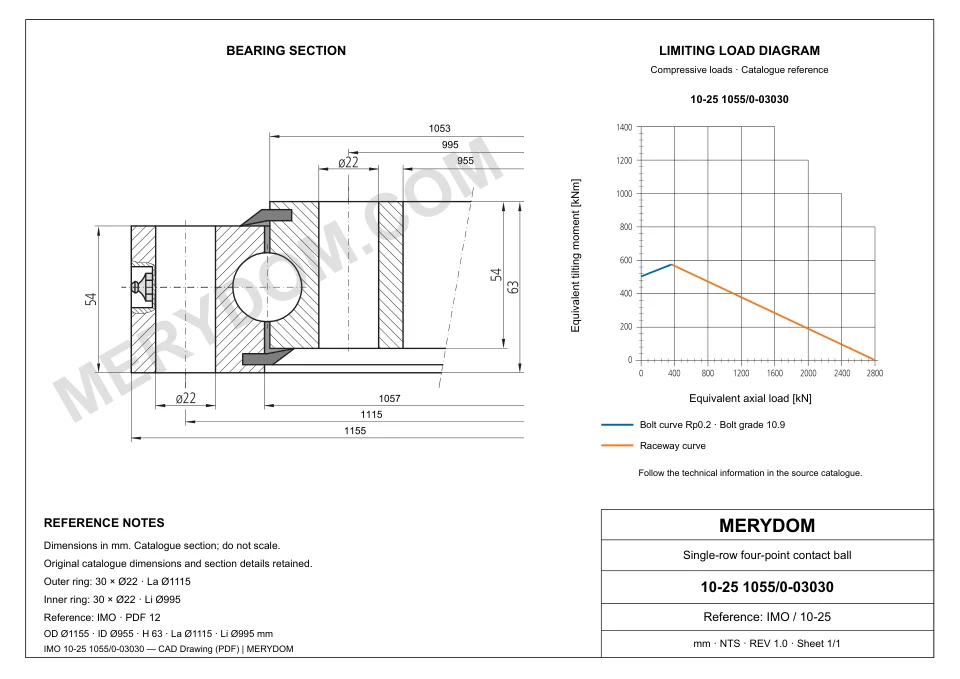

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 1,155 mm
- Overall inside diameter (di)
- 955 mm
- Assembly weight (G)
- 128 kg
Mounting
- Outer ring bolt circle (La)
- 1,115 mm
- Outer ring mounting-hole count (na)
- 30
- Inner ring bolt circle (Li)
- 995 mm
- Inner ring mounting-hole count (ni)
- 30
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 10-25 1055/0-03030 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 10-25 1055/0-03030 |
| Certified interchangeable with | IMO 10-25 1055/0-03030 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 125 Series |
| Reference model | 10-25 1055/0-03030 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Da) | 1,155 mm |
| Overall inside diameter (di) | 955 mm |
| Assembly weight (G) | 128 kg |
| Mounting | |
| Outer ring bolt circle (La) | 1,115 mm |
| Outer ring mounting-hole count (na) | 30 |
| Inner ring bolt circle (Li) | 995 mm |
| Inner ring mounting-hole count (ni) | 30 |
| Ratings | |
| Static radial load rating (Co_rad) | 1,051 kN |
| Static axial load rating (Co_ax) | 2,813 kN |
| Dynamic radial load rating (C_rad) | 340 kN |
| Dynamic axial load rating (C_ax) | 396 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

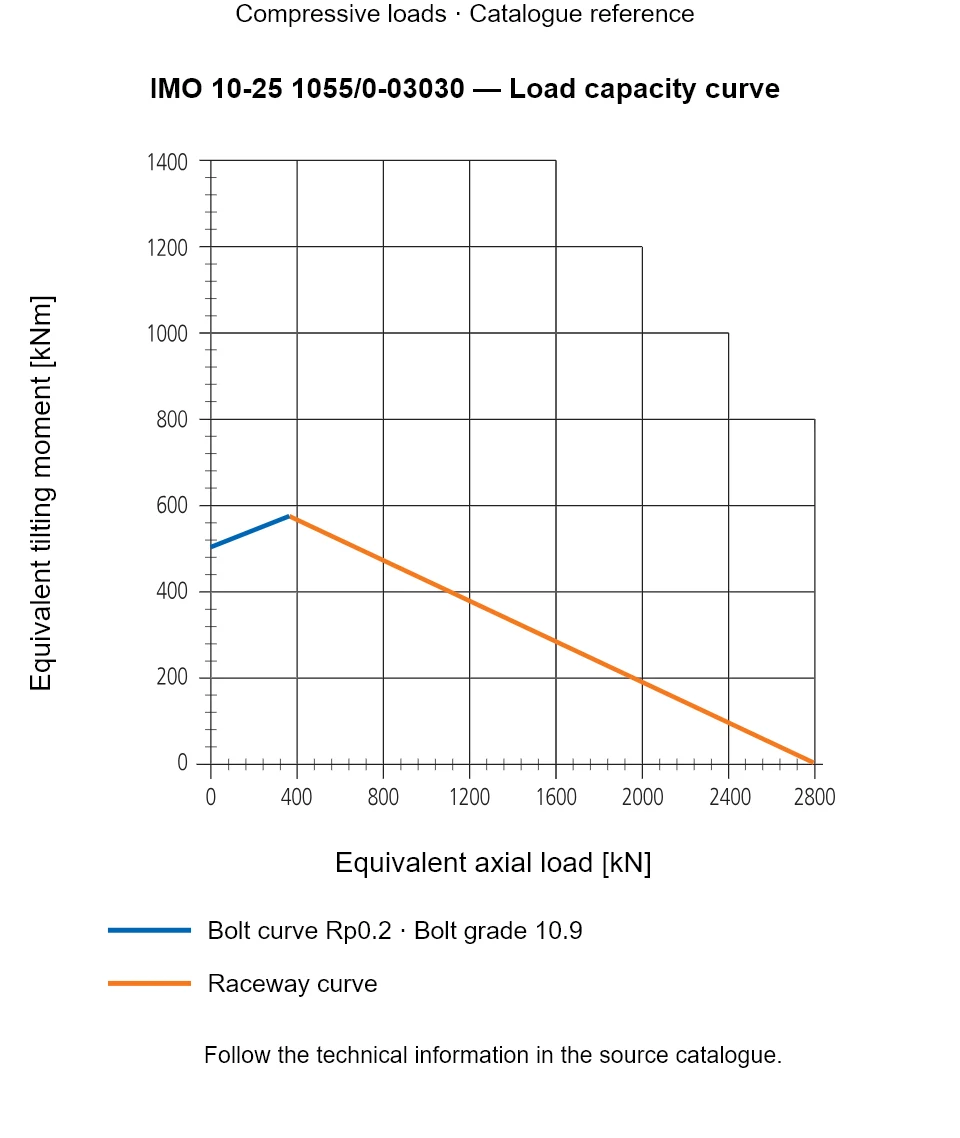

SERIES LOAD CAPACITY
125 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 10-25 1055/0-03030
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
