Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
IMO 11-20 0311/1-02102 Slewing Bearing Replacement

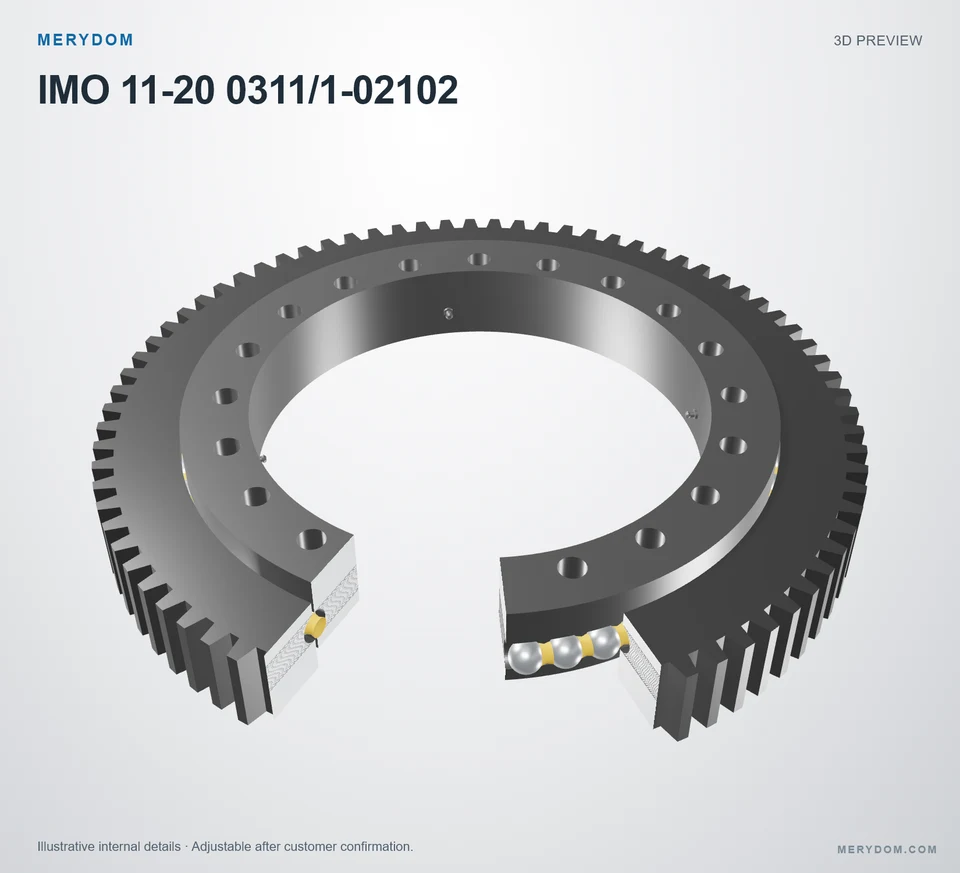

Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 11-20 0311/1-02102 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 11-20 0311/1-02102 reference belongs to the 120 Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
11-20 0311/1-02102
MERYDOM-manufactured slewing bearing certified for interchange with IMO 11-20 0311/1-02102.
- Overall OD (Do)
- 404.0 mm
- Overall ID (di)
- 242 mm
- Overall height
- 56 mm
- Gear arrangement
- External gear
- Mounting holes
- 20 / 20 outer / inner
- Bearing design
- Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- Controlled materials
- Factory documentation

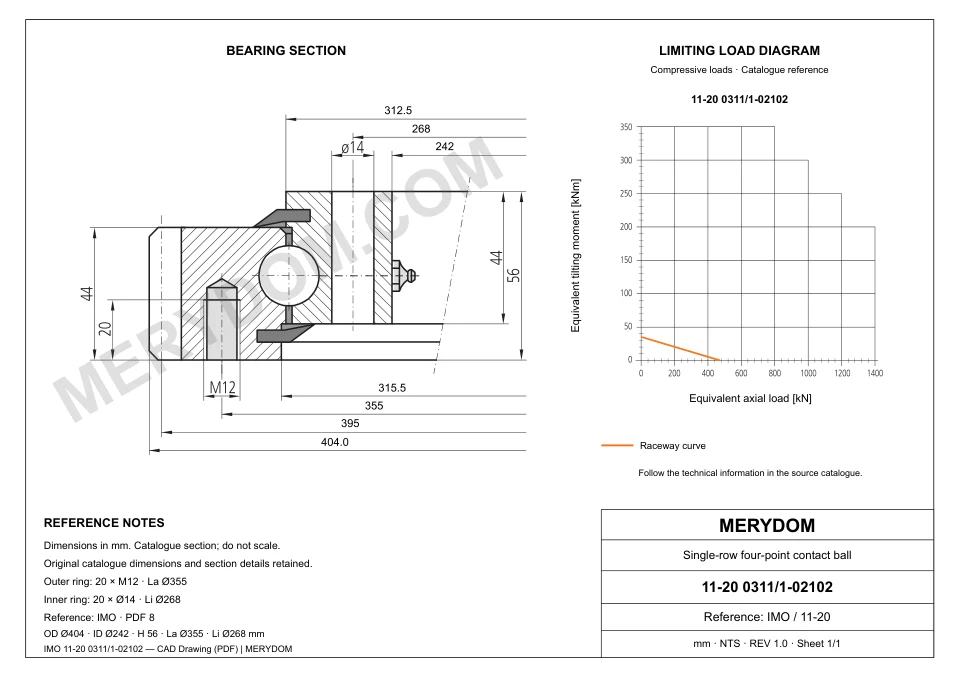

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 404 mm
- Overall inside diameter (di)
- 242 mm
- Overall height (H)
- 56 mm
- Outer ring inner diameter (Di)
- 315.5 mm
- Inner ring outer diameter (da)
- 312.5 mm
- Assembly weight (G)
- 23 kg
- Catalogue outer ring height
- 44 mm
- Catalogue inner ring height
- 44 mm
Mounting
- Outer ring bolt circle (La)
- 355 mm
- Outer ring mounting-hole count (na)
- 20
- Inner ring bolt circle (Li)
- 268 mm
- Inner ring mounting-hole count (ni)
- 20
- Outer ring mounting-hole specification (Ma)
- M12
- Inner ring mounting-hole diameter (Øi)
- 14 mm
Gear
- Gear pitch diameter (d)
- 395 mm
- Gear module (m)
- 5 mm
- Gear tooth count (z)
- 79
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 11-20 0311/1-02102 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 11-20 0311/1-02102 |
| Certified interchangeable with | IMO 11-20 0311/1-02102 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 120 Series |
| Reference model | 11-20 0311/1-02102 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Da) | 404 mm |
| Overall inside diameter (di) | 242 mm |
| Overall height (H) | 56 mm |
| Outer ring inner diameter (Di) | 315.5 mm |
| Inner ring outer diameter (da) | 312.5 mm |
| Assembly weight (G) | 23 kg |
| Catalogue outer ring height | 44 mm |
| Catalogue inner ring height | 44 mm |
| Mounting | |
| Outer ring bolt circle (La) | 355 mm |
| Outer ring mounting-hole count (na) | 20 |
| Inner ring bolt circle (Li) | 268 mm |
| Inner ring mounting-hole count (ni) | 20 |
| Outer ring mounting-hole specification (Ma) | M12 |
| Inner ring mounting-hole diameter (Øi) | 14 mm |
| Gear | |
| Gear pitch diameter (d) | 395 mm |
| Gear module (m) | 5 mm |
| Gear tooth count (z) | 79 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 11.75 kN |
| Permitted circumferential force, maximum (fz_max) | 23.5 kN |
| Static radial load rating (Co_rad) | 192 kN |
| Static axial load rating (Co_ax) | 448 kN |
| Dynamic radial load rating (C_rad) | 140 kN |
| Dynamic axial load rating (C_ax) | 140 kN |
| Miscellaneous | |
| Catalogue grease point count | 4 |
| Catalogue grease point ring | Inner ring |
| Catalogue grease interface specification | Taper type grease nipples on circumference |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

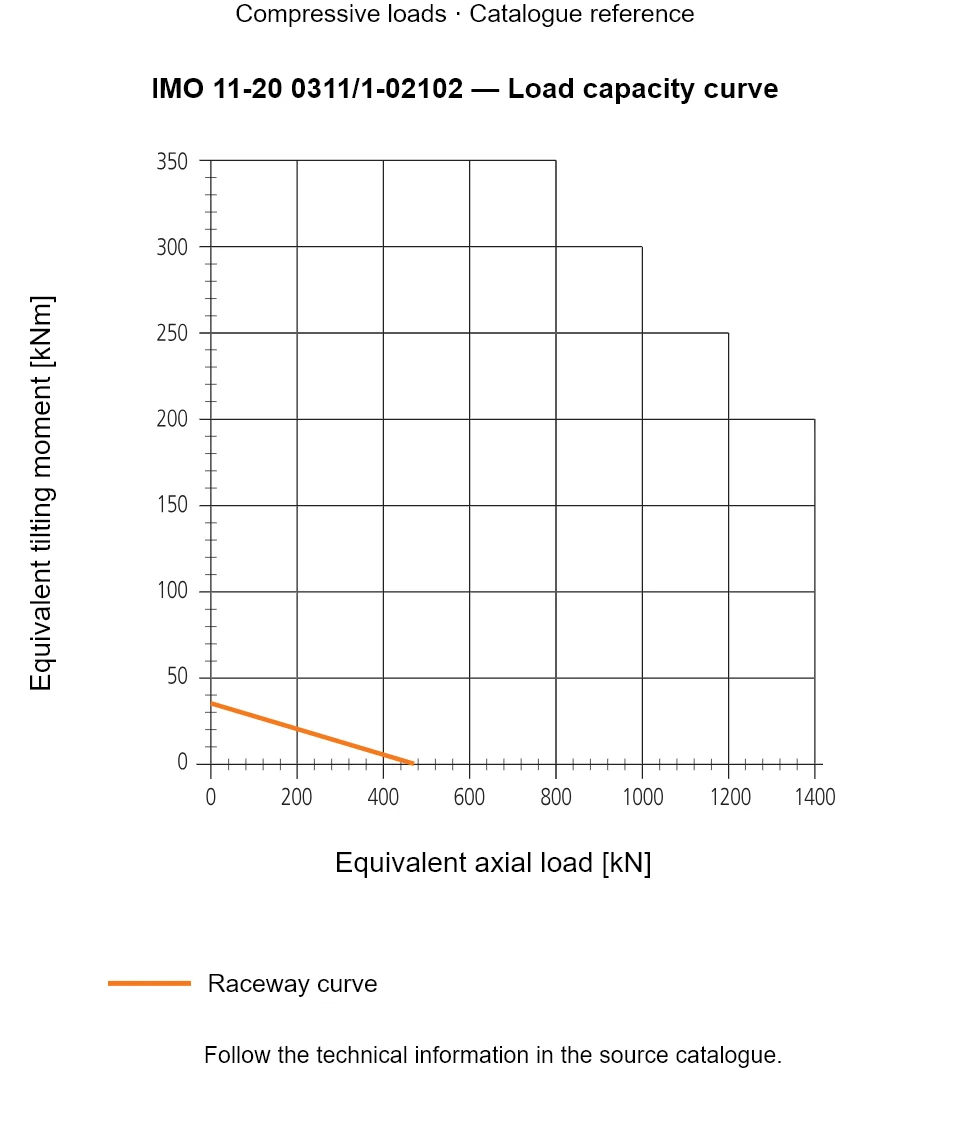

IMO 11-20 0311/1-02102 — Load capacity curve
IMO 11-20 0311/1-02102 — Load capacity curve
IMO 11-20 0311/1-02102 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 11-20 0311/1-02102
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 11-20 0311/1-02102.
