IMO 12-32 1384/2-04719 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 12-32 1384/2-04719 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 12-32 1384/2-04719 reference belongs to the Other Standard Ball Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
12-32 1384/2-04719
MERYDOM-manufactured slewing bearing certified for interchange with IMO 12-32 1384/2-04719.
- Overall OD (Do)
- 1517 mm
- Overall ID (di)
- 1176 mm
- Overall height
- 102 mm
- Gear arrangement
- Internal gear
- Mounting holes
- 48 / 48 outer / inner
- Bearing design
- Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

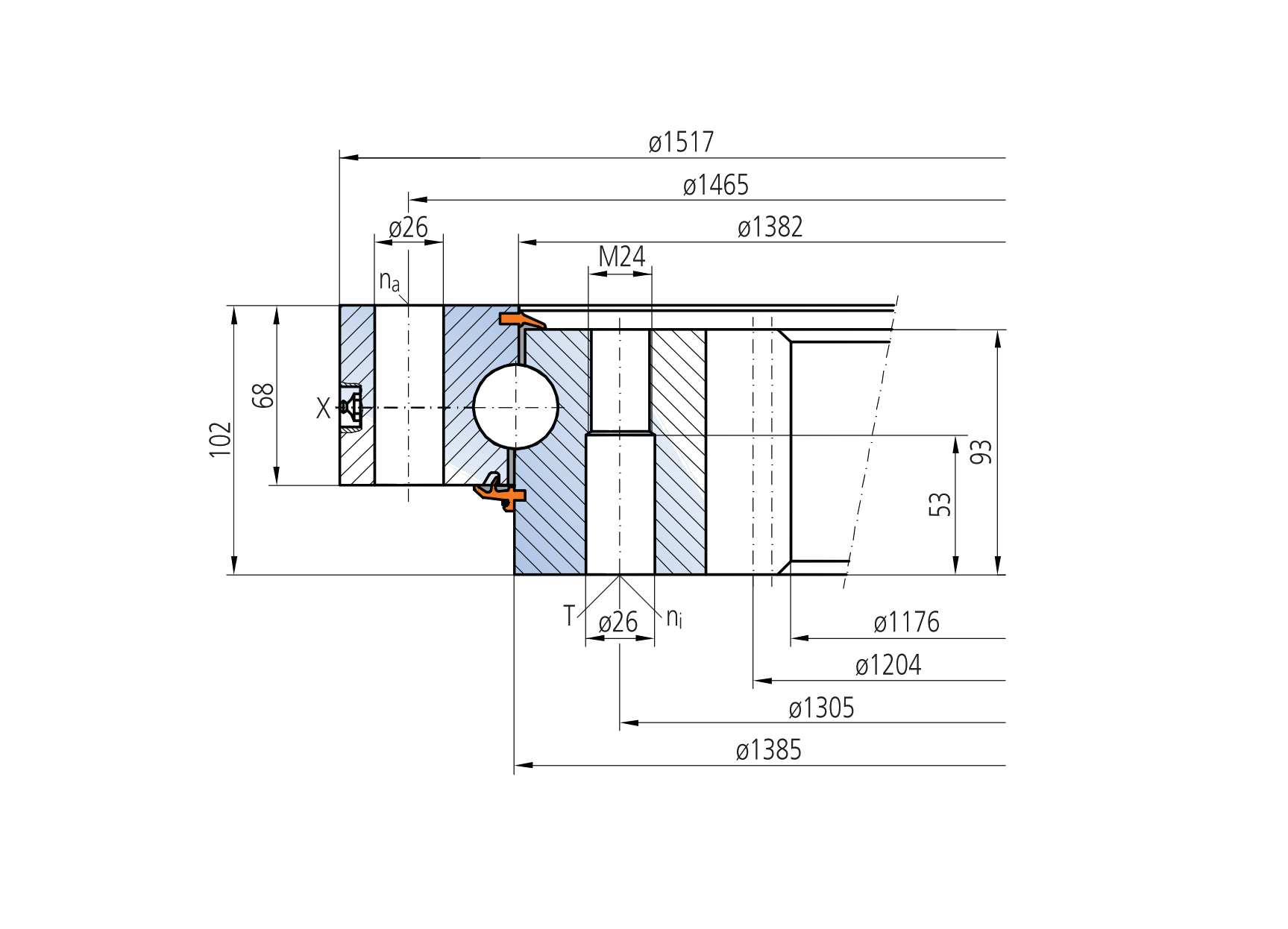

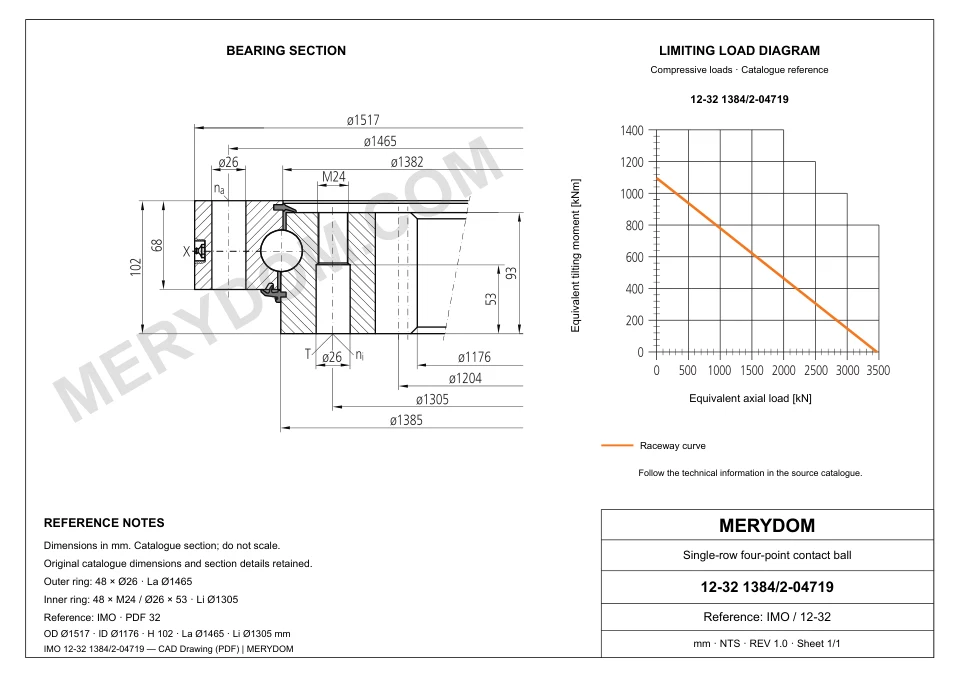

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Assembly weight (G)
- 432 kg
- Overall height (H)
- 102 mm
- Overall outside diameter (Da)
- 1,517 mm
- Overall inside diameter (di)
- 1,176 mm
Mounting
- Outer ring mounting-hole count (na)
- 48
- Inner ring mounting-hole count (ni)
- 48
- Outer ring bolt circle (La)
- 1,465 mm
- Inner ring bolt circle (Li)
- 1,305 mm
Gear
- Gear module (m)
- 14 mm
- Gear tooth count (z)
- 85
- Addendum modification coefficient (x)
- -0.5
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 12-32 1384/2-04719 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 12-32 1384/2-04719 |
| Certified interchangeable with | IMO 12-32 1384/2-04719 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | Other Standard Ball Series |
| Reference model | 12-32 1384/2-04719 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Assembly weight (G) | 432 kg |
| Overall height (H) | 102 mm |
| Overall outside diameter (Da) | 1,517 mm |
| Overall inside diameter (di) | 1,176 mm |
| Mounting | |
| Outer ring mounting-hole count (na) | 48 |
| Inner ring mounting-hole count (ni) | 48 |
| Outer ring bolt circle (La) | 1,465 mm |
| Inner ring bolt circle (Li) | 1,305 mm |
| Gear | |
| Gear module (m) | 14 mm |
| Gear tooth count (z) | 85 |
| Addendum modification coefficient (x) | -0.5 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 109 kN |
| Permitted circumferential force, maximum (fz_max) | 183 kN |
| Static radial load rating (Co_rad) | 1,295 kN |
| Static axial load rating (Co_ax) | 3,464 kN |
| Dynamic radial load rating (C_rad) | 477 kN |
| Dynamic axial load rating (C_ax) | 556 kN |
| Radial clearance (SRad) | 0.08 - 0.32 mm |
| Axial tilting clearance (Skipp) | 0.13 - 0.52 mm |
| Miscellaneous | |
| Reference catalog ring material (inner / outer) (Material) | 42CrMo4V |
| Reference catalog transport holes (T) | 3 x M16 |
| Reference catalog grease nipple specification (X) | 6x AM10x1 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

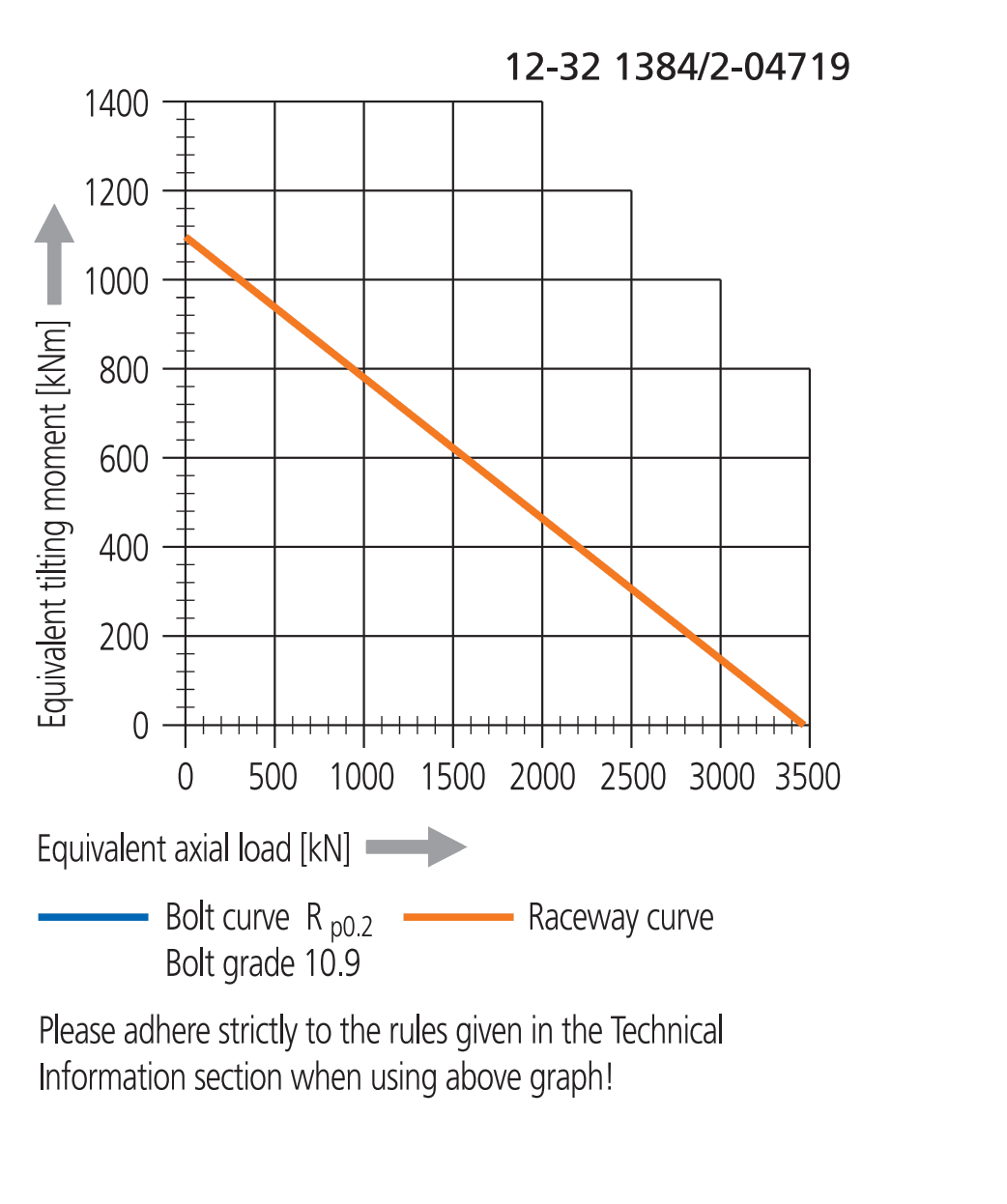

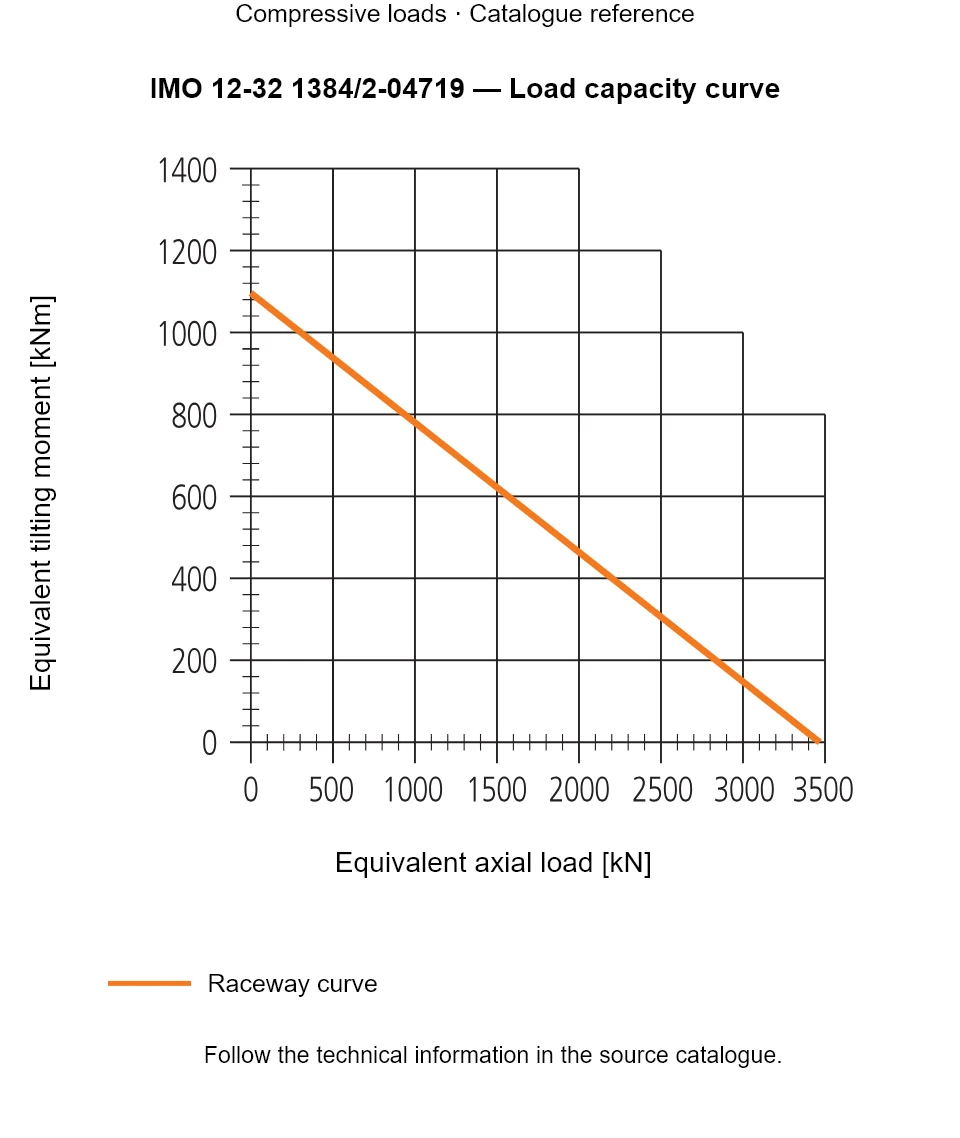

IMO 12-32 1384/2-04719 — Load capacity curve
IMO 12-32 1384/2-04719 — Load capacity curve
IMO 12-32 1384/2-04719 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING

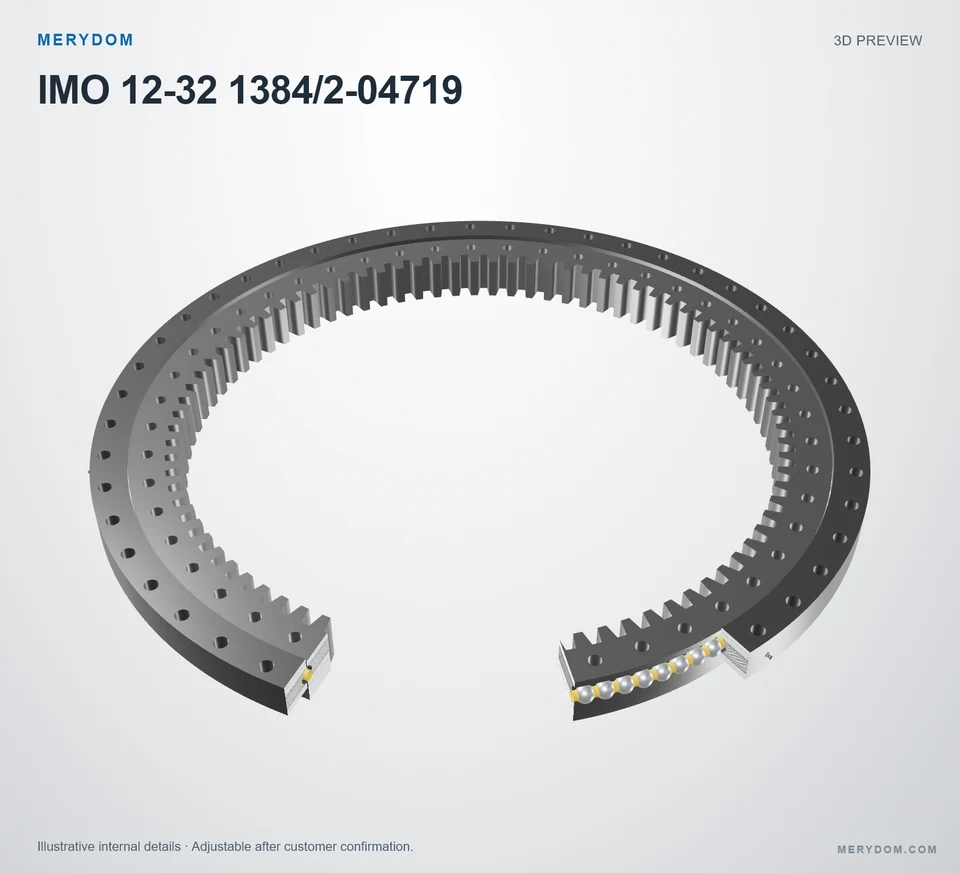

MERYDOM Replacement for IMO 12-32 1384/2-04719
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
