IMO 90-32 1355/0-06055 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the IMO 90-32 1355/0-06055 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The IMO 90-32 1355/0-06055 reference belongs to the 932 Series and uses a ball bearing with flange rings, ungeared slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

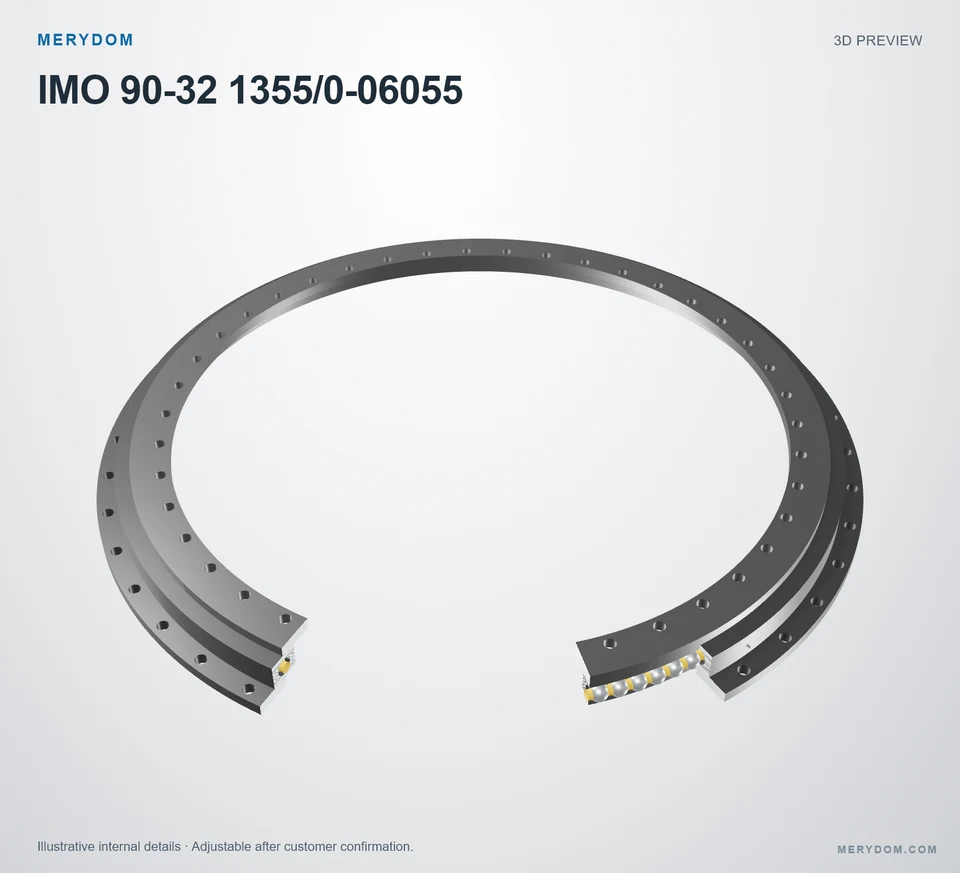

Internal-view preview of the MERYDOM replacement slewing bearing for IMO 90-32 1355/0-06055.
MERYDOM BRAND · CERTIFIED REPLACEMENT

90-32 1355/0-06055

MERYDOM-manufactured slewing bearing certified for interchange with IMO 90-32 1355/0-06055.

Certified product dataView complete specifications ↓
Overall OD (Do)
1500 mm
Overall ID (di)
1205 mm
Overall height
90 mm
Gear arrangement
Ungeared
Mounting holes
42 / 42 outer / inner
Bearing design
Ball bearing with flange rings
MERYDOM VerifiedLevel 3 · Engineering verification record
Factory assurance
  • Certified dimensional interchange
  • Controlled materials
  • Factory documentation

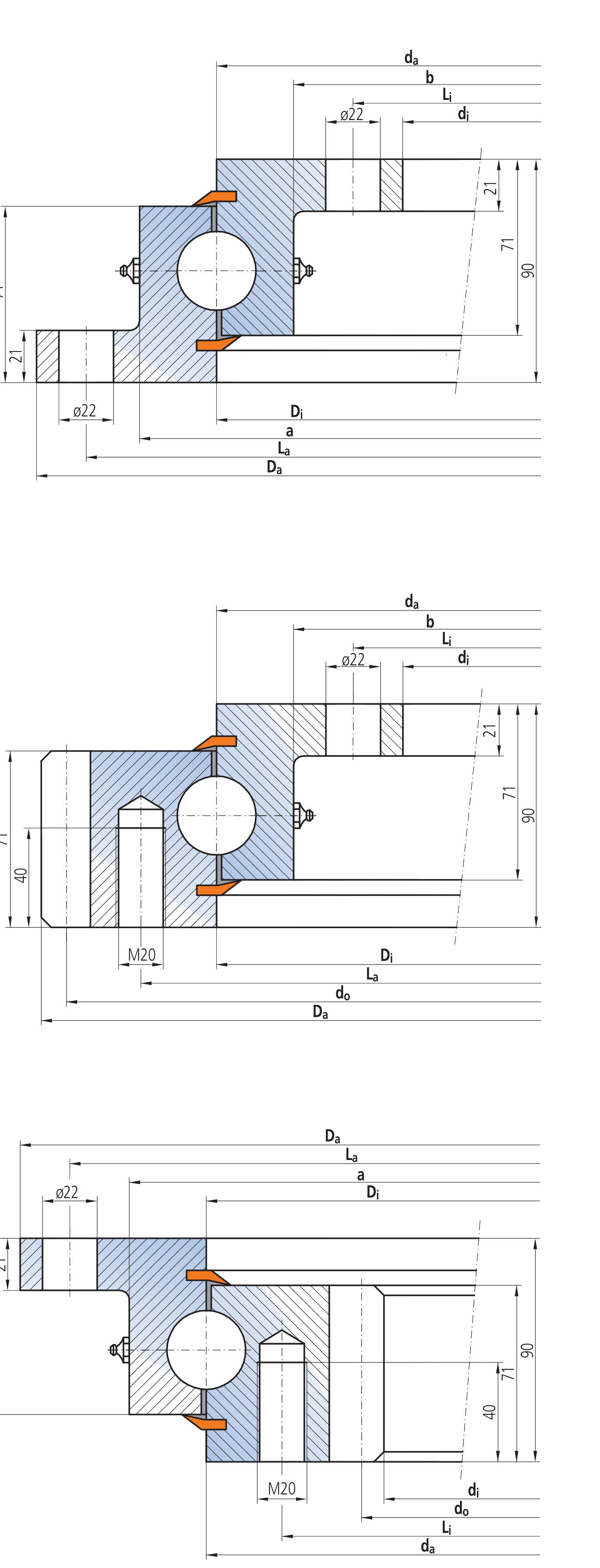

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Da)
1,500 mm
Overall inside diameter (di)
1,205 mm
Assembly weight (G)
186 kg
Overall height (H)
90 mm
Outer ring inner diameter (Di)
1,355 mm
Inner ring outer diameter (da)
1,355 mm
Outer ring flange diameter a (a)
1,417 mm
Inner ring flange diameter b (b)
1,293 mm

Mounting

Outer ring bolt circle (La)
1,460 mm
Outer ring mounting-hole count (na)
42
Inner ring bolt circle (Li)
1,245 mm
Inner ring mounting-hole count (ni)
42
Outer ring mounting-hole diameter (Øa)
22 mm
Inner ring mounting-hole diameter (Øi)
22 mm
MERYDOM CERTIFIED SPECIFICATION

IMO 90-32 1355/0-06055 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model90-32 1355/0-06055
Certified interchangeable withIMO 90-32 1355/0-06055
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandIMO
Series932 Series
Reference model90-32 1355/0-06055
System of measurementMetric
Bearing structureBall bearing with flange rings
Gear arrangementUngeared
Dimensions
Overall outside diameter (Da)1,500 mm
Overall inside diameter (di)1,205 mm
Assembly weight (G)186 kg
Overall height (H)90 mm
Outer ring inner diameter (Di)1,355 mm
Inner ring outer diameter (da)1,355 mm
Outer ring flange diameter a (a)1,417 mm
Inner ring flange diameter b (b)1,293 mm
Mounting
Outer ring bolt circle (La)1,460 mm
Outer ring mounting-hole count (na)42
Inner ring bolt circle (Li)1,245 mm
Inner ring mounting-hole count (ni)42
Outer ring mounting-hole diameter (Øa)22 mm
Inner ring mounting-hole diameter (Øi)22 mm
Ratings
Static radial load rating (Co_rad)1,460 kN
Static axial load rating (Co_ax)3,908 kN
Dynamic radial load rating (C_rad)469 kN
Dynamic axial load rating (C_ax)546 kN
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

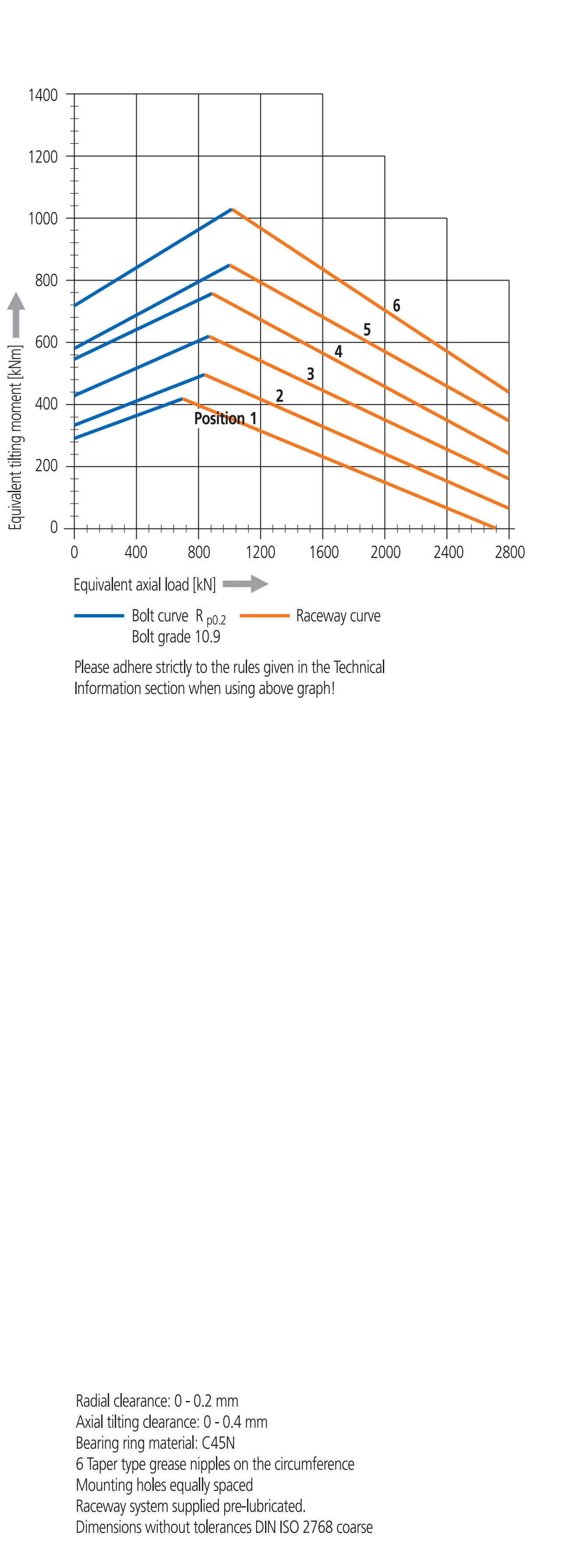

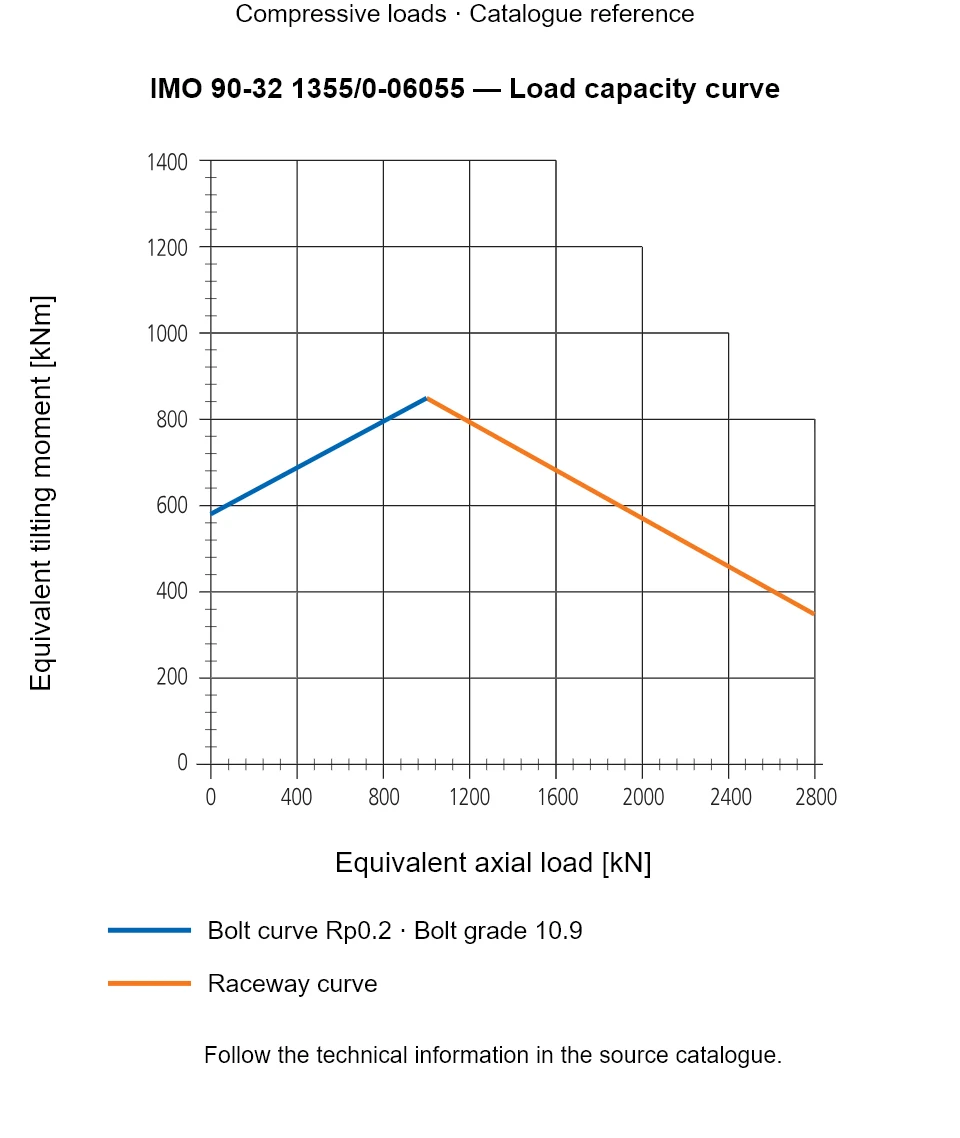

IMO 90-32 1355/0-06055 — Load capacity curve

IMO 90-32 1355/0-06055 — Load capacity curve

IMO 90-32 1355/0-06055 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.

IMO 90-32 1355/0-06055 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for IMO 90-32 1355/0-06055

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

  • Matching model designation and installation envelope
  • Reviewed mounting-hole and bolt-circle interfaces
  • Gear arrangement matched to the referenced configuration

MERYDOM construction

  • Configurable 42CrMo or 50Mn ring material options
  • NBR nitrile-rubber sealing system
  • Configurable engineering nylon or brass spacer options

Factory documentation

  • Engineering verification by MERYDOM Engineering Department
  • Verification evidence is maintained in the controlled internal record
  • Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

  • Confirm support flatness, bolt grade and preload
  • Verify applied loads, duty cycle and lubrication
  • Confirm temperature, environment and installation conditions
