Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration

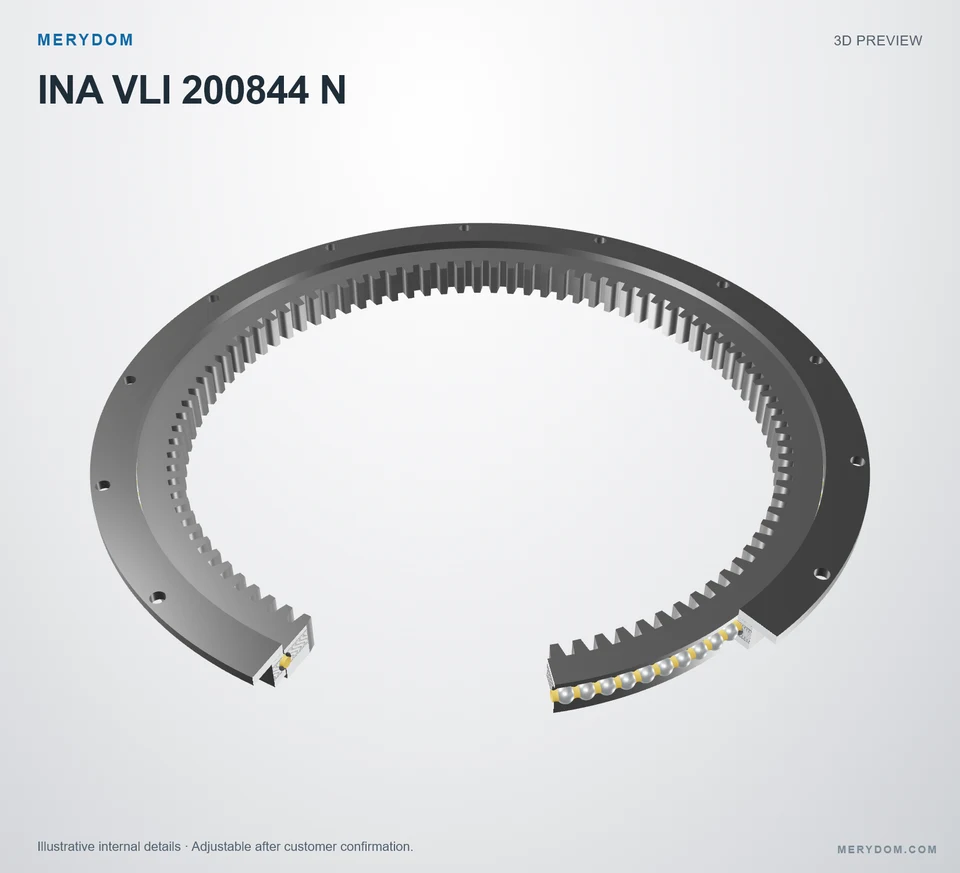

INA VLI 200844 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA VLI 200844 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA VLI 200844 N reference belongs to the Vli 20 Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
VLI 200844 N
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with INA VLI 200844 N.
- Overall OD (Do)
- 948–0,6 mm
- Overall ID (di)
- 736 mm
- Overall height
- Not published
- Gear arrangement
- Internal gear
- Mounting holes
- 14 / 20 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

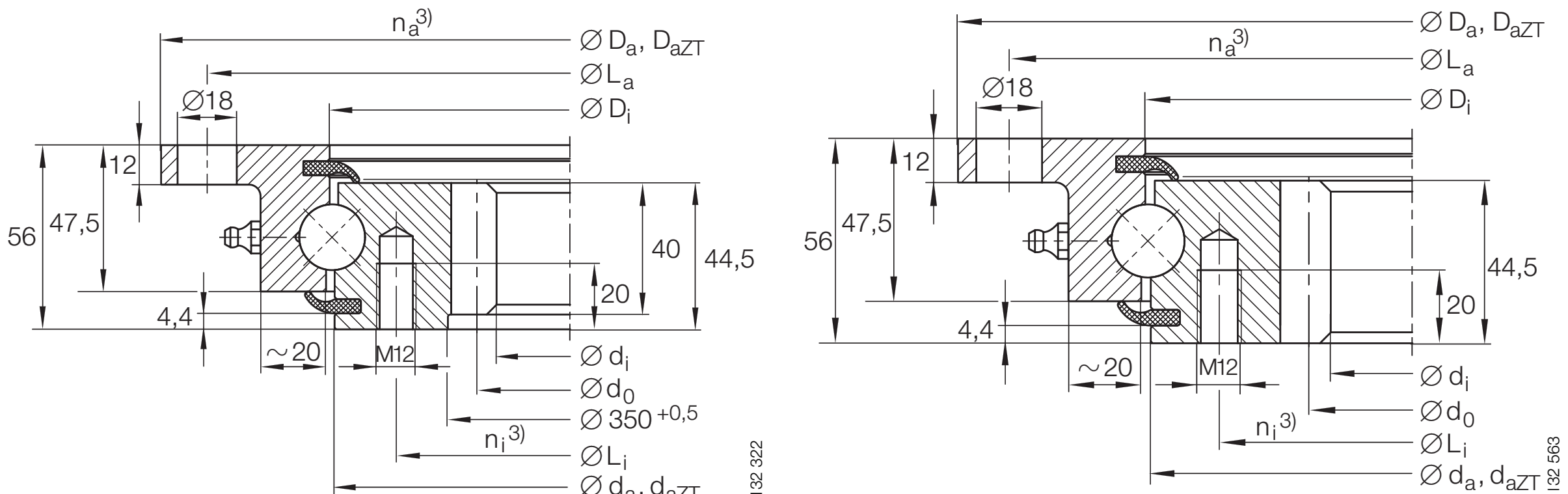

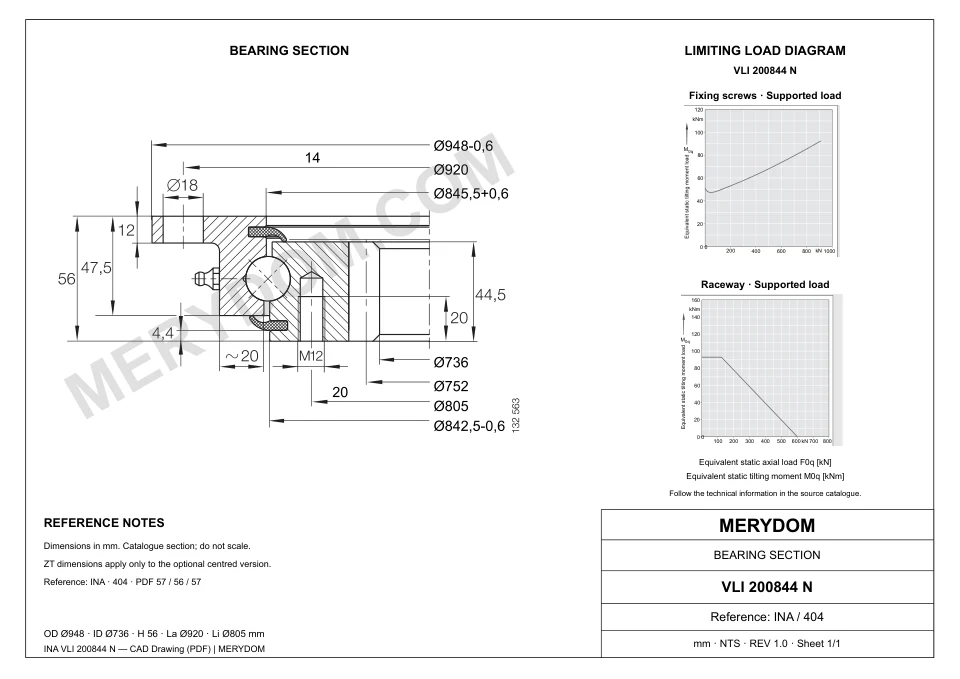

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 61.5 kg
- Overall outside diameter (Da)
- 948–0,6 mm
- Outside centring diameter (DaZT)
- 946 mm
- Overall inside diameter (di)
- 736 mm
- Catalog diameter Di (Di)
- 845,5+0,6 mm
- Catalog diameter da (da)
- 842,5–0,6 mm
- Catalog centring diameter daZT (daZT)
- 841 mm
Mounting
- Outer ring bolt circle (La)
- 920 mm
- Outer ring mounting-hole count (na)
- 14
- Inner ring bolt circle (Li)
- 805 mm
- Inner ring mounting-hole count (ni)
- 20
Gear
- Gear pitch diameter (d0)
- 752 mm
- Gear module (m)
- 8 mm
- Gear tooth count (z)
- 94
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA VLI 200844 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VLI 200844 N |
| Certified interchangeable with | INA VLI 200844 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Vli 20 Series |
| Reference model | VLI 200844 N |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Mass (Mass) | 61.5 kg |
| Overall outside diameter (Da) | 948–0,6 mm |
| Outside centring diameter (DaZT) | 946 mm |
| Overall inside diameter (di) | 736 mm |
| Catalog diameter Di (Di) | 845,5+0,6 mm |
| Catalog diameter da (da) | 842,5–0,6 mm |
| Catalog centring diameter daZT (daZT) | 841 mm |
| Mounting | |
| Outer ring bolt circle (La) | 920 mm |
| Outer ring mounting-hole count (na) | 14 |
| Inner ring bolt circle (Li) | 805 mm |
| Inner ring mounting-hole count (ni) | 20 |
| Gear | |
| Gear pitch diameter (d0) | 752 mm |
| Gear module (m) | 8 mm |
| Gear tooth count (z) | 94 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 82.6 kN |
| Normal tooth force (Fznorm) | 31.4 kN |
| Maximum tooth force (Fzmax) | 46.7 kN |
| Basic dynamic axial load rating (Ca) | 222 kN |
| Basic static axial load rating (C0a) | 600 kN |
| Basic dynamic radial load rating (Cr) | 145 kN |
| Basic static radial load rating (C0r) | 224 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

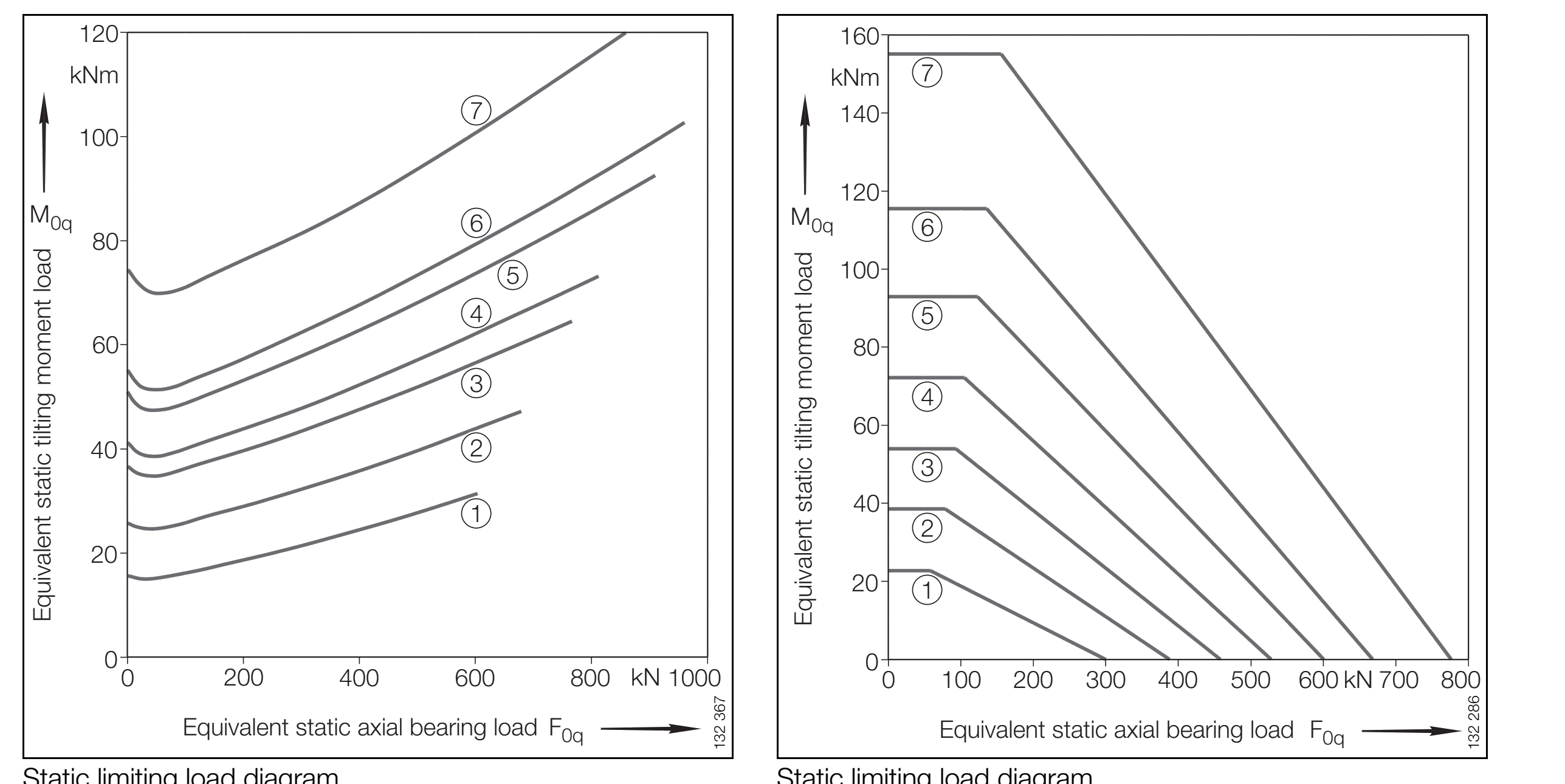

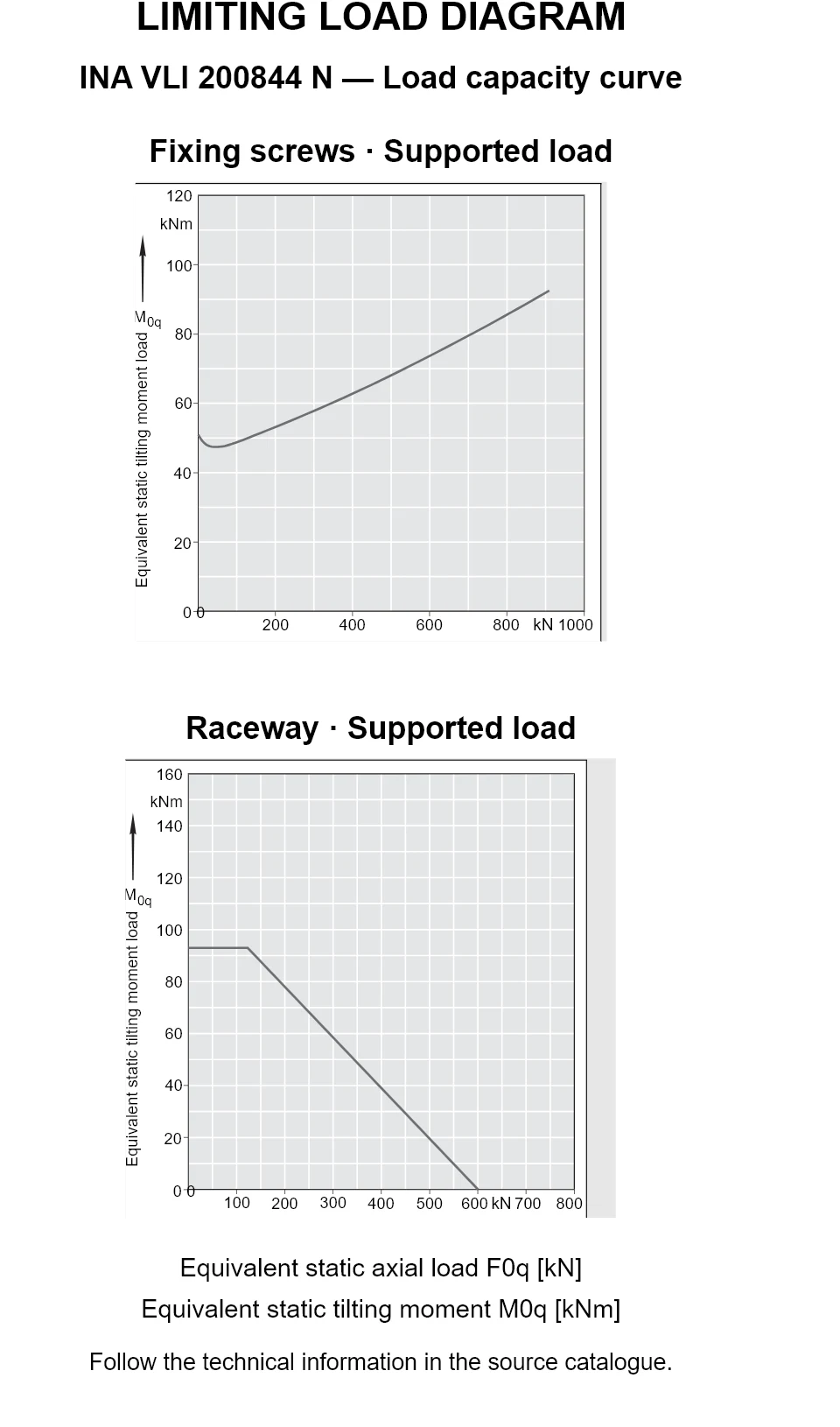

SERIES LOAD CAPACITY
Vli 20 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for INA VLI 200844 N
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model VLI 200844 N.
