INA VSA 201094 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA VSA 201094 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA VSA 201094 N reference belongs to the Vsa 20 Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
VSA 201094 N
MERYDOM-manufactured slewing bearing certified for interchange with INA VSA 201094 N.
- Overall OD (Do)
- 1198,1 mm
- Overall ID (di)
- 1022+0,7 mm
- Overall height
- 56 mm
- Gear arrangement
- External gear
- Mounting holes
- 44 / 48 outer / inner
- Bearing design
- Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- Controlled materials
- Factory documentation

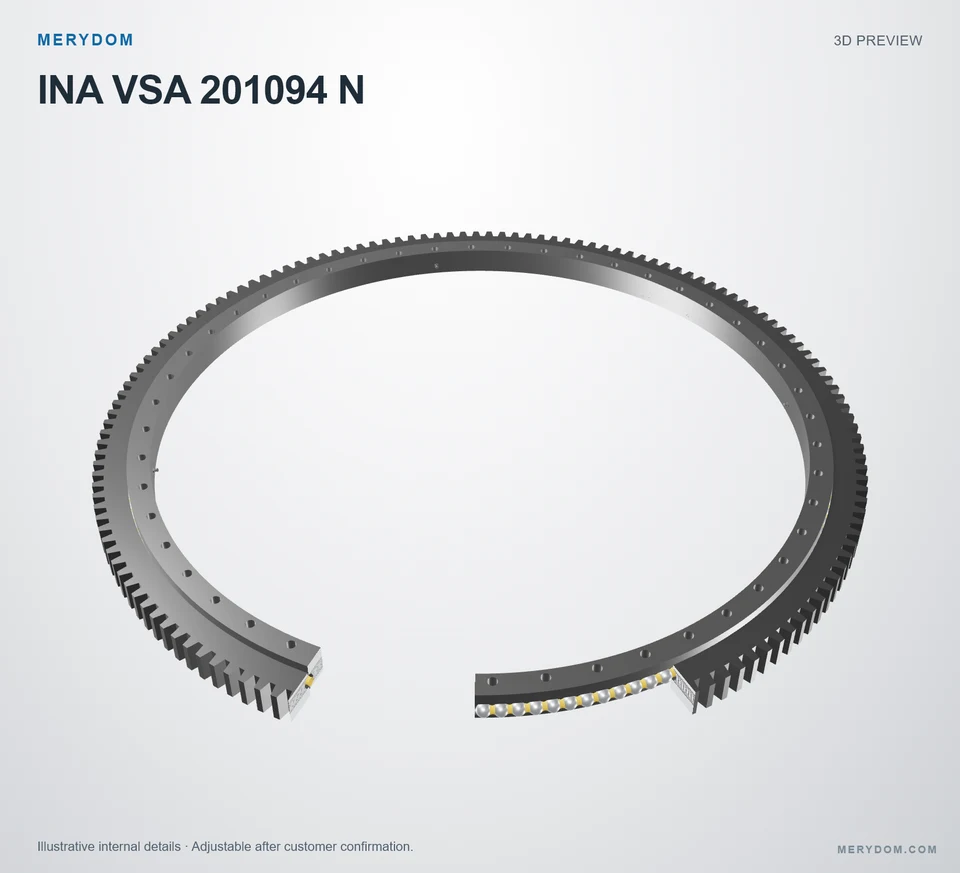

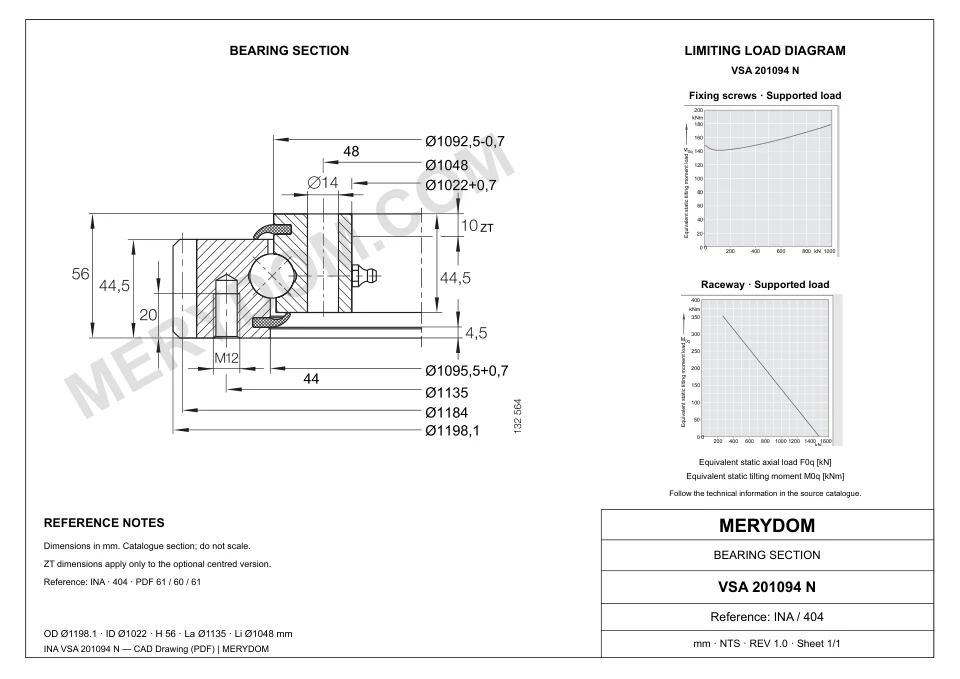

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 91 kg
- Overall outside diameter (Da)
- 1,198.1 mm
- Overall inside diameter (di)
- 1022+0,7 mm
- Inside centring diameter (diZT)
- 1,024 mm
- Catalog diameter Di (Di)
- 1095,5+0,7 mm
- Catalog centring diameter DiZT (DiZT)
- 1,097 mm
- Catalog diameter da (da)
- 1092,5–0,7 mm
- Overall height (H)
- 56 mm
Mounting
- Outer ring bolt circle (La)
- 1,135 mm
- Outer ring mounting-hole count (na)
- 44
- Inner ring bolt circle (Li)
- 1,048 mm
- Inner ring mounting-hole count (ni)
- 48
- Outer ring mounting-hole specification (M12)
- M12
- Inner ring mounting-hole diameter (Ø14)
- 14 mm
- Outer ring thread depth
- 20 mm
Gear
- Gear pitch diameter (d0)
- 1,184 mm
- Gear module (m)
- 8 mm
- Gear tooth count (z)
- 148
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA VSA 201094 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VSA 201094 N |
| Certified interchangeable with | INA VSA 201094 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Vsa 20 Series |
| Reference model | VSA 201094 N |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Mass (Mass) | 91 kg |
| Overall outside diameter (Da) | 1,198.1 mm |
| Overall inside diameter (di) | 1022+0,7 mm |
| Inside centring diameter (diZT) | 1,024 mm |
| Catalog diameter Di (Di) | 1095,5+0,7 mm |
| Catalog centring diameter DiZT (DiZT) | 1,097 mm |
| Catalog diameter da (da) | 1092,5–0,7 mm |
| Overall height (H) | 56 mm |
| Mounting | |
| Outer ring bolt circle (La) | 1,135 mm |
| Outer ring mounting-hole count (na) | 44 |
| Inner ring bolt circle (Li) | 1,048 mm |
| Inner ring mounting-hole count (ni) | 48 |
| Outer ring mounting-hole specification (M12) | M12 |
| Inner ring mounting-hole diameter (Ø14) | 14 mm |
| Gear | |
| Gear pitch diameter (d0) | 1,184 mm |
| Gear module (m) | 8 mm |
| Gear tooth count (z) | 148 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 181.7 kN |
| Normal tooth force (Fznorm) | 28.3 kN |
| Maximum tooth force (Fzmax) | 42 kN |
| Basic dynamic axial load rating (Ca) | 244 kN |
| Basic static axial load rating (C0a) | 1,490 kN |
| Basic dynamic radial load rating (Cr) | 160 kN |
| Basic static radial load rating (C0r) | 660 kN |
| Mounting | |
| Outer ring thread depth | 20 mm |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

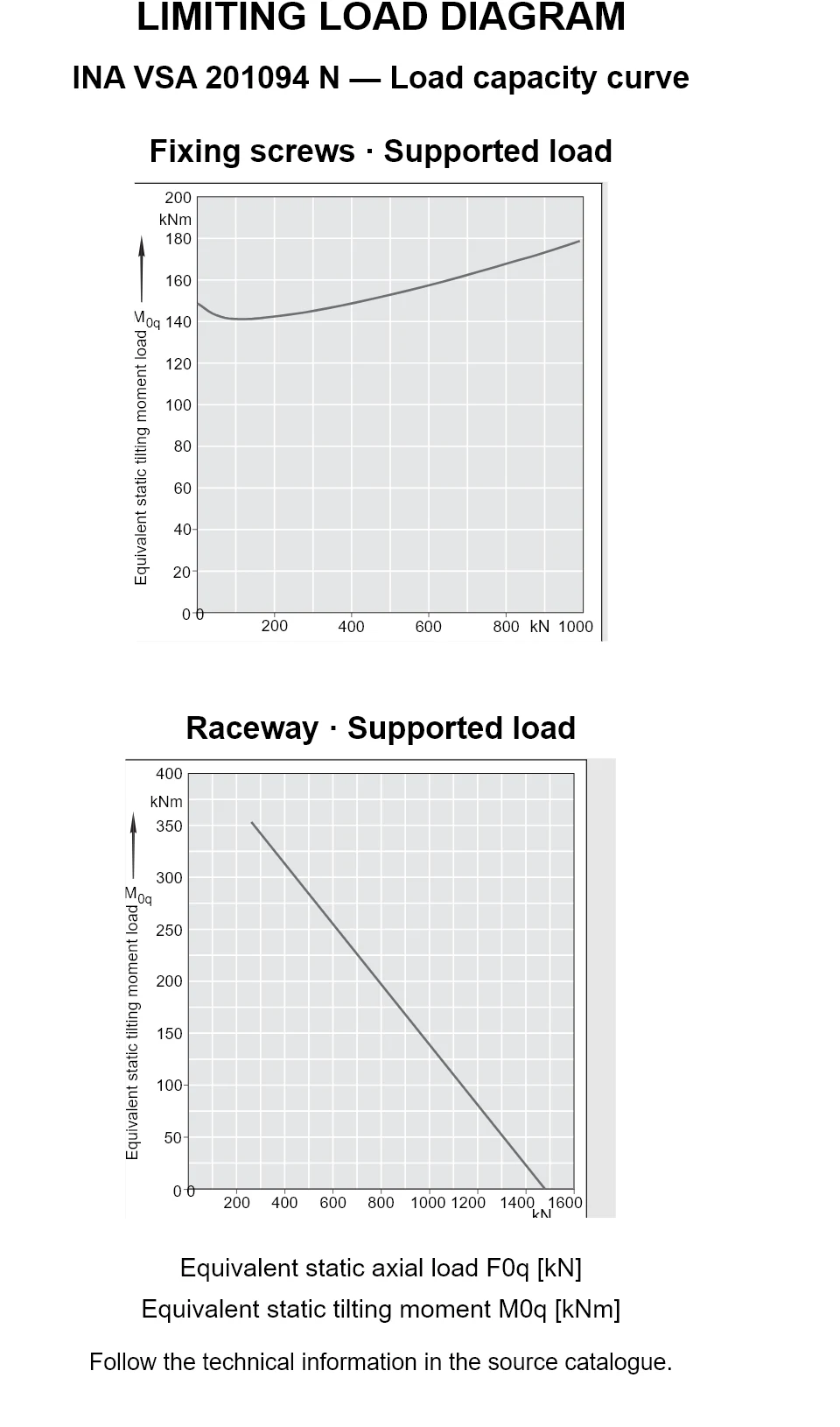

INA VSA 201094 N — Load capacity curve
