INA VSI 200544 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA VSI 200544 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA VSI 200544 N reference belongs to the Vsi 20 Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
VSI 200544 N
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with INA VSI 200544 N.
- Overall OD (Do)
- 616–0,5 mm
- Overall ID (di)
- 444 mm
- Overall height
- Not published
- Gear arrangement
- Internal gear
- Mounting holes
- 32 / 32 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 42 kg
- Overall outside diameter (Da)
- 616–0,5 mm
- Outside centring diameter (DaZT)
- 614 mm
- Overall inside diameter (di)
- 444 mm
- Catalog diameter Di (Di)
- 545,5+0,5 mm
- Catalog diameter da (da)
- 542,5–0,5 mm
- Catalog centring diameter daZT (daZT)
- 541 mm
Mounting
- Outer ring bolt circle (La)
- 590 mm
- Outer ring mounting-hole count (na)
- 32
- Inner ring bolt circle (Li)
- 505 mm
- Inner ring mounting-hole count (ni)
- 32
Gear
- Gear pitch diameter (d0)
- 456 mm
- Gear module (m)
- 6 mm
- Gear tooth count (z)
- 76
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA VSI 200544 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VSI 200544 N |
| Certified interchangeable with | INA VSI 200544 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Vsi 20 Series |
| Reference model | VSI 200544 N |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Mass (Mass) | 42 kg |
| Overall outside diameter (Da) | 616–0,5 mm |
| Outside centring diameter (DaZT) | 614 mm |
| Overall inside diameter (di) | 444 mm |
| Catalog diameter Di (Di) | 545,5+0,5 mm |
| Catalog diameter da (da) | 542,5–0,5 mm |
| Catalog centring diameter daZT (daZT) | 541 mm |
| Mounting | |
| Outer ring bolt circle (La) | 590 mm |
| Outer ring mounting-hole count (na) | 32 |
| Inner ring bolt circle (Li) | 505 mm |
| Inner ring mounting-hole count (ni) | 32 |
| Gear | |
| Gear pitch diameter (d0) | 456 mm |
| Gear module (m) | 6 mm |
| Gear tooth count (z) | 76 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 132.2 kN |
| Normal tooth force (Fznorm) | 23.7 kN |
| Maximum tooth force (Fzmax) | 35 kN |
| Basic dynamic axial load rating (Ca) | 188 kN |
| Basic static axial load rating (C0a) | 740 kN |
| Basic dynamic radial load rating (Cr) | 123 kN |
| Basic static radial load rating (C0r) | 325 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

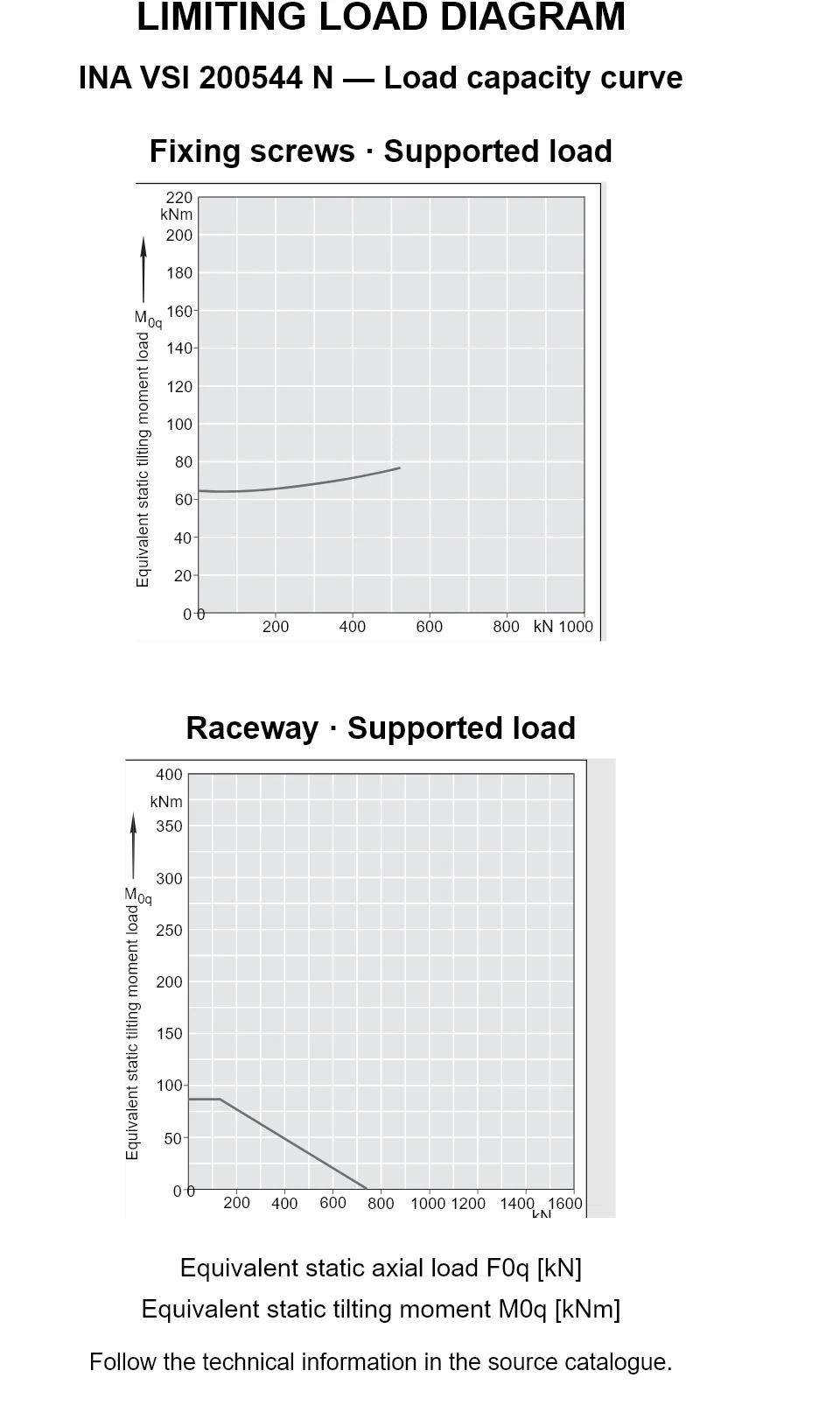

SERIES LOAD CAPACITY
Vsi 20 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING

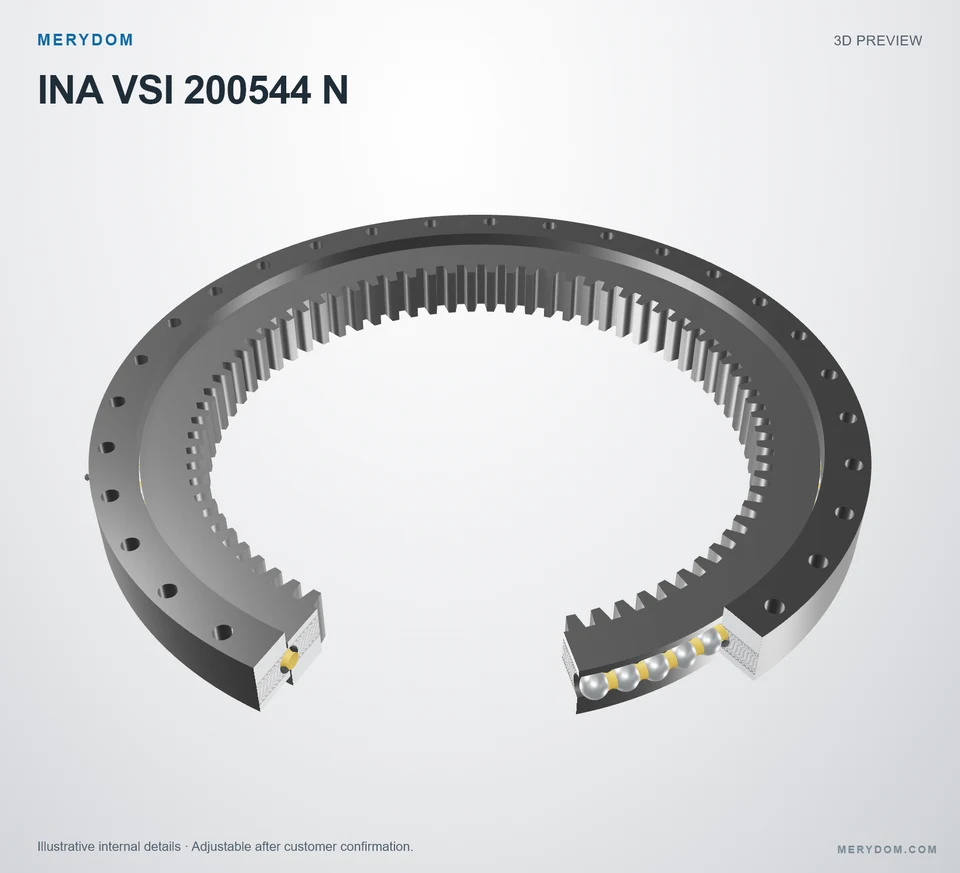

MERYDOM Replacement for INA VSI 200544 N
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
