Kaydon 16293001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16293001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16293001 reference belongs to the Xt Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

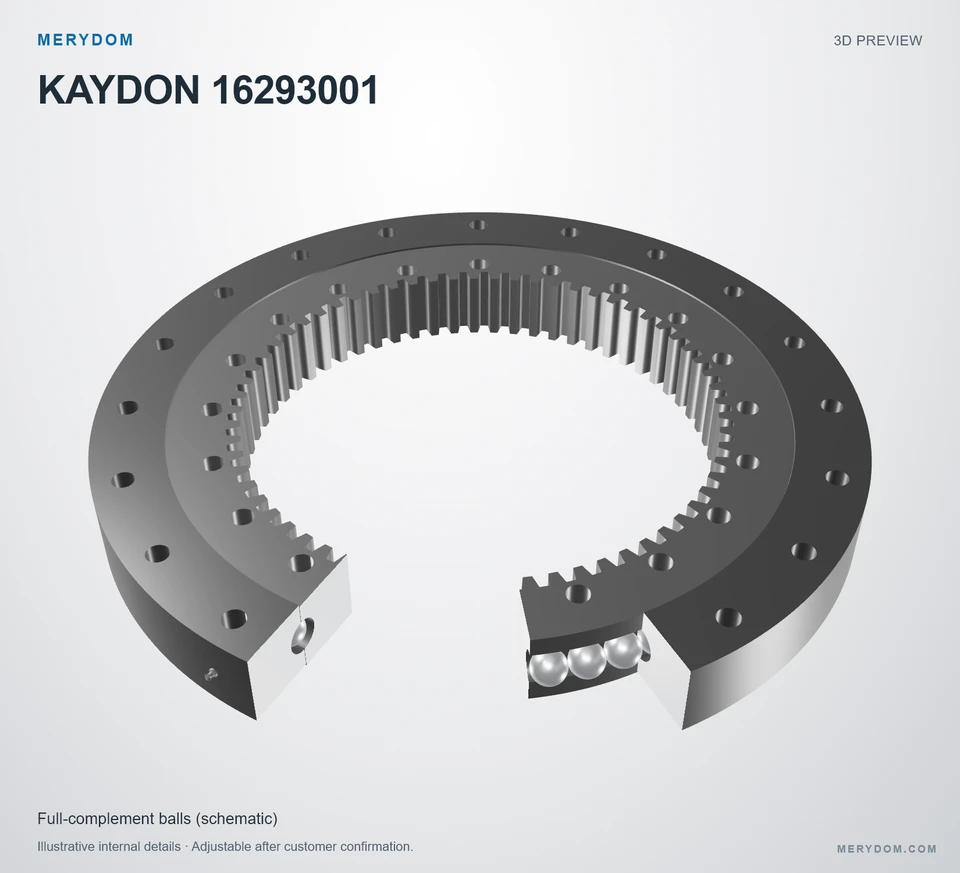

16293001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16293001.
- Overall OD (Do)
- 20.486 in
- Overall ID (di)
- 12.750 in
- Overall height
- 2.060 in
- Gear arrangement
- Internal gear
- Mounting holes
- 20 / 20 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 20.486 inapproximately 520.34 mm
- Overall inside diameter (di)
- 12.750 inapproximately 323.9 mm
- Overall height (H)
- 2.060 inapproximately 52.3 mm
- Assembly weight (G)
- 105 lbapproximately 47.627 kg
Mounting
- Outer ring bolt circle (Lo)
- 18.875 inapproximately 479.43 mm
- Inner ring bolt circle (Li)
- 14.375 inapproximately 365.13 mm
Gear
- Gear pitch diameter (D2)
- 13.000 inapproximately 330 mm
- Gear tooth count (z2)
- 65
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16293001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16293001 |
| Certified interchangeable with | Kaydon 16293001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16293001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 20.486 inapproximately 520.34 mm |
| Overall inside diameter (di) | 12.750 inapproximately 323.9 mm |
| Overall height (H) | 2.060 inapproximately 52.3 mm |
| Outer ring bolt circle (Lo) | 18.875 inapproximately 479.43 mm |
| Inner ring bolt circle (Li) | 14.375 inapproximately 365.13 mm |
| Gear pitch diameter (D2) | 13.000 inapproximately 330 mm |
| Assembly weight (G) | 105 lbapproximately 47.627 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 8800 lbfapproximately 39.14 kN |
| Moment load rating (Crm) | 81300 ft·lbfapproximately 110.23 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 20 holes · 0.594 |
| Inner ring bolt holes (ni) | 20 holes · 0.594 |
| Gear | |
| Pitch system | SPECIAL_DP |
| Source-defined gear pitch (Pd) | 5/7 source-defined pitch |
| Number of teeth (z2) | 65 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

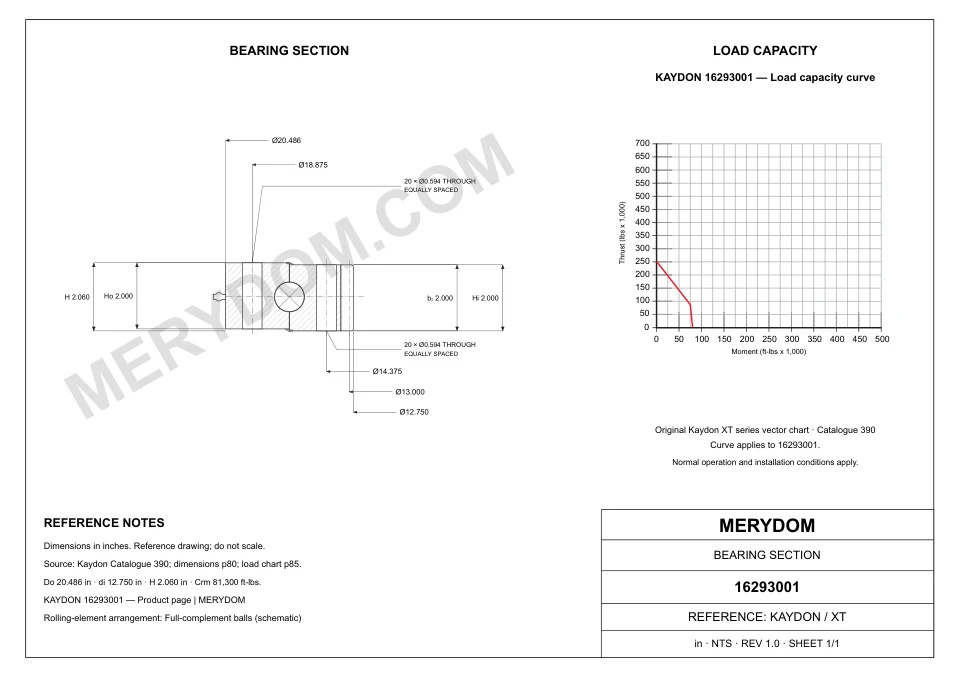

SERIES LOAD CAPACITY
