Kaydon 16295001 Slewing Bearing Replacement

Name: MERYDOM Replacement for Kaydon 16295001 Slewing Bearing
Brand: MERYDOM
SKU: 16295001

Back to replacement catalog

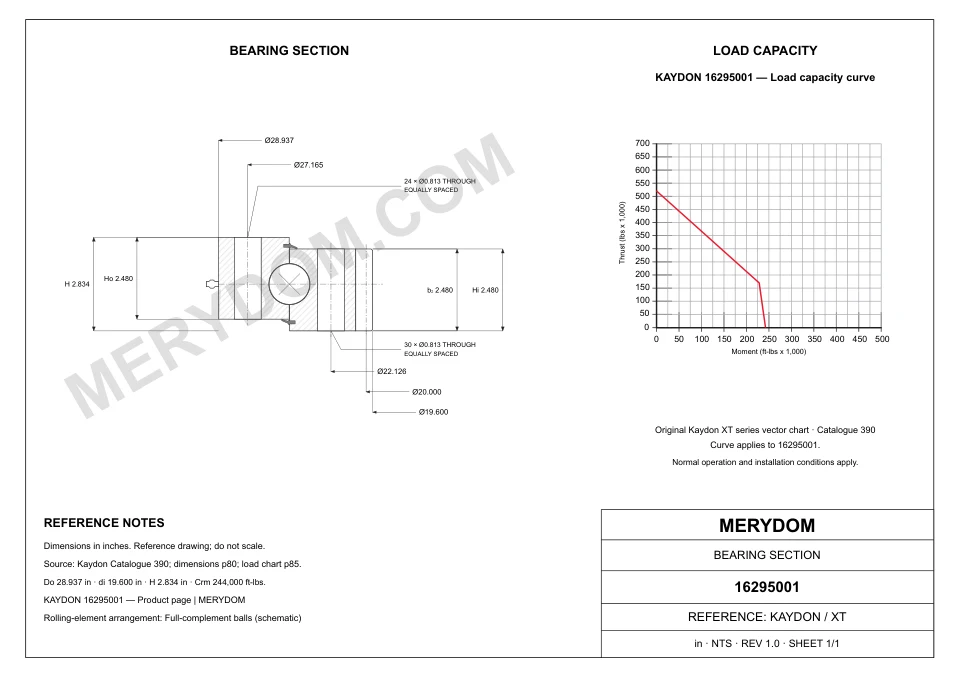

Kaydon Xt Series Internal gear outline drawing — Xt Series · Internal gear outlineClick image to enlarge

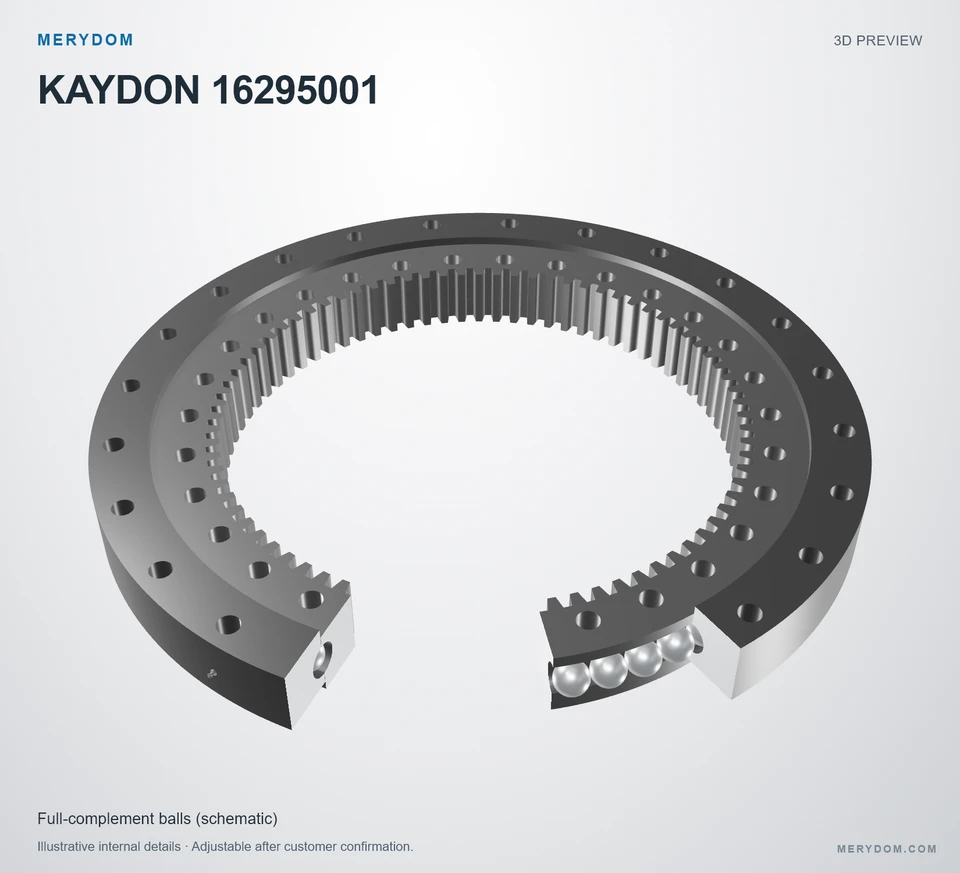

MERYDOM BRAND · CERTIFIED REPLACEMENT

16295001

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16295001.

Certified product dataView complete specifications ↓

Overall OD (Do): 28.937 in
Overall ID (di): 19.600 in
Overall height: 2.834 in
Gear arrangement: Internal gear
Mounting holes: 24 / 30 outer / inner
Bearing design: Four-point contact ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do): 28.937 inapproximately 735 mm
Overall inside diameter (di): 19.600 inapproximately 498 mm
Overall height (H): 2.834 inapproximately 71.98 mm
Assembly weight (G): 225 lbapproximately 102.058 kg

Mounting

Outer ring bolt circle (Lo): 27.165 inapproximately 689.99 mm
Inner ring bolt circle (Li): 22.126 inapproximately 562 mm

Gear

Gear pitch diameter (D2): 20.000 inapproximately 508 mm
Diametral pitch (Pd): 4
Gear tooth count (z2): 80

MERYDOM CERTIFIED SPECIFICATION

Kaydon 16295001 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	16295001
Certified interchangeable with	Kaydon 16295001
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	Kaydon
Series	Xt Series
Reference model	16295001
System of measurement	InchMetric reference shown alongside
Bearing structure	Four-point contact ball
Gear arrangement	Internal gear
Dimensions
Overall outside diameter (Do)	28.937 inapproximately 735 mm
Overall inside diameter (di)	19.600 inapproximately 498 mm
Overall height (H)	2.834 inapproximately 71.98 mm
Outer ring bolt circle (Lo)	27.165 inapproximately 689.99 mm
Inner ring bolt circle (Li)	22.126 inapproximately 562 mm
Gear pitch diameter (D2)	20.000 inapproximately 508 mm
Assembly weight (G)	225 lbapproximately 102.058 kg
Ratings
Maximum gear tooth load (Fz)	13250 lbfapproximately 58.94 kN
Moment load rating (Crm)	244000 ft·lbfapproximately 330.82 kN·m
Mounting
Outer ring bolt holes (no)	24 holes · 0.813
Inner ring bolt holes (ni)	30 holes · 0.813
Gear
Pitch system	DP
Source diametral pitch (Pd)	4 DP
Equivalent module (derived reference only) (m)	6.35 mm
Number of teeth (z2)	80

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

SERIES LOAD CAPACITY

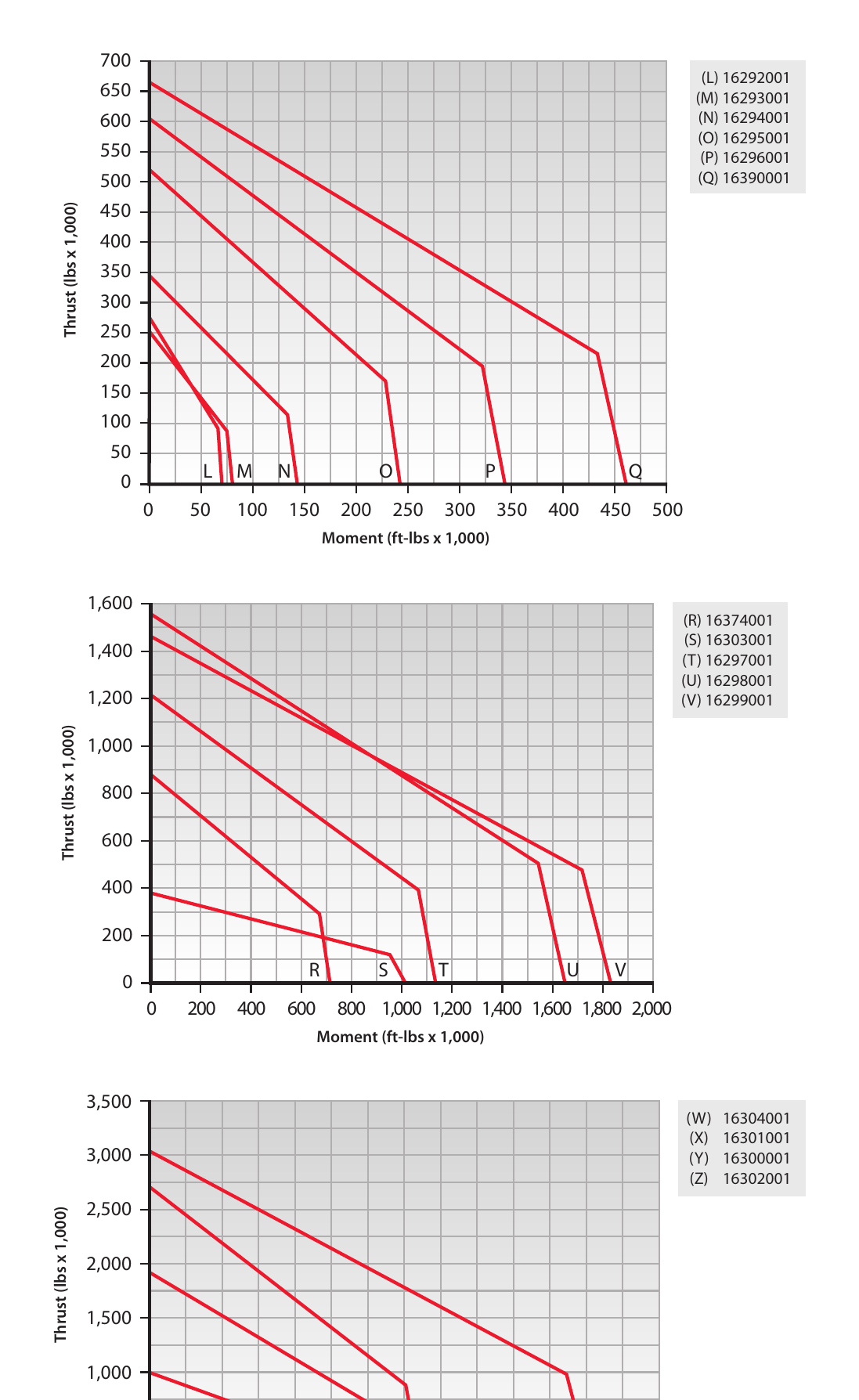

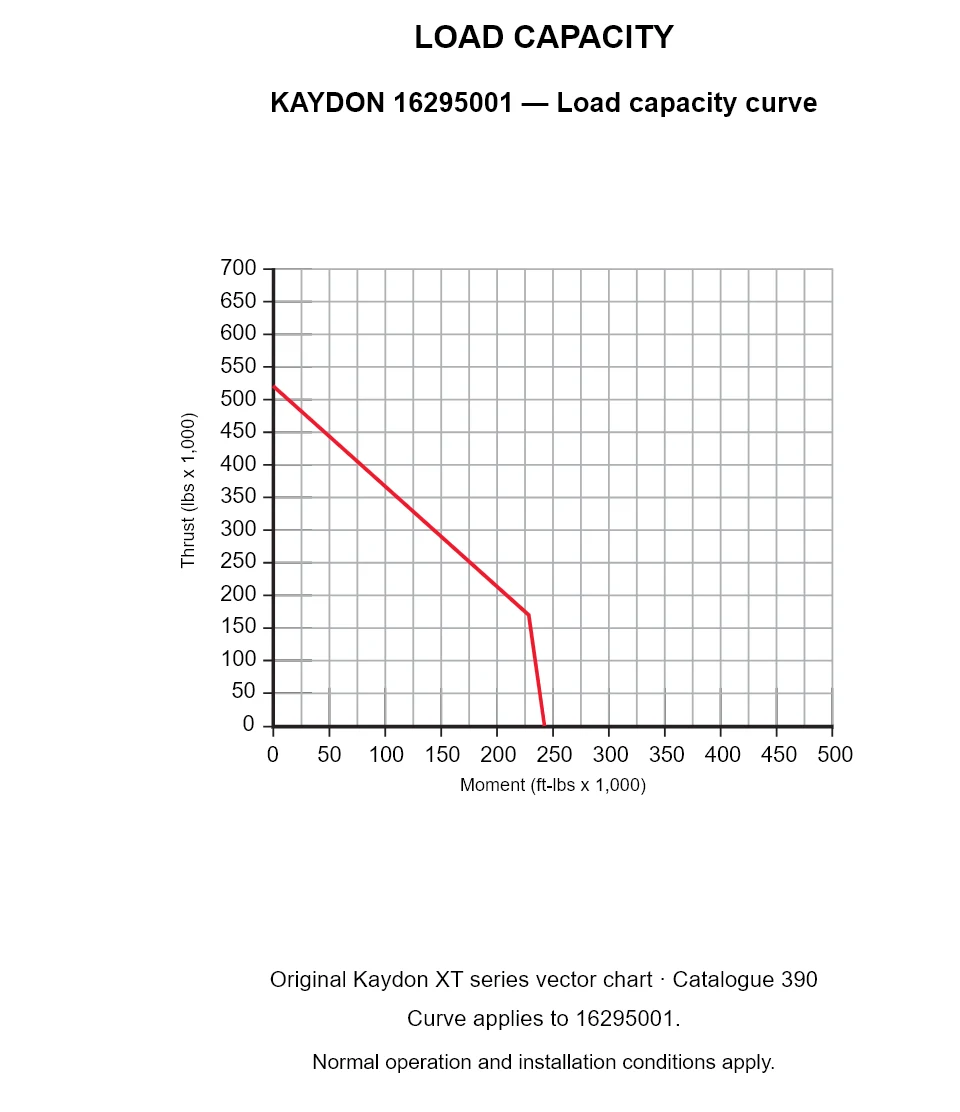

Xt Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for Kaydon 16295001

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
