Kaydon 16341001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16341001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16341001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16341001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16341001.
- Overall OD (Do)
- 36.333 in
- Overall ID (di)
- 24.500 in
- Overall height
- 4.690 in
- Gear arrangement
- External gear
- Mounting holes
- 24 / 24 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

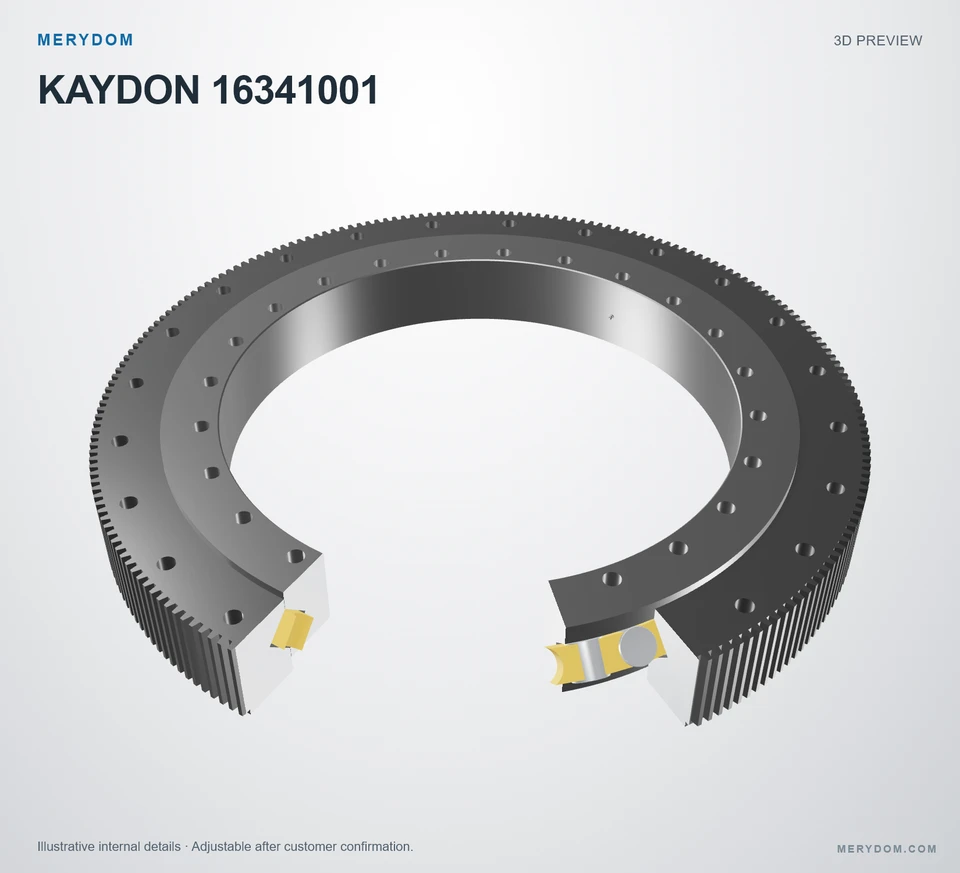

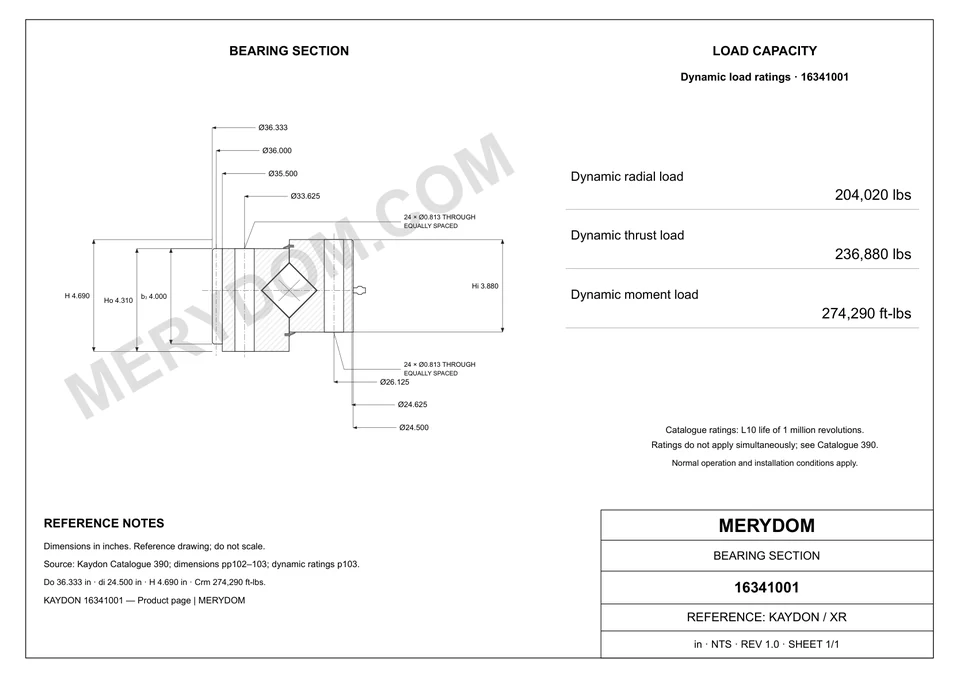

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 36.333 inapproximately 922.86 mm
- Overall inside diameter (di)
- 24.500 inapproximately 622 mm
- Outer ring body OD (Dr)
- 35.500 inapproximately 902 mm
- Inner ring body ID (dr)
- 24.625 inapproximately 625.48 mm
- Overall height (H)
- 4.690 inapproximately 119.1 mm
- Assembly weight (G)
- 580 lbapproximately 263.084 kg
Mounting
- Outer ring bolt circle (Lo)
- 33.625 inapproximately 854.08 mm
- Inner ring bolt circle (Li)
- 26.125 inapproximately 663.58 mm
Gear
- Gear pitch diameter (D2)
- 36.000 inapproximately 914 mm
- Diametral pitch (Pd)
- 6
- Gear tooth count (z2)
- 216
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16341001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16341001 |
| Certified interchangeable with | Kaydon 16341001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16341001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 36.333 inapproximately 922.86 mm |
| Overall inside diameter (di) | 24.500 inapproximately 622 mm |
| Overall height (H) | 4.690 inapproximately 119.1 mm |
| Outer ring body OD (Dr) | 35.500 inapproximately 902 mm |
| Inner ring body ID (dr) | 24.625 inapproximately 625.48 mm |
| Outer ring bolt circle (Lo) | 33.625 inapproximately 854.08 mm |
| Inner ring bolt circle (Li) | 26.125 inapproximately 663.58 mm |
| Gear pitch diameter (D2) | 36.000 inapproximately 914 mm |
| Assembly weight (G) | 580 lbapproximately 263.084 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 12700 lbfapproximately 56.49 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 204020.0000000000 lbfapproximately 907.53 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 236880.0000000000 lbfapproximately 1,053.69 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 274290.0000000000 ft·lbfapproximately 371.89 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 24 holes · 0.813 |
| Inner ring bolt holes (ni) | 24 holes · 0.813 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 6 DP |
| Equivalent module (derived reference only) (m) | 4.233333 mm |
| Number of teeth (z2) | 216 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16341001
