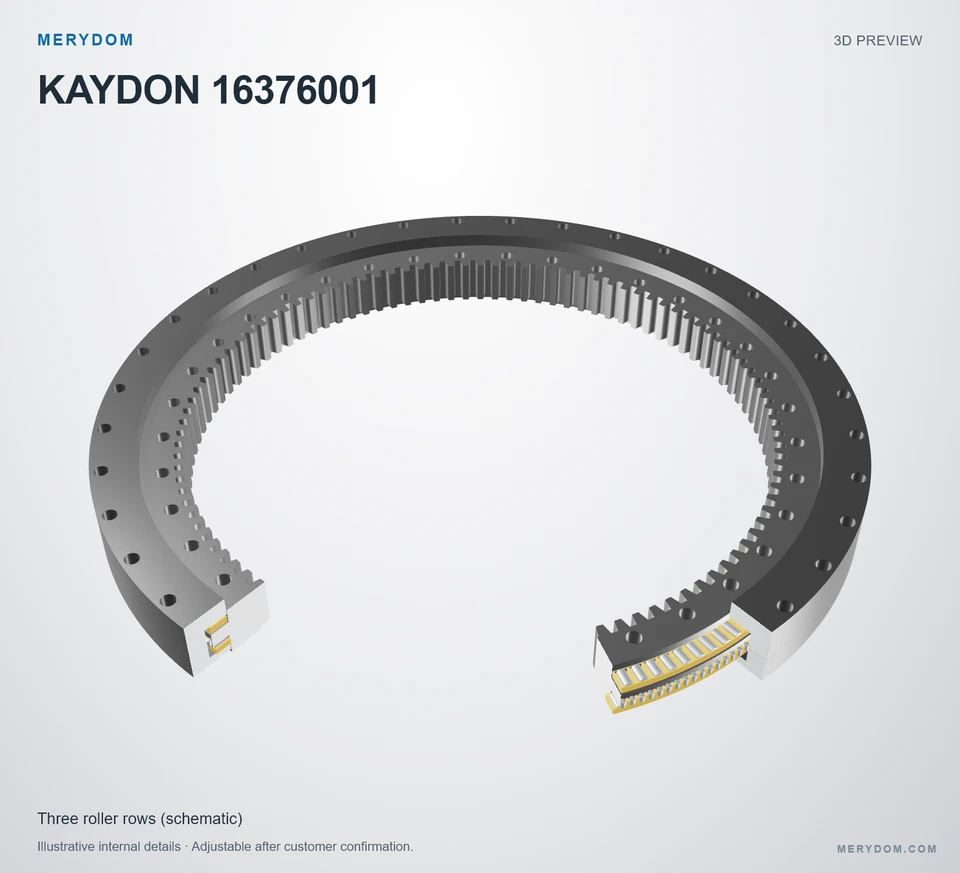

Kaydon 16376001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16376001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16376001 reference belongs to the Tr Series and uses a three-row roller, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16376001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16376001.
- Overall OD (Do)
- 54.530 in
- Overall ID (di)
- 41.760 in
- Overall height
- 4.720 in
- Gear arrangement
- Internal gear
- Mounting holes
- 36 / 36 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

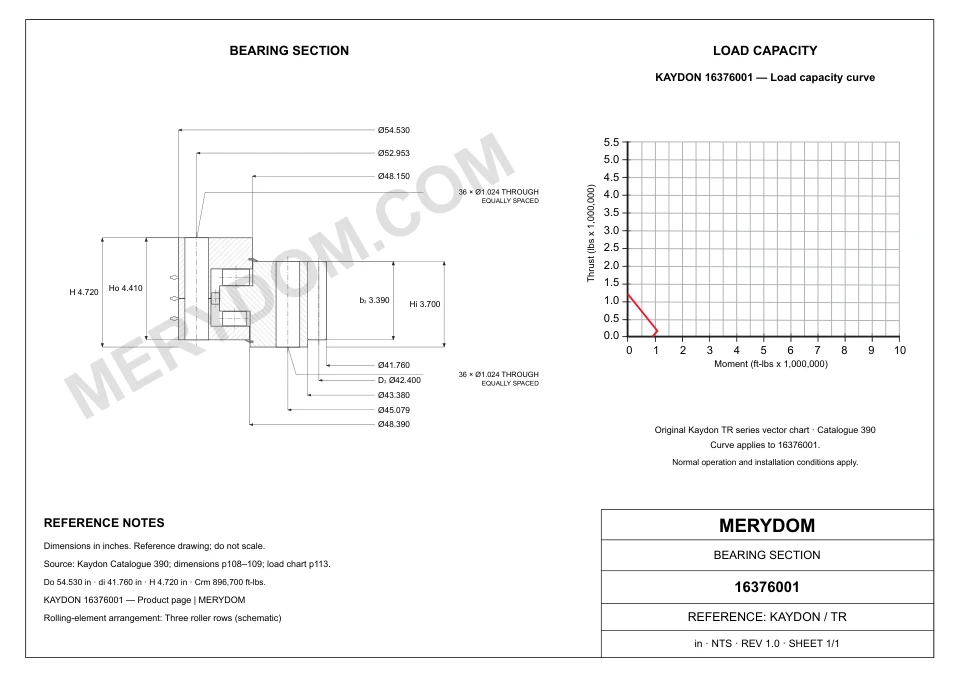

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 54.530 inapproximately 1,385.1 mm
- Overall inside diameter (di)
- 41.760 inapproximately 1,060.7 mm
- Outer ring inner diameter (Di)
- 48.150 inapproximately 1,223 mm
- Inner ring outer diameter (do)
- 48.390 inapproximately 1,229.1 mm
- Inner ring body ID (dr)
- 43.380 inapproximately 1,101.9 mm
- Overall height (H)
- 4.720 inapproximately 119.9 mm
- Assembly weight (G)
- 950 lbapproximately 430.913 kg
Mounting
- Outer ring bolt circle (Lo)
- 52.953 inapproximately 1,345.01 mm
- Inner ring bolt circle (Li)
- 45.079 inapproximately 1,145.01 mm
Gear
- Gear pitch diameter (D2)
- 42.400 inapproximately 1,077 mm
- Diametral pitch (Pd)
- 2.5
- Gear tooth count (z2)
- 106
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16376001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16376001 |
| Certified interchangeable with | Kaydon 16376001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16376001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 54.530 inapproximately 1,385.1 mm |
| Overall inside diameter (di) | 41.760 inapproximately 1,060.7 mm |
| Overall height (H) | 4.720 inapproximately 119.9 mm |
| Outer ring inner diameter (Di) | 48.150 inapproximately 1,223 mm |
| Inner ring outer diameter (do) | 48.390 inapproximately 1,229.1 mm |
| Inner ring body ID (dr) | 43.380 inapproximately 1,101.9 mm |
| Outer ring bolt circle (Lo) | 52.953 inapproximately 1,345.01 mm |
| Inner ring bolt circle (Li) | 45.079 inapproximately 1,145.01 mm |
| Gear pitch diameter (D2) | 42.400 inapproximately 1,077 mm |
| Assembly weight (G) | 950 lbapproximately 430.913 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 28250 lbfapproximately 125.66 kN |
| Moment load rating (Crm) | 896700 ft·lbfapproximately 1,215.76 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 36 holes · 1.024 |
| Inner ring bolt holes (ni) | 36 holes · 1.024 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 2.5 DP |
| Equivalent module (derived reference only) (m) | 10.16 mm |
| Number of teeth (z2) | 106 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

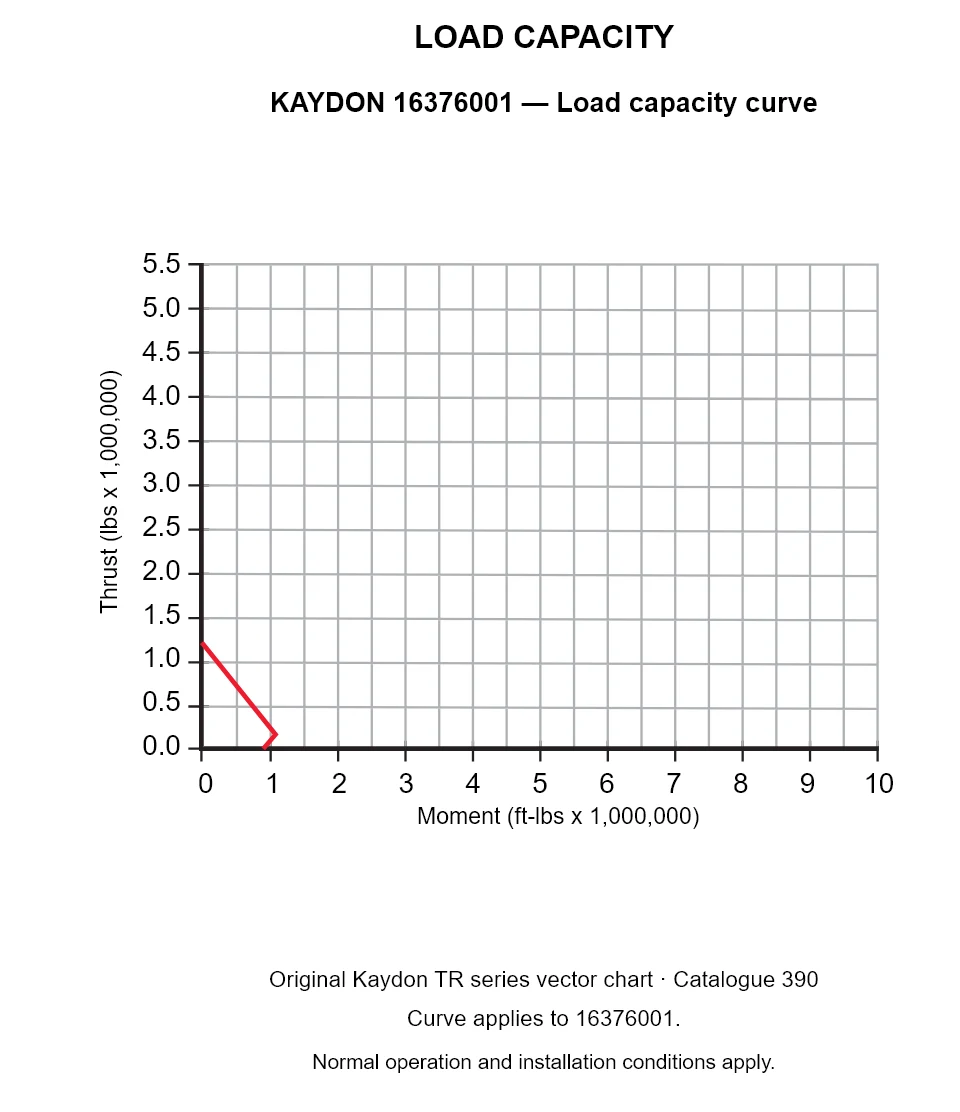

SERIES LOAD CAPACITY
