Kaydon HT10-42N1Z Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon HT10-42N1Z slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon HT10-42N1Z reference belongs to the Ht Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

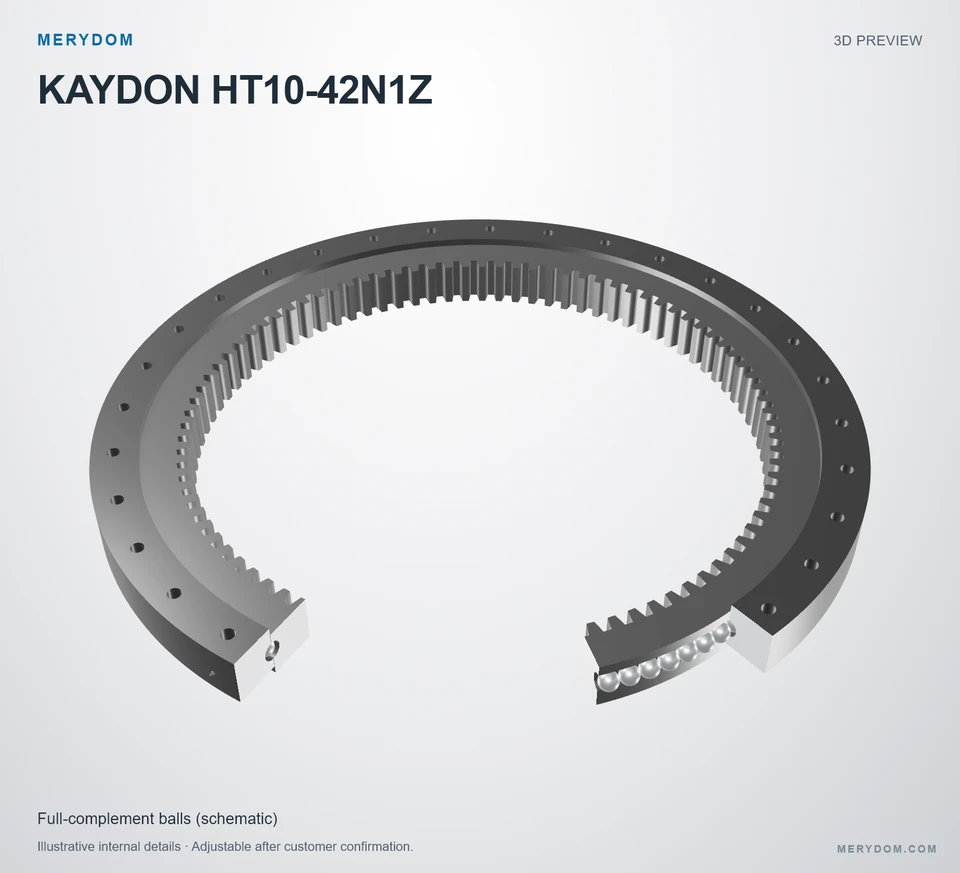

HT10-42N1Z
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon HT10-42N1Z.
- Overall OD (Do)
- 48.000 in
- Overall ID (di)
- 36.160 in
- Overall height
- 3.500 in
- Gear arrangement
- Internal gear
- Mounting holes
- 32 / 36 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

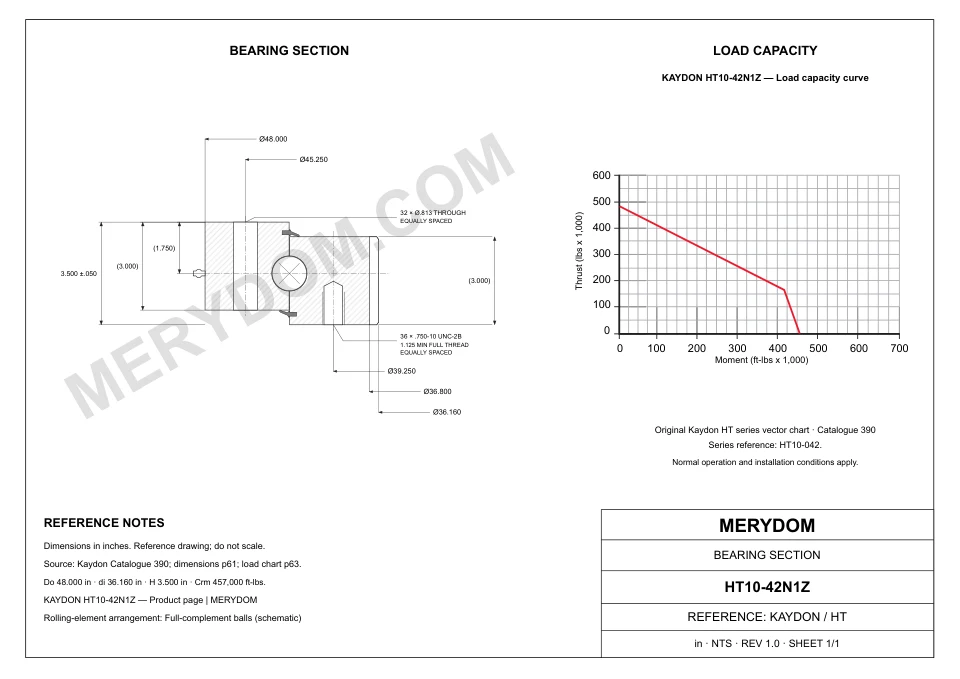

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 48.000 inapproximately 1,219 mm
- Overall inside diameter (di)
- 36.160 inapproximately 918.5 mm
- Overall height (H)
- 3.500 inapproximately 89 mm
- Assembly weight (G)
- 580 lbapproximately 263.084 kg
Mounting
- Outer ring bolt circle (Lo)
- 45.250 inapproximately 1,149.4 mm
- Inner ring bolt circle (Li)
- 39.250 inapproximately 997 mm
Gear
- Gear pitch diameter (D2)
- 36.800 inapproximately 935 mm
- Diametral pitch (Pd)
- 2.5
- Gear tooth count (z2)
- 92
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon HT10-42N1Z Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | HT10-42N1Z |
| Certified interchangeable with | Kaydon HT10-42N1Z |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Ht Series |
| Reference model | HT10-42N1Z |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 48.000 inapproximately 1,219 mm |
| Overall inside diameter (di) | 36.160 inapproximately 918.5 mm |
| Overall height (H) | 3.500 inapproximately 89 mm |
| Outer ring bolt circle (Lo) | 45.250 inapproximately 1,149.4 mm |
| Inner ring bolt circle (Li) | 39.250 inapproximately 997 mm |
| Gear pitch diameter (D2) | 36.800 inapproximately 935 mm |
| Assembly weight (G) | 580 lbapproximately 263.084 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 20819 lbfapproximately 92.61 kN |
| Moment load rating (Crm) | 457000 ft·lbfapproximately 619.61 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 32 holes · 0.813 through, equally spaced |
| Inner ring bolt holes (ni) | 36 holes · 0.750-10 UNC-2B; 1.125 min full thread |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 2.5 DP |
| Equivalent module (derived reference only) (m) | 10.16 mm |
| Number of teeth (z2) | 92 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

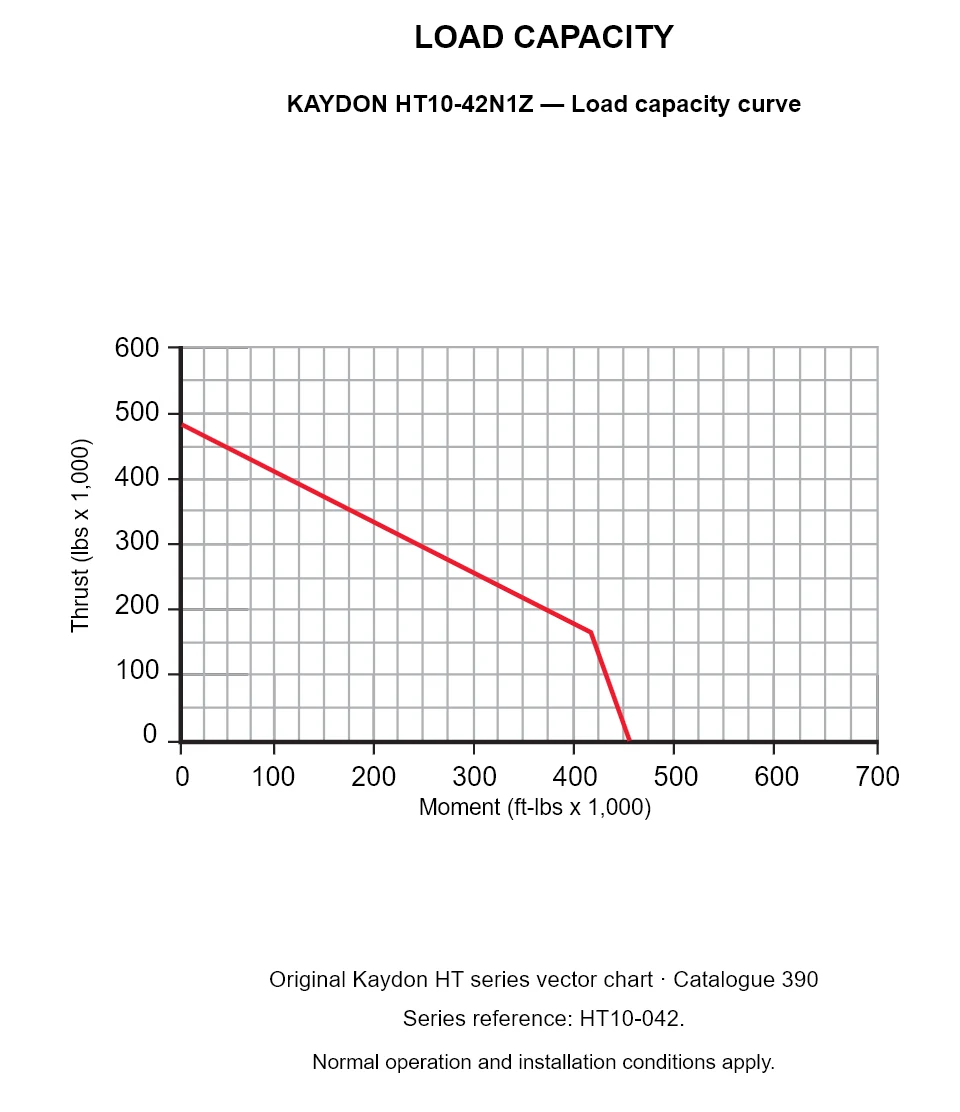

Ht Series load chart
