Kaydon MTE-415T Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon MTE-415T slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon MTE-415T reference belongs to the Mt Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
MTE-415T
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon MTE-415T.
- Overall OD (Do)
- 24.650 in
- Overall ID (di)
- 16.250 in
- Overall height
- 2.375 in
- Gear arrangement
- External gear
- Mounting holes
- 16 / 20 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 24.650 inapproximately 626.1 mm
- Overall inside diameter (di)
- 16.250 inapproximately 412.8 mm
- Overall height (H)
- 2.375 inapproximately 60.33 mm
- Assembly weight (G)
- 132 lbapproximately 59.874 kg
Mounting
- Outer ring bolt circle (Lo)
- 22.250 inapproximately 565.2 mm
- Inner ring bolt circle (Li)
- 17.750 inapproximately 450.9 mm
Gear
- Gear pitch diameter (D2)
- 24.250 inapproximately 616 mm
- Diametral pitch (Pd)
- 4
- Gear tooth count (z2)
- 97
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon MTE-415T Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | MTE-415T |
| Certified interchangeable with | Kaydon MTE-415T |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Mt Series |
| Reference model | MTE-415T |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 24.650 inapproximately 626.1 mm |
| Overall inside diameter (di) | 16.250 inapproximately 412.8 mm |
| Overall height (H) | 2.375 inapproximately 60.33 mm |
| Outer ring bolt circle (Lo) | 22.250 inapproximately 565.2 mm |
| Inner ring bolt circle (Li) | 17.750 inapproximately 450.9 mm |
| Gear pitch diameter (D2) | 24.250 inapproximately 616 mm |
| Assembly weight (G) | 132 lbapproximately 59.874 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 10420 lbfapproximately 46.35 kN |
| Moment load rating (Crm) | 159200 ft·lbfapproximately 215.85 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 16 holes · 3/4-10 |
| Inner ring bolt holes (ni) | 20 holes · 3/4-10 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 4 DP |
| Equivalent module (derived reference only) (m) | 6.35 mm |
| Number of teeth (z2) | 97 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

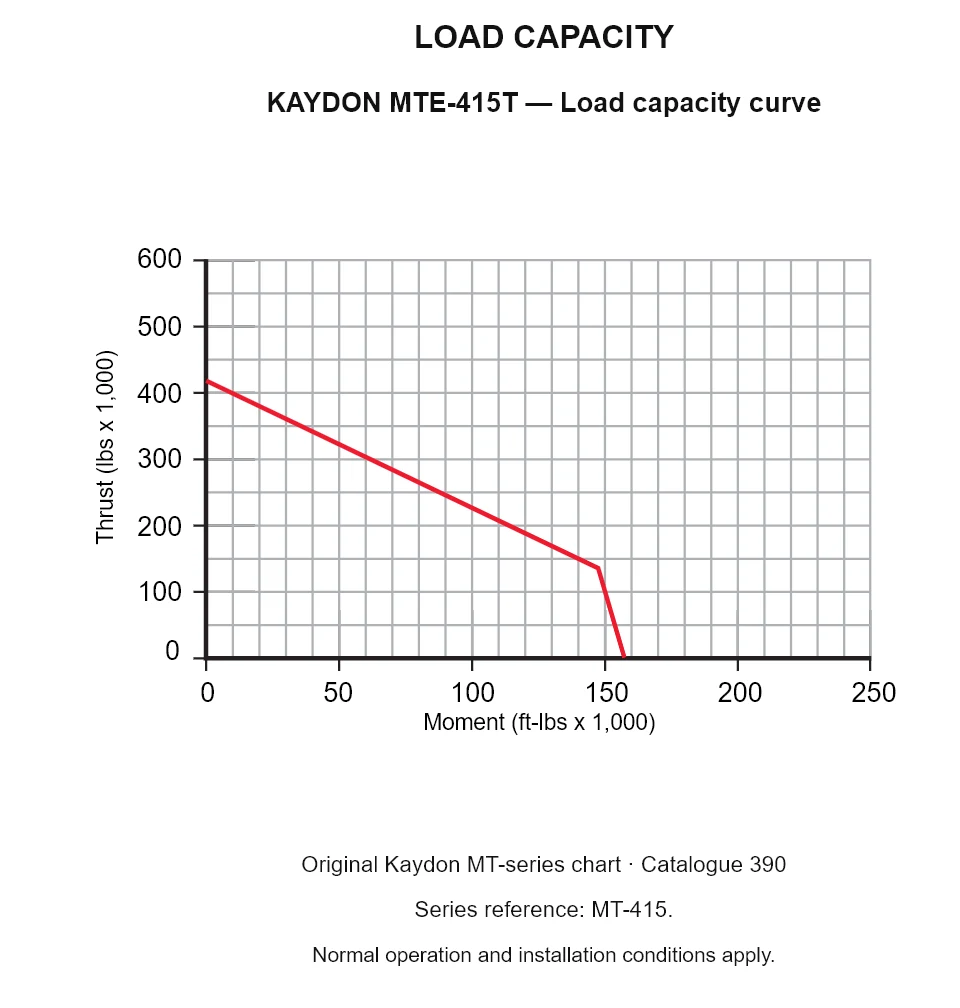

Mt Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon MTE-415T
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
