Kaydon RK6-29N1Z Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon RK6-29N1Z slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

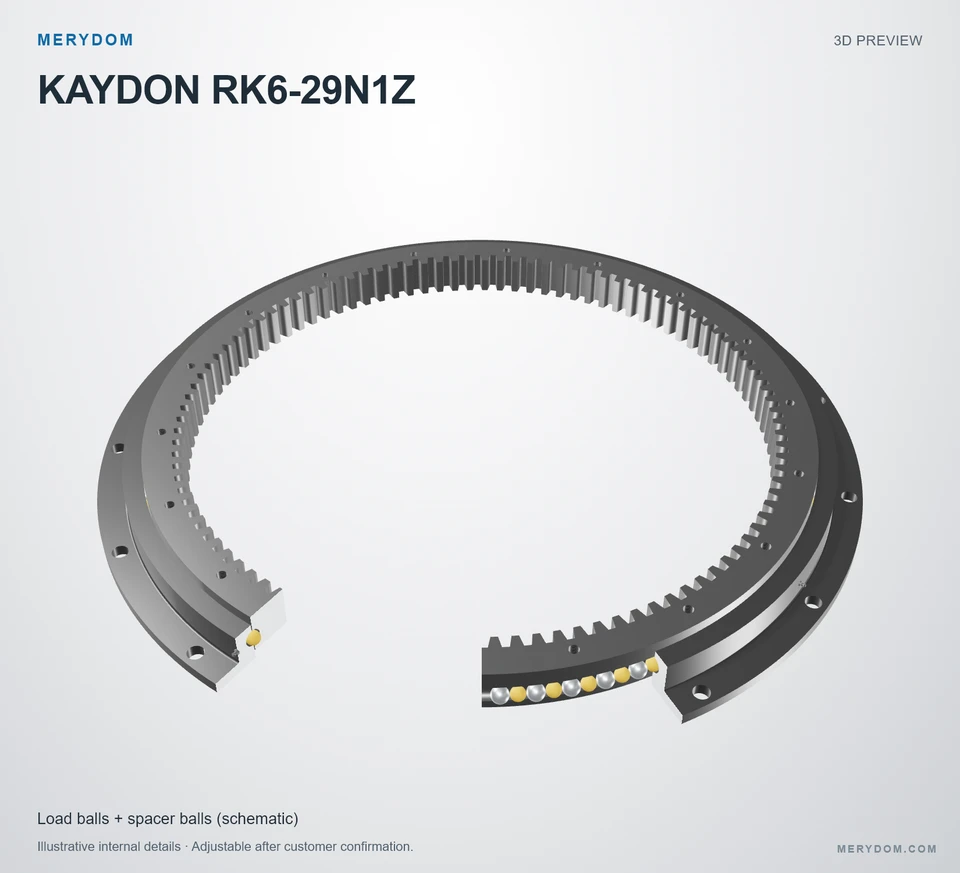

The Kaydon RK6-29N1Z reference belongs to the Rk Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
RK6-29N1Z
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon RK6-29N1Z.
- Overall OD (Do)
- 33.390 in
- Overall ID (di)
- 25.600 in
- Overall height
- 2.205 in
- Gear arrangement
- Internal gear
- Mounting holes
- 15 / 18 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

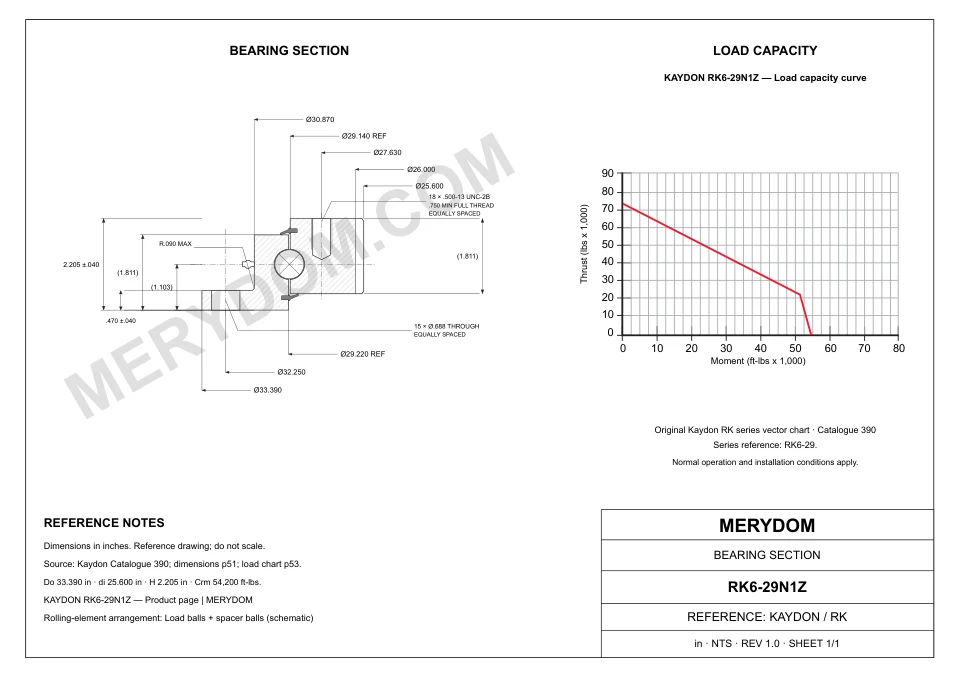

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 33.390 inapproximately 848.1 mm
- Overall inside diameter (di)
- 25.600 inapproximately 650 mm
- Outer ring body OD (Dr)
- 30.870 inapproximately 784.1 mm
- Outer ring inner diameter (Di)
- 29.220 inapproximately 742.2 mm
- Inner ring outer diameter (do)
- 29.140 inapproximately 740.2 mm
- Overall height (H)
- 2.205 inapproximately 56.01 mm
- Assembly weight (G)
- 121 lbapproximately 54.885 kg
Mounting
- Outer ring bolt circle (Lo)
- 32.250 inapproximately 819.2 mm
- Inner ring bolt circle (Li)
- 27.630 inapproximately 701.8 mm
Gear
- Gear pitch diameter (D2)
- 26.000 inapproximately 660 mm
- Diametral pitch (Pd)
- 4
- Gear tooth count (z2)
- 104
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon RK6-29N1Z Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | RK6-29N1Z |
| Certified interchangeable with | Kaydon RK6-29N1Z |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Rk Series |
| Reference model | RK6-29N1Z |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 33.390 inapproximately 848.1 mm |
| Overall inside diameter (di) | 25.600 inapproximately 650 mm |
| Overall height (H) | 2.205 inapproximately 56.01 mm |
| Outer ring body OD (Dr) | 30.870 inapproximately 784.1 mm |
| Outer ring inner diameter (Di) | 29.220 inapproximately 742.2 mm |
| Inner ring outer diameter (do) | 29.140 inapproximately 740.2 mm |
| Outer ring bolt circle (Lo) | 32.250 inapproximately 819.2 mm |
| Inner ring bolt circle (Li) | 27.630 inapproximately 701.8 mm |
| Gear pitch diameter (D2) | 26.000 inapproximately 660 mm |
| Assembly weight (G) | 121 lbapproximately 54.885 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 6300 lbfapproximately 28.02 kN |
| Moment load rating (Crm) | 54200 ft·lbfapproximately 73.49 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 15 holes · 0.688 through, equally spaced |
| Inner ring bolt holes (ni) | 18 holes · 0.500-13 UNC-2B; 0.750 min full thread; equally spaced |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 4 DP |
| Equivalent module (derived reference only) (m) | 6.35 mm |
| Number of teeth (z2) | 104 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

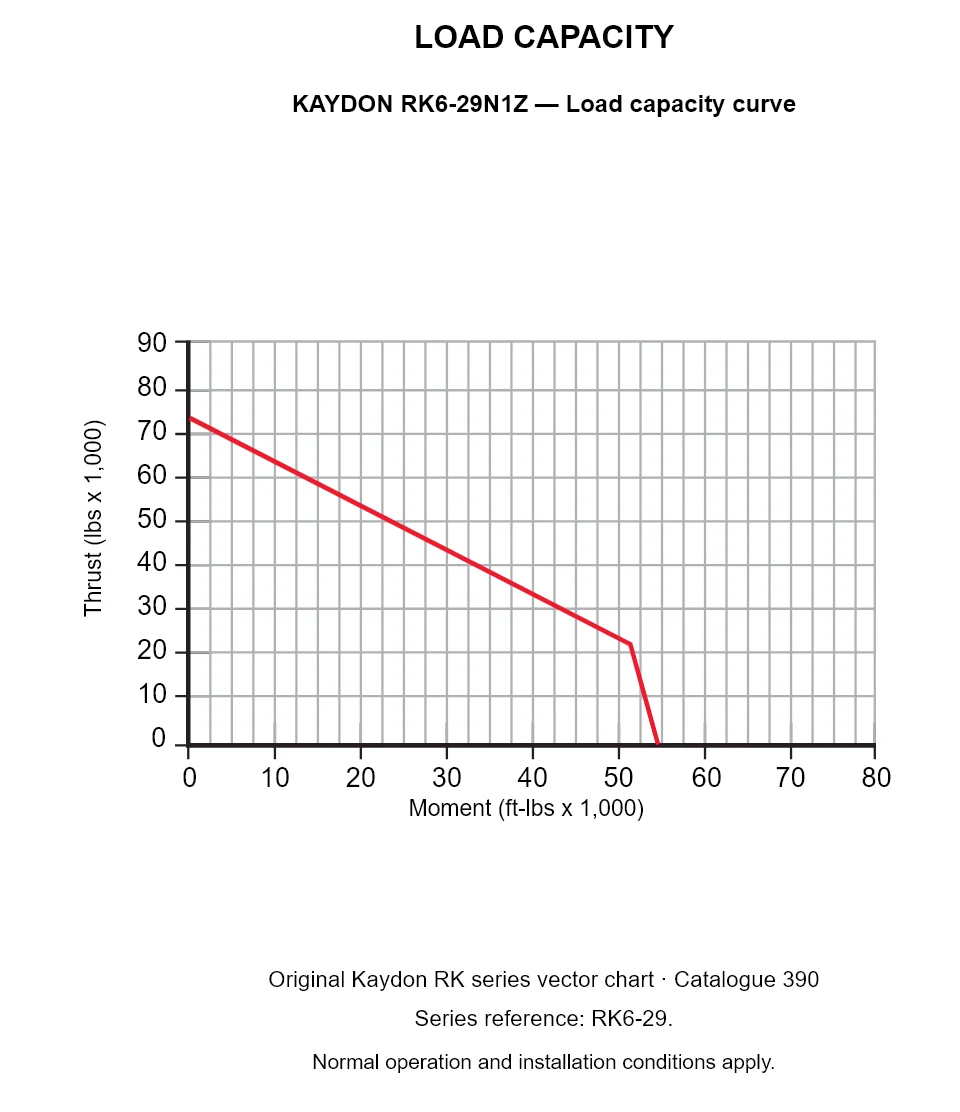

Rk Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon RK6-29N1Z
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
