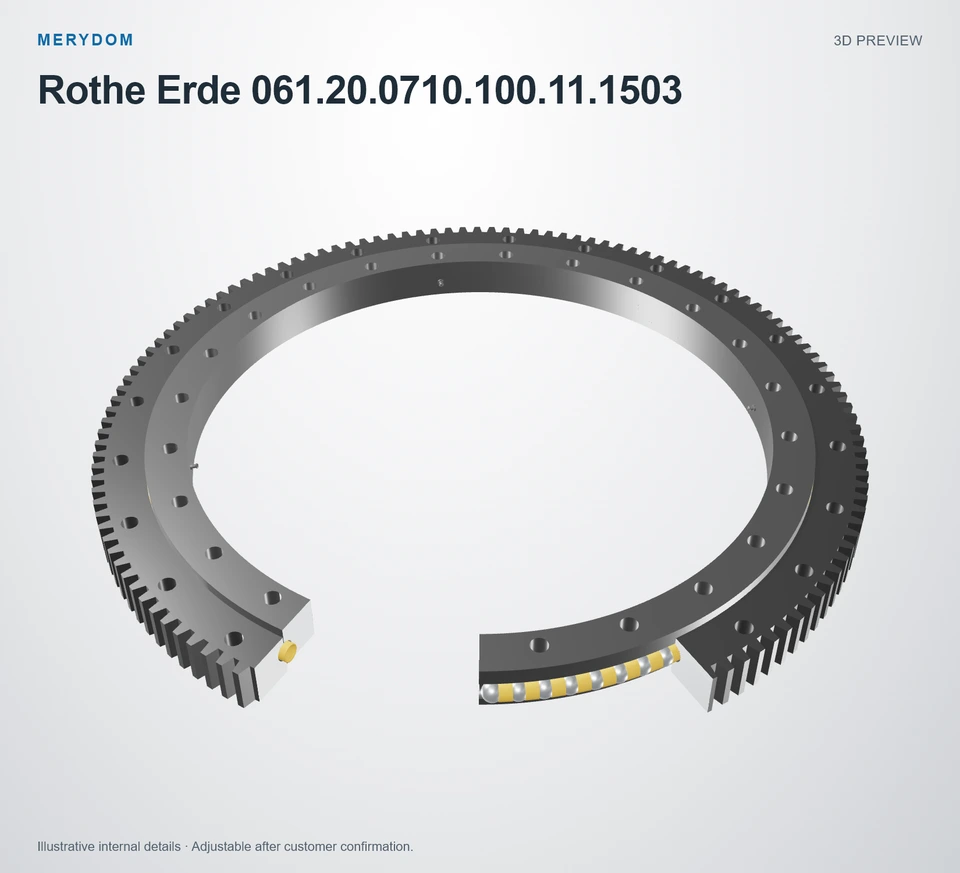

Rothe Erde 061.20.0710.100.11.1503 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Rothe Erde 061.20.0710.100.11.1503 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Rothe Erde 061.20.0710.100.11.1503 reference belongs to the 06 Series and uses a single-row four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
061.20.0710.100.11.1503
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Rothe Erde 061.20.0710.100.11.1503.
- Overall OD (Do)
- 820,8 mm
- Overall ID (di)
- 623 mm
- Overall height
- 55 mm
- Gear arrangement
- External gear
- Mounting holes
- 24 / 24 outer / inner
- Bearing design
- Single-row four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

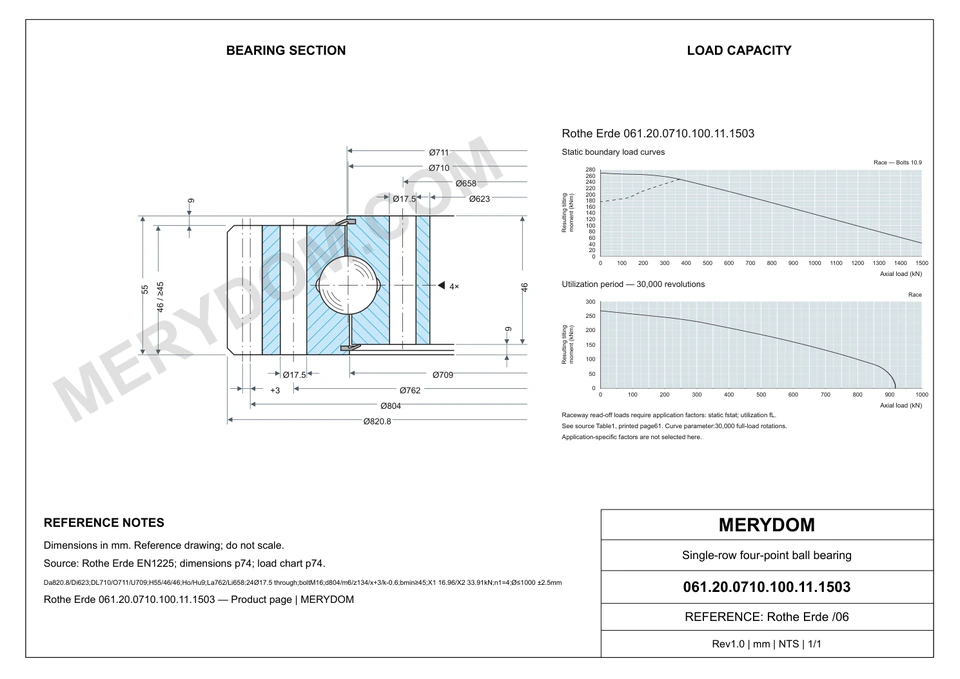

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Raceway diameter (DL)
- 710 mm
- Overall outside diameter (Da)
- 820.8 mm
- Overall inside diameter (Di)
- 623 mm
- Overall height (H)
- 55 mm
- Catalog diameter O (O)
- 711 mm
- Catalog diameter U (U)
- 709 mm
- Ring height H1 (H1)
- 46 mm
- Ring height H2 (H2)
- 46 mm
- Lower ring offset Hu (Hu)
- 9 mm
- Upper ring offset Ho (Ho)
- 9 mm
- Assembly weight (Weight)
- 67 kg
Mounting
- Outer ring bolt circle (La)
- 762 mm
- Inner ring bolt circle (Li)
- 658 mm
- Common mounting-hole count (n)
- 24
- Common mounting-hole diameter (B)
- 17.5 mm
- Metric bolt nominal size (M)
- 16 mm
Gear
- Gear pitch diameter (d)
- 804 mm
- Gear module (m)
- 6 mm
- Gear tooth count (z)
- 134
- Profile shift product x·m (x*m)
- 3 mm
- Tip-height modification product k·m (k*m)
- -0.6 mm
- Minimum gear face width (bmin)
- 45 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordRothe Erde 061.20.0710.100.11.1503 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 061.20.0710.100.11.1503 |
| Certified interchangeable with | Rothe Erde 061.20.0710.100.11.1503 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Rothe Erde |
| Series | 06 Series |
| Reference model | 061.20.0710.100.11.1503 |
| System of measurement | Metric |
| Bearing structure | Single-row four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Raceway diameter (DL) | 710 mm |
| Overall outside diameter (Da) | 820.8 mm |
| Overall inside diameter (Di) | 623 mm |
| Overall height (H) | 55 mm |
| Catalog diameter O (O) | 711 mm |
| Catalog diameter U (U) | 709 mm |
| Ring height H1 (H1) | 46 mm |
| Ring height H2 (H2) | 46 mm |
| Lower ring offset Hu (Hu) | 9 mm |
| Upper ring offset Ho (Ho) | 9 mm |
| Assembly weight (Weight) | 67 kg |
| Mounting | |
| Outer ring bolt circle (La) | 762 mm |
| Inner ring bolt circle (Li) | 658 mm |
| Common mounting-hole count (n) | 24 |
| Common mounting-hole diameter (B) | 17.5 mm |
| Metric bolt nominal size (M) | 16 mm |
| Gear | |
| Gear pitch diameter (d) | 804 mm |
| Gear module (m) | 6 mm |
| Gear tooth count (z) | 134 |
| Profile shift product x·m (x*m) | 3 mm |
| Tip-height modification product k·m (k*m) | -0.6 mm |
| Minimum gear face width (bmin) | 45 mm |
| Ratings | |
| Permitted circumferential force, normal (X1) | 16.96 kN |
| Permitted circumferential force, maximum (X2) | 33.91 kN |
| Miscellaneous | |
| Grease nipple count (n1) | 4 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

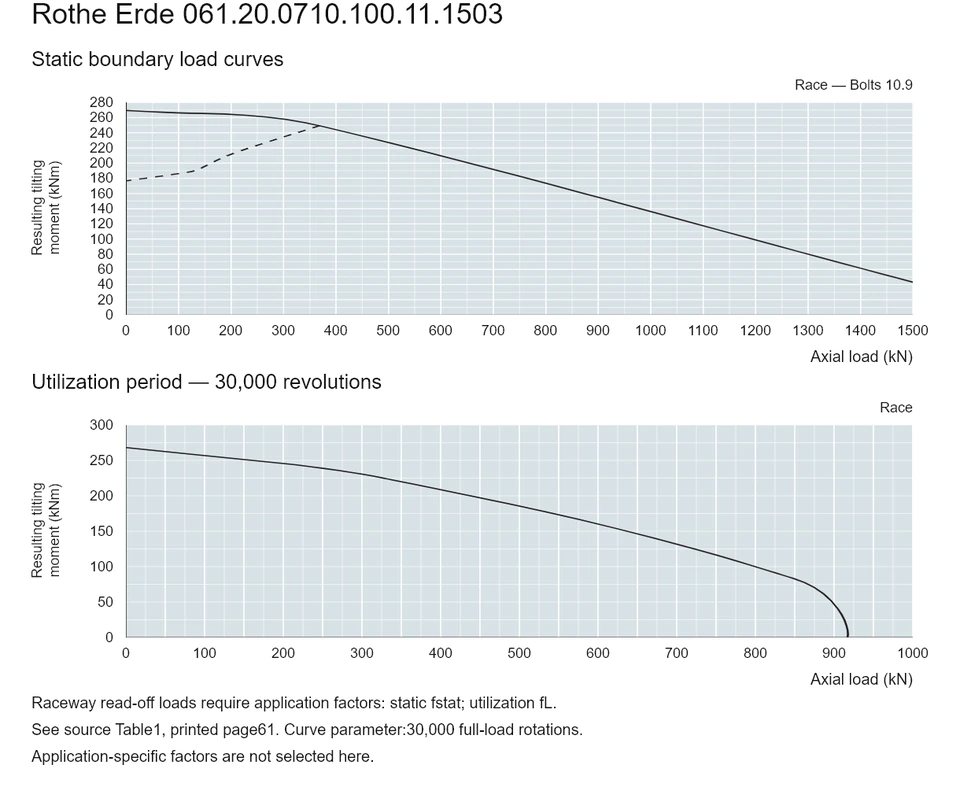

06 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Rothe Erde 061.20.0710.100.11.1503
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 061.20.0710.100.11.1503.
