Rothe Erde 062.20.0544.500.01.1503 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Rothe Erde 062.20.0544.500.01.1503 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

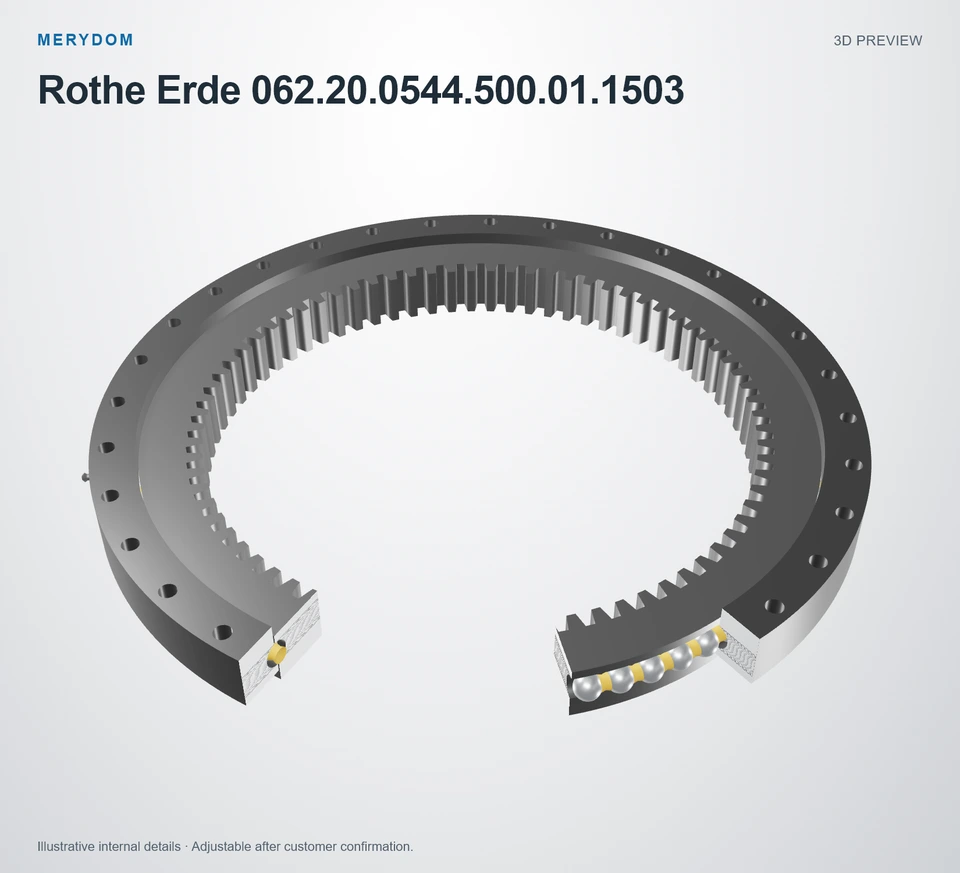

The Rothe Erde 062.20.0544.500.01.1503 reference belongs to the 06 Series and uses a single-row four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
062.20.0544.500.01.1503
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Rothe Erde 062.20.0544.500.01.1503.
- Overall OD (Do)
- 616 mm
- Overall ID (di)
- 445,2 mm
- Overall height
- 56 mm
- Gear arrangement
- Internal gear
- Mounting holes
- 32 / 32 outer / inner
- Bearing design
- Single-row four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Raceway diameter (DL)
- 544 mm
- Overall outside diameter (Da)
- 616 mm
- Overall inside diameter (Di)
- 445.2 mm
- Overall height (H)
- 56 mm
- Catalog diameter O (O)
- 545.5 mm
- Catalog diameter U (U)
- 542.5 mm
- Ring height H1 (H1)
- 45.5 mm
- Ring height H2 (H2)
- 45.5 mm
- Lower ring offset Hu (Hu)
- 10.5 mm
- Upper ring offset Ho (Ho)
- 10.5 mm
- Assembly weight (Weight)
- 42 kg
- Axial bearing play (Y_axial)
- ≤ 0,30 mm
- Radial bearing play (Y_radial)
- ≤ 0,30 mm
Mounting
- Outer ring bolt circle (La)
- 590 mm
- Inner ring bolt circle (Li)
- 505 mm
- La/Li mounting-hole count (n_La_Li)
- 32
- Common mounting-hole diameter (B)
- 13.5 mm
- Metric bolt nominal size (M)
- 12 mm
- Thread depth (t)
- 20 mm
Gear
- Gear pitch diameter (d)
- 456 mm
- Gear module (m)
- 6 mm
- Gear tooth count (z)
- 76
- Tip-height modification product k·m (k*m)
- -0.6 mm
- Minimum gear face width (bmin)
- 45.5 mm

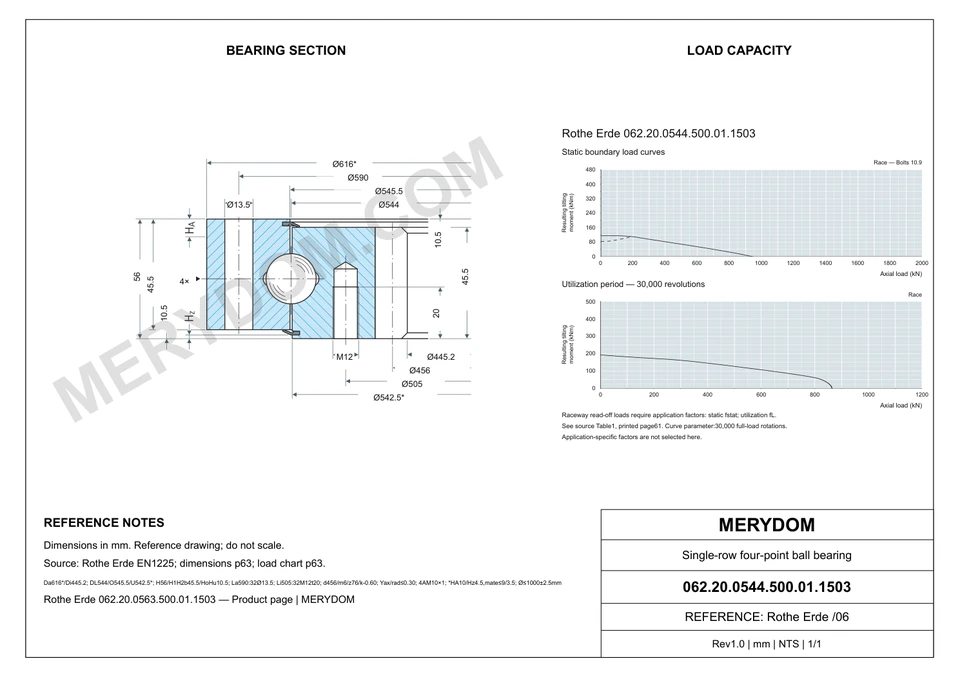

MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordRothe Erde 062.20.0544.500.01.1503 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 062.20.0544.500.01.1503 |
| Certified interchangeable with | Rothe Erde 062.20.0544.500.01.1503 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Rothe Erde |
| Series | 06 Series |
| Reference model | 062.20.0544.500.01.1503 |
| System of measurement | Metric |
| Bearing structure | Single-row four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Raceway diameter (DL) | 544 mm |
| Overall outside diameter (Da) | 616 mm |
| Overall inside diameter (Di) | 445.2 mm |
| Overall height (H) | 56 mm |
| Catalog diameter O (O) | 545.5 mm |
| Catalog diameter U (U) | 542.5 mm |
| Ring height H1 (H1) | 45.5 mm |
| Ring height H2 (H2) | 45.5 mm |
| Lower ring offset Hu (Hu) | 10.5 mm |
| Upper ring offset Ho (Ho) | 10.5 mm |
| Assembly weight (Weight) | 42 kg |
| Axial bearing play (Y_axial) | ≤ 0,30 mm |
| Radial bearing play (Y_radial) | ≤ 0,30 mm |
| Mounting | |
| Outer ring bolt circle (La) | 590 mm |
| Inner ring bolt circle (Li) | 505 mm |
| La/Li mounting-hole count (n_La_Li) | 32 |
| Common mounting-hole diameter (B) | 13.5 mm |
| Metric bolt nominal size (M) | 12 mm |
| Thread depth (t) | 20 mm |
| Gear | |
| Gear pitch diameter (d) | 456 mm |
| Gear module (m) | 6 mm |
| Gear tooth count (z) | 76 |
| Tip-height modification product k·m (k*m) | -0.6 mm |
| Minimum gear face width (bmin) | 45.5 mm |
| Ratings | |
| Permitted circumferential force, normal (X1) | 16 kN |
| Permitted circumferential force, maximum (X2) | 32 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

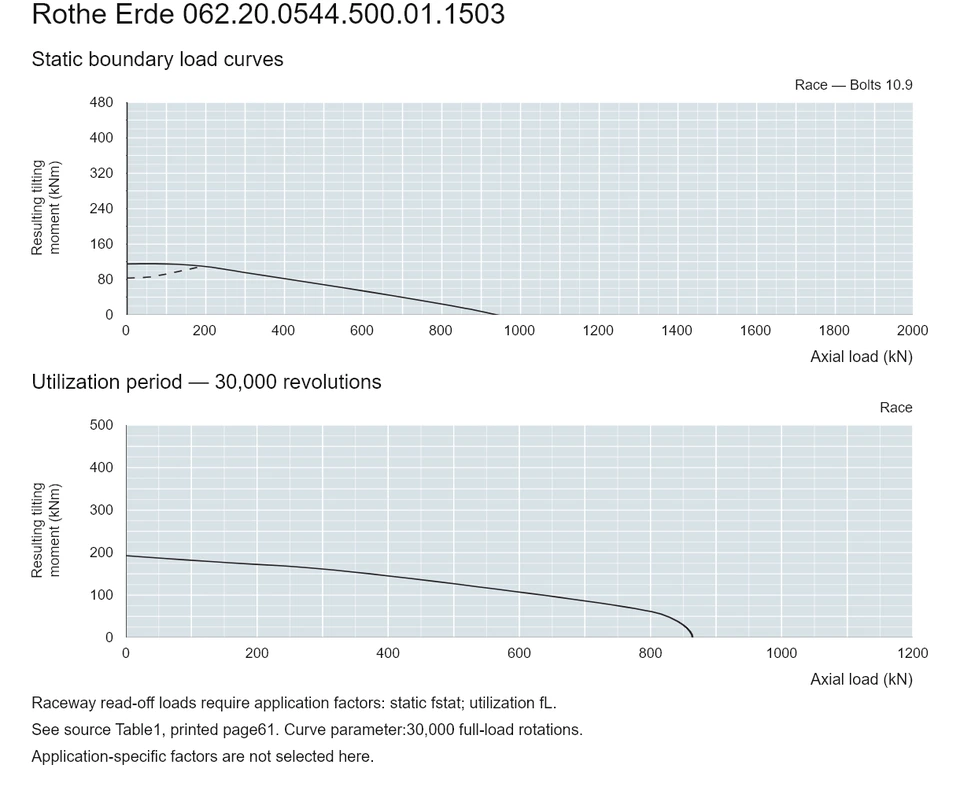

06 Series load chart
