Rothe Erde 231.21.0475.013 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Rothe Erde 231.21.0475.013 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

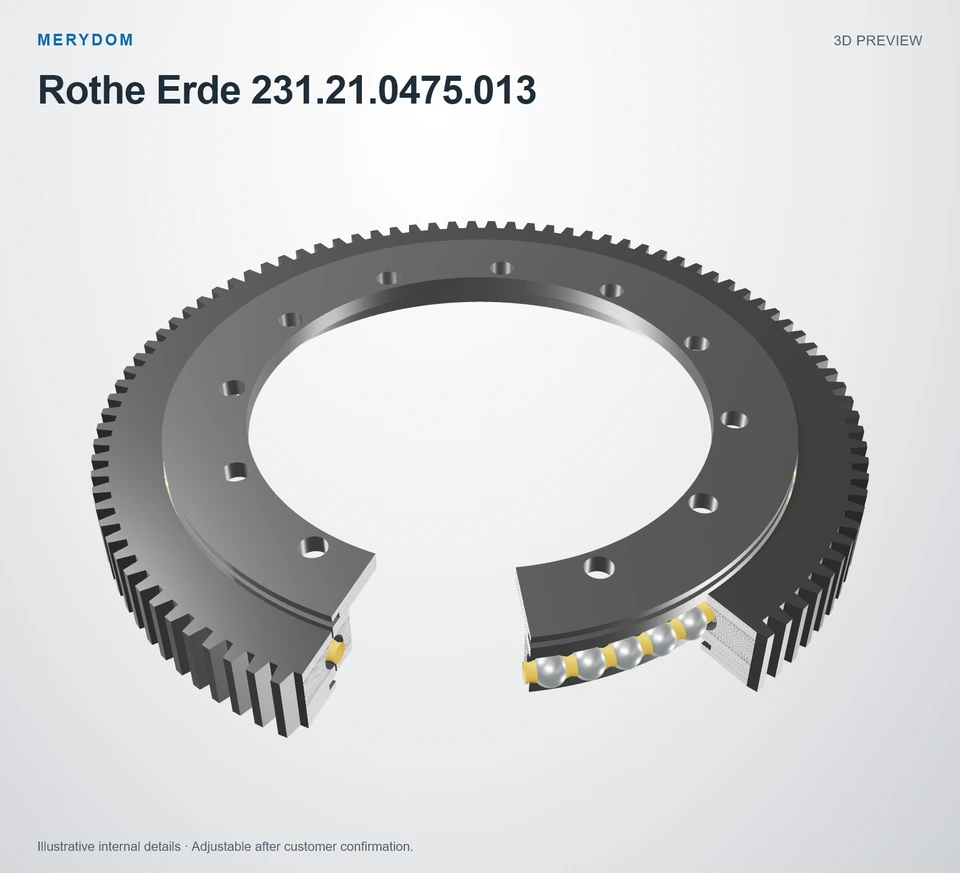

The Rothe Erde 231.21.0475.013 reference belongs to the 23 Series and uses a profile bearing, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
231.21.0475.013
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Rothe Erde 231.21.0475.013.
- Overall OD (Do)
- 504 mm
- Overall ID (di)
- 305 + 0,08 mm
- Overall height
- 56 mm
- Gear arrangement
- External gear
- Mounting holes
- 10 / 12 outer / inner
- Bearing design
- Profile bearing
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

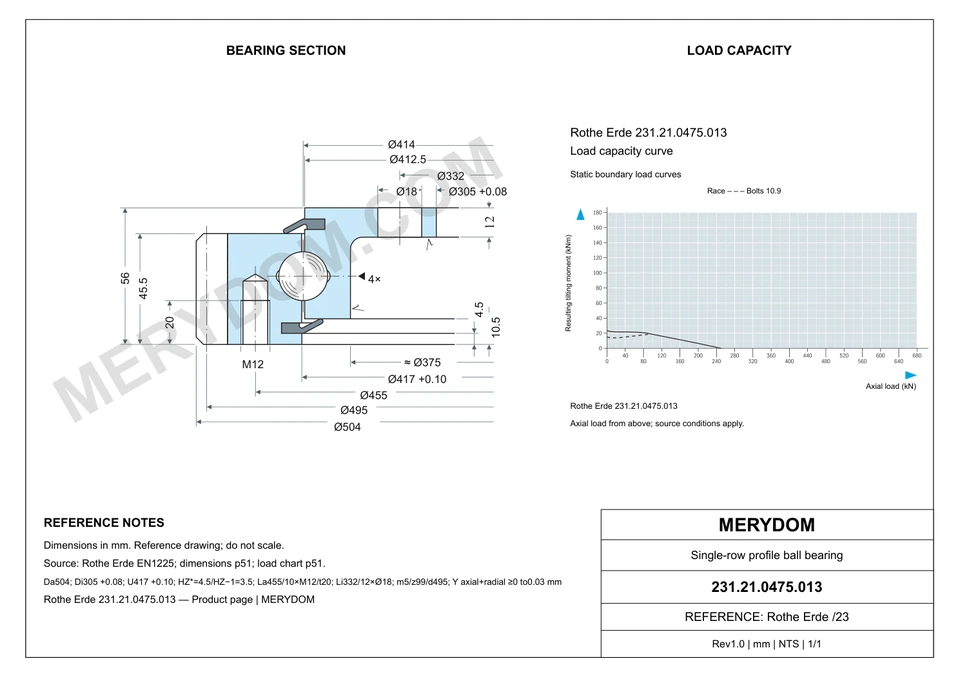

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Raceway diameter (DL)
- 414 mm
- Overall outside diameter (Da)
- 504 mm
- Overall inside diameter (Di)
- 305 + 0,08 mm
- Overall height (H)
- 56 mm
- Catalog diameter O (O)
- 412.5 mm
- Catalog diameter U (U)
- 417 + 0,10 mm
- Catalog diameter C (C)
- 375 mm
- Lower ring offset Hu (Hu)
- 10.5 mm
- Assembly weight (Weight)
- 29.3 kg
- Combined axial/radial bearing play range (Y_axial_radial)
- ≥ 0 to 0,03 mm
Mounting
- Outer ring bolt circle (La)
- 455 mm
- Outer ring mounting-hole count (na)
- 10
- Metric bolt nominal size (M)
- 12 mm
- Thread depth (t)
- 20 mm
- Inner ring bolt circle (Li)
- 332 mm
- Inner ring mounting-hole count (ni)
- 12
- Inner ring mounting-hole diameter (B_inner)
- 18 mm
Gear
- Gear pitch diameter (d)
- 495 mm
- Gear module (m)
- 5 mm
- Gear tooth count (z)
- 99
- Tip-height modification product k·m (k*m)
- -0.5 mm
- Minimum gear face width (bmin)
- 45.5 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordRothe Erde 231.21.0475.013 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 231.21.0475.013 |
| Certified interchangeable with | Rothe Erde 231.21.0475.013 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Rothe Erde |
| Series | 23 Series |
| Reference model | 231.21.0475.013 |
| System of measurement | Metric |
| Bearing structure | Profile bearing |
| Gear arrangement | External gear |
| Dimensions | |
| Raceway diameter (DL) | 414 mm |
| Overall outside diameter (Da) | 504 mm |
| Overall inside diameter (Di) | 305 + 0,08 mm |
| Overall height (H) | 56 mm |
| Catalog diameter O (O) | 412.5 mm |
| Catalog diameter U (U) | 417 + 0,10 mm |
| Catalog diameter C (C) | 375 mm |
| Lower ring offset Hu (Hu) | 10.5 mm |
| Assembly weight (Weight) | 29.3 kg |
| Combined axial/radial bearing play range (Y_axial_radial) | ≥ 0 to 0,03 mm |
| Mounting | |
| Outer ring bolt circle (La) | 455 mm |
| Outer ring mounting-hole count (na) | 10 |
| Metric bolt nominal size (M) | 12 mm |
| Thread depth (t) | 20 mm |
| Inner ring bolt circle (Li) | 332 mm |
| Inner ring mounting-hole count (ni) | 12 |
| Inner ring mounting-hole diameter (B_inner) | 18 mm |
| Gear | |
| Gear pitch diameter (d) | 495 mm |
| Gear module (m) | 5 mm |
| Gear tooth count (z) | 99 |
| Tip-height modification product k·m (k*m) | -0.5 mm |
| Minimum gear face width (bmin) | 45.5 mm |
| Ratings | |
| Permitted circumferential force, normal (X1) | 11.75 kN |
| Permitted circumferential force, maximum (X2) | 23.5 kN |
| Miscellaneous | |
| Grease nipple count (n1) | 4 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

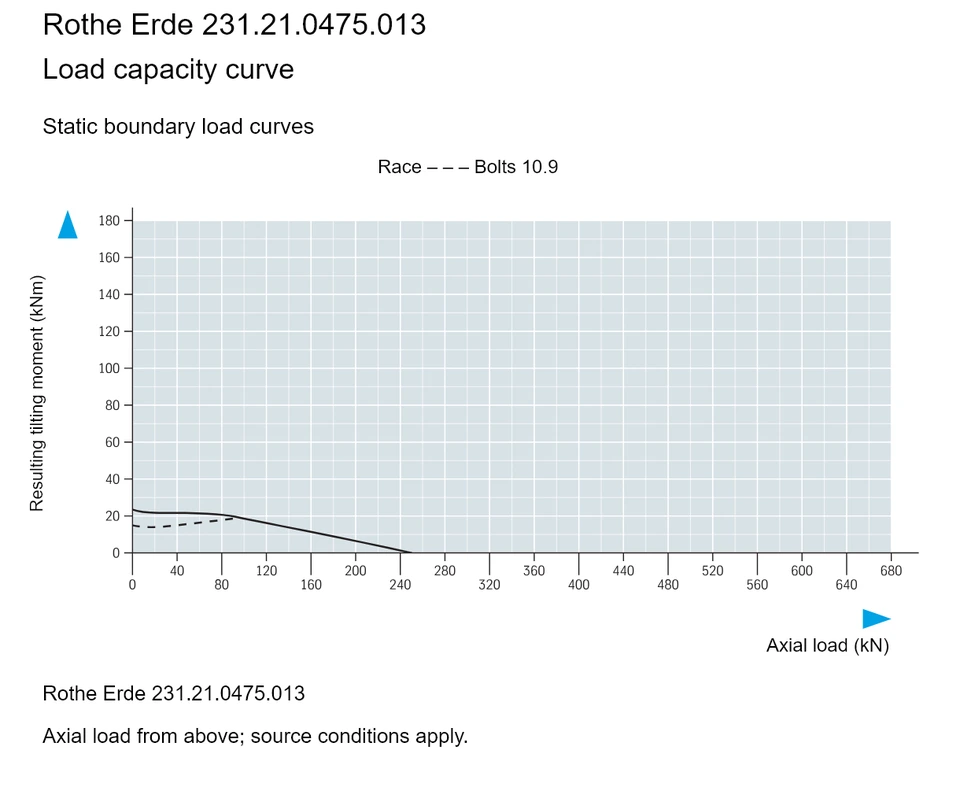

23 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Rothe Erde 231.21.0475.013
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
