Rothe Erde 232.20.0800.013 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Rothe Erde 232.20.0800.013 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

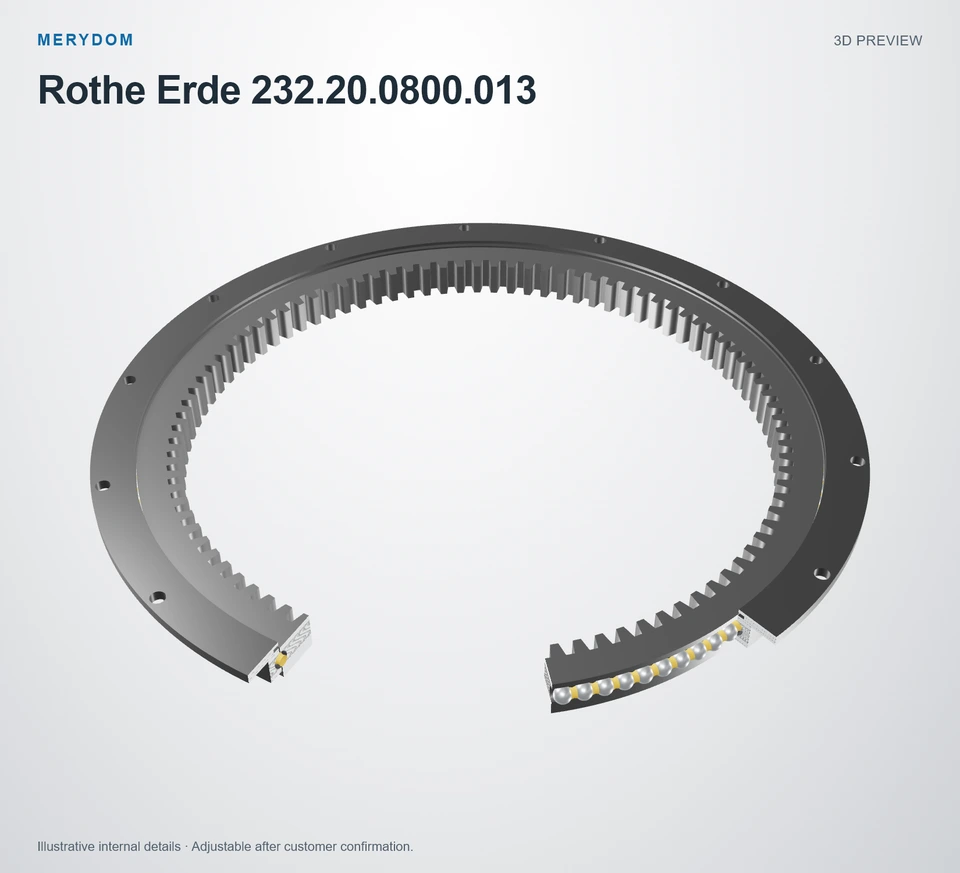

The Rothe Erde 232.20.0800.013 reference belongs to the 23 Series and uses a profile bearing, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
232.20.0800.013
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Rothe Erde 232.20.0800.013.
- Overall OD (Do)
- 948 mm
- Overall ID (di)
- 737,6 mm
- Overall height
- 56 mm
- Gear arrangement
- Internal gear
- Mounting holes
- 14 / 20 outer / inner
- Bearing design
- Profile bearing
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

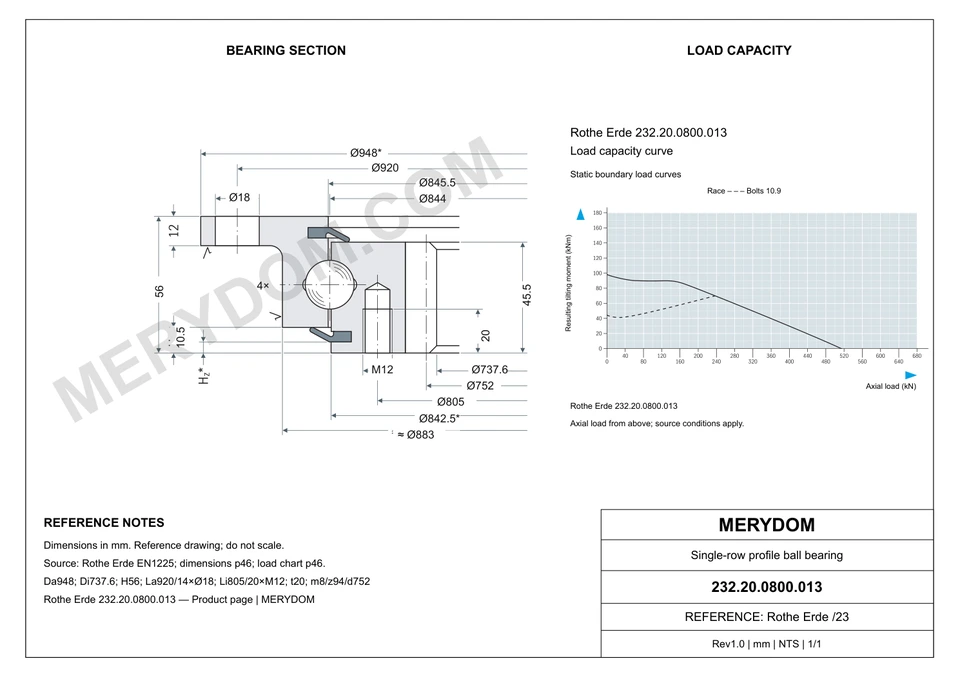

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Raceway diameter (DL)
- 844 mm
- Overall outside diameter (Da)
- 948 mm
- Overall inside diameter (Di)
- 737.6 mm
- Overall height (H)
- 56 mm
- Catalog diameter O (O)
- 842.5 mm
- Catalog diameter U (U)
- 845.5 mm
- Catalog diameter C (C)
- 883 mm
- Lower ring offset Hu (Hu)
- 10.5 mm
- Assembly weight (Weight)
- 61.6 kg
- Axial bearing play (Y_axial)
- ≤ 0,5 mm
- Radial bearing play (Y_radial)
- ≤ 0,5 mm
Mounting
- Outer ring bolt circle (La)
- 920 mm
- Outer ring mounting-hole count (na)
- 14
- Outer ring mounting-hole diameter (B_outer)
- 18 mm
- Inner ring bolt circle (Li)
- 805 mm
- Inner ring mounting-hole count (ni)
- 20
- Metric bolt nominal size (M)
- 12 mm
- Thread depth (t)
- 20 mm
Gear
- Gear pitch diameter (d)
- 752 mm
- Gear module (m)
- 8 mm
- Gear tooth count (z)
- 94
- Tip-height modification product k·m (k*m)
- -0.8 mm
- Minimum gear face width (bmin)
- 45.5 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordRothe Erde 232.20.0800.013 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 232.20.0800.013 |
| Certified interchangeable with | Rothe Erde 232.20.0800.013 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Rothe Erde |
| Series | 23 Series |
| Reference model | 232.20.0800.013 |
| System of measurement | Metric |
| Bearing structure | Profile bearing |
| Gear arrangement | Internal gear |
| Dimensions | |
| Raceway diameter (DL) | 844 mm |
| Overall outside diameter (Da) | 948 mm |
| Overall inside diameter (Di) | 737.6 mm |
| Overall height (H) | 56 mm |
| Catalog diameter O (O) | 842.5 mm |
| Catalog diameter U (U) | 845.5 mm |
| Catalog diameter C (C) | 883 mm |
| Lower ring offset Hu (Hu) | 10.5 mm |
| Assembly weight (Weight) | 61.6 kg |
| Axial bearing play (Y_axial) | ≤ 0,5 mm |
| Radial bearing play (Y_radial) | ≤ 0,5 mm |
| Mounting | |
| Outer ring bolt circle (La) | 920 mm |
| Outer ring mounting-hole count (na) | 14 |
| Outer ring mounting-hole diameter (B_outer) | 18 mm |
| Inner ring bolt circle (Li) | 805 mm |
| Inner ring mounting-hole count (ni) | 20 |
| Metric bolt nominal size (M) | 12 mm |
| Thread depth (t) | 20 mm |
| Gear | |
| Gear pitch diameter (d) | 752 mm |
| Gear module (m) | 8 mm |
| Gear tooth count (z) | 94 |
| Tip-height modification product k·m (k*m) | -0.8 mm |
| Minimum gear face width (bmin) | 45.5 mm |
| Ratings | |
| Permitted circumferential force, normal (X1) | 20.8 kN |
| Permitted circumferential force, maximum (X2) | 41.6 kN |
| Miscellaneous | |
| Grease nipple count (n1) | 4 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

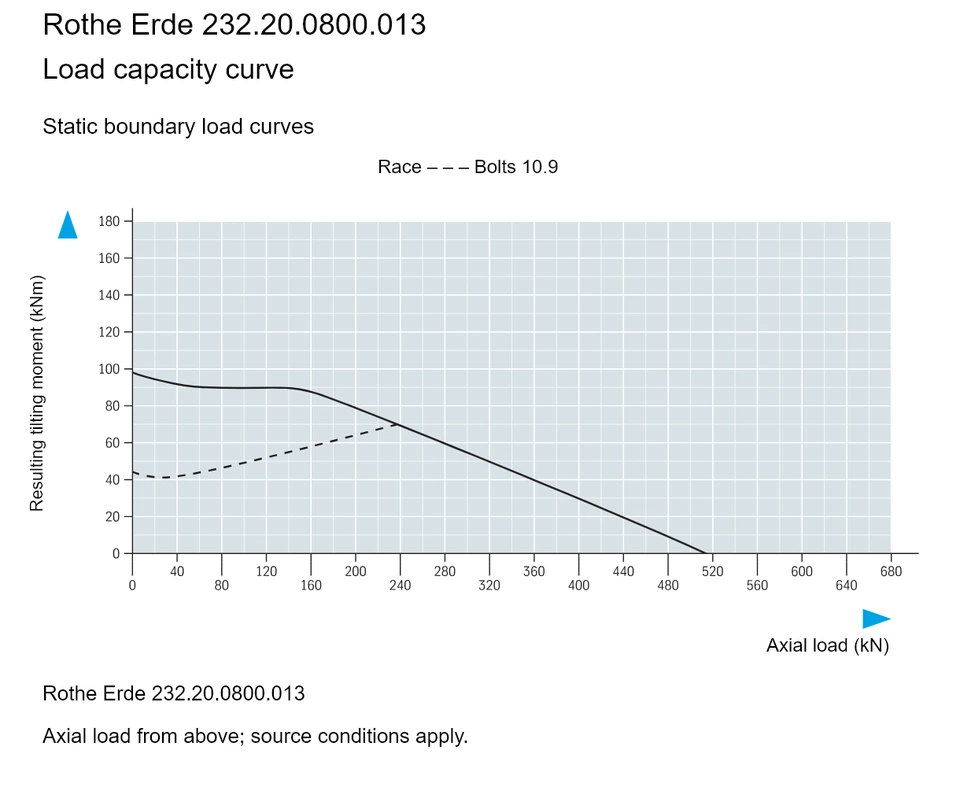

23 Series load chart
