Tibet Makina 1391E-12B-200 Slewing Bearing Replacement

Name: MERYDOM Replacement for Tibet Makina 1391E-12B-200 Slewing Bearing
Brand: MERYDOM
SKU: 1391E-12B-200

Back to replacement catalog

MERYDOM BRAND · CERTIFIED REPLACEMENT

1391E-12B-200

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Tibet Makina 1391E-12B-200.

Certified product dataView complete specifications ↓

Overall OD (Do): 1605 mm
Overall ID (di): 1208 mm
Overall height: 130 mm
Gear arrangement: External gear
Mounting holes: 48 / 48 outer / inner
Bearing design: Double-row ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

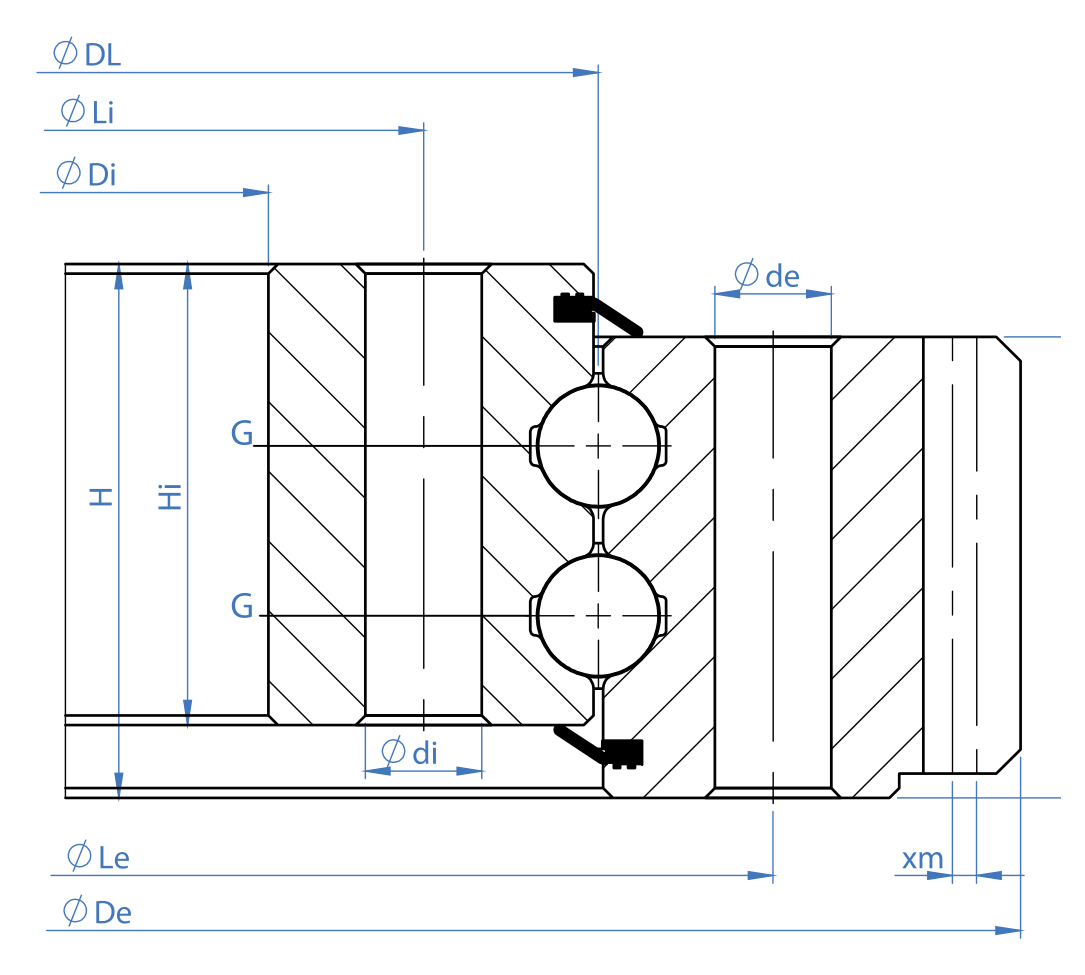

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Mass (Kg): 670 kg
Overall outside diameter (De): 1,605 mm
Overall inside diameter (Di): 1,208 mm
Overall height (H): 130 mm
Outer ring height (He): 116 mm
Inner ring height (Hi): 116 mm

Mounting

Outer ring bolt circle (Le): 1,494 mm
Inner ring bolt circle (Li): 1,280 mm
Outer ring mounting-hole count (ne): 48
Inner ring mounting-hole count (ni): 48
Outer ring mounting-hole specification (de): 29 mm
Inner ring mounting-hole specification (di): 29 mm

Gear

Gear module (m): 12 mm
Gear tooth count (z): 138
Addendum modification product x*m (xm): 12 mm

MERYDOM CERTIFIED SPECIFICATION

Tibet Makina 1391E-12B-200 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	1391E-12B-200
Certified interchangeable with	Tibet Makina 1391E-12B-200
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	Tibet Makina
Series	Double-row ball · External gear Series
Reference model	1391E-12B-200
System of measurement	Metric
Bearing structure	Double-row ball
Gear arrangement	External gear
Dimensions
Mass (Kg)	670 kg
Overall outside diameter (De)	1,605 mm
Overall inside diameter (Di)	1,208 mm
Overall height (H)	130 mm
Outer ring height (He)	116 mm
Inner ring height (Hi)	116 mm
Mounting
Outer ring bolt circle (Le)	1,494 mm
Inner ring bolt circle (Li)	1,280 mm
Outer ring mounting-hole count (ne)	48
Inner ring mounting-hole count (ni)	48
Outer ring mounting-hole specification (de)	29 mm
Inner ring mounting-hole specification (di)	29 mm
Gear
Gear module (m)	12 mm
Gear tooth count (z)	138
Addendum modification product x*m (xm)	12 mm
Ratings
Normal tooth force (Ft_normal)	134 kN
Maximum tooth force (Ft_max)	268 kN
Miscellaneous
Raceway Pitch Diameter (DL)	1,391 mm
Lubrication Zerk Count (G)	6

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

SERIES LOAD CAPACITY

Double-row ball · External gear Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for Tibet Makina 1391E-12B-200

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
