Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
IMO 10-12 0120/0-03659 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 10-12 0120/0-03659 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 10-12 0120/0-03659 reference belongs to the Other Standard Ball Series and uses a four-point contact ball, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
10-12 0120/0-03659
MERYDOM-manufactured slewing bearing certified for interchange with IMO 10-12 0120/0-03659.
- Overall OD (Do)
- 170 mm
- Overall ID (di)
- 69 mm
- Overall height
- 30 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 6 / 6 outer / inner
- Bearing design
- Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- Controlled materials
- Factory documentation
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Assembly weight (G)
- 4 kg
- Overall height (H)
- 30 mm
- Overall outside diameter (Da)
- 170 mm
- Overall inside diameter (di)
- 69 mm
- Catalogue outer ring height
- 29 mm
- Catalogue inner ring height
- 30 mm
Mounting
- Outer ring mounting-hole count (na)
- 6
- Inner ring mounting-hole count (ni)
- 6
- Outer ring bolt circle (La)
- 148 mm
- Inner ring bolt circle (Li)
- 90 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 10-12 0120/0-03659 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 10-12 0120/0-03659 |
| Certified interchangeable with | IMO 10-12 0120/0-03659 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | Other Standard Ball Series |
| Reference model | 10-12 0120/0-03659 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Assembly weight (G) | 4 kg |
| Overall height (H) | 30 mm |
| Overall outside diameter (Da) | 170 mm |
| Overall inside diameter (di) | 69 mm |
| Catalogue outer ring height | 29 mm |
| Catalogue inner ring height | 30 mm |
| Mounting | |
| Outer ring mounting-hole count (na) | 6 |
| Inner ring mounting-hole count (ni) | 6 |
| Outer ring bolt circle (La) | 148 mm |
| Inner ring bolt circle (Li) | 90 mm |
| Ratings | |
| Static radial load rating (Co_rad) | 29 kN |
| Static axial load rating (Co_ax) | 78 kN |
| Dynamic radial load rating (C_rad) | 43 kN |
| Dynamic axial load rating (C_ax) | 50 kN |
| Radial clearance (SRad) | 0 - 0.03 mm |
| Axial tilting clearance (Skipp) | 0 - 0.03 mm |
| Miscellaneous | |
| Reference catalog ring material (inner / outer) (Material) | C45N |
| Reference catalog transport holes (T) | Not applicable |
| Reference catalog grease nipple specification (X) | 2 x AM8x1 |
| Catalogue grease point count | 2 |
| Catalogue grease point ring | Outer ring |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

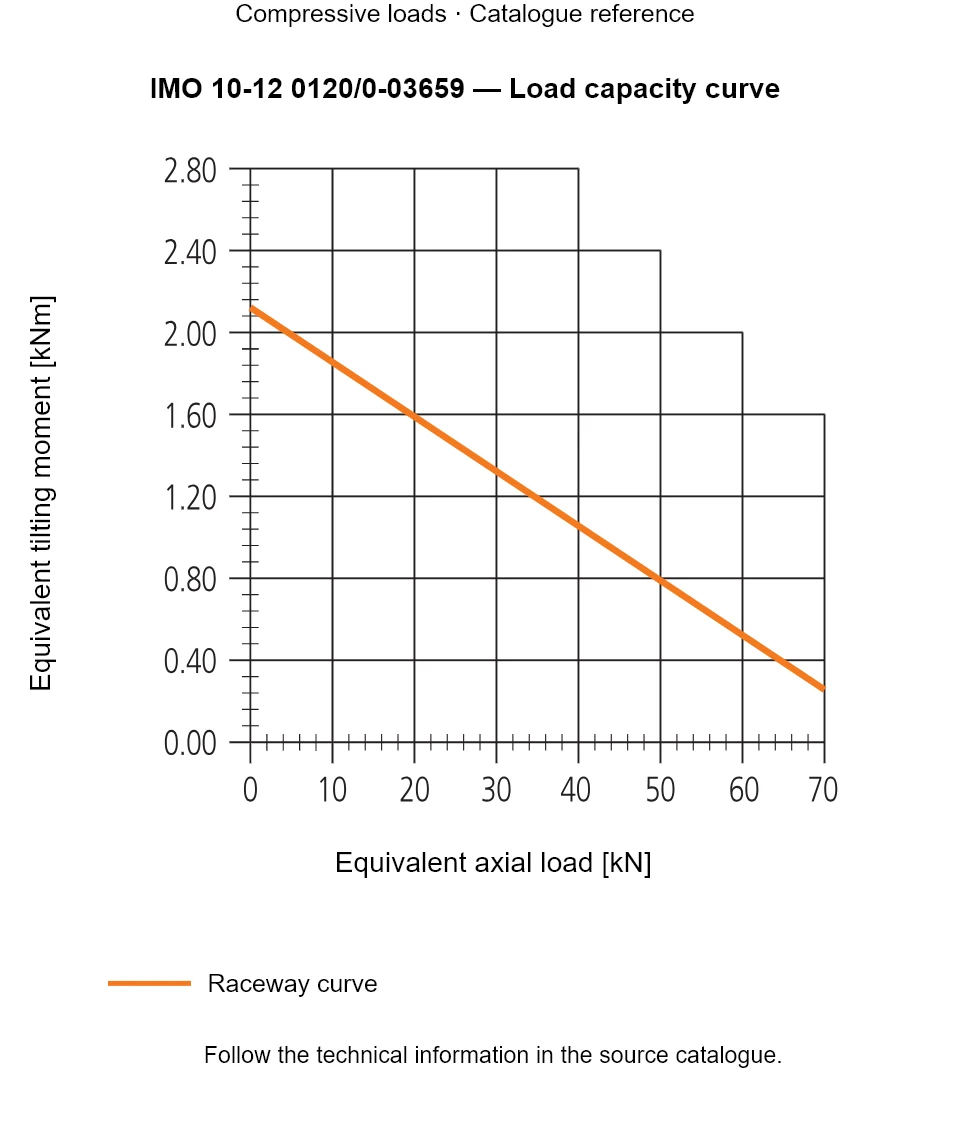

IMO 10-12 0120/0-03659 — Load capacity curve
IMO 10-12 0120/0-03659 — Load capacity curve
IMO 10-12 0120/0-03659 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 10-12 0120/0-03659
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 10-12 0120/0-03659.
