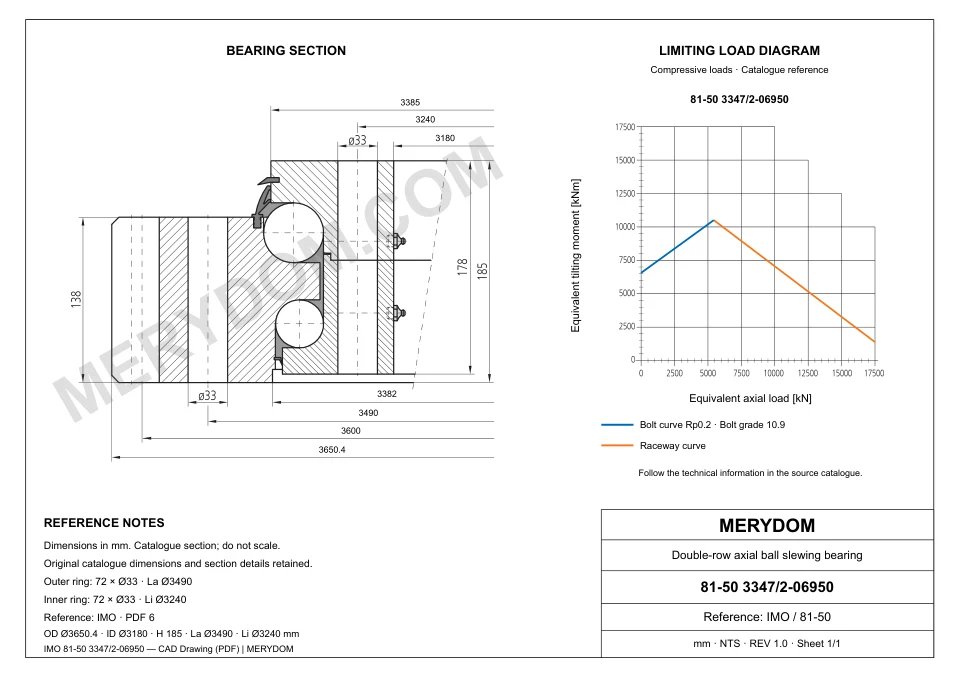

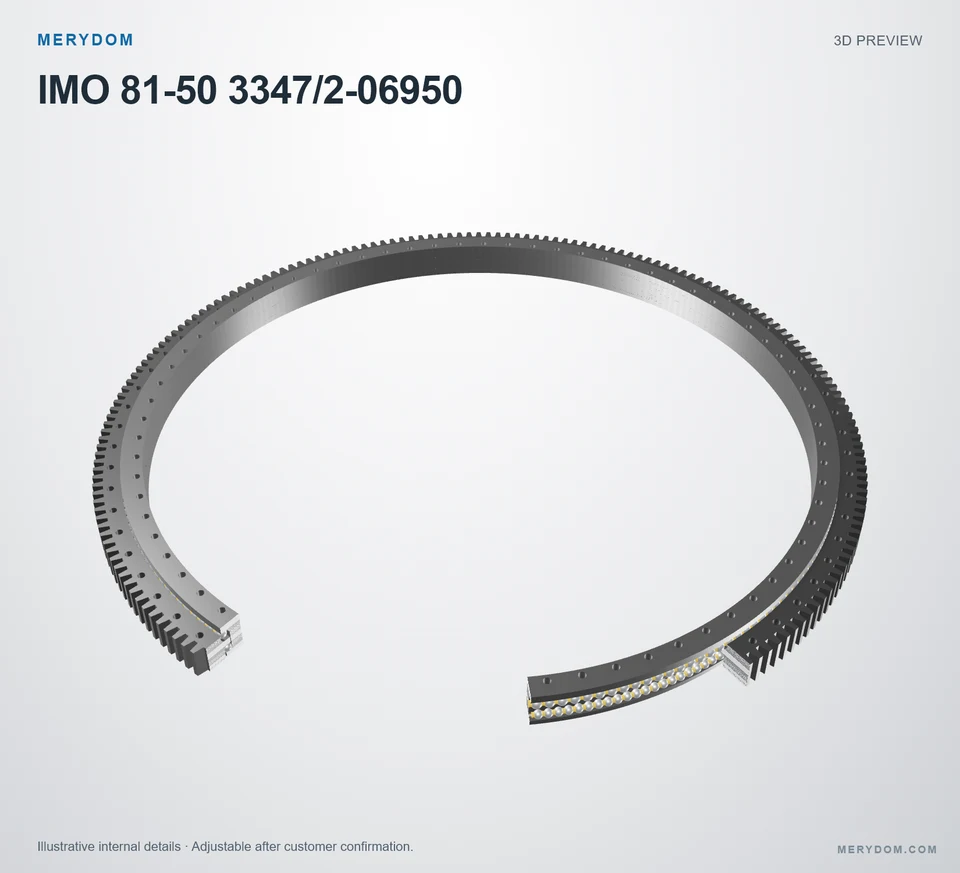

IMO 81-50 3347/2-06950 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 81-50 3347/2-06950 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 81-50 3347/2-06950 reference belongs to the 850 Series and uses a double axial ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
81-50 3347/2-06950
MERYDOM-manufactured slewing bearing certified for interchange with IMO 81-50 3347/2-06950.
- Overall OD (Do)
- 3650.4 mm
- Overall ID (di)
- 3180 mm
- Overall height
- 185 mm
- Gear arrangement
- External gear
- Mounting holes
- 72 / 72 outer / inner
- Bearing design
- Double axial ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 3,650.4 mm
- Overall inside diameter (di)
- 3,180 mm
- Assembly weight (G)
- 2,566 kg
- Overall height (H)
- 185 mm
- Outer ring inner diameter (Di)
- 3,382 mm
- Inner ring outer diameter (da)
- 3,385 mm
Mounting
- Outer ring bolt circle (La)
- 3,490 mm
- Inner ring bolt circle (Li)
- 3,240 mm
- Outer ring mounting-hole count (na)
- 72
- Inner ring mounting-hole count (n)
- 72
- Outer ring mounting-hole diameter (Øa)
- 33 mm
- Inner ring mounting-hole diameter (Øi)
- 33 mm
Gear
- Gear pitch diameter (d)
- 3,600 mm
- Gear module (m)
- 18 mm
- Gear tooth count (z)
- 200
- Addendum modification coefficient (x)
- 0.5
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 81-50 3347/2-06950 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 81-50 3347/2-06950 |
| Certified interchangeable with | IMO 81-50 3347/2-06950 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 850 Series |
| Reference model | 81-50 3347/2-06950 |
| System of measurement | Metric |
| Bearing structure | Double axial ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Da) | 3,650.4 mm |
| Overall inside diameter (di) | 3,180 mm |
| Assembly weight (G) | 2,566 kg |
| Overall height (H) | 185 mm |
| Outer ring inner diameter (Di) | 3,382 mm |
| Inner ring outer diameter (da) | 3,385 mm |
| Mounting | |
| Outer ring bolt circle (La) | 3,490 mm |
| Inner ring bolt circle (Li) | 3,240 mm |
| Outer ring mounting-hole count (na) | 72 |
| Inner ring mounting-hole count (n) | 72 |
| Outer ring mounting-hole diameter (Øa) | 33 mm |
| Inner ring mounting-hole diameter (Øi) | 33 mm |
| Gear | |
| Gear pitch diameter (d) | 3,600 mm |
| Gear module (m) | 18 mm |
| Gear tooth count (z) | 200 |
| Addendum modification coefficient (x) | 0.5 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 227 kN |
| Permitted circumferential force, maximum (fz_max) | 403 kN |
| Static radial load rating (Co_rad) | 3,838 kN |
| Static axial load rating, tension (Co_ax_T) | 19,070 kN |
| Static axial load rating, compression (Co_ax_H) | 15,762 kN |
| Dynamic radial load rating (C_rad) | 782 kN |
| Dynamic axial load rating, tension (C_ax_T) | 1,853 kN |
| Dynamic axial load rating, compression (C_ax_H) | 1,469 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

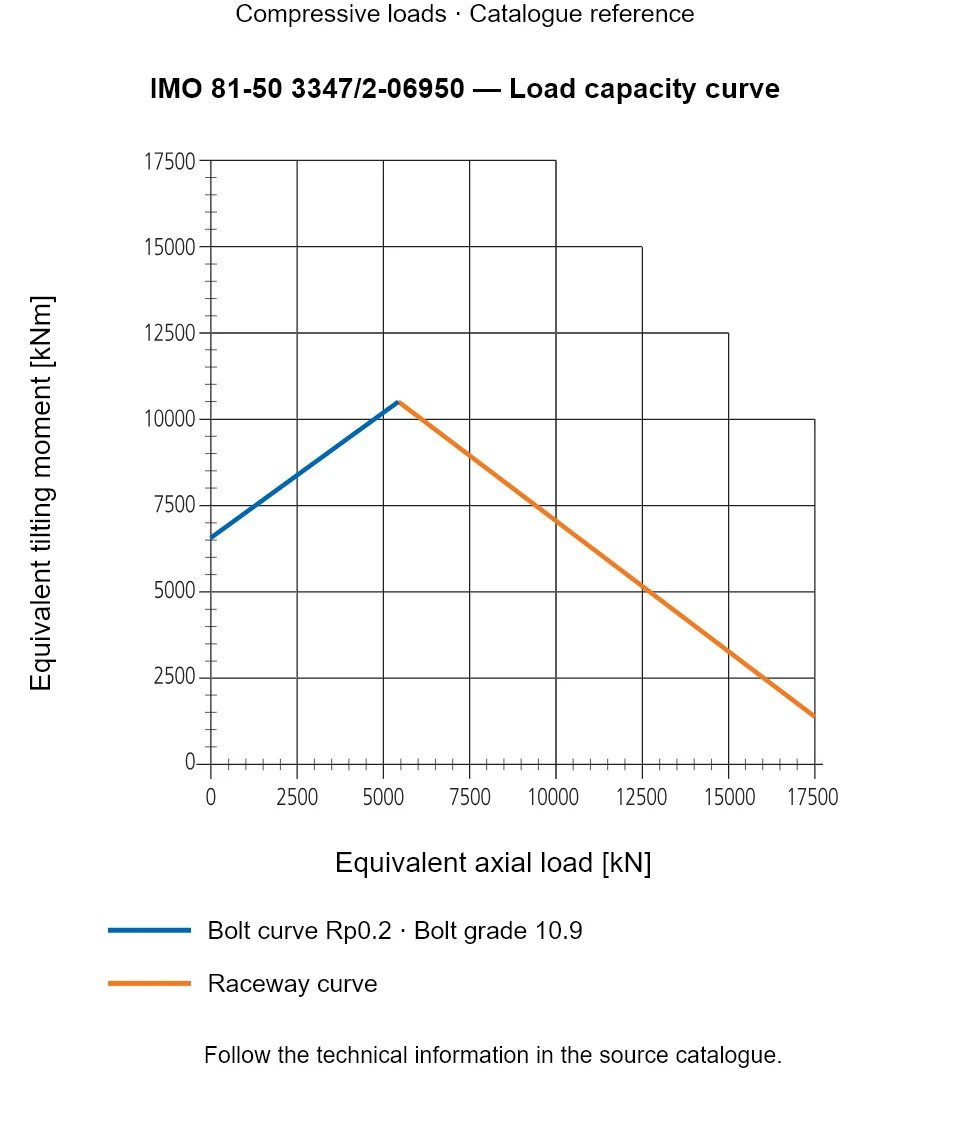

IMO 81-50 3347/2-06950 — Load capacity curve
IMO 81-50 3347/2-06950 — Load capacity curve
IMO 81-50 3347/2-06950 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 81-50 3347/2-06950
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
