IMO 82-50 2559/2-06970 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 82-50 2559/2-06970 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 82-50 2559/2-06970 reference belongs to the 850 Series and uses a double axial ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
82-50 2559/2-06970
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with IMO 82-50 2559/2-06970.
- Overall OD (Do)
- 2725 mm
- Overall ID (di)
- 2250 mm
- Overall height
- Not published
- Gear arrangement
- Internal gear
- Mounting holes
- 60 / outer / inner
- Bearing design
- Double axial ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

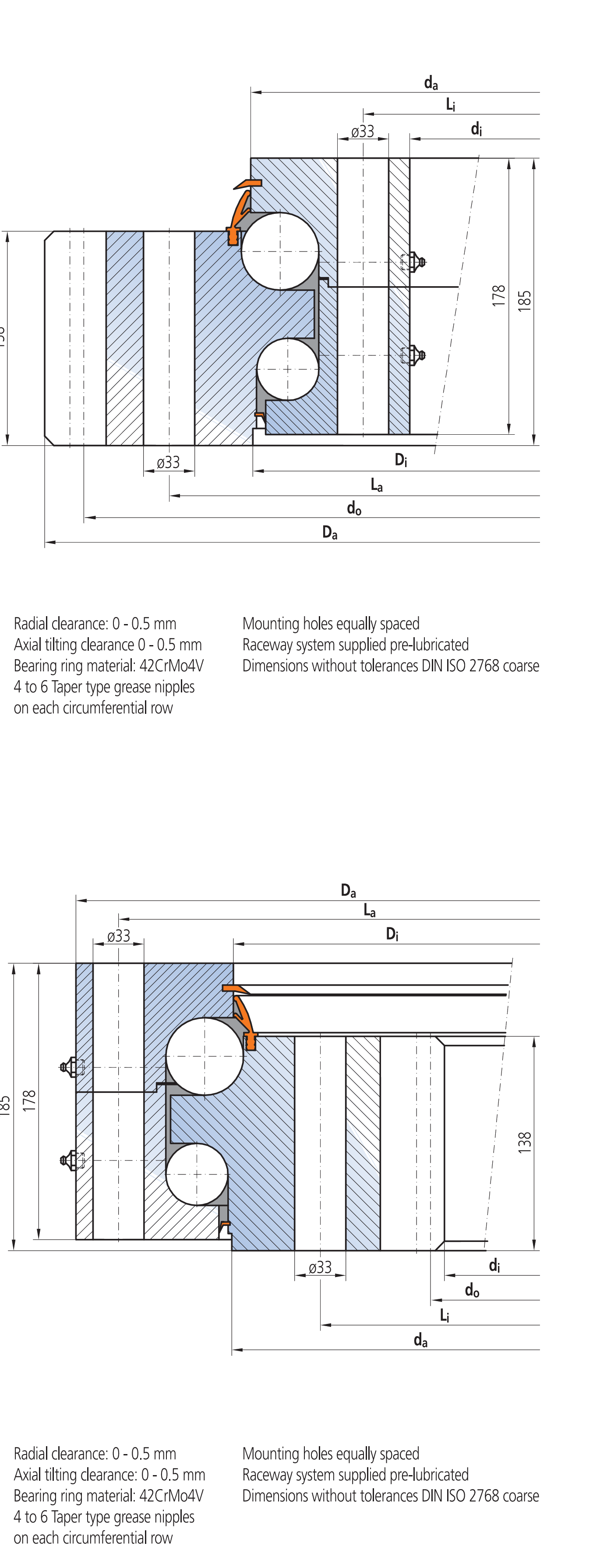

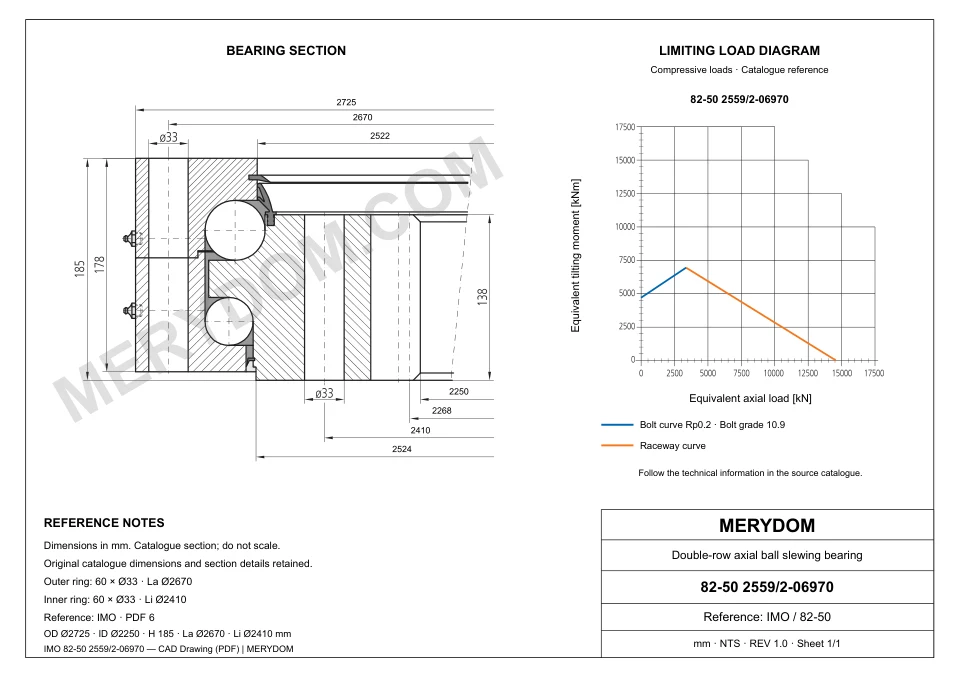

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 2,725 mm
- Overall inside diameter (di)
- 2,250 mm
- Assembly weight (G)
- 1,892 kg
Mounting
- Outer ring bolt circle (La)
- 2,670 mm
- Inner ring bolt circle (Li)
- 2,410 mm
- Outer ring mounting-hole count (na)
- 60
Gear
- Gear pitch diameter (d)
- 2,268 mm
- Gear module (m)
- 18 mm
- Gear tooth count (z)
- 126
- Addendum modification coefficient (x)
- -0.5
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 82-50 2559/2-06970 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 82-50 2559/2-06970 |
| Certified interchangeable with | IMO 82-50 2559/2-06970 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 850 Series |
| Reference model | 82-50 2559/2-06970 |
| System of measurement | Metric |
| Bearing structure | Double axial ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Da) | 2,725 mm |
| Overall inside diameter (di) | 2,250 mm |
| Assembly weight (G) | 1,892 kg |
| Mounting | |
| Outer ring bolt circle (La) | 2,670 mm |
| Inner ring bolt circle (Li) | 2,410 mm |
| Outer ring mounting-hole count (na) | 60 |
| Gear | |
| Gear pitch diameter (d) | 2,268 mm |
| Gear module (m) | 18 mm |
| Gear tooth count (z) | 126 |
| Addendum modification coefficient (x) | -0.5 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 240 kN |
| Permitted circumferential force, maximum (fz_max) | 440 kN |
| Static radial load rating (Co_rad) | 2,955 kN |
| Static axial load rating, tension (Co_ax_T) | 14,580 kN |
| Static axial load rating, compression (Co_ax_H) | 12,134 kN |
| Dynamic radial load rating (C_rad) | 710 kN |
| Dynamic axial load rating, tension (C_ax_T) | 1,678 kN |
| Dynamic axial load rating, compression (C_ax_H) | 1,334 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

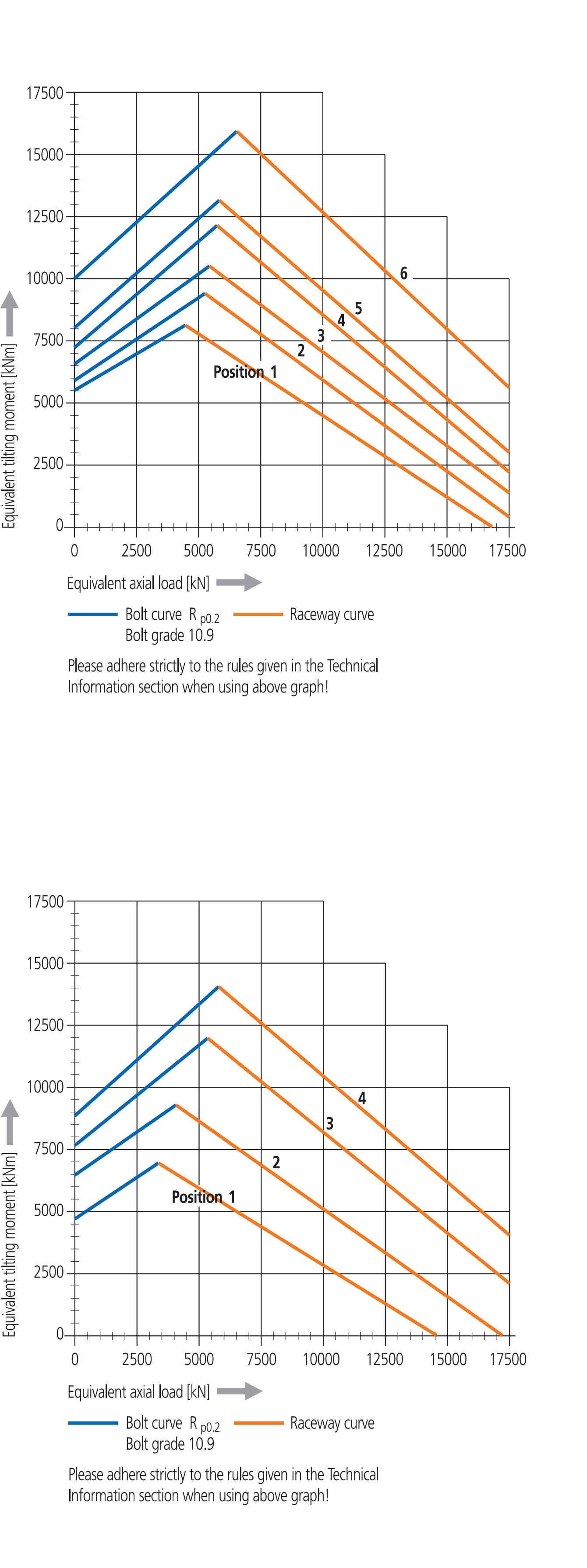

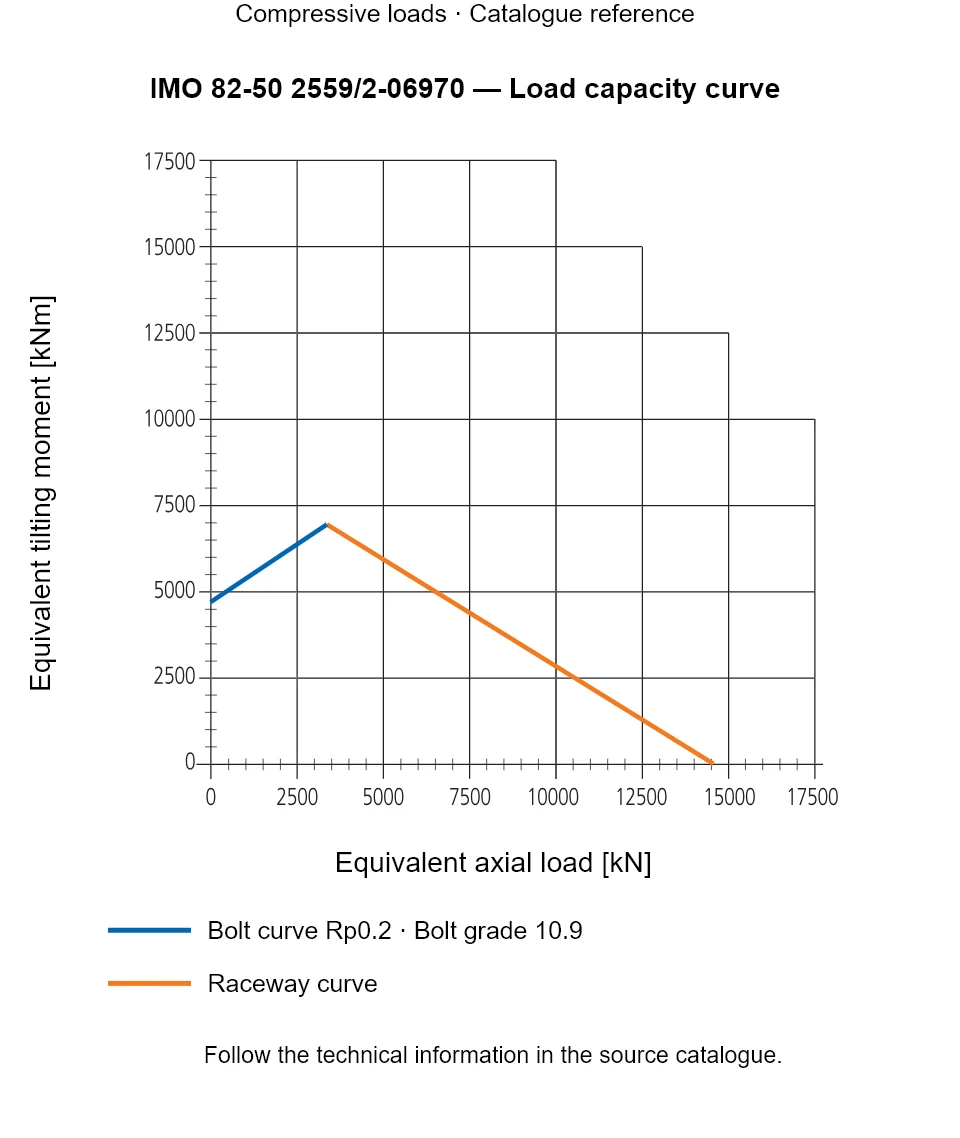

850 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING

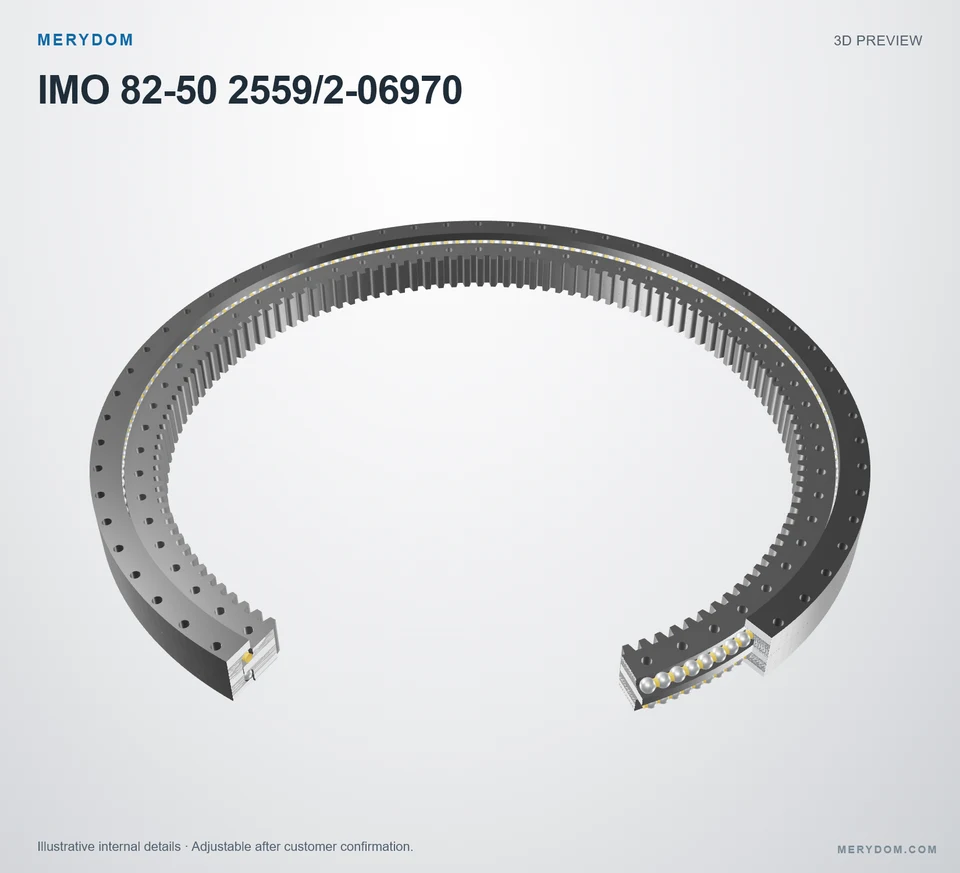

MERYDOM Replacement for IMO 82-50 2559/2-06970
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
