INA VSA 251055 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA VSA 251055 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA VSA 251055 N reference belongs to the Vsa 25 Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
VSA 251055 N
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with INA VSA 251055 N.
- Overall OD (Do)
- 1198 mm
- Overall ID (di)
- 955 mm
- Overall height
- Not published
- Gear arrangement
- External gear
- Mounting holes
- 30 / 30 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 171 kg
- Overall outside diameter (Da)
- 1,198 mm
- Overall inside diameter (di)
- 955 mm
- Inside centring diameter (diZT)
- 957 mm
- Catalog diameter Di (Di)
- 1,053 mm
- Catalog centring diameter DiZT (DiZT)
- 1,055 mm
- Catalog diameter da (da)
- 1,057 mm
Mounting
- Outer ring bolt circle (La)
- 1,116 mm
- Inner ring bolt circle (Li)
- 995 mm
- Common mounting-hole count (nB)
- 30
Gear
- Gear pitch diameter (d0)
- 1,180 mm
- Gear module (m)
- 10 mm
- Gear tooth count (z)
- 118
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA VSA 251055 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VSA 251055 N |
| Certified interchangeable with | INA VSA 251055 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Vsa 25 Series |
| Reference model | VSA 251055 N |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Mass (Mass) | 171 kg |
| Overall outside diameter (Da) | 1,198 mm |
| Overall inside diameter (di) | 955 mm |
| Inside centring diameter (diZT) | 957 mm |
| Catalog diameter Di (Di) | 1,053 mm |
| Catalog centring diameter DiZT (DiZT) | 1,055 mm |
| Catalog diameter da (da) | 1,057 mm |
| Mounting | |
| Outer ring bolt circle (La) | 1,116 mm |
| Inner ring bolt circle (Li) | 995 mm |
| Common mounting-hole count (nB) | 30 |
| Gear | |
| Gear pitch diameter (d0) | 1,180 mm |
| Gear module (m) | 10 mm |
| Gear tooth count (z) | 118 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 363 kN |
| Normal tooth force (Fznorm) | 61.2 kN |
| Maximum tooth force (Fzmax) | 89 kN |
| Basic dynamic axial load rating (Ca) | 520 kN |
| Basic static axial load rating (C0a) | 3,150 kN |
| Basic dynamic radial load rating (Cr) | 340 kN |
| Basic static radial load rating (C0r) | 1,410 kN |
| Radial clearance (Radial clearance) | 0,03 incl. 0,13 mm |
| Axial tilting clearance (Axial tilting clearance) | 0,05 incl. 0,24 mm |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

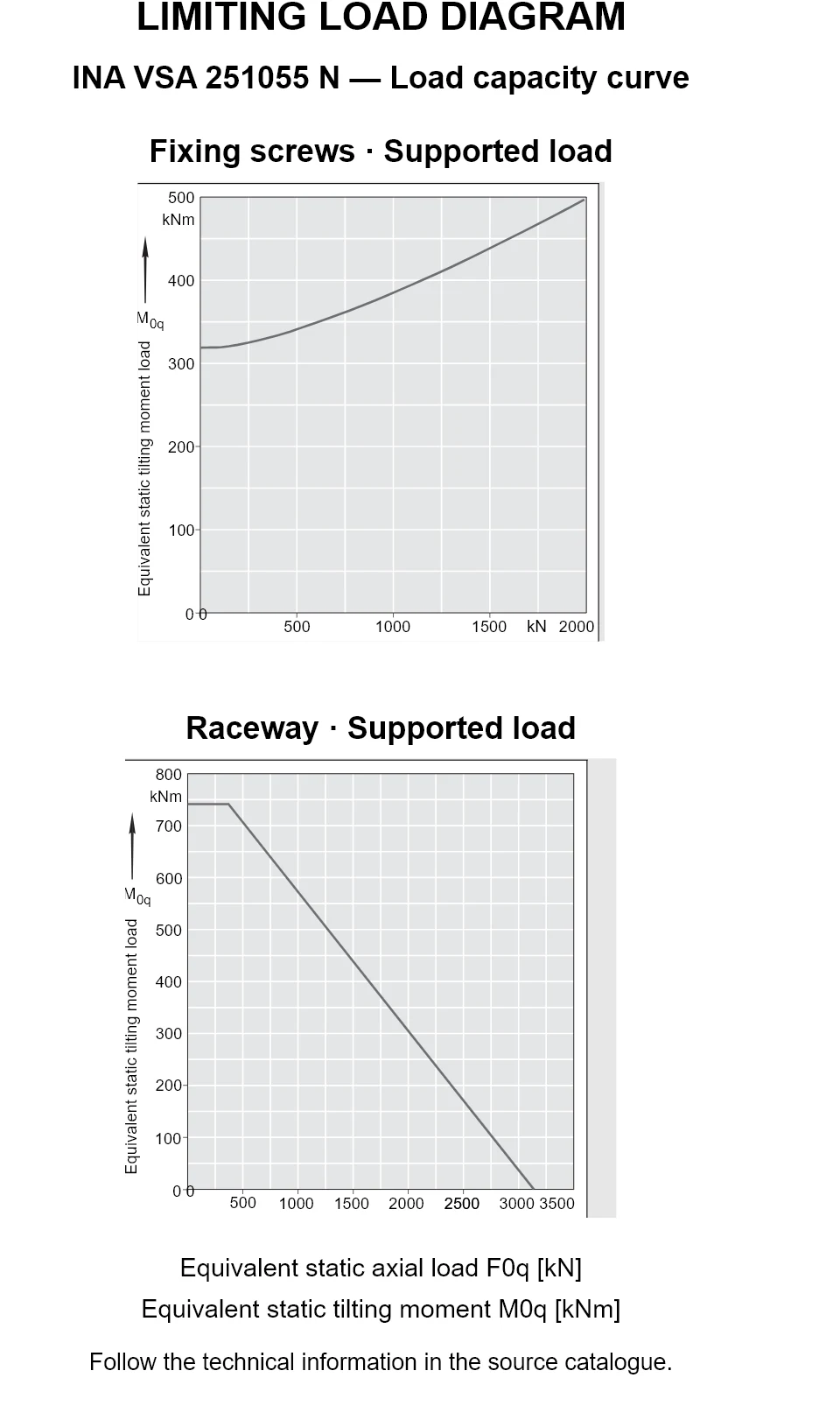

Vsa 25 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING

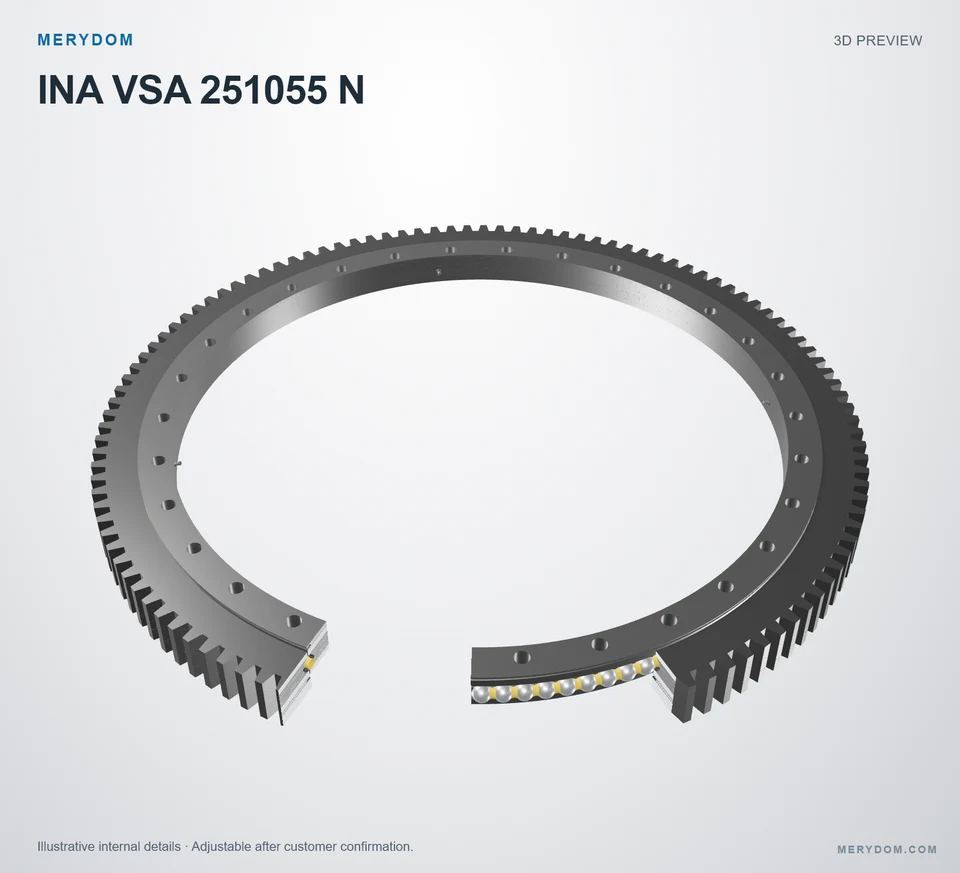

MERYDOM Replacement for INA VSA 251055 N
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
