INA XA 120235 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA XA 120235 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA XA 120235 N reference belongs to the Xa Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

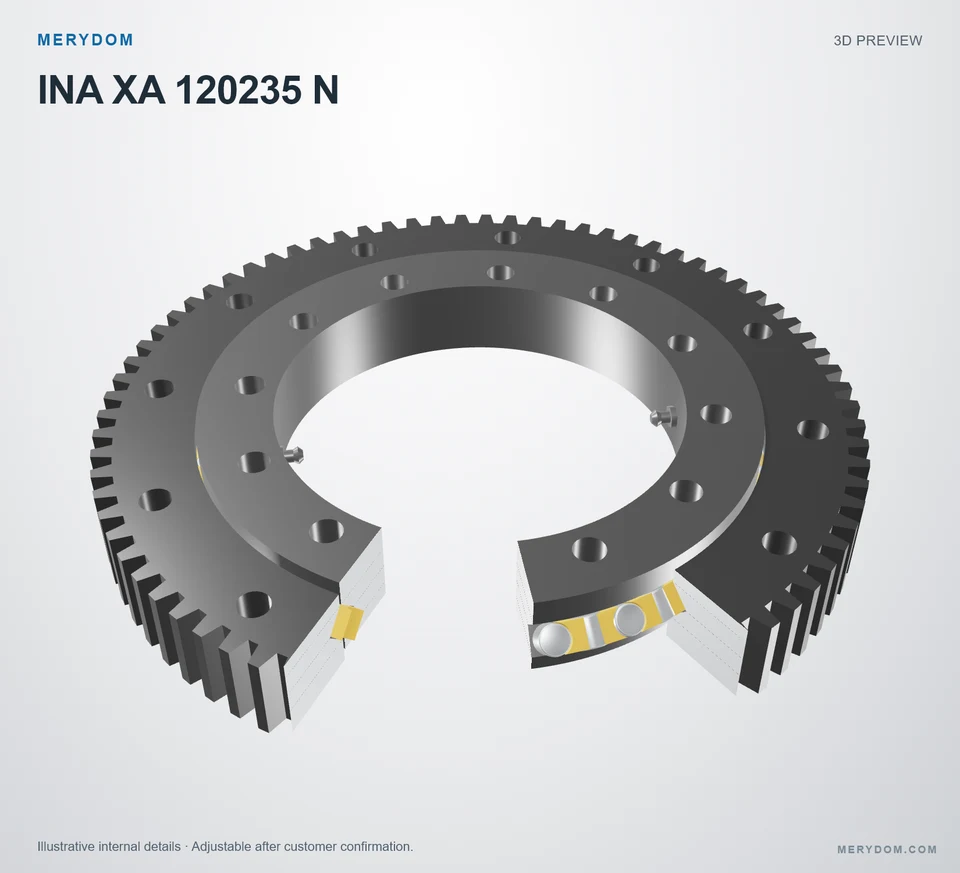

XA 120235 N
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with INA XA 120235 N.
- Overall OD (Do)
- 318,8 mm
- Overall ID (di)
- 171 mm
- Overall height
- 40 mm
- Gear arrangement
- External gear
- Mounting holes
- 12 / 12 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

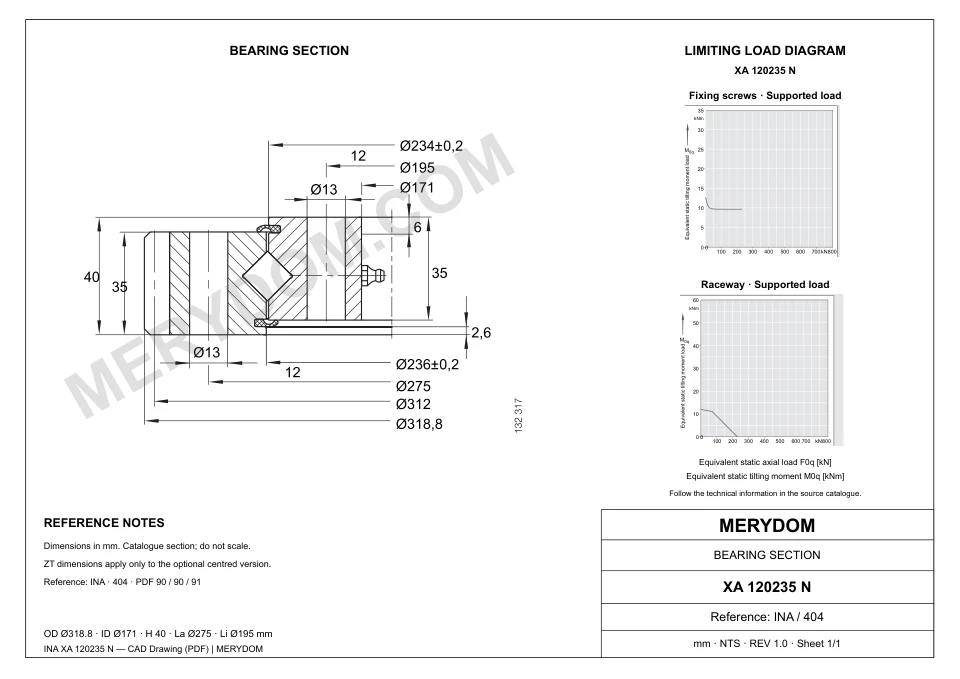

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 13.3 kg
- Overall outside diameter (Da)
- 318.8 mm
- Overall inside diameter (di)
- 171 mm
- Inside centring diameter (diZT)
- 173 mm
- Catalog diameter Di (Di)
- 236±0,2 mm
- Catalog centring diameter DiZT (DiZT)
- 238 mm
- Catalog diameter da (da)
- 234±0,2 mm
- Outer centring length (T)
- 2.6 mm
- Inner centring length (t)
- 6 mm
- Overall height (H)
- 40 mm
- Inner height (h)
- 35 mm
Mounting
- Outer ring bolt circle (La)
- 275 mm
- Inner ring bolt circle (Li)
- 195 mm
- Outer ring mounting-hole count (na)
- 12
- Inner ring mounting-hole count (ni)
- 12
- Common mounting-hole diameter (dB)
- 13 mm
Gear
- Gear pitch diameter (d0)
- 312 mm
- Gear module (m)
- 4 mm
- Gear tooth count (z)
- 78
- Gear face width (b)
- 35 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA XA 120235 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | XA 120235 N |
| Certified interchangeable with | INA XA 120235 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Xa Series |
| Reference model | XA 120235 N |
| System of measurement | Metric |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Mass (Mass) | 13.3 kg |
| Overall outside diameter (Da) | 318.8 mm |
| Overall inside diameter (di) | 171 mm |
| Inside centring diameter (diZT) | 173 mm |
| Catalog diameter Di (Di) | 236±0,2 mm |
| Catalog centring diameter DiZT (DiZT) | 238 mm |
| Catalog diameter da (da) | 234±0,2 mm |
| Outer centring length (T) | 2.6 mm |
| Inner centring length (t) | 6 mm |
| Overall height (H) | 40 mm |
| Inner height (h) | 35 mm |
| Mounting | |
| Outer ring bolt circle (La) | 275 mm |
| Inner ring bolt circle (Li) | 195 mm |
| Outer ring mounting-hole count (na) | 12 |
| Inner ring mounting-hole count (ni) | 12 |
| Common mounting-hole diameter (dB) | 13 mm |
| Gear | |
| Gear pitch diameter (d0) | 312 mm |
| Gear module (m) | 4 mm |
| Gear tooth count (z) | 78 |
| Gear face width (b) | 35 mm |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 49.6 kN |
| Normal tooth force (Fznorm) | 11 kN |
| Maximum tooth force (Fzmax) | 16.1 kN |
| Basic dynamic axial load rating (Ca) | 135 kN |
| Basic static axial load rating (C0a) | 235 kN |
| Basic dynamic radial load rating (Cr) | 86 kN |
| Basic static radial load rating (C0r) | 115 kN |
| Preload (Preload) | 0 incl. 0,02 mm |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

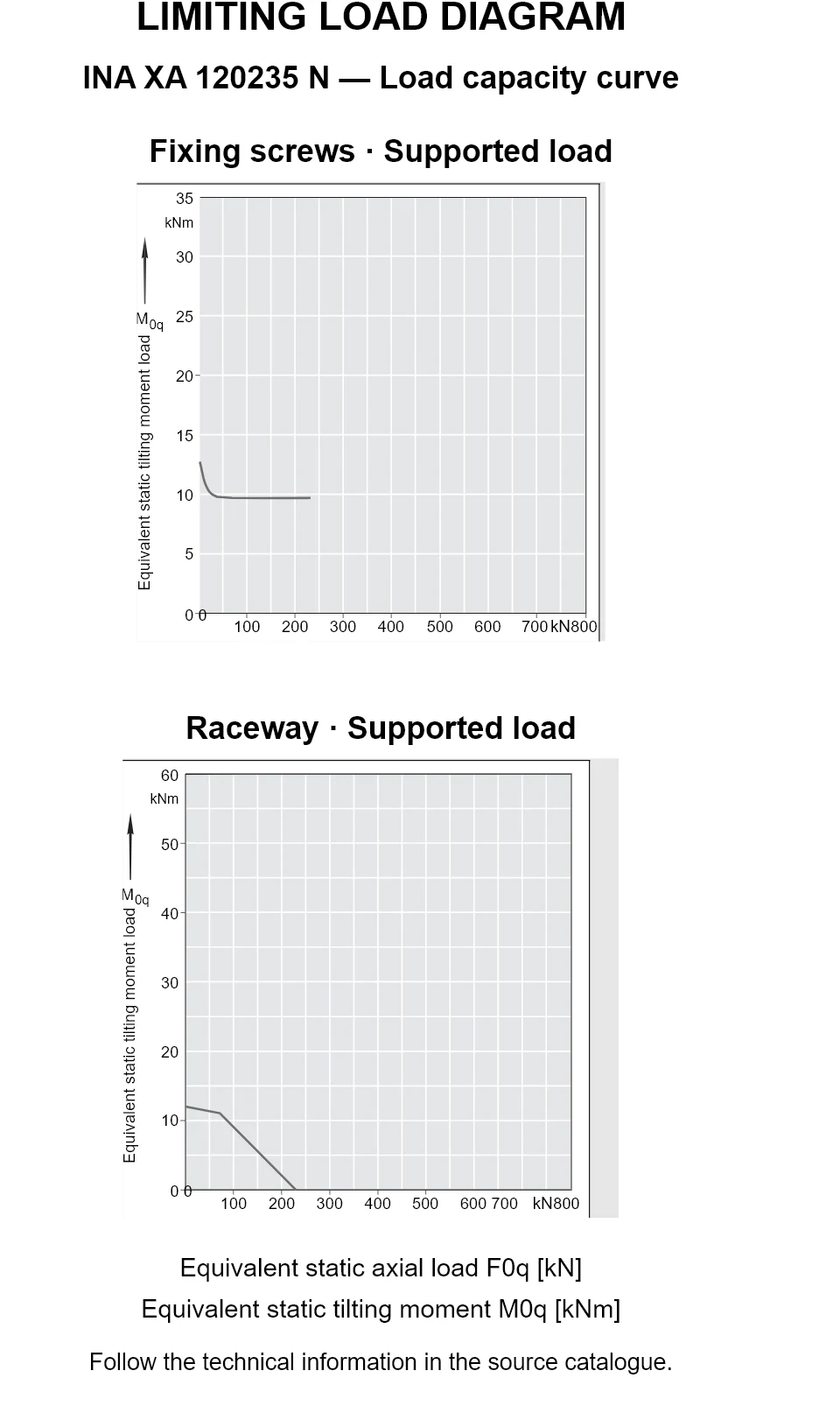

SERIES LOAD CAPACITY
