Kaydon 16279001 Slewing Bearing Replacement

Name: MERYDOM Replacement for Kaydon 16279001 Slewing Bearing
Brand: MERYDOM
SKU: 16279001

Back to replacement catalog

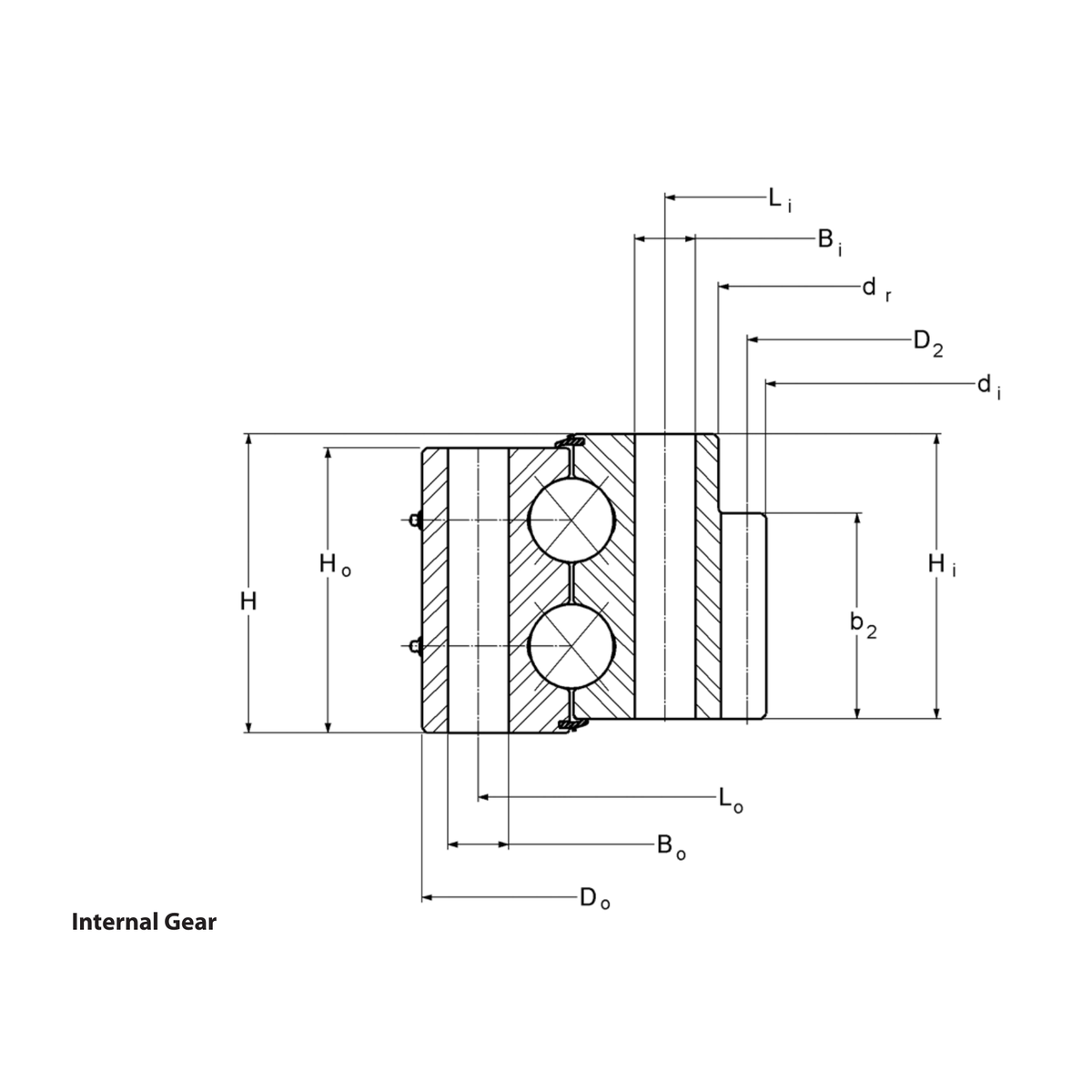

Kaydon Dt Series Internal gear outline drawing — Dt Series · Internal gear outlineClick image to enlarge

MERYDOM BRAND · CERTIFIED REPLACEMENT

16279001

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16279001.

Certified product dataView complete specifications ↓

Overall OD (Do): 109.375 in
Overall ID (di): 87.170 in
Overall height: 9.312 in
Gear arrangement: Internal gear
Mounting holes: 66 / 66 outer / inner
Bearing design: Eight-point contact ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do): 109.375 inapproximately 2,778.13 mm
Overall inside diameter (di): 87.170 inapproximately 2,214.1 mm
Inner ring body ID (dr): 87.170 inapproximately 2,214.1 mm
Overall height (H): 9.312 inapproximately 236.52 mm
Assembly weight (G): 7100 lbapproximately 3,220.506 kg

Mounting

Outer ring bolt circle (Lo): 102.953 inapproximately 2,615.01 mm
Inner ring bolt circle (Li): 93.504 inapproximately 2,375 mm

Gear

Gear pitch diameter (D2): 87.874 inapproximately 2,232 mm
Gear tooth count (z2): 124

MERYDOM CERTIFIED SPECIFICATION

Kaydon 16279001 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	16279001
Certified interchangeable with	Kaydon 16279001
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	Kaydon
Series	Dt Series
Reference model	16279001
System of measurement	InchMetric reference shown alongside
Bearing structure	Eight-point contact ball
Gear arrangement	Internal gear
Dimensions
Overall outside diameter (Do)	109.375 inapproximately 2,778.13 mm
Overall inside diameter (di)	87.170 inapproximately 2,214.1 mm
Overall height (H)	9.312 inapproximately 236.52 mm
Inner ring body ID (dr)	87.170 inapproximately 2,214.1 mm
Outer ring bolt circle (Lo)	102.953 inapproximately 2,615.01 mm
Inner ring bolt circle (Li)	93.504 inapproximately 2,375 mm
Gear pitch diameter (D2)	87.874 inapproximately 2,232 mm
Assembly weight (G)	7100 lbapproximately 3,220.506 kg
Ratings
Maximum gear tooth load (Fz)	94870 lbfapproximately 422 kN
Moment load rating (Crm)	9075400 ft·lbfapproximately 12,304.59 kN·m
Mounting
Outer ring bolt holes (no)	66 holes · 1.593
Inner ring bolt holes (ni)	66 holes · 1.593
Gear
Pitch system	MODULE
Source module (m)	Module 18 (source (18))
Number of teeth (z2)	124

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

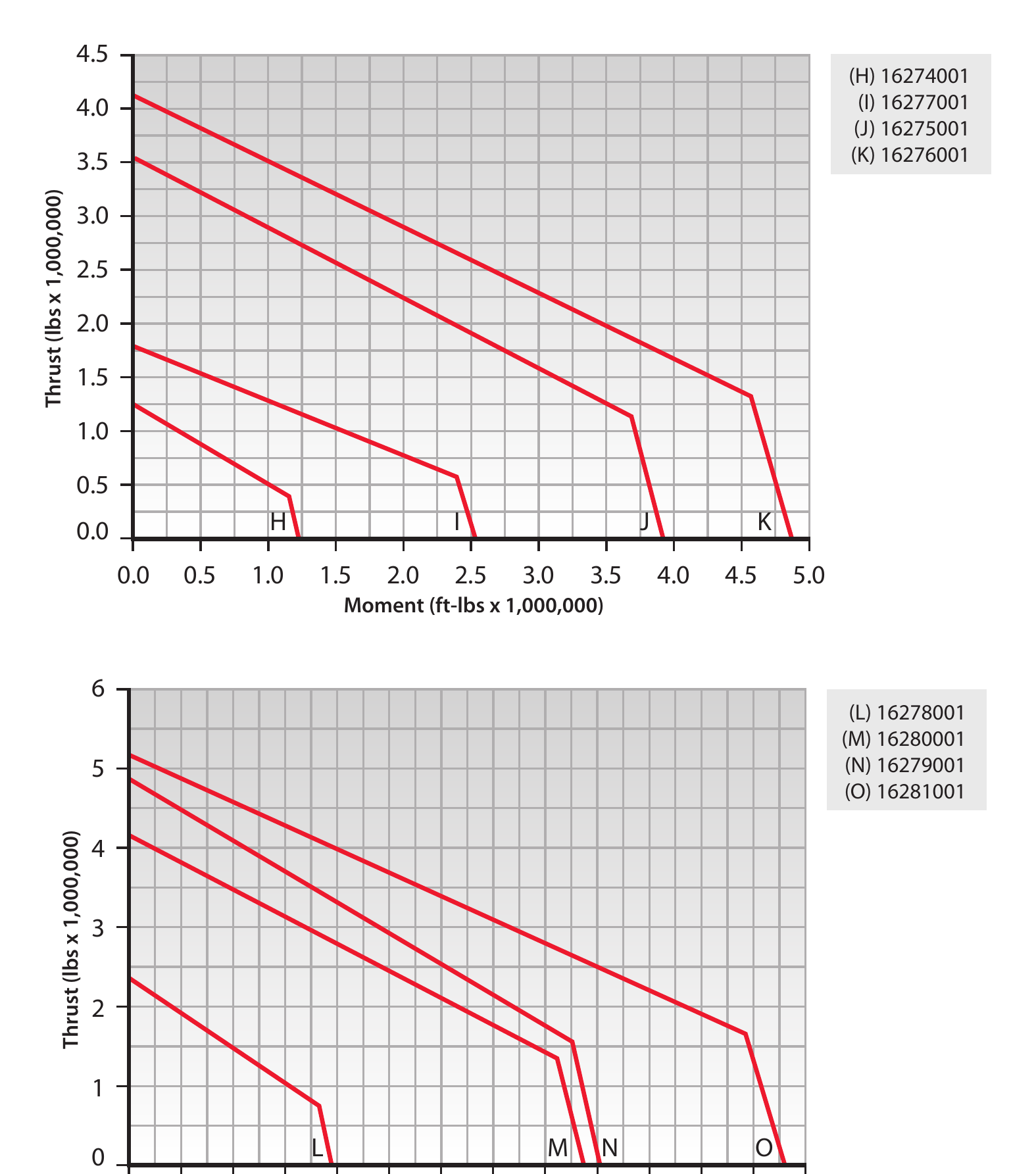

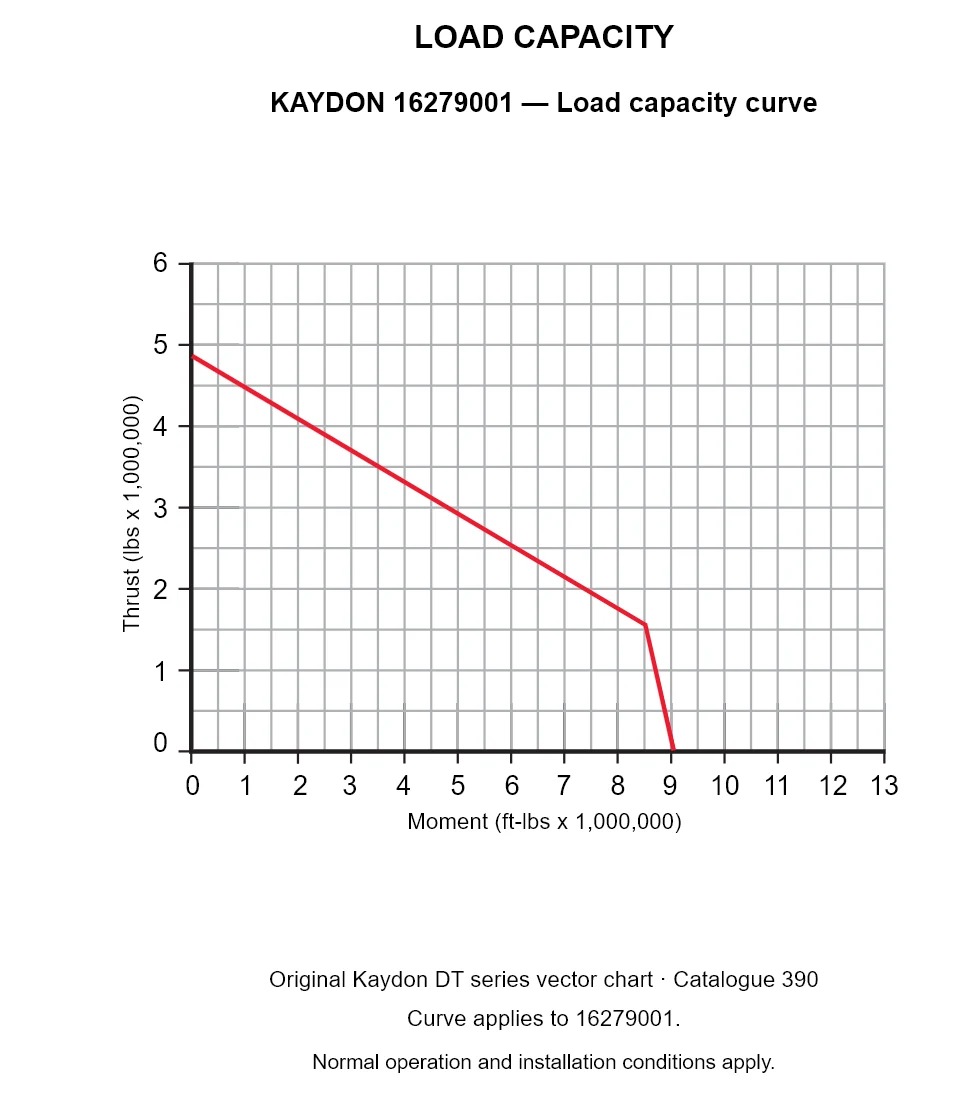

SERIES LOAD CAPACITY

Dt Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for Kaydon 16279001

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
