Kaydon 16297001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16297001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

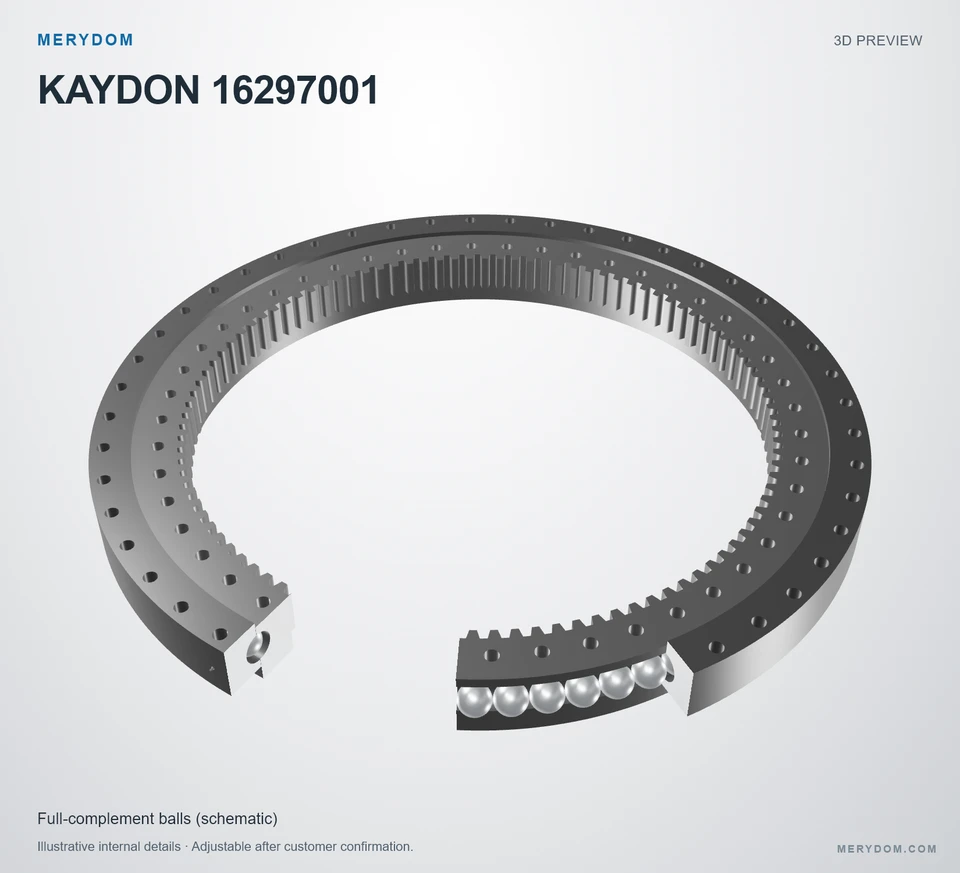

The Kaydon 16297001 reference belongs to the Xt Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16297001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16297001.
- Overall OD (Do)
- 54.375 in
- Overall ID (di)
- 41.280 in
- Overall height
- 5.000 in
- Gear arrangement
- Internal gear
- Mounting holes
- 48 / 48 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

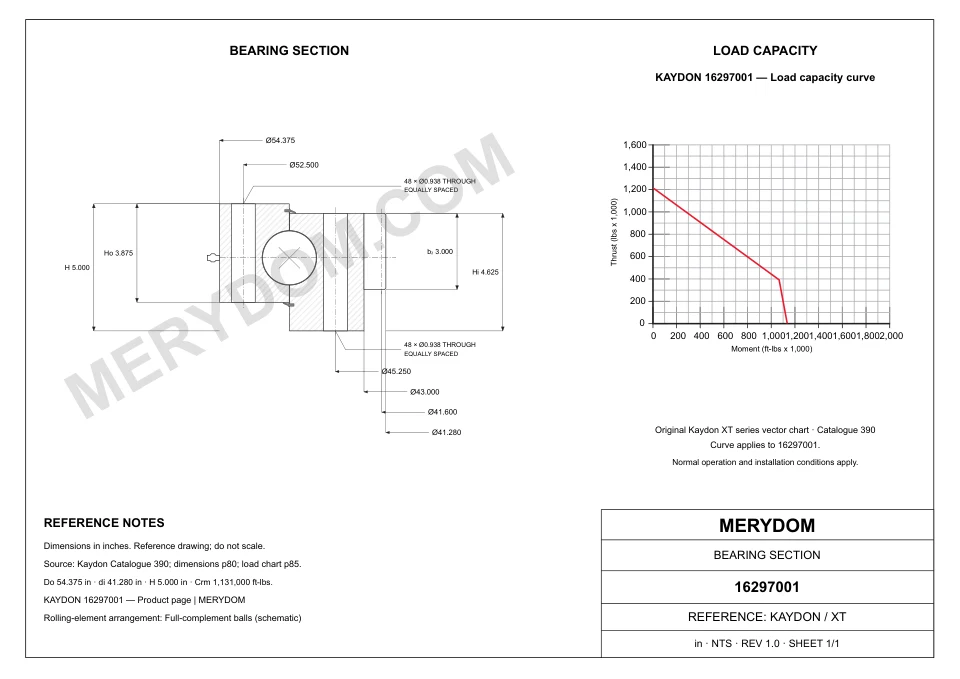

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 54.375 inapproximately 1,381.13 mm
- Overall inside diameter (di)
- 41.280 inapproximately 1,048.5 mm
- Inner ring body ID (dr)
- 43.000 inapproximately 1,092 mm
- Overall height (H)
- 5.000 inapproximately 127 mm
- Assembly weight (G)
- 1090 lbapproximately 494.416 kg
Mounting
- Outer ring bolt circle (Lo)
- 52.500 inapproximately 1,334 mm
- Inner ring bolt circle (Li)
- 45.250 inapproximately 1,149.4 mm
Gear
- Gear pitch diameter (D2)
- 41.600 inapproximately 1,057 mm
- Diametral pitch (Pd)
- 2.5
- Gear tooth count (z2)
- 104
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16297001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16297001 |
| Certified interchangeable with | Kaydon 16297001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16297001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 54.375 inapproximately 1,381.13 mm |
| Overall inside diameter (di) | 41.280 inapproximately 1,048.5 mm |
| Overall height (H) | 5.000 inapproximately 127 mm |
| Inner ring body ID (dr) | 43.000 inapproximately 1,092 mm |
| Outer ring bolt circle (Lo) | 52.500 inapproximately 1,334 mm |
| Inner ring bolt circle (Li) | 45.250 inapproximately 1,149.4 mm |
| Gear pitch diameter (D2) | 41.600 inapproximately 1,057 mm |
| Assembly weight (G) | 1090 lbapproximately 494.416 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 24900 lbfapproximately 110.76 kN |
| Moment load rating (Crm) | 1131000 ft·lbfapproximately 1,533.43 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 48 holes · 0.938 |
| Inner ring bolt holes (ni) | 48 holes · 0.938 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 2.5 DP |
| Equivalent module (derived reference only) (m) | 10.16 mm |
| Number of teeth (z2) | 104 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

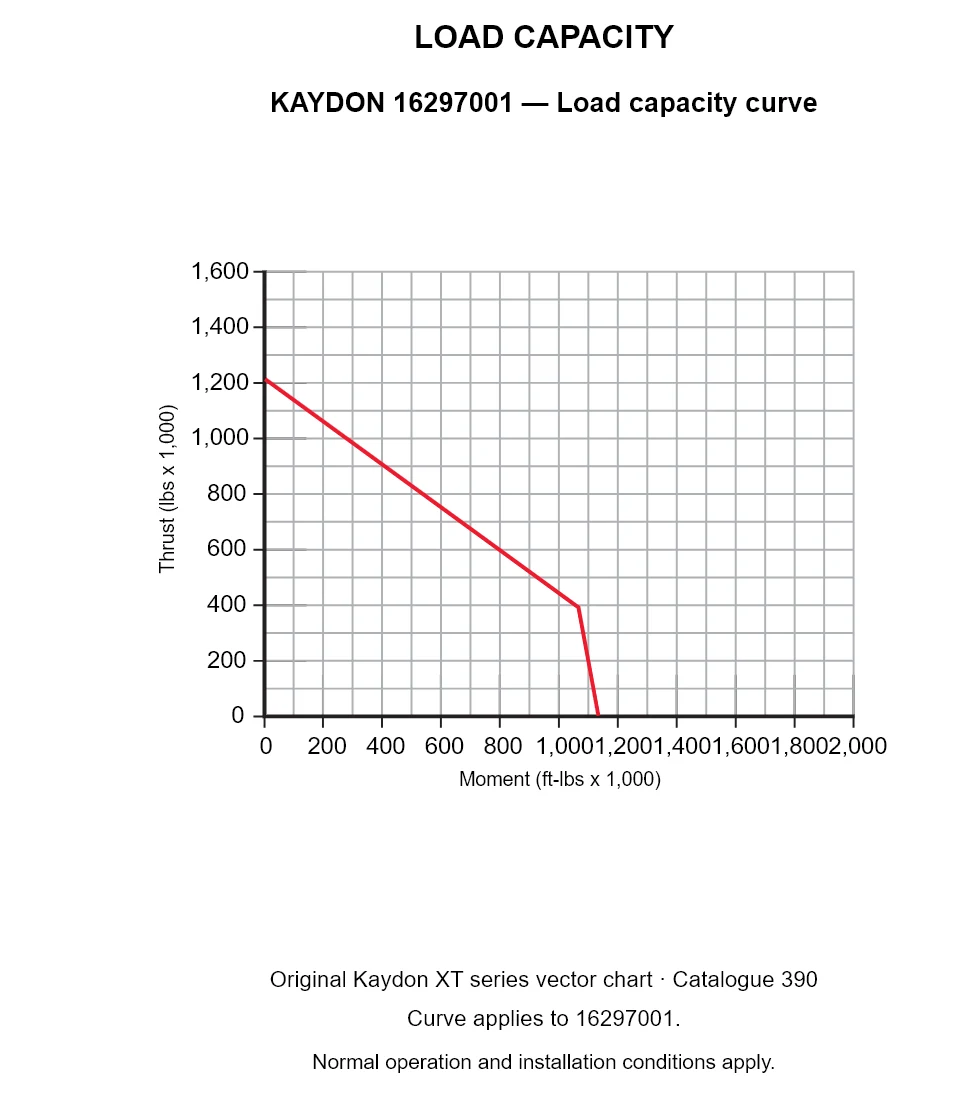

Xt Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16297001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
