Kaydon 16308001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16308001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16308001 reference belongs to the Xt Series and uses a four-point contact ball, external gear slewing bearing configuration.
Rolling-element arrangement: Full-complement balls

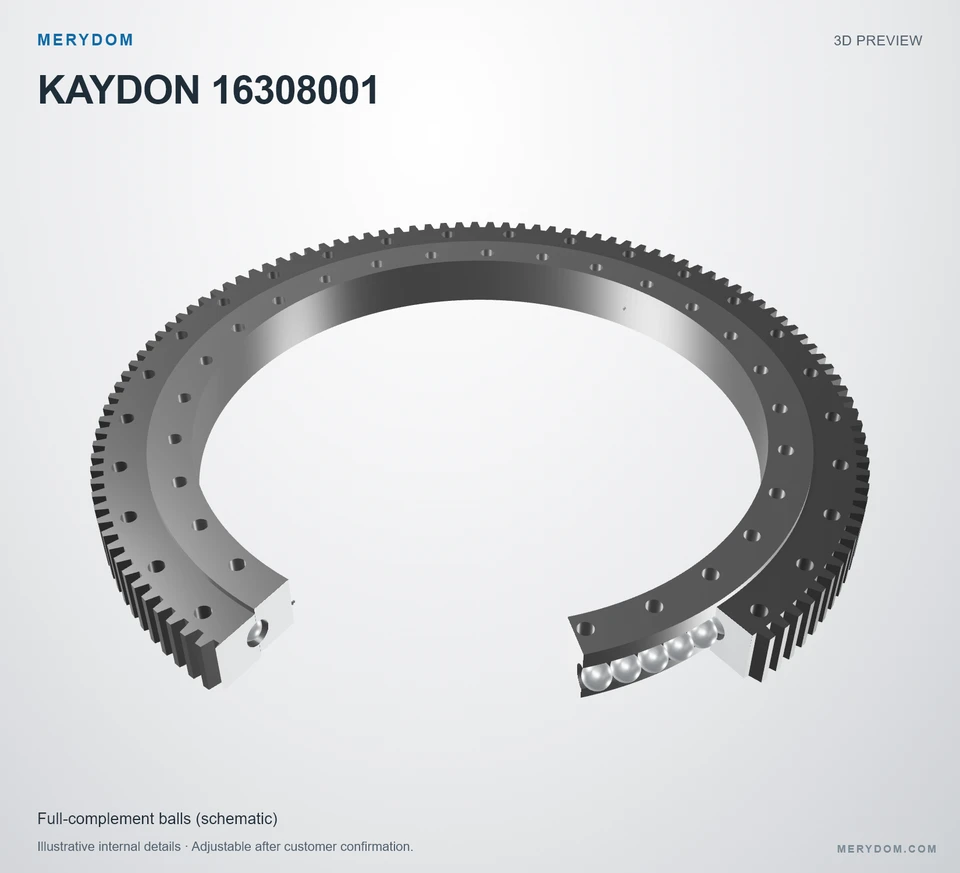

Catalogue 390, p75: maximum ball complement. Ball size, count and internal clearances in the illustration are schematic.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16308001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16308001.
- Overall OD (Do)
- 50.640 in
- Overall ID (di)
- 37.750 in
- Overall height
- 4.000 in
- Gear arrangement
- External gear
- Mounting holes
- 30 / 29 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

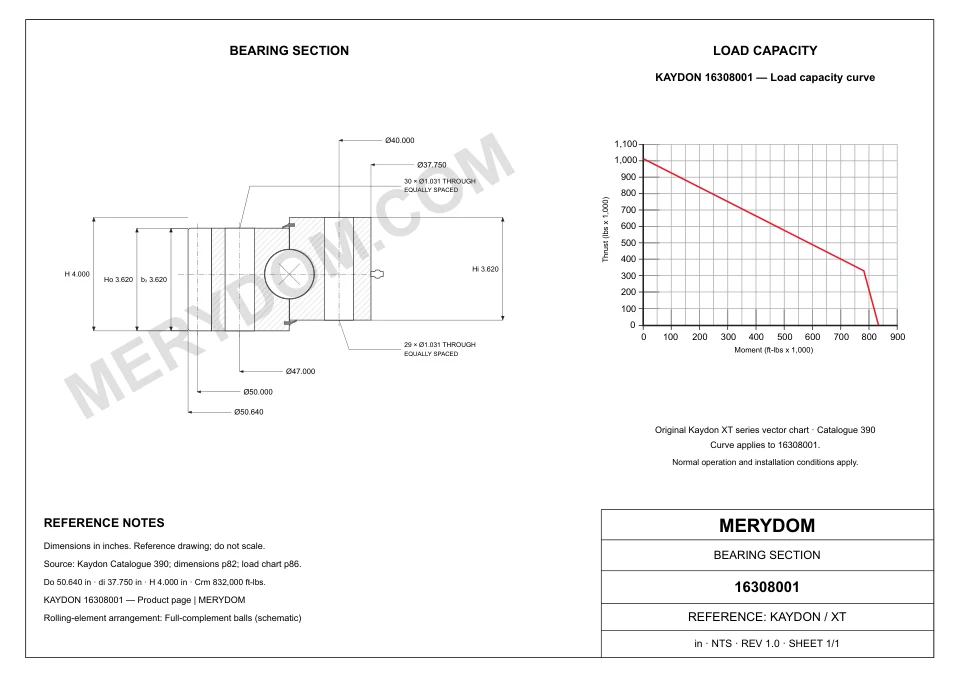

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 50.640 inapproximately 1,286.3 mm
- Overall inside diameter (di)
- 37.750 inapproximately 958.9 mm
- Overall height (H)
- 4.000 inapproximately 102 mm
- Assembly weight (G)
- 770 lbapproximately 349.266 kg
- Inner ring height (Hi)
- 3.620 inapproximately 91.9 mm
- Outer ring height (Ho)
- 3.620 inapproximately 91.9 mm
Mounting
- Outer ring bolt circle (Lo)
- 47.000 inapproximately 1,194 mm
- Inner ring bolt circle (Li)
- 40.000 inapproximately 1,016 mm
Gear
- Gear pitch diameter (D2)
- 50.000 inapproximately 1,270 mm
- Diametral pitch (Pd)
- 2.5
- Gear tooth count (z2)
- 125
- Catalogue gear face width (b2)
- 3.620 inapproximately 91.9 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16308001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16308001 |
| Certified interchangeable with | Kaydon 16308001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16308001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 50.640 inapproximately 1,286.3 mm |
| Overall inside diameter (di) | 37.750 inapproximately 958.9 mm |
| Overall height (H) | 4.000 inapproximately 102 mm |
| Inner ring height (Hi) | 3.620 inapproximately 91.9 mm |
| Outer ring height (Ho) | 3.620 inapproximately 91.9 mm |
| Outer ring bolt circle (Lo) | 47.000 inapproximately 1,194 mm |
| Inner ring bolt circle (Li) | 40.000 inapproximately 1,016 mm |
| Gear pitch diameter (D2) | 50.000 inapproximately 1,270 mm |
| Assembly weight (G) | 770 lbapproximately 349.266 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 27400 lbfapproximately 121.88 kN |
| Moment load rating (Crm) | 832000 ft·lbfapproximately 1,128.04 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 30 holes · 1.031 |
| Inner ring bolt holes (ni) | 29 holes · 1.031 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 2.5 DP |
| Equivalent module (derived reference only) (m) | 10.16 mm |
| Number of teeth (z2) | 125 |
| Catalogue gear face width (b2) | 3.620 inapproximately 92 mm |
| Profile shift coefficient (x2) | 0 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

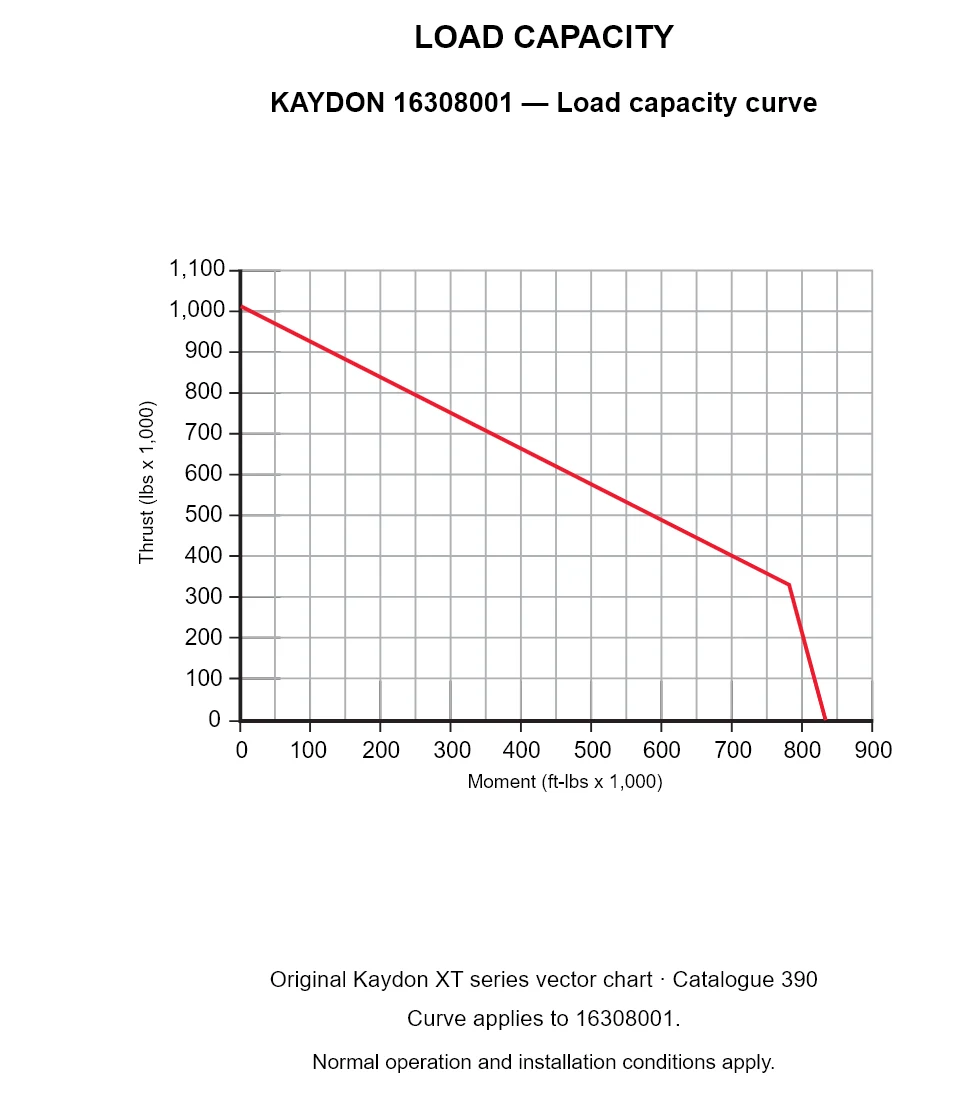

KAYDON 16308001 — Load capacity curve
KAYDON 16308001 — Load capacity curve
KAYDON 16308001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16308001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
