Kaydon 16303001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16303001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16303001 reference belongs to the Xt Series and uses a four-point contact ball, internal gear slewing bearing configuration.
Rolling-element arrangement: Full-complement balls

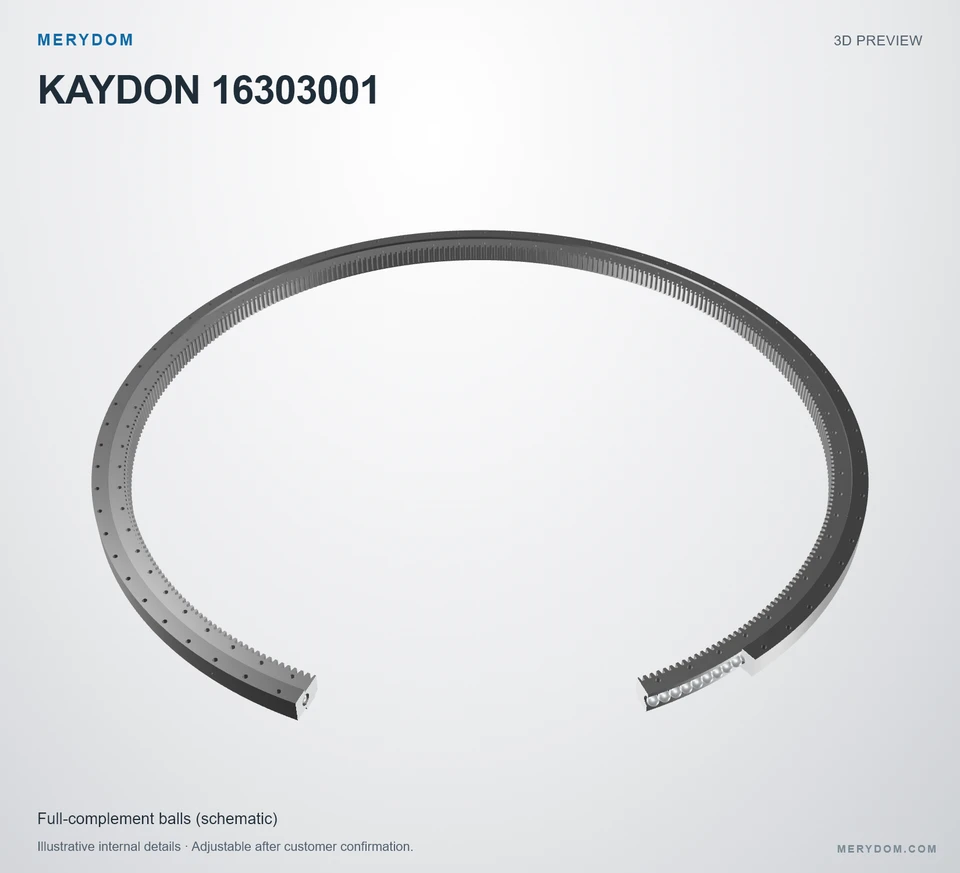

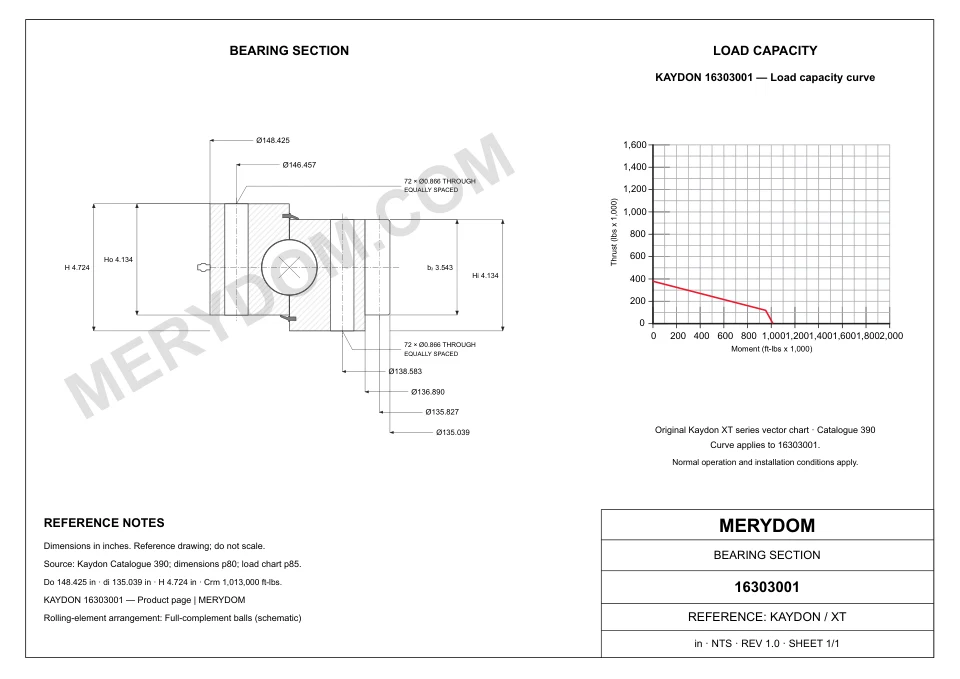

Catalogue 390, p75: maximum ball complement. Ball size, count and internal clearances in the illustration are schematic.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16303001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16303001.
- Overall OD (Do)
- 148.425 in
- Overall ID (di)
- 135.039 in
- Overall height
- 4.724 in
- Gear arrangement
- Internal gear
- Mounting holes
- 72 / 72 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 148.425 inapproximately 3,770 mm
- Overall inside diameter (di)
- 135.039 inapproximately 3,429.99 mm
- Inner ring body ID (dr)
- 136.890 inapproximately 3,477 mm
- Overall height (H)
- 4.724 inapproximately 119.99 mm
- Assembly weight (G)
- 3000 lbapproximately 1,360.777 kg
- Inner ring height (Hi)
- 4.134 inapproximately 105 mm
- Outer ring height (Ho)
- 4.134 inapproximately 105 mm
Mounting
- Outer ring bolt circle (Lo)
- 146.457 inapproximately 3,720.01 mm
- Inner ring bolt circle (Li)
- 138.583 inapproximately 3,520.01 mm
Gear
- Gear pitch diameter (D2)
- 135.827 inapproximately 3,450.01 mm
- Gear tooth count (z2)
- 345
- Catalogue gear face width (b2)
- 3.543 inapproximately 89.99 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16303001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16303001 |
| Certified interchangeable with | Kaydon 16303001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16303001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 148.425 inapproximately 3,770 mm |
| Overall inside diameter (di) | 135.039 inapproximately 3,429.99 mm |
| Overall height (H) | 4.724 inapproximately 119.99 mm |
| Inner ring height (Hi) | 4.134 inapproximately 105 mm |
| Outer ring height (Ho) | 4.134 inapproximately 105 mm |
| Inner ring body ID (dr) | 136.890 inapproximately 3,477 mm |
| Outer ring bolt circle (Lo) | 146.457 inapproximately 3,720.01 mm |
| Inner ring bolt circle (Li) | 138.583 inapproximately 3,520.01 mm |
| Gear pitch diameter (D2) | 135.827 inapproximately 3,450.01 mm |
| Assembly weight (G) | 3000 lbapproximately 1,360.777 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 25300 lbfapproximately 112.54 kN |
| Moment load rating (Crm) | 1013000 ft·lbfapproximately 1,373.44 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 72 holes · 0.866 |
| Inner ring bolt holes (ni) | 72 holes · 0.866 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 10 (source (10)) |
| Number of teeth (z2) | 345 |
| Catalogue gear face width (b2) | 3.543 inapproximately 90 mm |
| Profile shift coefficient (x2) | 0 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

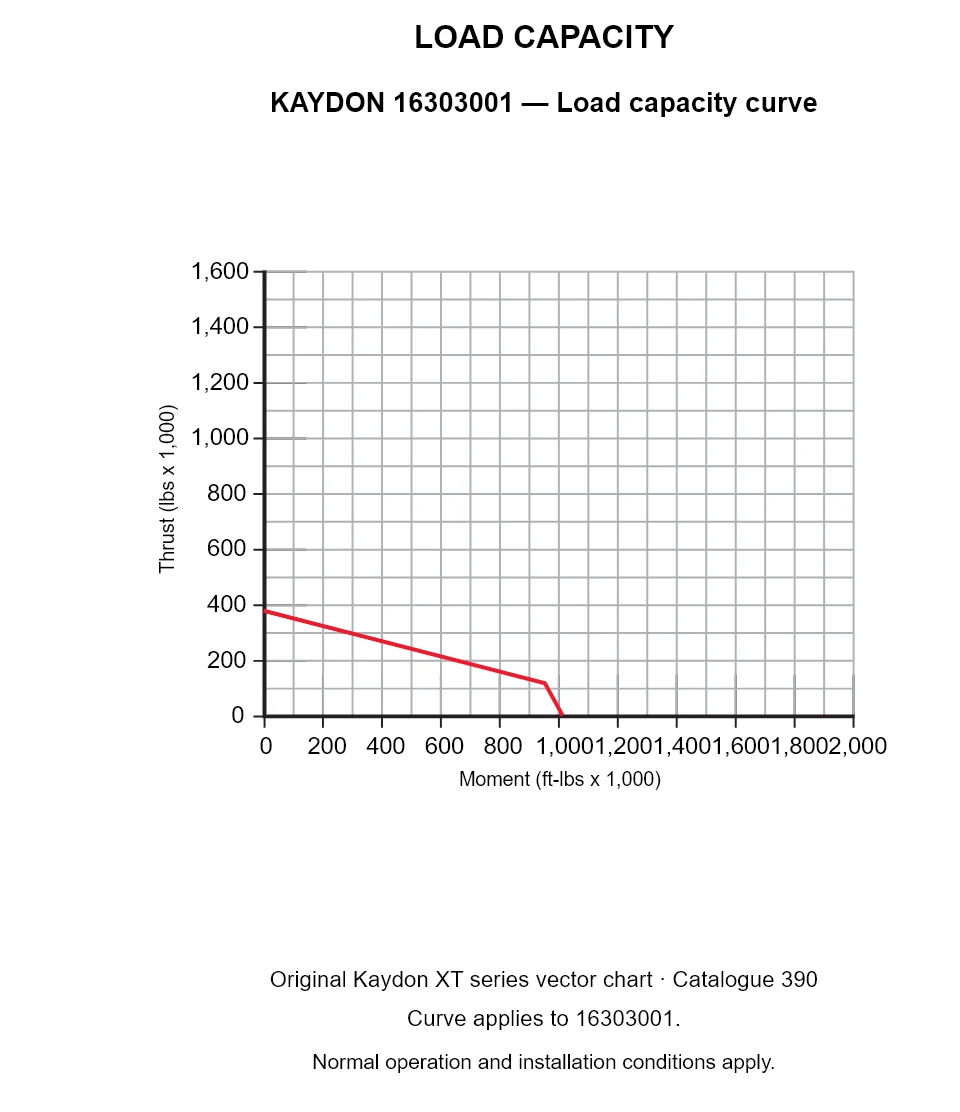

KAYDON 16303001 — Load capacity curve
