Kaydon 16337001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16337001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

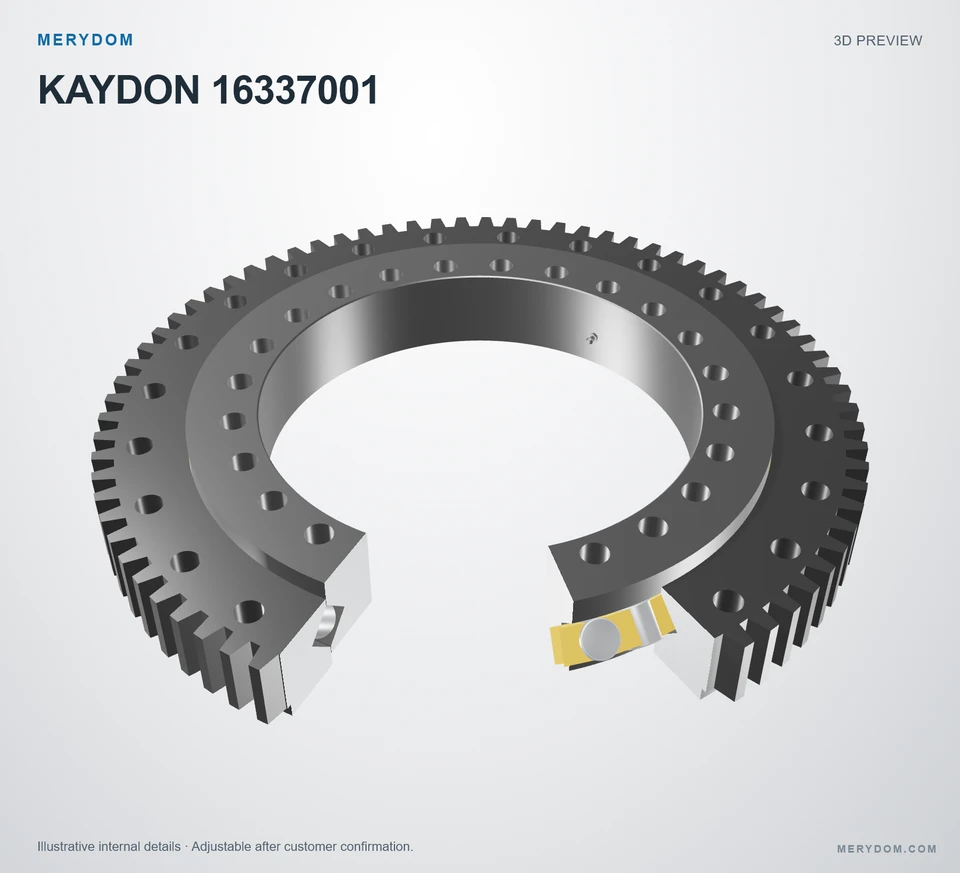

The Kaydon 16337001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16337001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16337001.
- Overall OD (Do)
- 16.000 in
- Overall ID (di)
- 9.190 in
- Overall height
- 2.170 in
- Gear arrangement
- External gear
- Mounting holes
- 24 / 24 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

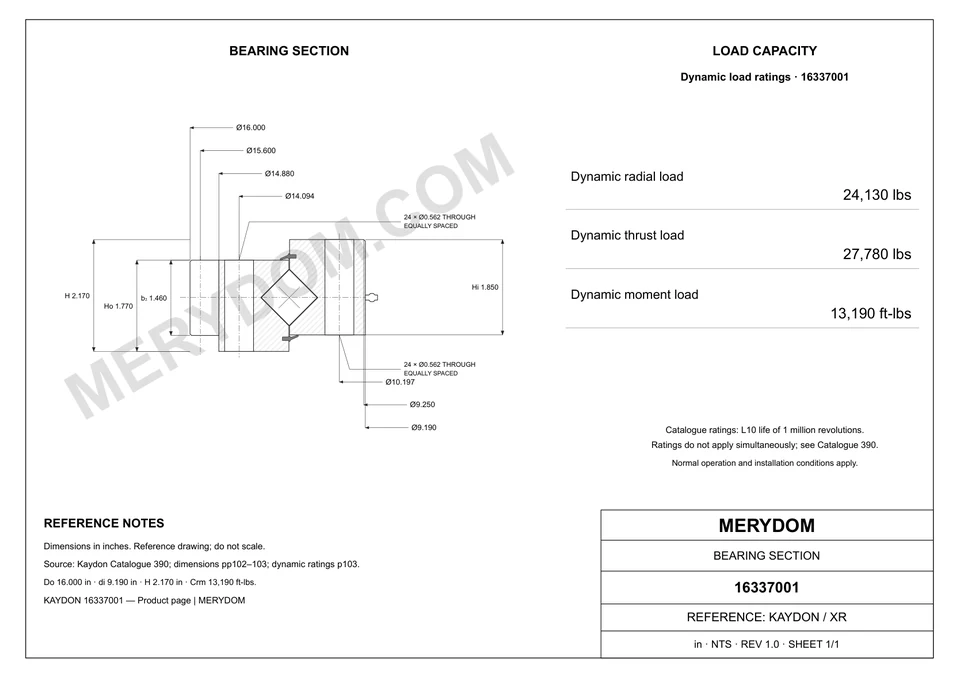

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 16.000 inapproximately 406 mm
- Overall inside diameter (di)
- 9.190 inapproximately 233.4 mm
- Outer ring body OD (Dr)
- 14.880 inapproximately 378 mm
- Inner ring body ID (dr)
- 9.250 inapproximately 235 mm
- Overall height (H)
- 2.170 inapproximately 55.1 mm
- Assembly weight (G)
- 55 lbapproximately 24.948 kg
Mounting
- Outer ring bolt circle (Lo)
- 14.094 inapproximately 357.99 mm
- Inner ring bolt circle (Li)
- 10.197 inapproximately 259 mm
Gear
- Gear pitch diameter (D2)
- 15.600 inapproximately 396 mm
- Diametral pitch (Pd)
- 5
- Gear tooth count (z2)
- 78
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16337001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16337001 |
| Certified interchangeable with | Kaydon 16337001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16337001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 16.000 inapproximately 406 mm |
| Overall inside diameter (di) | 9.190 inapproximately 233.4 mm |
| Overall height (H) | 2.170 inapproximately 55.1 mm |
| Outer ring body OD (Dr) | 14.880 inapproximately 378 mm |
| Inner ring body ID (dr) | 9.250 inapproximately 235 mm |
| Outer ring bolt circle (Lo) | 14.094 inapproximately 357.99 mm |
| Inner ring bolt circle (Li) | 10.197 inapproximately 259 mm |
| Gear pitch diameter (D2) | 15.600 inapproximately 396 mm |
| Assembly weight (G) | 55 lbapproximately 24.948 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 4320 lbfapproximately 19.22 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 24130.0000000000 lbfapproximately 107.34 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 27780.0000000000 lbfapproximately 123.57 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 13190.0000000000 ft·lbfapproximately 17.88 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 24 holes · 0.562 |
| Inner ring bolt holes (ni) | 24 holes · 0.562 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 5 DP |
| Equivalent module (derived reference only) (m) | 5.08 mm |
| Number of teeth (z2) | 78 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16337001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
