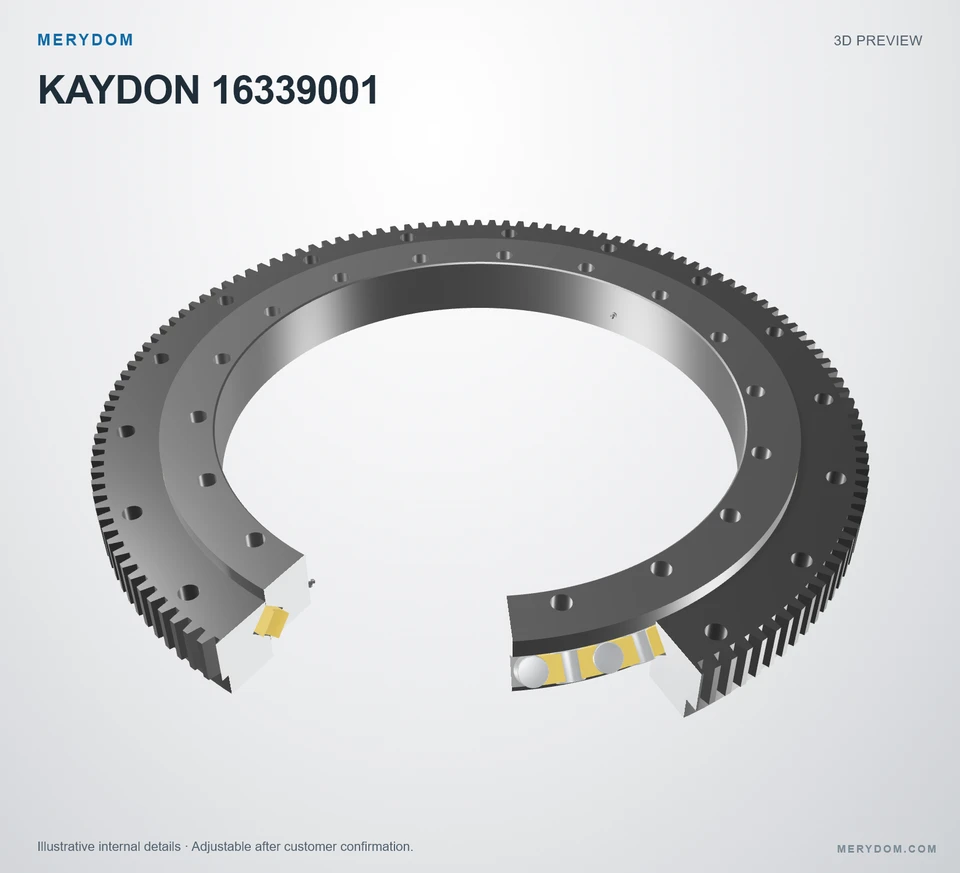

Kaydon 16339001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16339001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16339001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16339001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16339001.
- Overall OD (Do)
- 27.362 in
- Overall ID (di)
- 18.780 in
- Overall height
- 3.030 in
- Gear arrangement
- External gear
- Mounting holes
- 18 / 18 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

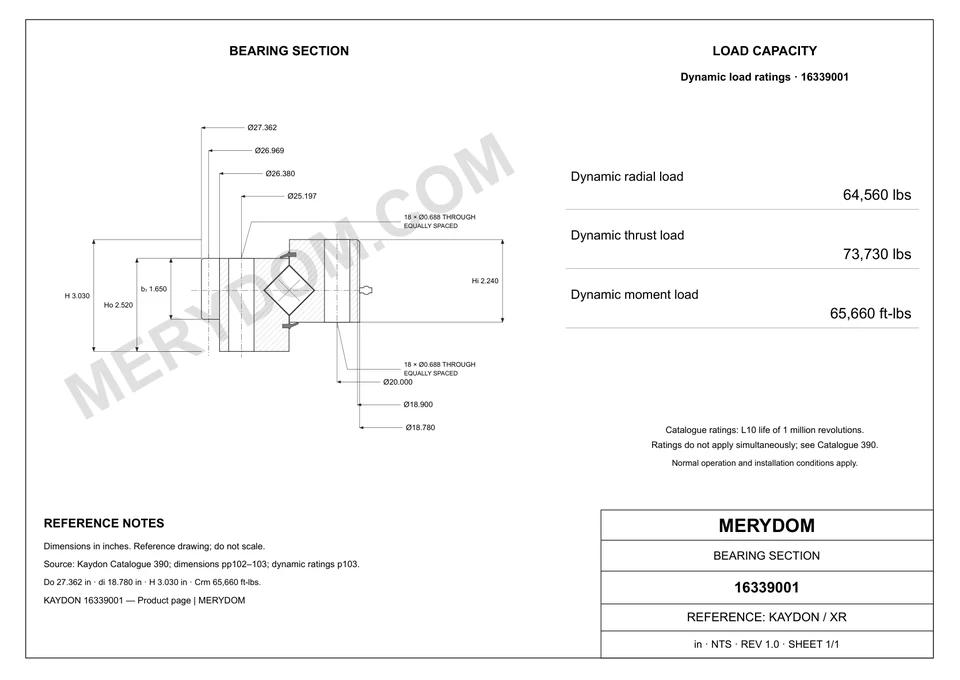

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 27.362 inapproximately 694.99 mm
- Overall inside diameter (di)
- 18.780 inapproximately 477 mm
- Outer ring body OD (Dr)
- 26.380 inapproximately 670.1 mm
- Inner ring body ID (dr)
- 18.900 inapproximately 480 mm
- Overall height (H)
- 3.030 inapproximately 77 mm
- Assembly weight (G)
- 180 lbapproximately 81.647 kg
Mounting
- Outer ring bolt circle (Lo)
- 25.197 inapproximately 640 mm
- Inner ring bolt circle (Li)
- 20.000 inapproximately 508 mm
Gear
- Gear pitch diameter (D2)
- 26.969 inapproximately 685.01 mm
- Gear tooth count (z2)
- 137
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16339001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16339001 |
| Certified interchangeable with | Kaydon 16339001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16339001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 27.362 inapproximately 694.99 mm |
| Overall inside diameter (di) | 18.780 inapproximately 477 mm |
| Overall height (H) | 3.030 inapproximately 77 mm |
| Outer ring body OD (Dr) | 26.380 inapproximately 670.1 mm |
| Inner ring body ID (dr) | 18.900 inapproximately 480 mm |
| Outer ring bolt circle (Lo) | 25.197 inapproximately 640 mm |
| Inner ring bolt circle (Li) | 20.000 inapproximately 508 mm |
| Gear pitch diameter (D2) | 26.969 inapproximately 685.01 mm |
| Assembly weight (G) | 180 lbapproximately 81.647 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 5725 lbfapproximately 25.47 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 64560.0000000000 lbfapproximately 287.18 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 73730.0000000000 lbfapproximately 327.97 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 65660.0000000000 ft·lbfapproximately 89.02 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 18 holes · 0.688 |
| Inner ring bolt holes (ni) | 18 holes · 0.688 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 5 (source (5)) |
| Number of teeth (z2) | 137 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16339001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
