Kaydon 16373001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16373001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

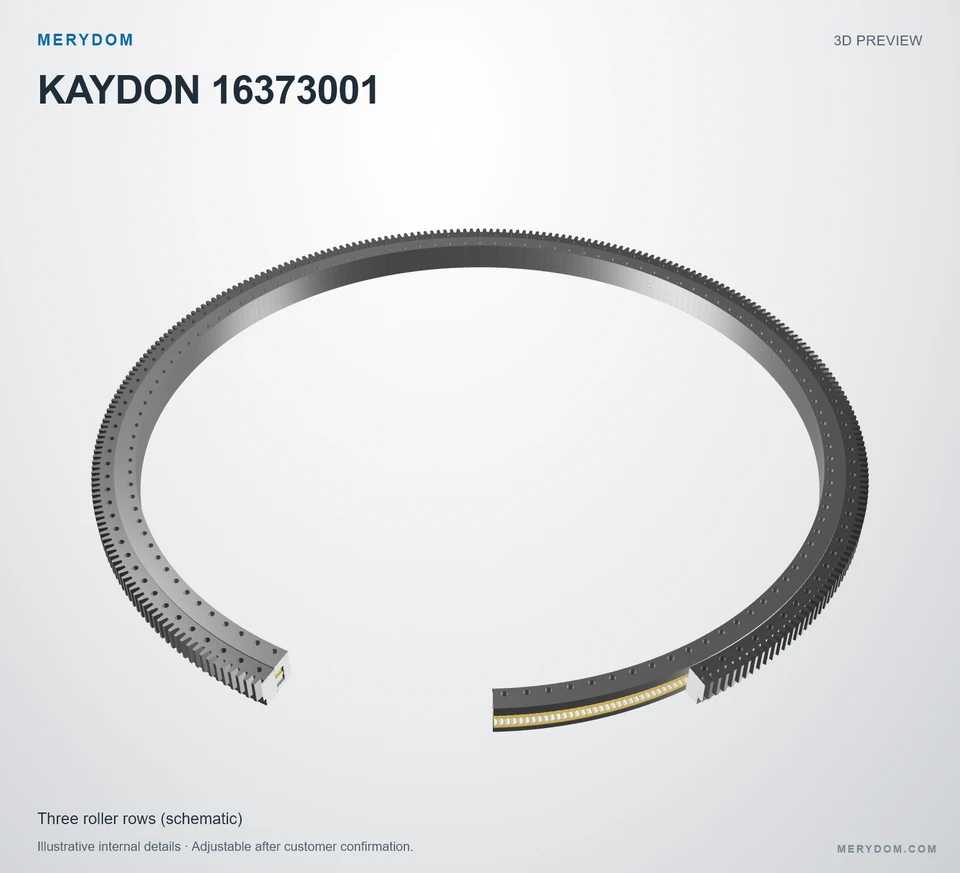

The Kaydon 16373001 reference belongs to the Tr Series and uses a three-row roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16373001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16373001.
- Overall OD (Do)
- 210.968 in
- Overall ID (di)
- 187.795 in
- Overall height
- 8.819 in
- Gear arrangement
- External gear
- Mounting holes
- 120 / 120 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

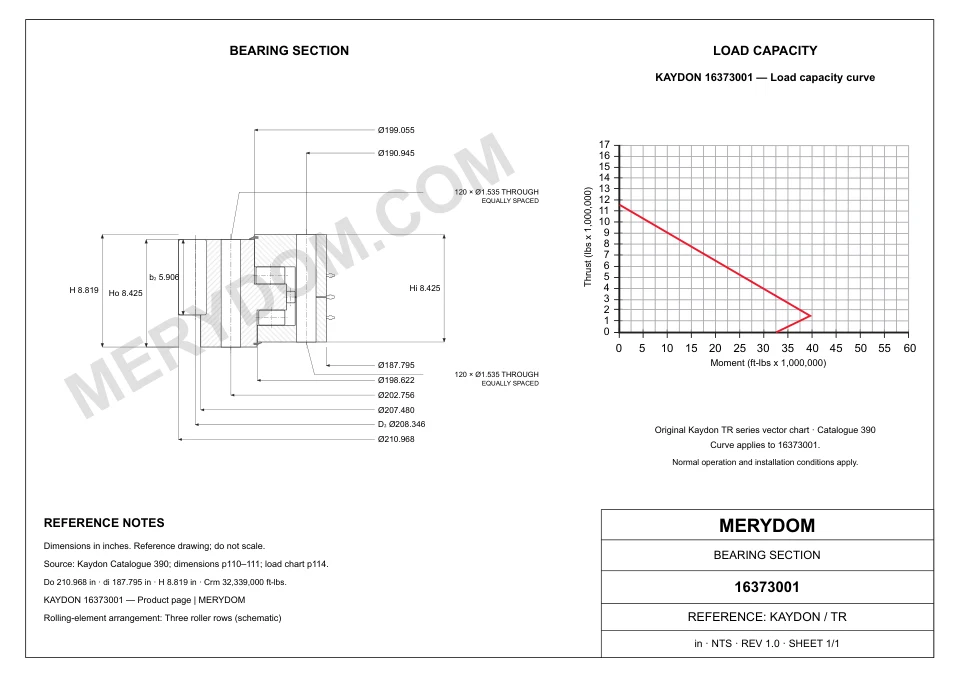

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 210.968 inapproximately 5,358.59 mm
- Overall inside diameter (di)
- 187.795 inapproximately 4,769.99 mm
- Outer ring body OD (Dr)
- 207.480 inapproximately 5,270 mm
- Outer ring inner diameter (Di)
- 198.622 inapproximately 5,045 mm
- Inner ring outer diameter (do)
- 199.055 inapproximately 5,056 mm
- Overall height (H)
- 8.819 inapproximately 224 mm
- Assembly weight (G)
- 14330 lbapproximately 6,499.979 kg
Mounting
- Outer ring bolt circle (Lo)
- 202.756 inapproximately 5,150 mm
- Inner ring bolt circle (Li)
- 190.945 inapproximately 4,850 mm
Gear
- Gear pitch diameter (D2)
- 208.346 inapproximately 5,291.99 mm
- Gear tooth count (z2)
- 294
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16373001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16373001 |
| Certified interchangeable with | Kaydon 16373001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16373001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 210.968 inapproximately 5,358.59 mm |
| Overall inside diameter (di) | 187.795 inapproximately 4,769.99 mm |
| Overall height (H) | 8.819 inapproximately 224 mm |
| Outer ring body OD (Dr) | 207.480 inapproximately 5,270 mm |
| Outer ring inner diameter (Di) | 198.622 inapproximately 5,045 mm |
| Inner ring outer diameter (do) | 199.055 inapproximately 5,056 mm |
| Outer ring bolt circle (Lo) | 202.756 inapproximately 5,150 mm |
| Inner ring bolt circle (Li) | 190.945 inapproximately 4,850 mm |
| Gear pitch diameter (D2) | 208.346 inapproximately 5,291.99 mm |
| Assembly weight (G) | 14330 lbapproximately 6,499.979 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 78770 lbfapproximately 350.39 kN |
| Moment load rating (Crm) | 32339000 ft·lbfapproximately 43,845.8 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 120 holes · 1.535 |
| Inner ring bolt holes (ni) | 120 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 18 (source (18)) |
| Number of teeth (z2) | 294 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

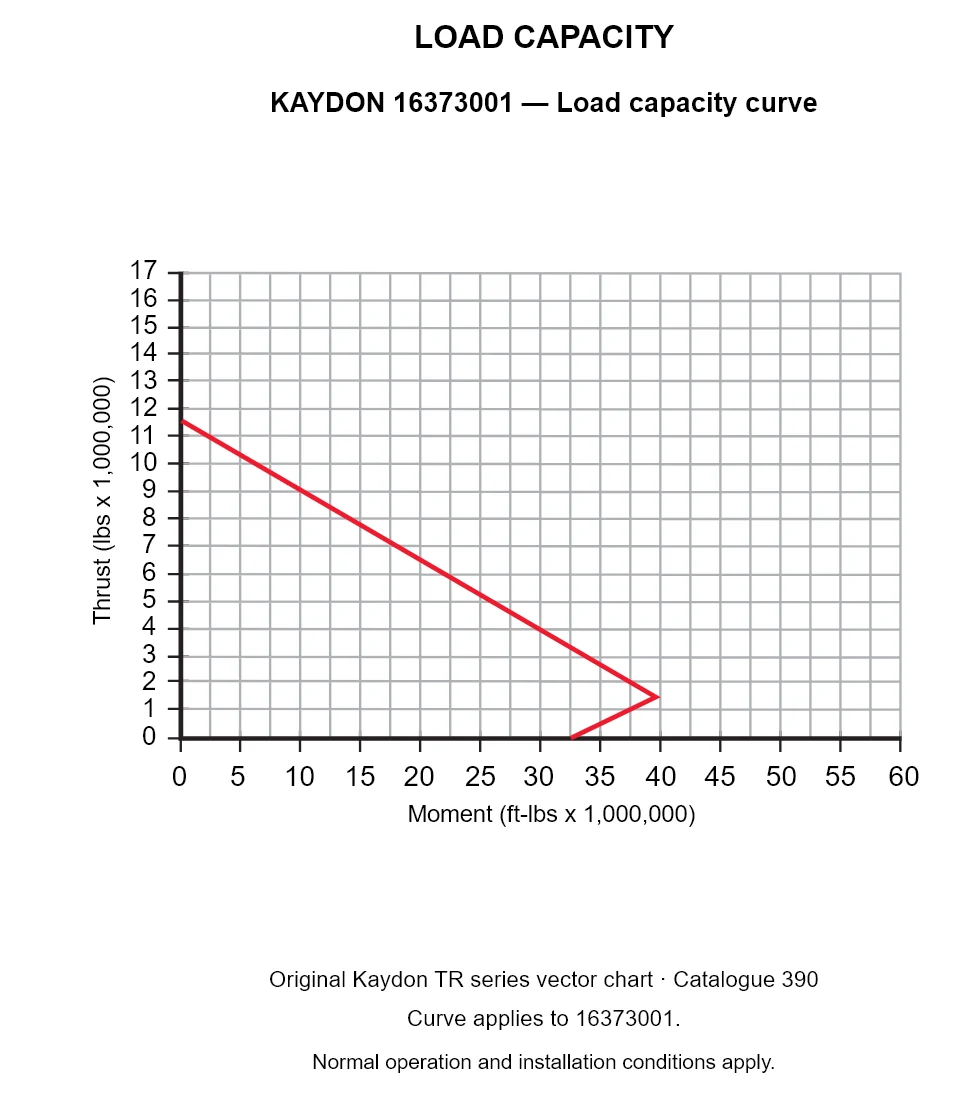

SERIES LOAD CAPACITY
Tr Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16373001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
