Kaydon 16385001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16385001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16385001 reference belongs to the Tr Series and uses a three-row roller, internal gear slewing bearing configuration.
Rolling-element arrangement: Three independent roller rows

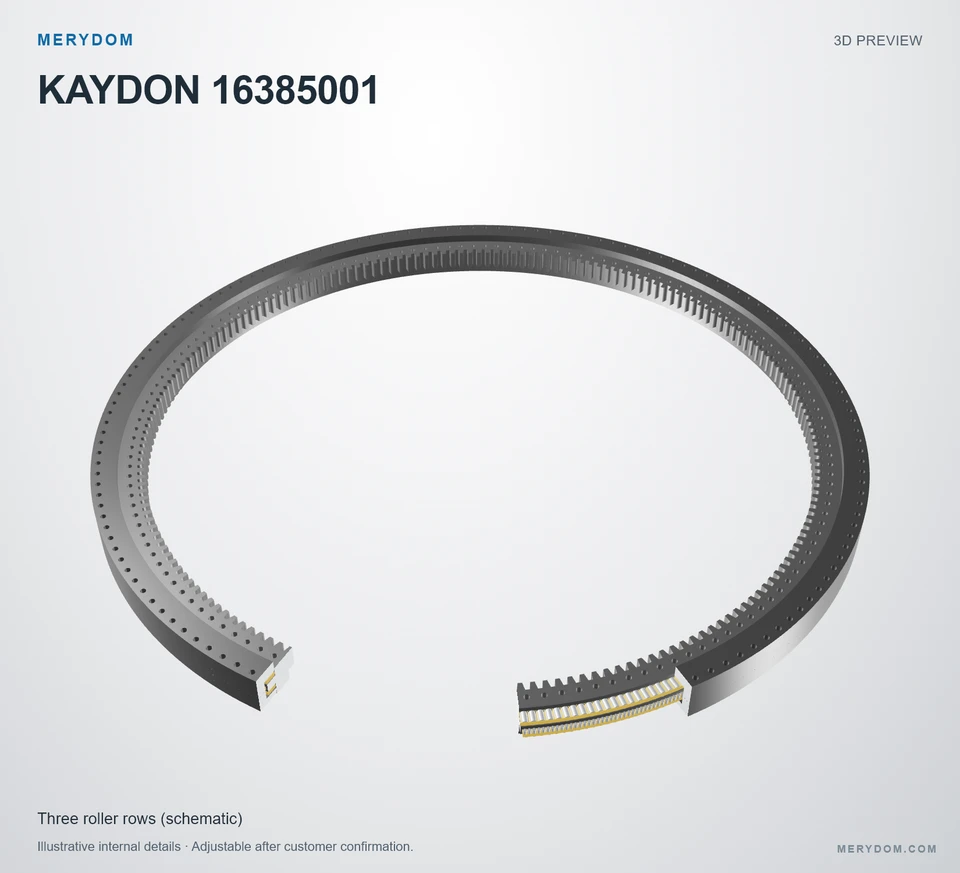

Catalogue 390, p103: upper and lower rows transmit thrust and moment loads; the middle row transmits radial loads. Roller sizes/counts, yellow cage frames and separator blocks, and internal clearances are illustrative.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16385001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16385001.
- Overall OD (Do)
- 228.000 in
- Overall ID (di)
- 198.000 in
- Overall height
- 11.750 in
- Gear arrangement
- Internal gear
- Mounting holes
- 150 / 150 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 228.000 inapproximately 5,791 mm
- Overall inside diameter (di)
- 198.000 inapproximately 5,029 mm
- Outer ring inner diameter (Di)
- 213.630 inapproximately 5,426.2 mm
- Inner ring outer diameter (do)
- 214.130 inapproximately 5,438.9 mm
- Inner ring body ID (dr)
- 203.000 inapproximately 5,156 mm
- Overall height (H)
- 11.750 inapproximately 298.5 mm
- Assembly weight (G)
- 24950 lbapproximately 11,317.13 kg
- Inner ring height (Hi)
- 9.250 inapproximately 235 mm
- Outer ring height (Ho)
- 11.250 inapproximately 285.8 mm
Mounting
- Outer ring bolt circle (Lo)
- 224.000 inapproximately 5,690 mm
- Inner ring bolt circle (Li)
- 207.000 inapproximately 5,258 mm
Gear
- Gear pitch diameter (D2)
- 200.000 inapproximately 5,080 mm
- Diametral pitch (Pd)
- 1
- Gear tooth count (z2)
- 200
- Catalogue gear face width (b2)
- 6.000 inapproximately 152 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16385001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16385001 |
| Certified interchangeable with | Kaydon 16385001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16385001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 228.000 inapproximately 5,791 mm |
| Overall inside diameter (di) | 198.000 inapproximately 5,029 mm |
| Overall height (H) | 11.750 inapproximately 298.5 mm |
| Inner ring height (Hi) | 9.250 inapproximately 235 mm |
| Outer ring height (Ho) | 11.250 inapproximately 285.8 mm |
| Outer ring inner diameter (Di) | 213.630 inapproximately 5,426.2 mm |
| Inner ring outer diameter (do) | 214.130 inapproximately 5,438.9 mm |
| Inner ring body ID (dr) | 203.000 inapproximately 5,156 mm |
| Outer ring bolt circle (Lo) | 224.000 inapproximately 5,690 mm |
| Inner ring bolt circle (Li) | 207.000 inapproximately 5,258 mm |
| Gear pitch diameter (D2) | 200.000 inapproximately 5,080 mm |
| Assembly weight (G) | 24950 lbapproximately 11,317.13 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 130700 lbfapproximately 581.38 kN |
| Moment load rating (Crm) | 43823000 ft·lbfapproximately 59,416.01 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 150 holes · 1.563 |
| Inner ring bolt holes (ni) | 150 holes · 1.563 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 1 DP |
| Equivalent module (derived reference only) (m) | 25.4 mm |
| Number of teeth (z2) | 200 |
| Catalogue gear face width (b2) | 6.000 inapproximately 152 mm |
| Profile shift coefficient (x2) | 0 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

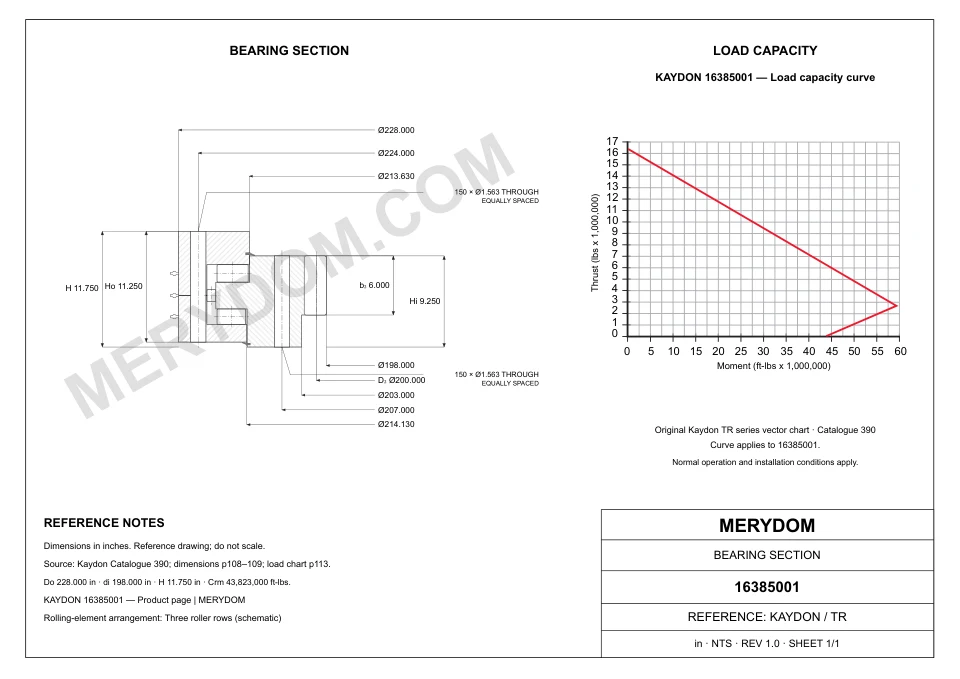

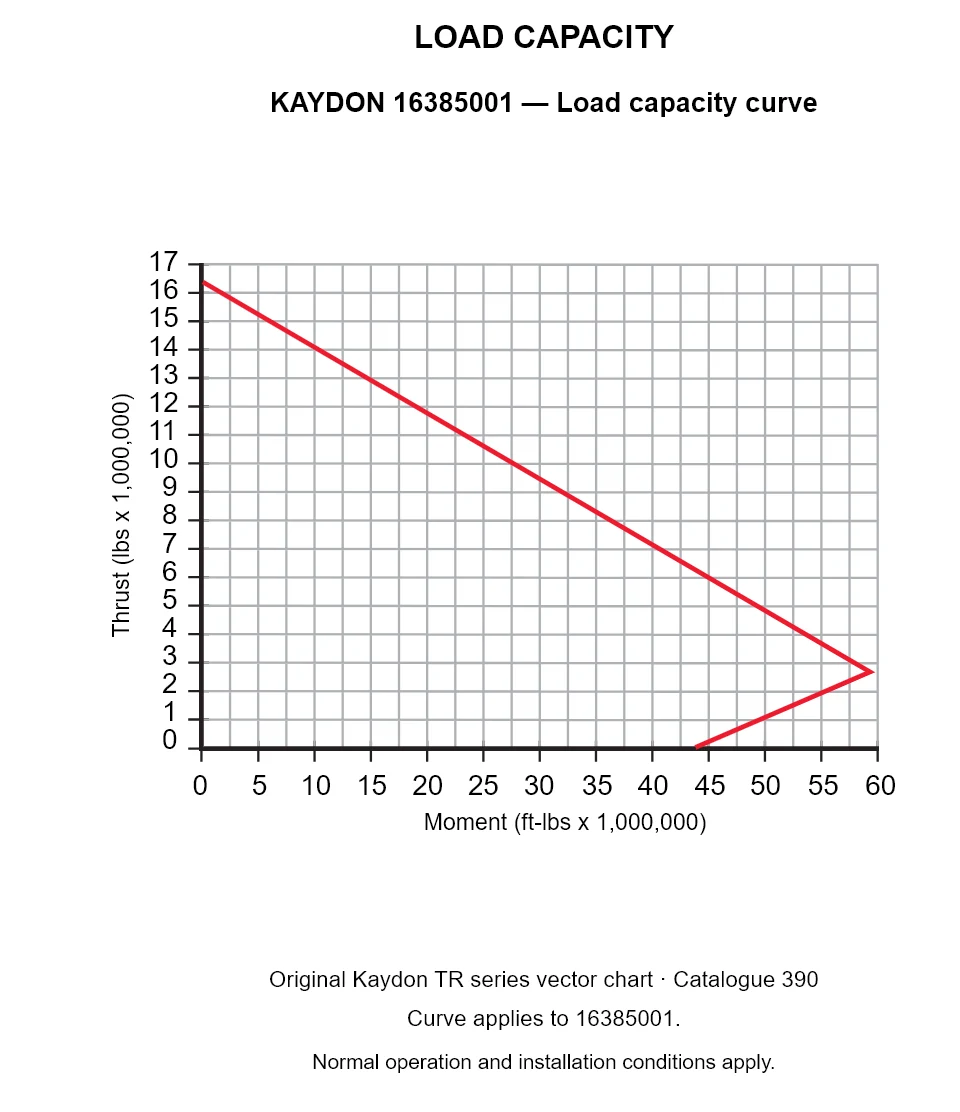

KAYDON 16385001 — Load capacity curve
KAYDON 16385001 — Load capacity curve
KAYDON 16385001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16385001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
