Kaydon HS6-16E1Z Slewing Bearing Replacement

Name: MERYDOM Replacement for Kaydon HS6-16E1Z Slewing Bearing
Brand: MERYDOM
SKU: HS6-16E1Z

Back to replacement catalog

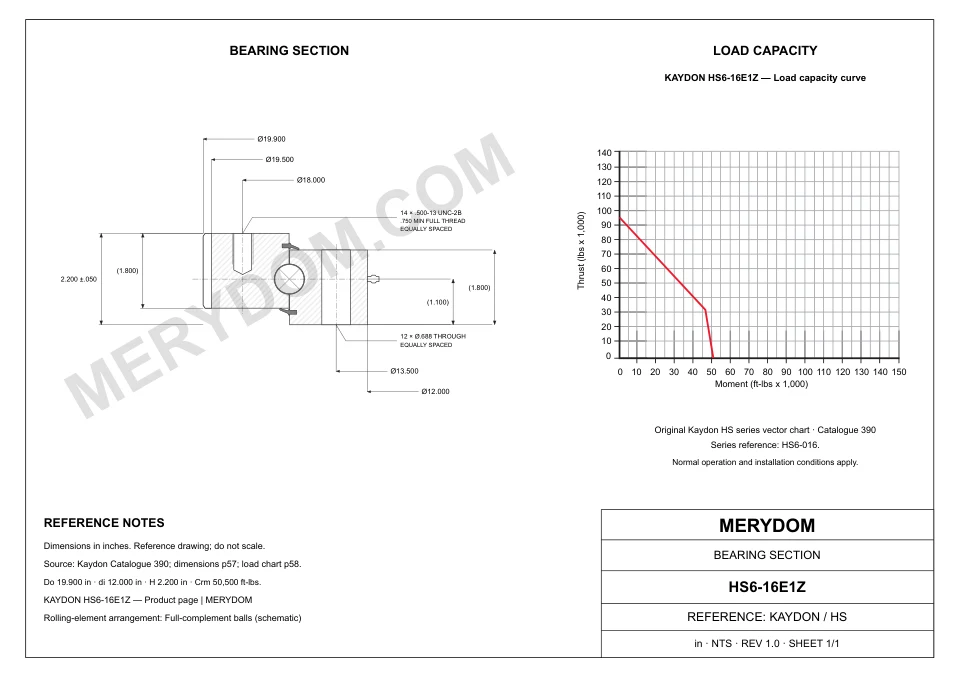

Kaydon HS Series External gear outline drawing — HS Series · External gear outlineClick image to enlarge

MERYDOM BRAND · CERTIFIED REPLACEMENT

HS6-16E1Z

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon HS6-16E1Z.

Certified product dataView complete specifications ↓

Overall OD (Do): 19.900 in
Overall ID (di): 12.000 in
Overall height: 2.200 in
Gear arrangement: External gear
Mounting holes: 14 / 12 outer / inner
Bearing design: Four-point contact ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do): 19.900 inapproximately 505 mm
Overall inside diameter (di): 12.000 inapproximately 305 mm
Overall height (H): 2.200 inapproximately 56 mm
Assembly weight (G): 85 lbapproximately 38.555 kg

Mounting

Outer ring bolt circle (Lo): 18.000 inapproximately 457 mm
Inner ring bolt circle (Li): 13.500 inapproximately 343 mm

Gear

Gear pitch diameter (D2): 19.500 inapproximately 495 mm
Diametral pitch (Pd): 4
Gear tooth count (z2): 78

MERYDOM CERTIFIED SPECIFICATION

Kaydon HS6-16E1Z Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	HS6-16E1Z
Certified interchangeable with	Kaydon HS6-16E1Z
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	Kaydon
Series	HS Series
Reference model	HS6-16E1Z
System of measurement	InchMetric reference shown alongside
Bearing structure	Four-point contact ball
Gear arrangement	External gear
Dimensions
Overall outside diameter (Do)	19.900 inapproximately 505 mm
Overall inside diameter (di)	12.000 inapproximately 305 mm
Overall height (H)	2.200 inapproximately 56 mm
Outer ring bolt circle (Lo)	18.000 inapproximately 457 mm
Inner ring bolt circle (Li)	13.500 inapproximately 343 mm
Gear pitch diameter (D2)	19.500 inapproximately 495 mm
Assembly weight (G)	85 lbapproximately 38.555 kg
Ratings
Maximum gear tooth load (Fz)	4981 lbfapproximately 22.16 kN
Moment load rating (Crm)	50500 ft·lbfapproximately 68.47 kN·m
Mounting
Outer ring bolt holes (no)	14 holes · 0.500-13 UNC-2B; 0.750 min full thread
Inner ring bolt holes (ni)	12 holes · 0.688 through, equally spaced
Gear
Pitch system	DP
Source diametral pitch (Pd)	4 DP
Equivalent module (derived reference only) (m)	6.35 mm
Number of teeth (z2)	78

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

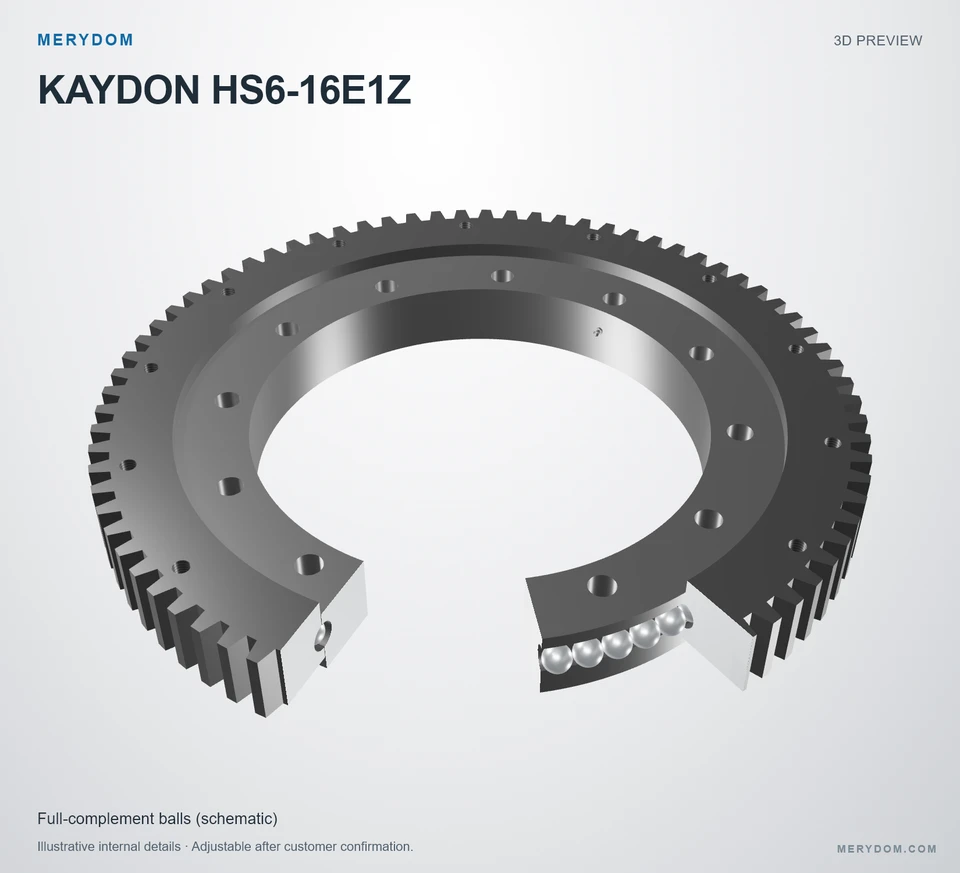

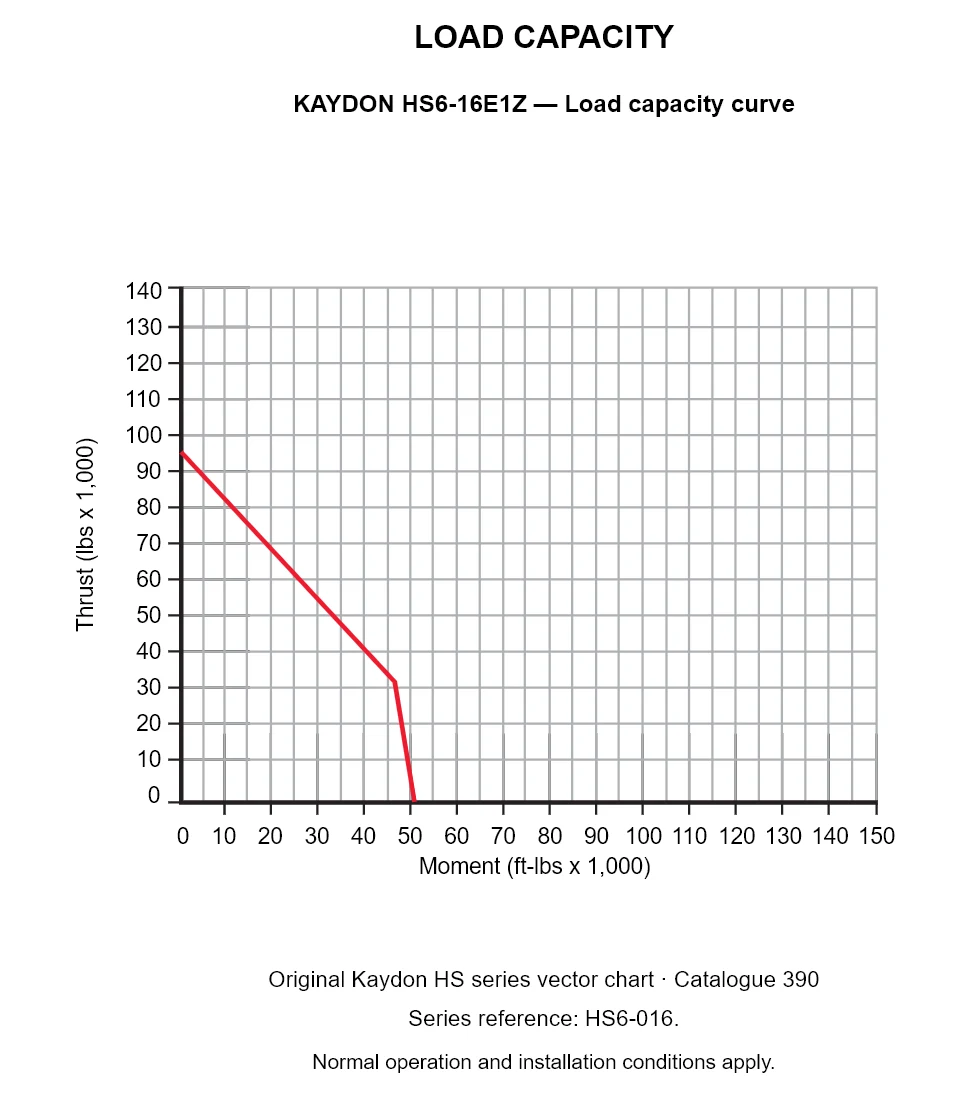

SERIES LOAD CAPACITY

HS Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for Kaydon HS6-16E1Z

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
