Kaydon RK6-22N1Z Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon RK6-22N1Z slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon RK6-22N1Z reference belongs to the Rk Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

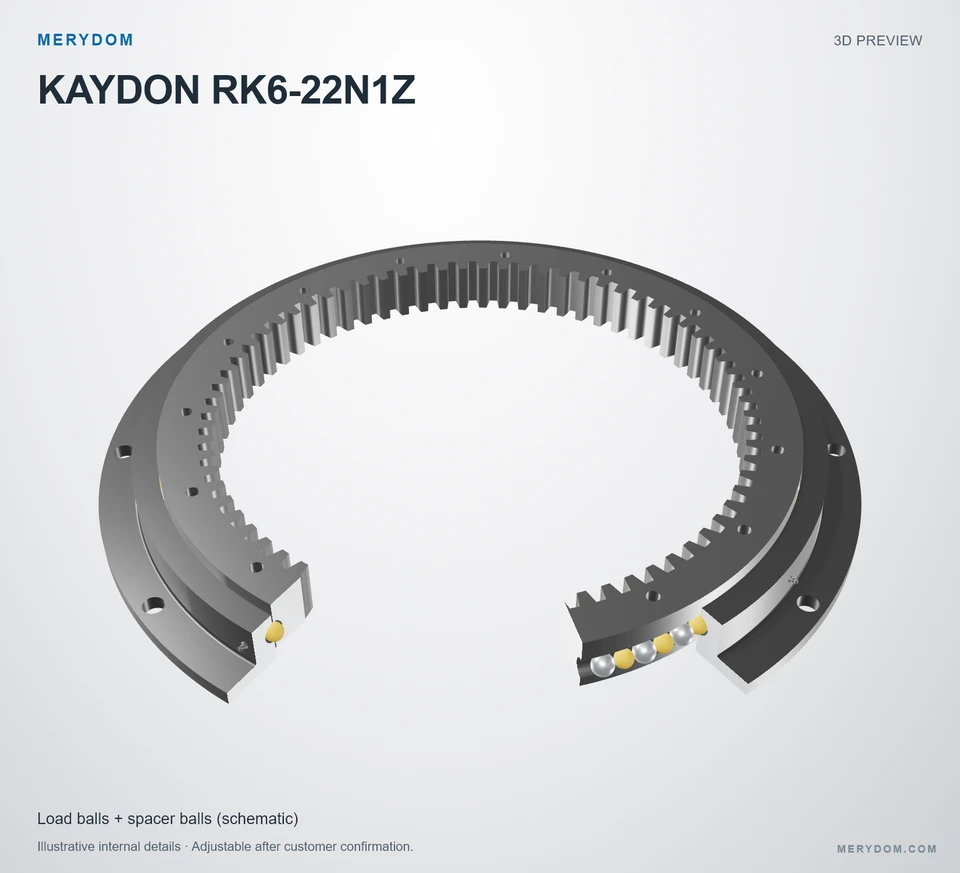

RK6-22N1Z
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon RK6-22N1Z.
- Overall OD (Do)
- 25.510 in
- Overall ID (di)
- 17.600 in
- Overall height
- 2.205 in
- Gear arrangement
- Internal gear
- Mounting holes
- 10 / 15 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

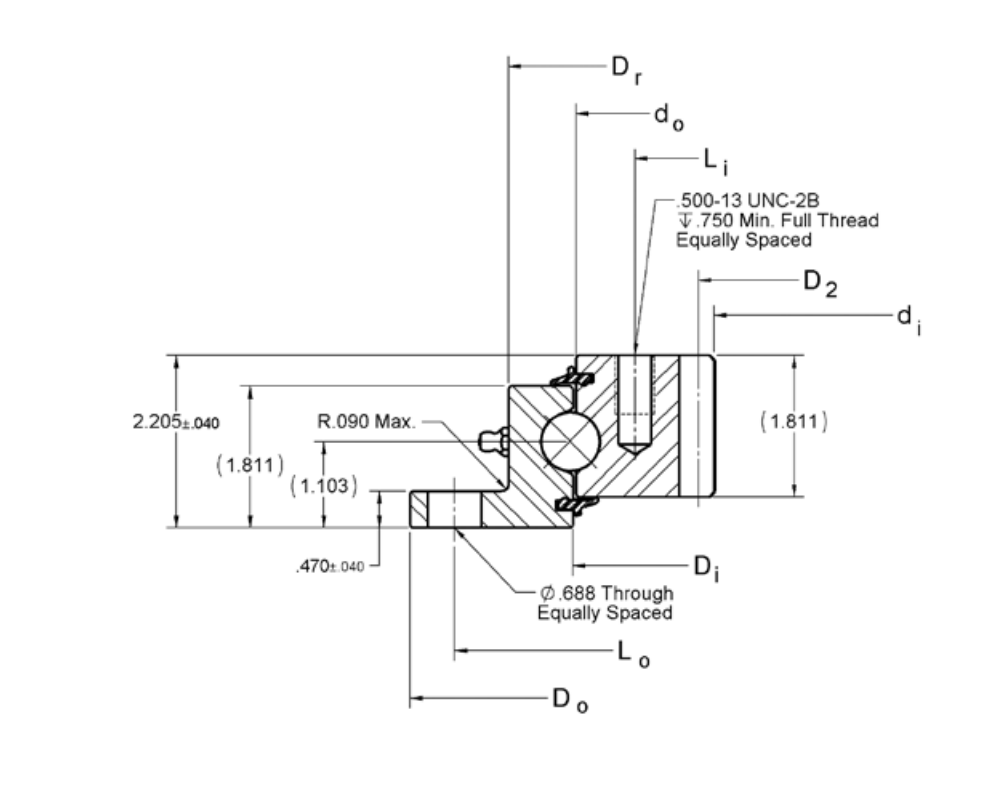

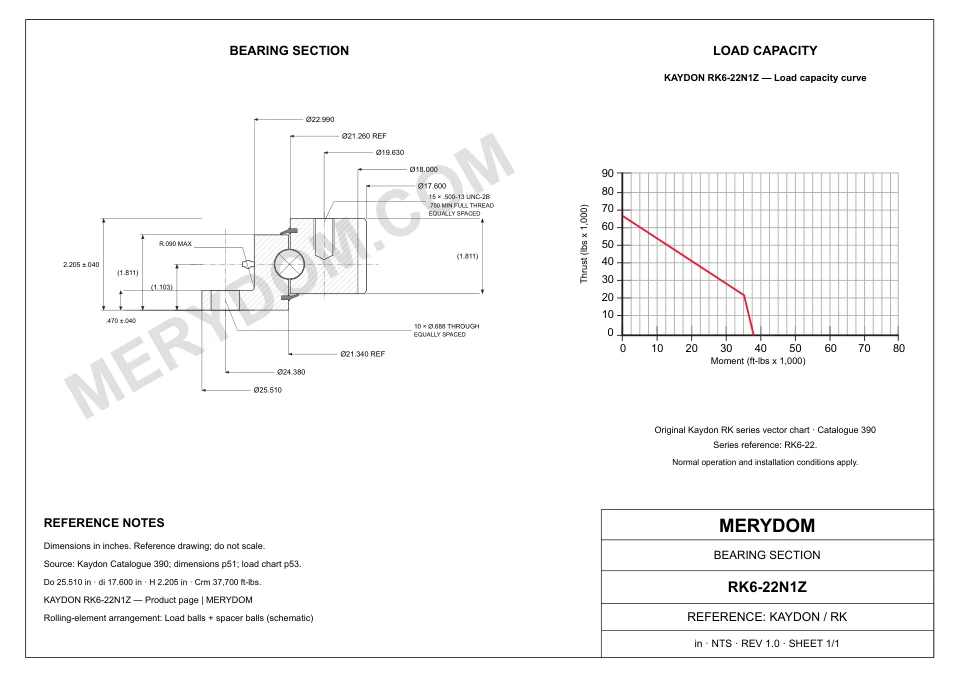

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 25.510 inapproximately 648 mm
- Overall inside diameter (di)
- 17.600 inapproximately 447 mm
- Outer ring body OD (Dr)
- 22.990 inapproximately 583.9 mm
- Outer ring inner diameter (Di)
- 21.340 inapproximately 542 mm
- Inner ring outer diameter (do)
- 21.260 inapproximately 540 mm
- Overall height (H)
- 2.205 inapproximately 56.01 mm
- Assembly weight (G)
- 90 lbapproximately 40.823 kg
Mounting
- Outer ring bolt circle (Lo)
- 24.380 inapproximately 619.3 mm
- Inner ring bolt circle (Li)
- 19.630 inapproximately 498.6 mm
Gear
- Gear pitch diameter (D2)
- 18.000 inapproximately 457 mm
- Diametral pitch (Pd)
- 4
- Gear tooth count (z2)
- 72
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon RK6-22N1Z Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | RK6-22N1Z |
| Certified interchangeable with | Kaydon RK6-22N1Z |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Rk Series |
| Reference model | RK6-22N1Z |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 25.510 inapproximately 648 mm |
| Overall inside diameter (di) | 17.600 inapproximately 447 mm |
| Overall height (H) | 2.205 inapproximately 56.01 mm |
| Outer ring body OD (Dr) | 22.990 inapproximately 583.9 mm |
| Outer ring inner diameter (Di) | 21.340 inapproximately 542 mm |
| Inner ring outer diameter (do) | 21.260 inapproximately 540 mm |
| Outer ring bolt circle (Lo) | 24.380 inapproximately 619.3 mm |
| Inner ring bolt circle (Li) | 19.630 inapproximately 498.6 mm |
| Gear pitch diameter (D2) | 18.000 inapproximately 457 mm |
| Assembly weight (G) | 90 lbapproximately 40.823 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 6530 lbfapproximately 29.05 kN |
| Moment load rating (Crm) | 37700 ft·lbfapproximately 51.11 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 10 holes · 0.688 through, equally spaced |
| Inner ring bolt holes (ni) | 15 holes · 0.500-13 UNC-2B; 0.750 min full thread; equally spaced |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 4 DP |
| Equivalent module (derived reference only) (m) | 6.35 mm |
| Number of teeth (z2) | 72 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

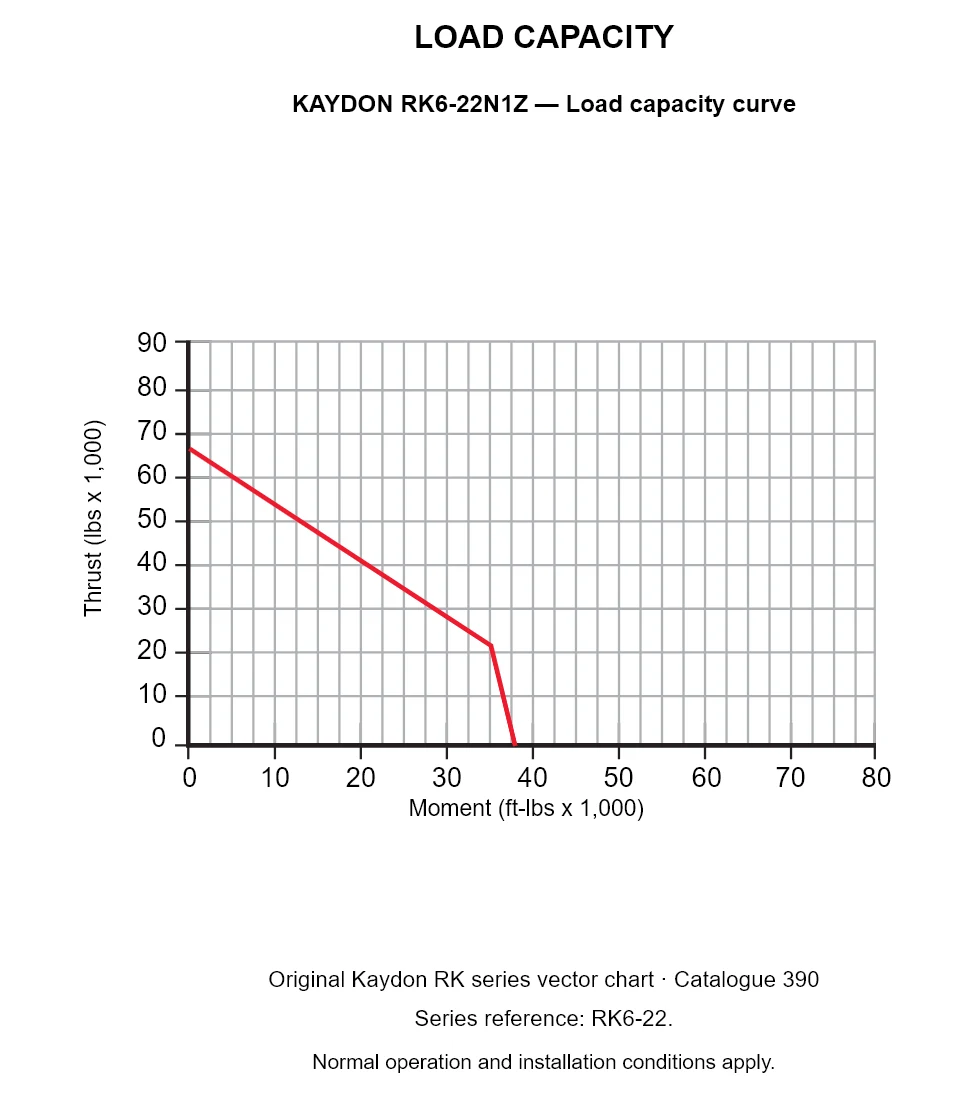

SERIES LOAD CAPACITY

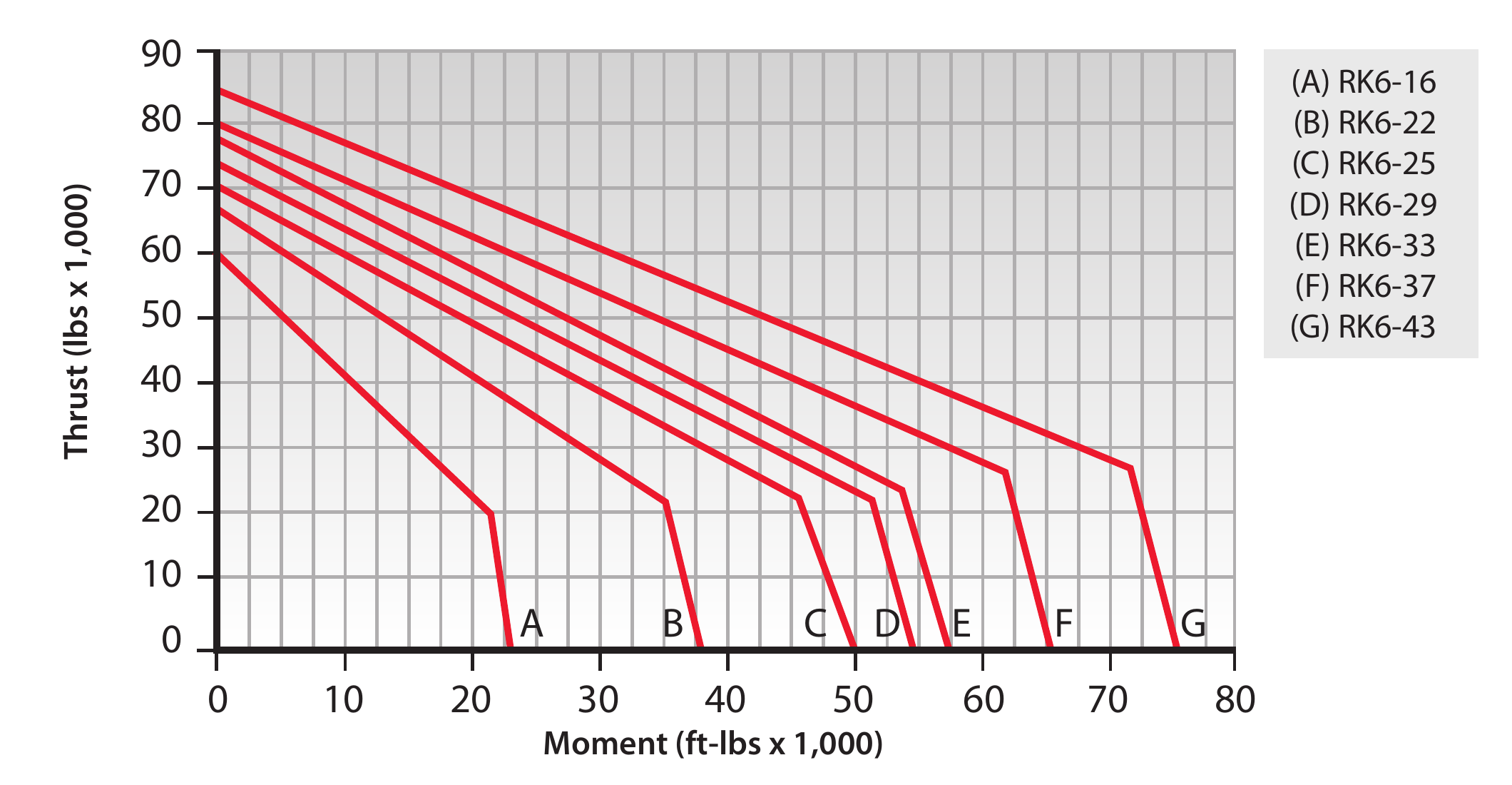

Rk Series load chart
