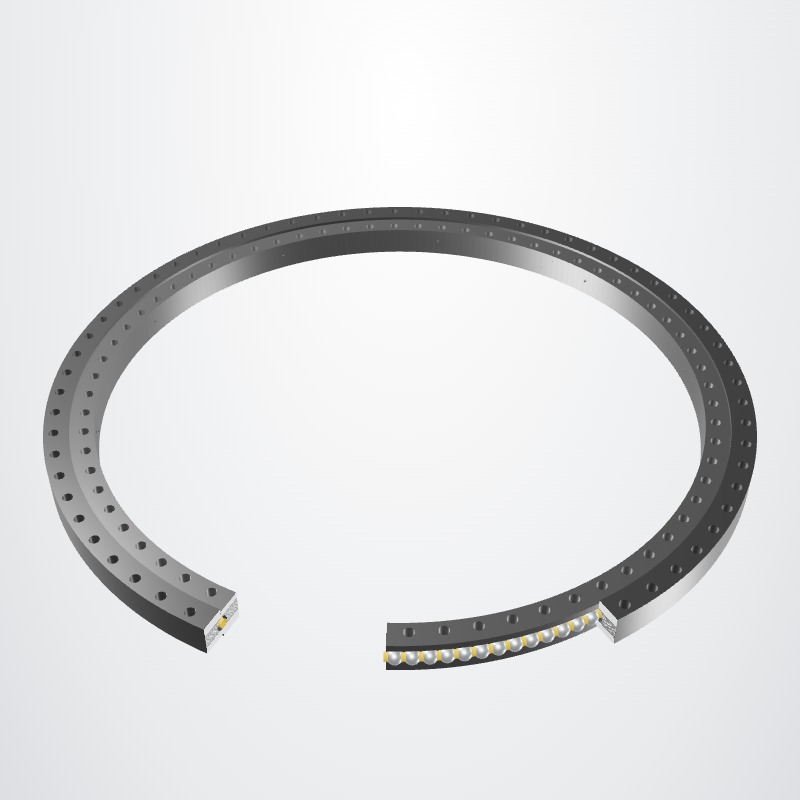

Liebherr KUD02400-050VO15-900-000 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Liebherr KUD02400-050VO15-900-000 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Liebherr KUD02400-050VO15-900-000 reference belongs to the Kud 50 Vo Series and uses a four-point contact ball, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
KUD02400-050VO15-900-000
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Liebherr KUD02400-050VO15-900-000.
- Overall OD (Do)
- 2,576 mm
- Overall ID (di)
- 2,224 mm
- Overall height
- 124 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 68 / 68 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Weight)
- 999 kg
- Overall outside diameter (Da)
- 2,576 mm
- Overall inside diameter (Di)
- 2,224 mm
- Overall height (H)
- 124 mm
- Liebherr catalogue dimension O (O)
- 2,400 mm
- Liebherr catalogue dimension U (U)
- 2,400 mm
- Liebherr catalogue dimension H1 (H1)
- 112 mm
- Liebherr catalogue dimension H2 (H2)
- 112 mm
Mounting
- Outer ring bolt circle (La)
- 2,504 mm
- Inner ring bolt circle (Li)
- 2,296 mm
- La/Li mounting-hole count (n)
- 68
- Mounting fastener specification (M)
- 33
- Liebherr catalogue count n1 (n1)
- 10
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordLiebherr KUD02400-050VO15-900-000 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | KUD02400-050VO15-900-000 |
| Certified interchangeable with | Liebherr KUD02400-050VO15-900-000 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Liebherr |
| Series | Kud 50 Vo Series |
| Reference model | KUD02400-050VO15-900-000 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Mass (Weight) | 999 kg |
| Overall outside diameter (Da) | 2,576 mm |
| Overall inside diameter (Di) | 2,224 mm |
| Overall height (H) | 124 mm |
| Liebherr catalogue dimension O (O) | 2,400 mm |
| Liebherr catalogue dimension U (U) | 2,400 mm |
| Liebherr catalogue dimension H1 (H1) | 112 mm |
| Liebherr catalogue dimension H2 (H2) | 112 mm |
| Mounting | |
| Outer ring bolt circle (La) | 2,504 mm |
| Inner ring bolt circle (Li) | 2,296 mm |
| La/Li mounting-hole count (n) | 68 |
| Mounting fastener specification (M) | 33 |
| Liebherr catalogue count n1 (n1) | 10 |
| Ratings | |
| Static load rating (Cstat) | 17,453 kN |
| Dynamic load rating (Cdyn) | 1,303 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY
Kud 50 Vo Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Liebherr KUD02400-050VO15-900-000
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
