Liebherr ROD02000-021DA15-900-000 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Liebherr ROD02000-021DA15-900-000 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

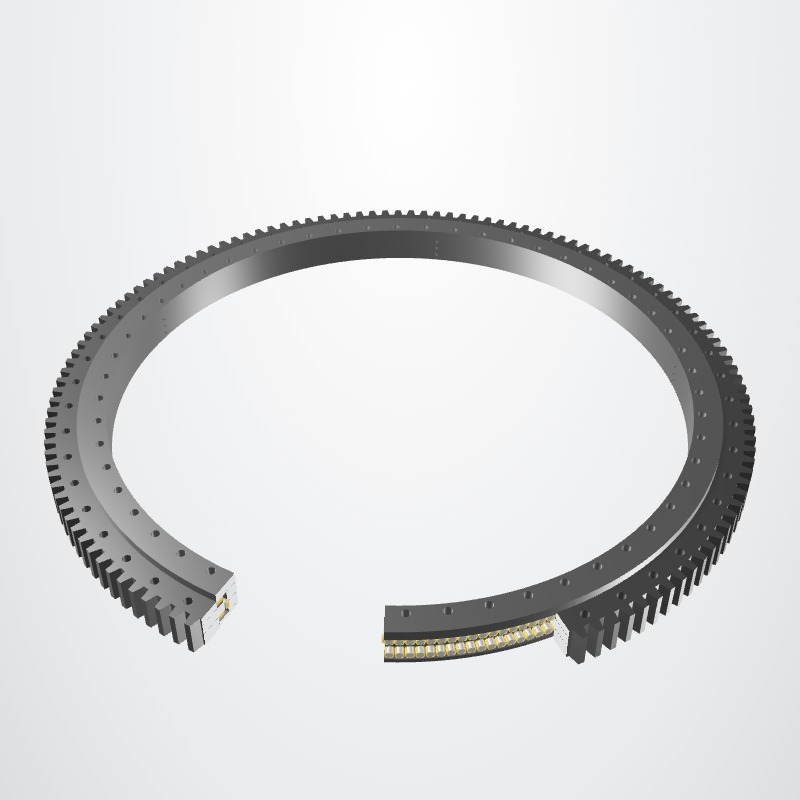

The Liebherr ROD02000-021DA15-900-000 reference belongs to the Rod 21 Da Series and uses a three-row roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
ROD02000-021DA15-900-000
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Liebherr ROD02000-021DA15-900-000.
- Overall OD (Do)
- 2,236.8 mm
- Overall ID (di)
- 1,853 mm
- Overall height
- 132 mm
- Gear arrangement
- External gear
- Mounting holes
- 54 / 54 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Weight)
- 912 kg
- Overall outside diameter (Da)
- 2,236.8 mm
- Overall inside diameter (Di)
- 1,853 mm
- Overall height (H)
- 132 mm
- Liebherr catalogue dimension O (O)
- 2,032 mm
- Liebherr catalogue dimension U (U)
- 2,030 mm
- Liebherr catalogue dimension H1 (H1)
- 106 mm
- Liebherr catalogue dimension H2 (H2)
- 123 mm
Mounting
- Outer ring bolt circle (La)
- 2,105 mm
- Inner ring bolt circle (Li)
- 1,905 mm
- La/Li mounting-hole count (n)
- 54
- Mounting fastener specification (M)
- 24
- Liebherr catalogue count n1 (n1)
- 5
Gear
- Gear pitch diameter (d)
- 2,192 mm
- Gear module (m)
- 16 mm
- Gear tooth count (z)
- 137
- Addendum modification product x*m (x*m)
- 8 mm
- Liebherr catalogue gear dimension k*m (k*m)
- -1.6 mm
- Gear face width (b)
- 106 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordLiebherr ROD02000-021DA15-900-000 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | ROD02000-021DA15-900-000 |
| Certified interchangeable with | Liebherr ROD02000-021DA15-900-000 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Liebherr |
| Series | Rod 21 Da Series |
| Reference model | ROD02000-021DA15-900-000 |
| System of measurement | Metric |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Mass (Weight) | 912 kg |
| Overall outside diameter (Da) | 2,236.8 mm |
| Overall inside diameter (Di) | 1,853 mm |
| Overall height (H) | 132 mm |
| Liebherr catalogue dimension O (O) | 2,032 mm |
| Liebherr catalogue dimension U (U) | 2,030 mm |
| Liebherr catalogue dimension H1 (H1) | 106 mm |
| Liebherr catalogue dimension H2 (H2) | 123 mm |
| Mounting | |
| Outer ring bolt circle (La) | 2,105 mm |
| Inner ring bolt circle (Li) | 1,905 mm |
| La/Li mounting-hole count (n) | 54 |
| Mounting fastener specification (M) | 24 |
| Liebherr catalogue count n1 (n1) | 5 |
| Gear | |
| Gear pitch diameter (d) | 2,192 mm |
| Gear module (m) | 16 mm |
| Gear tooth count (z) | 137 |
| Addendum modification product x*m (x*m) | 8 mm |
| Liebherr catalogue gear dimension k*m (k*m) | -1.6 mm |
| Gear face width (b) | 106 mm |
| Ratings | |
| Standard tooth force (Fz standard) | 155.8 kN |
| Maximum tooth force (Fz maximum) | 311.2 kN |
| Static load rating (Cstat) | 14,879 kN |
| Dynamic load rating (Cdyn) | 1,583 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY
Rod 21 Da Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Liebherr ROD02000-021DA15-900-000
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
