ROLLIX 13-1418-00
Level 1 · Reference data
Reference information for ROLLIX 13-1418-00. Replacement suitability requires engineering confirmation.

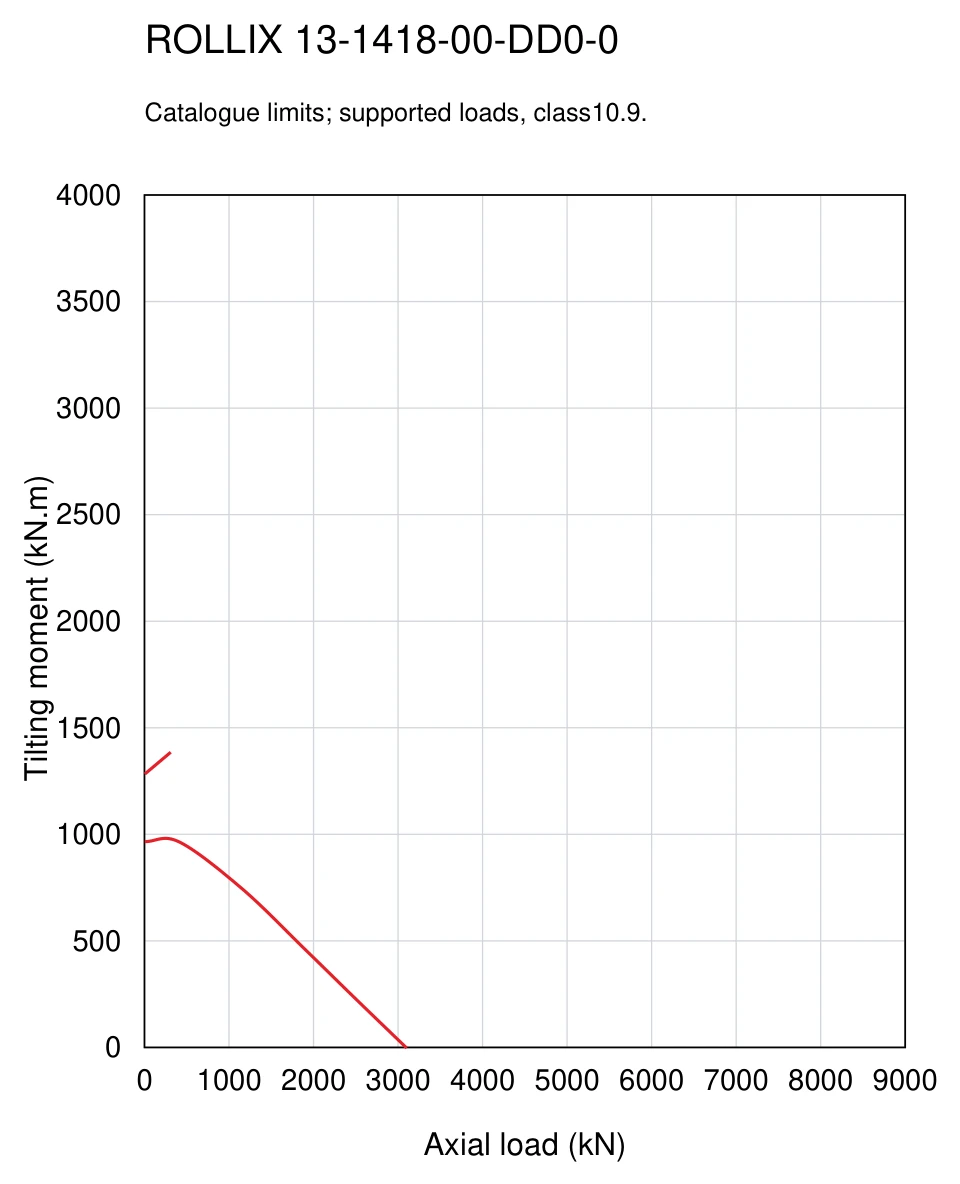

Load capacity curve

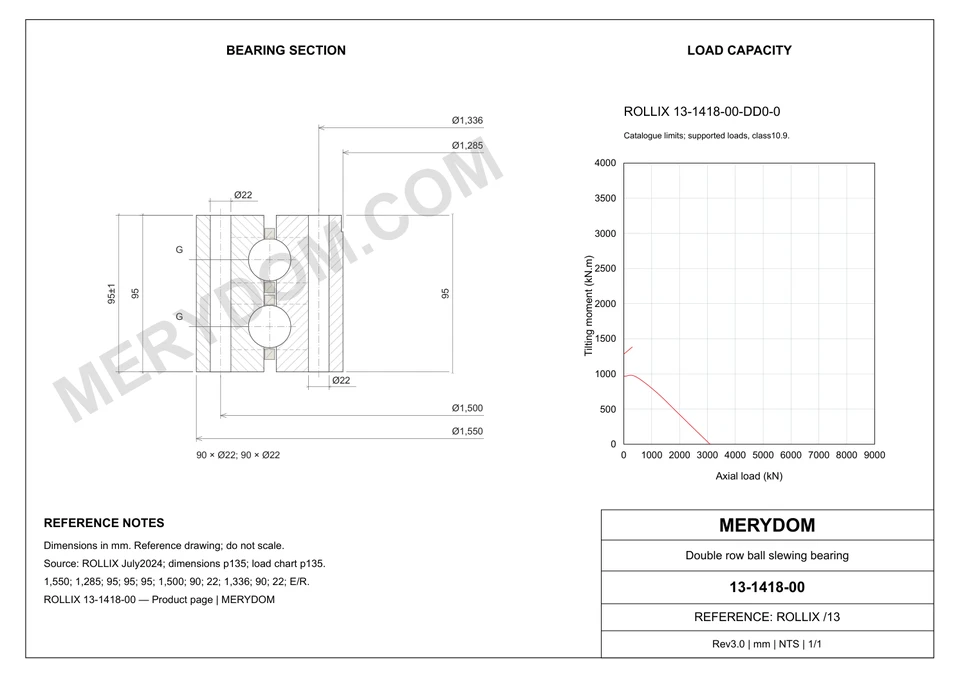

Reference specifications
| Parameter | Source value |
|---|---|
| Reference brand / model | ROLLIX 13-1418-00 |
| Overall height HT | 95 mm |
| Overall outside diameter ØDe | 1,550 mm |
| Outer ring height He | 95 mm |
| Overall inside diameter ØDi | 1,285 mm |
| Inner ring height Hi | 95 mm |
| Assembly weight Weight | 392 kg |
| Outer ring hole type External ring hole type | Th |
| Outer ring bolt circle ØFe | 1,500 mm |
| Outer ring mounting-hole count Ne | 90 |
| Outer ring mounting-hole specification Dhe | 22 mm |
| Inner ring hole type Inner ring hole type | Th |
| Inner ring bolt circle ØFi | 1,336 mm |
| Inner ring mounting-hole count Ni | 90 |
| Inner ring mounting-hole specification Dhi | 22 mm |
| Ring with greasing holes Ring with greasing holes | E |
| Greasing hole type Greasing hole type | R |
