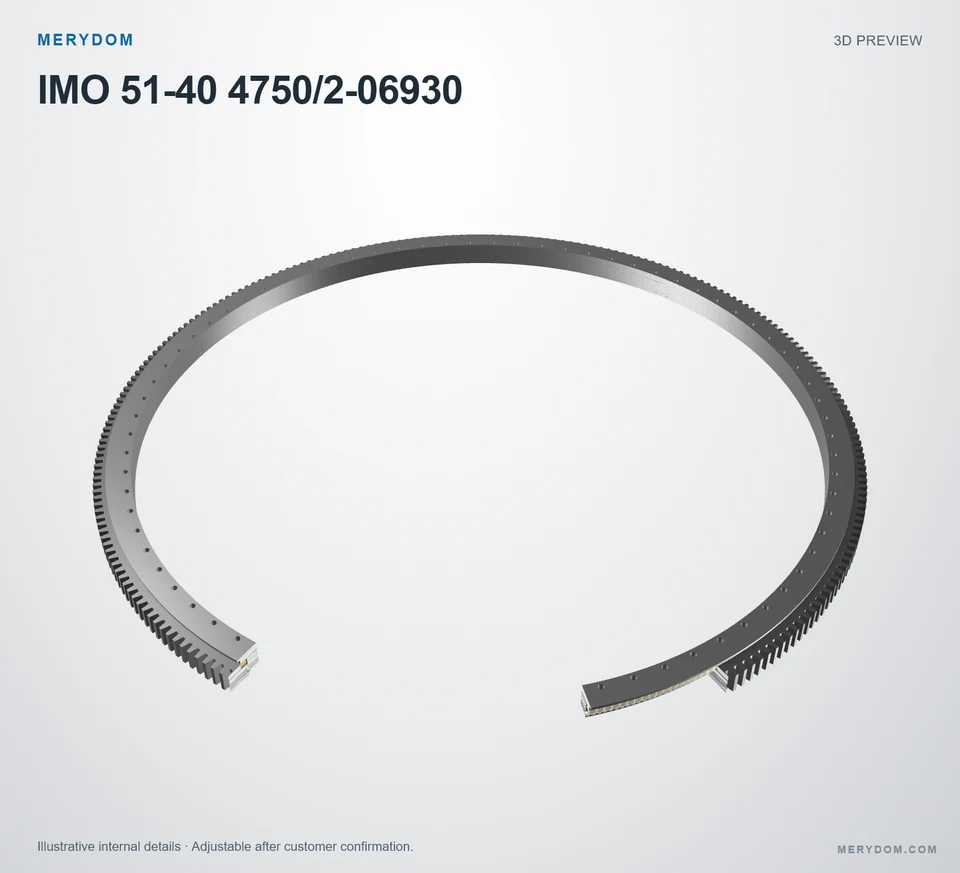

IMO 51-40 4750/2-06930 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 51-40 4750/2-06930 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 51-40 4750/2-06930 reference belongs to the 540 Series and uses a roller / ball combination, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
51-40 4750/2-06930
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with IMO 51-40 4750/2-06930.
- Overall OD (Do)
- 5016 mm
- Overall ID (di)
- 4526 mm
- Overall height
- Not published
- Gear arrangement
- External gear
- Mounting holes
- 76 / outer / inner
- Bearing design
- Roller / ball combination
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

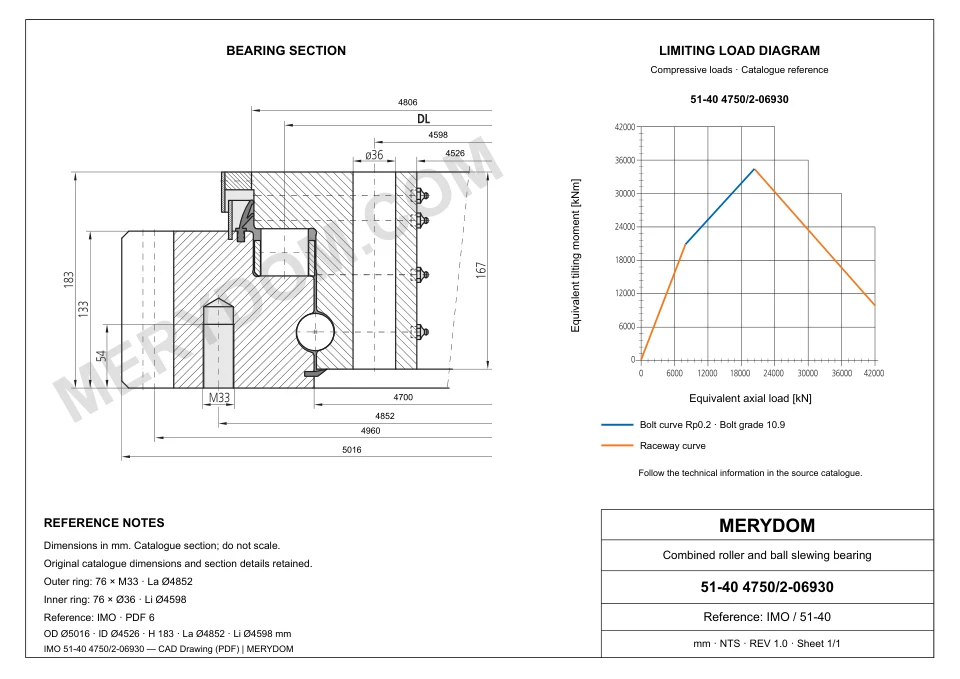

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 5,016 mm
- Overall inside diameter (di)
- 4,526 mm
- Assembly weight (G)
- 3,796 kg
Mounting
- Outer ring bolt circle (La)
- 4,852 mm
- Inner ring bolt circle (Li)
- 4,598 mm
- Outer ring mounting-hole count (na)
- 76
Gear
- Gear pitch diameter (d)
- 4,960 mm
- Gear module (m)
- 20 mm
- Gear tooth count (z)
- 248
- Addendum modification coefficient (x)
- 0.5
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 51-40 4750/2-06930 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 51-40 4750/2-06930 |
| Certified interchangeable with | IMO 51-40 4750/2-06930 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 540 Series |
| Reference model | 51-40 4750/2-06930 |
| System of measurement | Metric |
| Bearing structure | Roller / ball combination |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Da) | 5,016 mm |
| Overall inside diameter (di) | 4,526 mm |
| Assembly weight (G) | 3,796 kg |
| Mounting | |
| Outer ring bolt circle (La) | 4,852 mm |
| Inner ring bolt circle (Li) | 4,598 mm |
| Outer ring mounting-hole count (na) | 76 |
| Gear | |
| Gear pitch diameter (d) | 4,960 mm |
| Gear module (m) | 20 mm |
| Gear tooth count (z) | 248 |
| Addendum modification coefficient (x) | 0.5 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 253 kN |
| Permitted circumferential force, maximum (fz_max) | 450 kN |
| Static radial load rating (Co_rad) | 1,570 kN |
| Static axial load rating, tension (Co_ax_T) | 49,990 kN |
| Static axial load rating, compression (Co_ax_H) | 8,402 kN |
| Dynamic radial load rating (C_rad) | 460 kN |
| Dynamic axial load rating, tension (C_ax_T) | 7,877 kN |
| Dynamic axial load rating, compression (C_ax_H) | 876 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

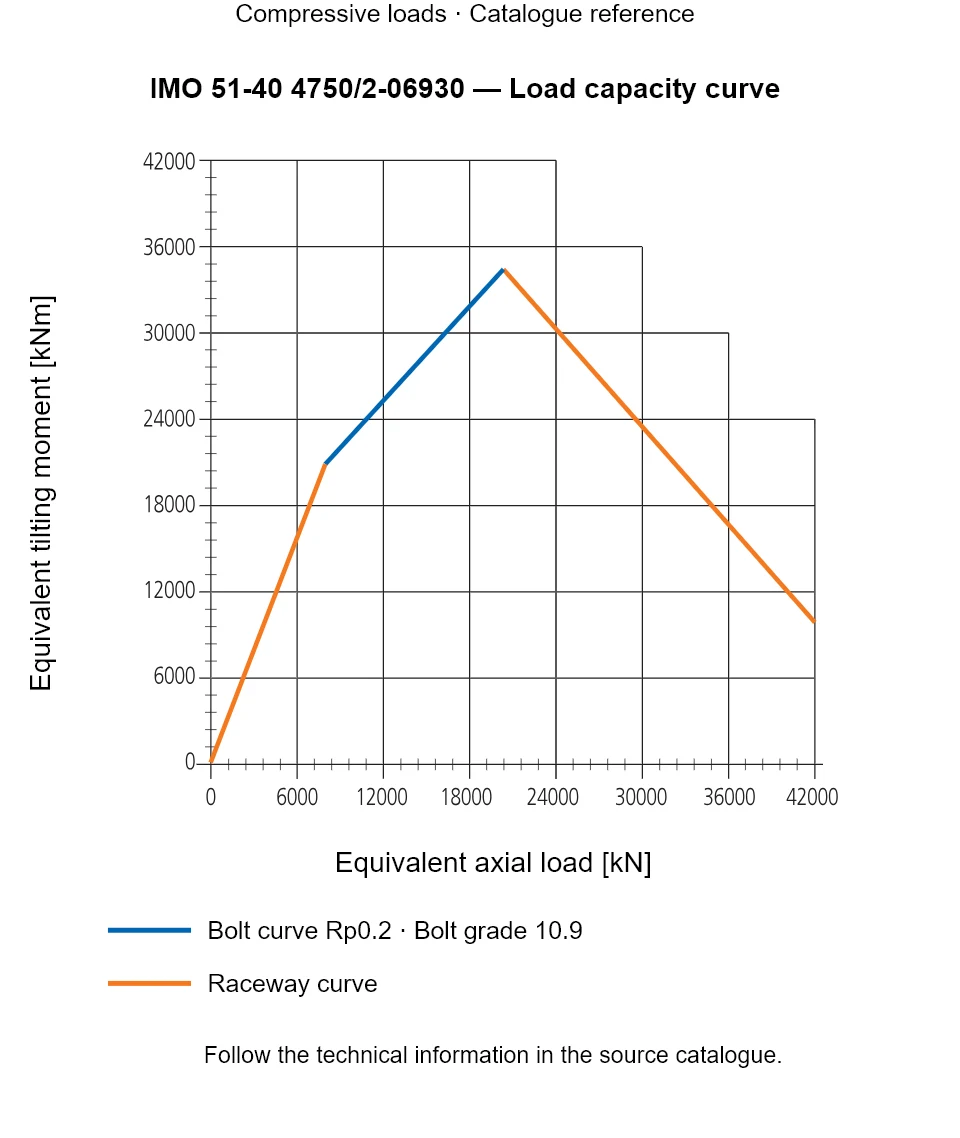

SERIES LOAD CAPACITY
540 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 51-40 4750/2-06930
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
