Kaydon 16268001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16268001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

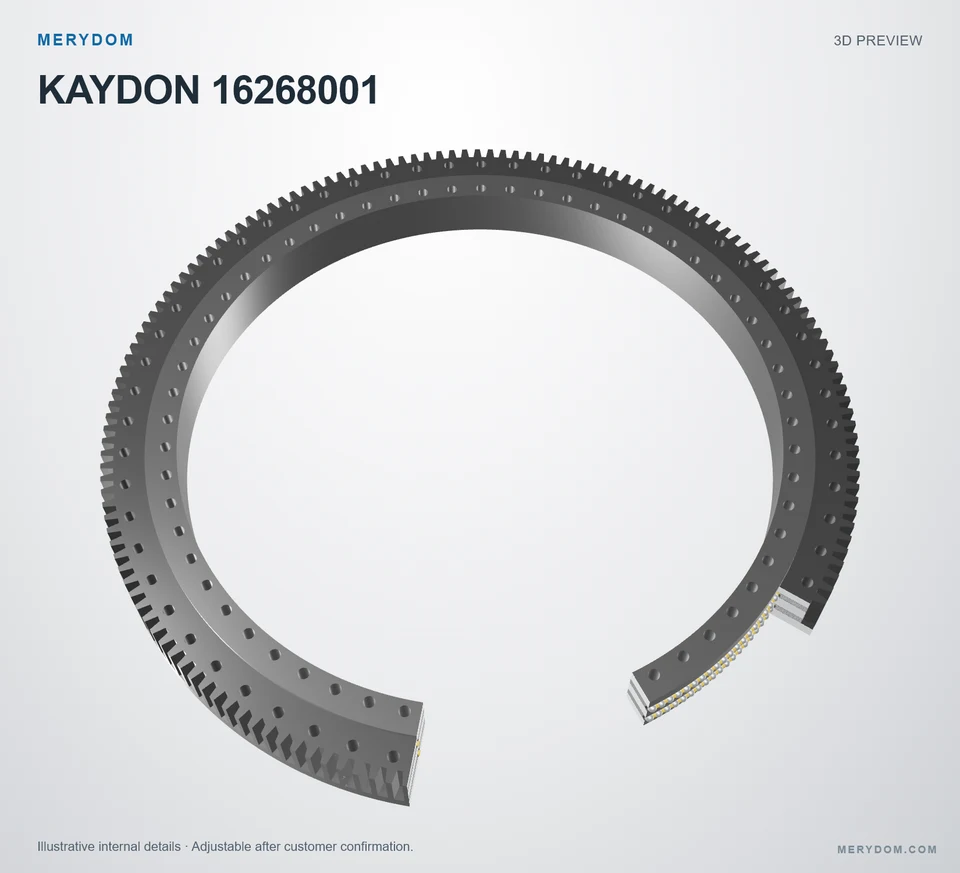

The Kaydon 16268001 reference belongs to the Dt Series and uses an eight-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16268001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16268001.
- Overall OD (Do)
- 89.181 in
- Overall ID (di)
- 71.400 in
- Overall height
- 7.090 in
- Gear arrangement
- External gear
- Mounting holes
- 60 / 60 outer / inner
- Bearing design
- Eight-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

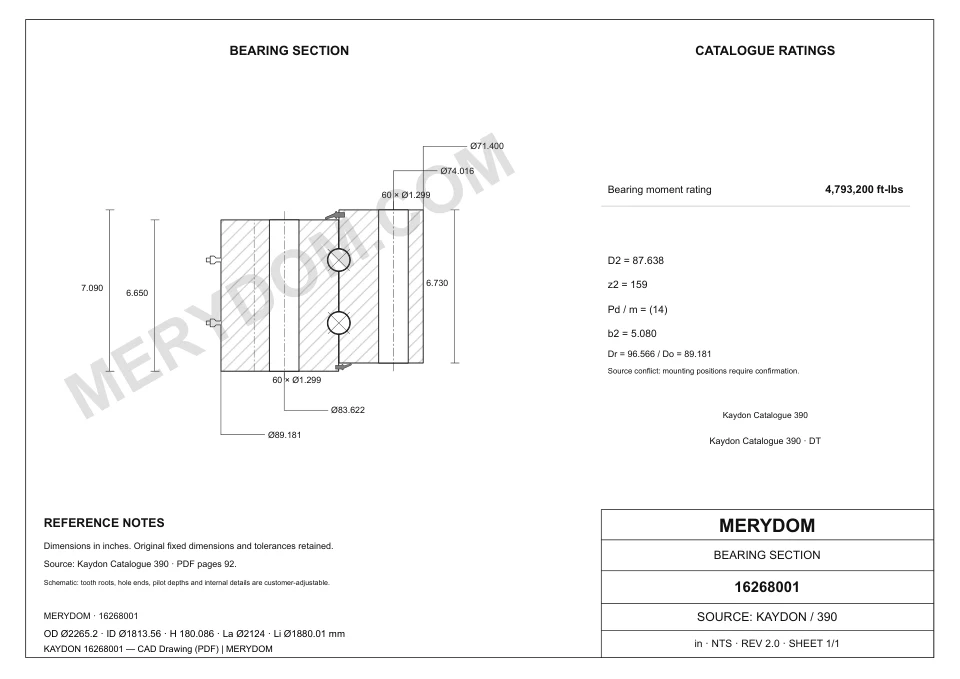

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 89.181 inapproximately 2,265.2 mm
- Overall inside diameter (di)
- 71.400 inapproximately 1,814 mm
- Outer ring body OD (Dr)
- 96.566 inapproximately 2,452.78 mm
- Overall height (H)
- 7.090 inapproximately 180.1 mm
- Assembly weight (G)
- 3360 lbapproximately 1,524.07 kg
Mounting
- Outer ring bolt circle (Lo)
- 83.622 inapproximately 2,124 mm
- Inner ring bolt circle (Li)
- 74.016 inapproximately 1,880.01 mm
Gear
- Gear pitch diameter (D2)
- 87.638 inapproximately 2,226.01 mm
- Gear tooth count (z2)
- 159
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16268001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16268001 |
| Certified interchangeable with | Kaydon 16268001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Dt Series |
| Reference model | 16268001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Eight-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 89.181 inapproximately 2,265.2 mm |
| Overall inside diameter (di) | 71.400 inapproximately 1,814 mm |
| Overall height (H) | 7.090 inapproximately 180.1 mm |
| Outer ring body OD (Dr) | 96.566 inapproximately 2,452.78 mm |
| Outer ring bolt circle (Lo) | 83.622 inapproximately 2,124 mm |
| Inner ring bolt circle (Li) | 74.016 inapproximately 1,880.01 mm |
| Gear pitch diameter (D2) | 87.638 inapproximately 2,226.01 mm |
| Assembly weight (G) | 3360 lbapproximately 1,524.07 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 53760 lbfapproximately 239.14 kN |
| Moment load rating (Crm) | 4793200 ft·lbfapproximately 6,498.71 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 60 holes · 1.299 |
| Inner ring bolt holes (ni) | 60 holes · 1.299 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 14 (source (14)) |
| Number of teeth (z2) | 159 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY
Dt Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16268001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
