Kaydon 16274001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16274001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

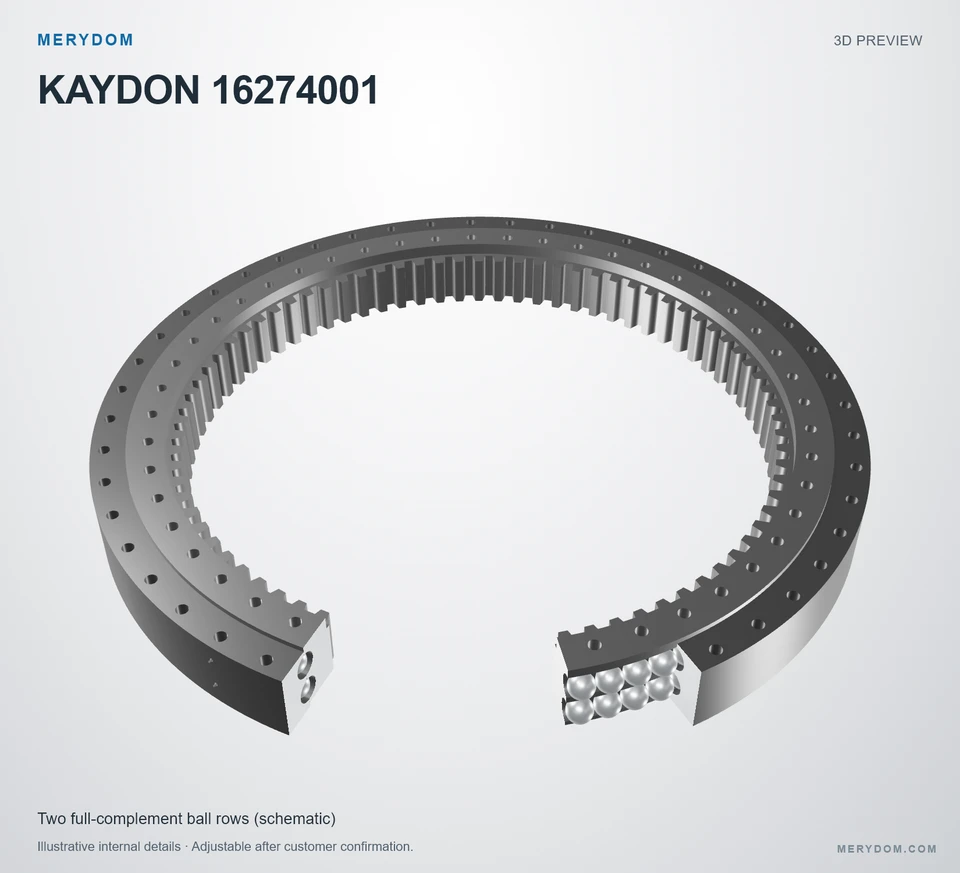

The Kaydon 16274001 reference belongs to the Dt Series and uses an eight-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16274001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16274001.
- Overall OD (Do)
- 56.693 in
- Overall ID (di)
- 43.661 in
- Overall height
- 5.472 in
- Gear arrangement
- Internal gear
- Mounting holes
- 48 / 48 outer / inner
- Bearing design
- Eight-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

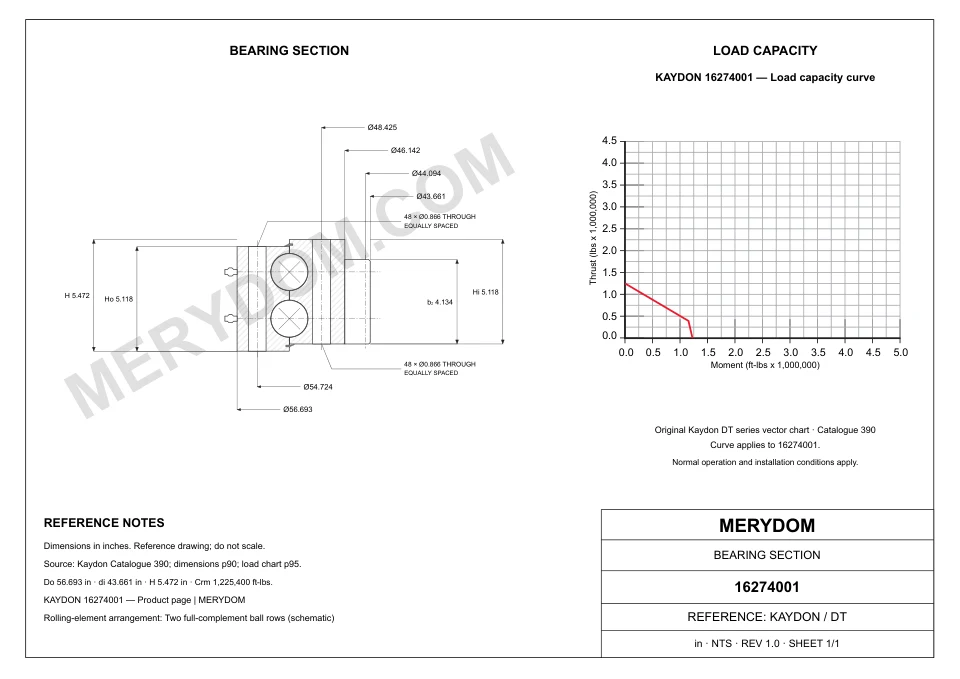

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 56.693 inapproximately 1,440 mm
- Overall inside diameter (di)
- 43.661 inapproximately 1,108.99 mm
- Inner ring body ID (dr)
- 46.142 inapproximately 1,172.01 mm
- Overall height (H)
- 5.472 inapproximately 138.99 mm
- Assembly weight (G)
- 1200 lbapproximately 544.311 kg
Mounting
- Outer ring bolt circle (Lo)
- 54.724 inapproximately 1,389.99 mm
- Inner ring bolt circle (Li)
- 48.425 inapproximately 1,230 mm
Gear
- Gear pitch diameter (D2)
- 44.094 inapproximately 1,119.99 mm
- Gear tooth count (z2)
- 80
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16274001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16274001 |
| Certified interchangeable with | Kaydon 16274001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Dt Series |
| Reference model | 16274001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Eight-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 56.693 inapproximately 1,440 mm |
| Overall inside diameter (di) | 43.661 inapproximately 1,108.99 mm |
| Overall height (H) | 5.472 inapproximately 138.99 mm |
| Inner ring body ID (dr) | 46.142 inapproximately 1,172.01 mm |
| Outer ring bolt circle (Lo) | 54.724 inapproximately 1,389.99 mm |
| Inner ring bolt circle (Li) | 48.425 inapproximately 1,230 mm |
| Gear pitch diameter (D2) | 44.094 inapproximately 1,119.99 mm |
| Assembly weight (G) | 1200 lbapproximately 544.311 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 48640 lbfapproximately 216.36 kN |
| Moment load rating (Crm) | 1225400 ft·lbfapproximately 1,661.42 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 48 holes · 0.866 |
| Inner ring bolt holes (ni) | 48 holes · 0.866 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 14 (source (14)) |
| Number of teeth (z2) | 80 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

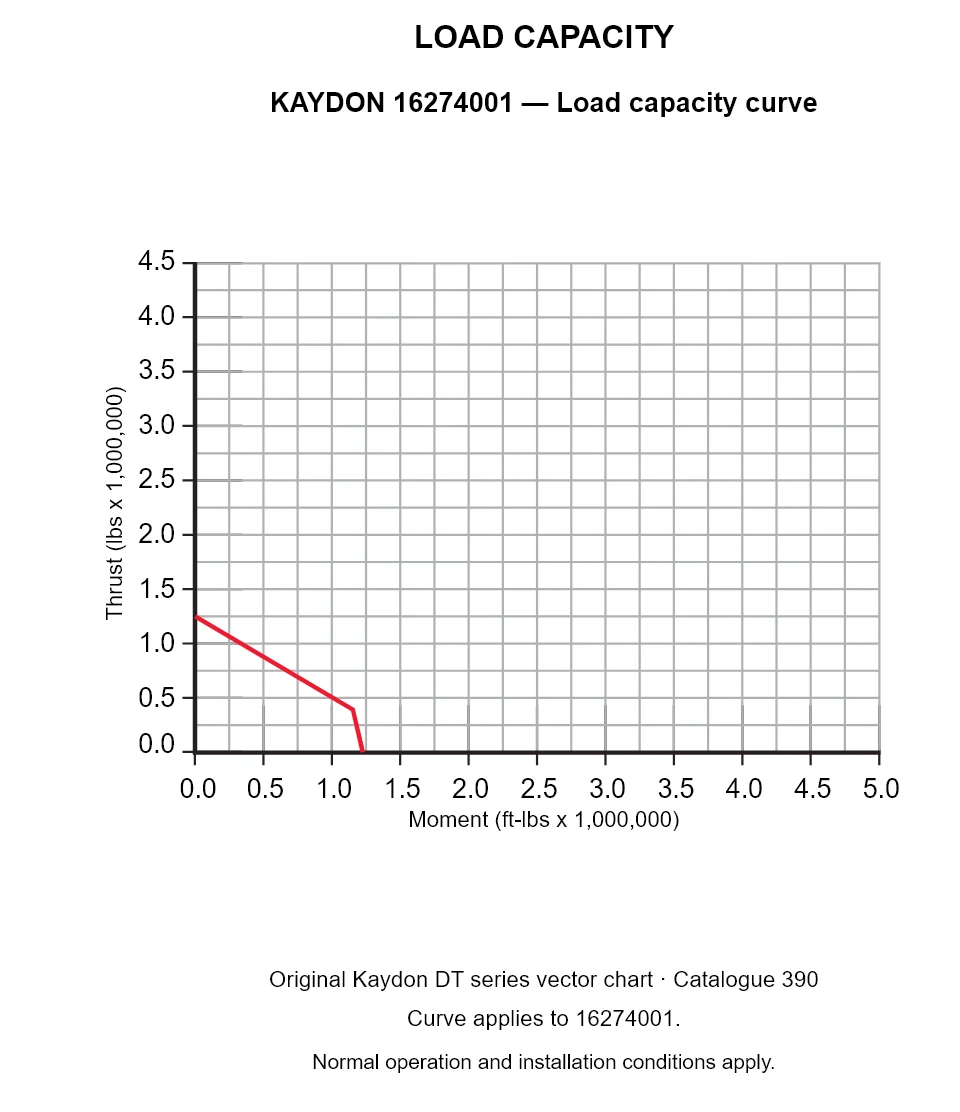

Dt Series load chart
