Kaydon 16264001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16264001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16264001 reference belongs to the Dt Series and uses an eight-point contact ball, external gear slewing bearing configuration.

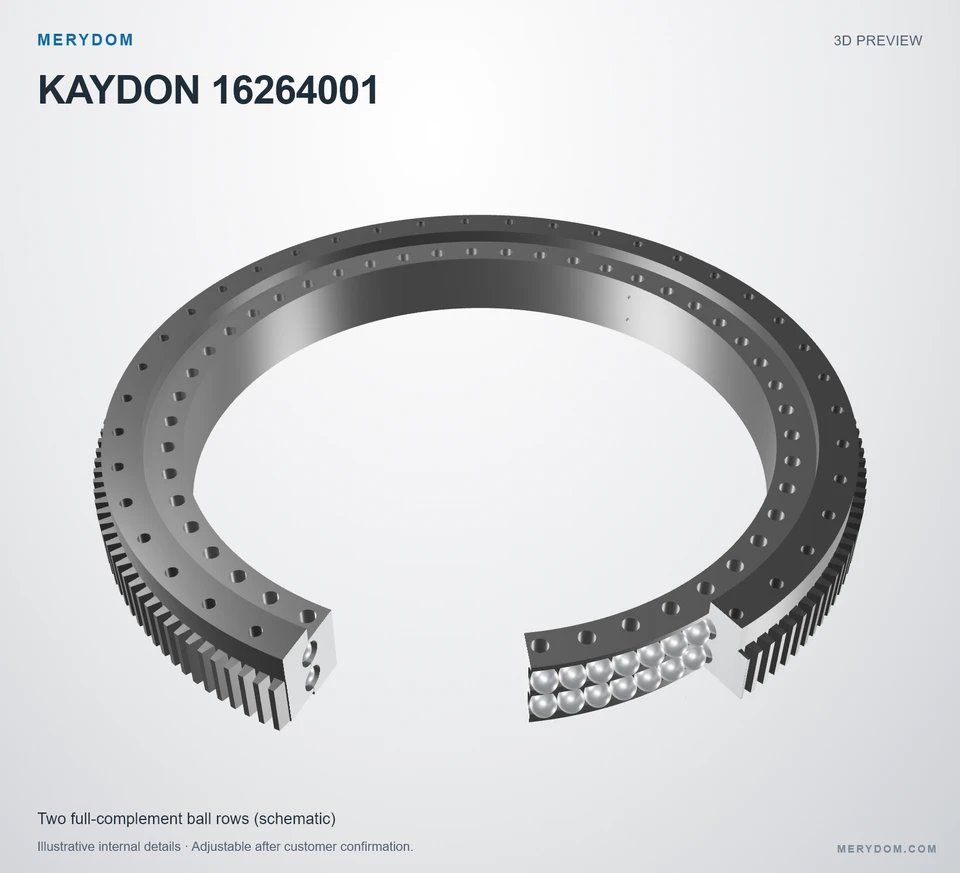

Rolling-element arrangement: Two rows of full-complement balls

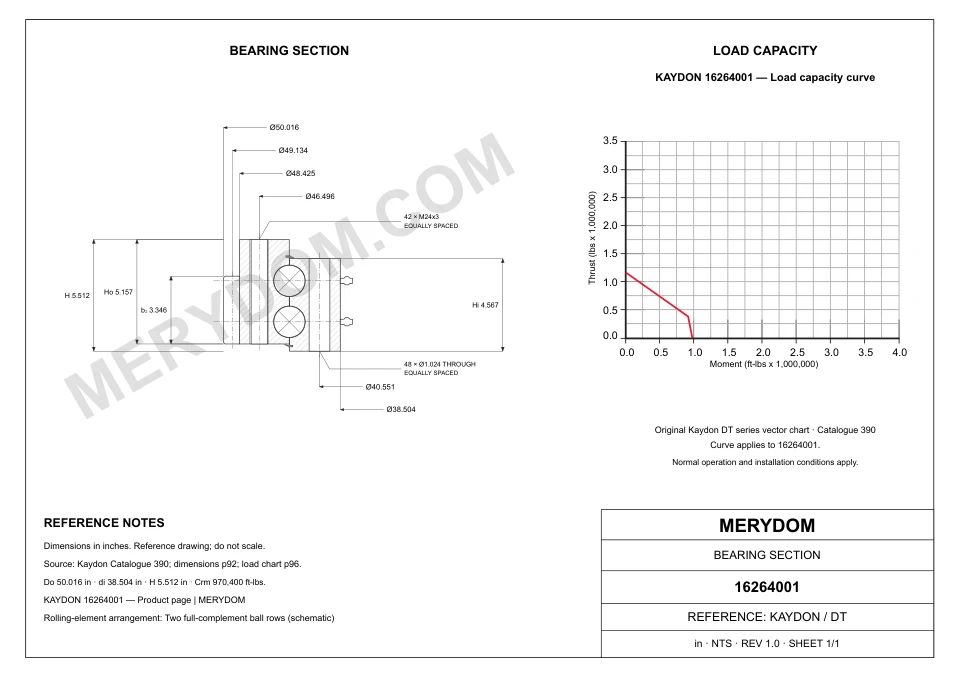

Catalogue 390, p85: two raceways, each with a maximum ball complement. Ball size, count and internal clearances in the illustration are schematic.
Mounting threads follow the catalogue specifications. Where the catalogue does not define thread depth or hole end condition, the drawings and 3D model show illustrative through threads over the ring height; these are adjustable reference details, not manufacturer-verified machining dimensions.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16264001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16264001.
- Overall OD (Do)
- 50.016 in
- Overall ID (di)
- 38.504 in
- Overall height
- 5.512 in
- Gear arrangement
- External gear
- Mounting holes
- 42 / 48 outer / inner
- Bearing design
- Eight-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 50.016 inapproximately 1,270.41 mm
- Overall inside diameter (di)
- 38.504 inapproximately 978 mm
- Outer ring body OD (Dr)
- 48.425 inapproximately 1,230 mm
- Overall height (H)
- 5.512 inapproximately 140 mm
- Assembly weight (G)
- 870 lbapproximately 394.625 kg
- Inner ring height (Hi)
- 4.567 inapproximately 116 mm
- Outer ring height (Ho)
- 5.157 inapproximately 130.99 mm
Mounting
- Outer ring bolt circle (Lo)
- 46.496 inapproximately 1,181 mm
- Inner ring bolt circle (Li)
- 40.551 inapproximately 1,030 mm
Gear
- Gear pitch diameter (D2)
- 49.134 inapproximately 1,248 mm
- Gear tooth count (z2)
- 156
- Catalogue gear face width (b2)
- 3.346 inapproximately 84.99 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16264001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16264001 |
| Certified interchangeable with | Kaydon 16264001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Dt Series |
| Reference model | 16264001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Eight-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 50.016 inapproximately 1,270.41 mm |
| Overall inside diameter (di) | 38.504 inapproximately 978 mm |
| Overall height (H) | 5.512 inapproximately 140 mm |
| Inner ring height (Hi) | 4.567 inapproximately 116 mm |
| Outer ring height (Ho) | 5.157 inapproximately 130.99 mm |
| Outer ring body OD (Dr) | 48.425 inapproximately 1,230 mm |
| Outer ring bolt circle (Lo) | 46.496 inapproximately 1,181 mm |
| Inner ring bolt circle (Li) | 40.551 inapproximately 1,030 mm |
| Gear pitch diameter (D2) | 49.134 inapproximately 1,248 mm |
| Assembly weight (G) | 870 lbapproximately 394.625 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 19390 lbfapproximately 86.25 kN |
| Moment load rating (Crm) | 970400 ft·lbfapproximately 1,315.69 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 42 holes · M24x3 |
| Inner ring bolt holes (ni) | 48 holes · 1.024 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 8 (source (8)) |
| Number of teeth (z2) | 156 |
| Catalogue gear face width (b2) | 3.346 inapproximately 85 mm |
| Profile shift coefficient (x2) | +.5 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

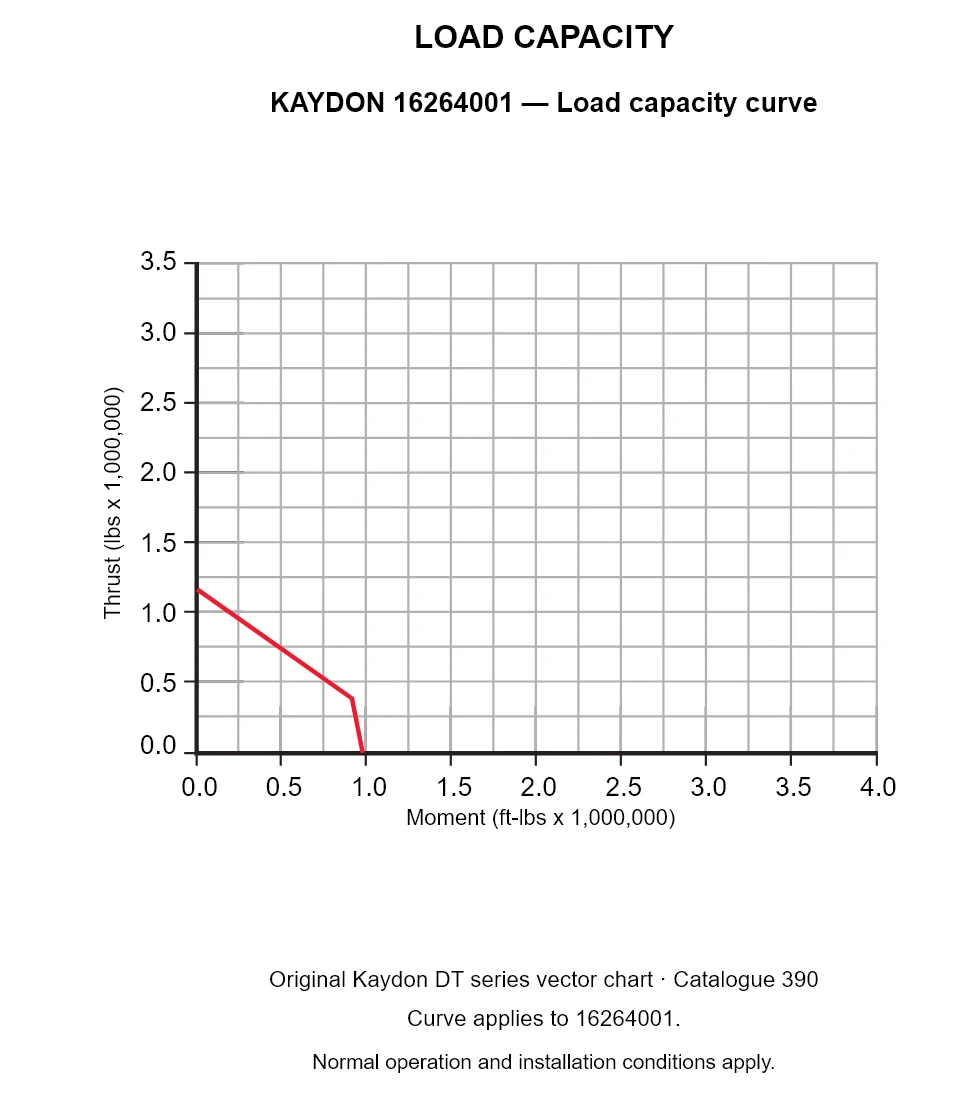

KAYDON 16264001 — Load capacity curve
KAYDON 16264001 — Load capacity curve
KAYDON 16264001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16264001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
