Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration

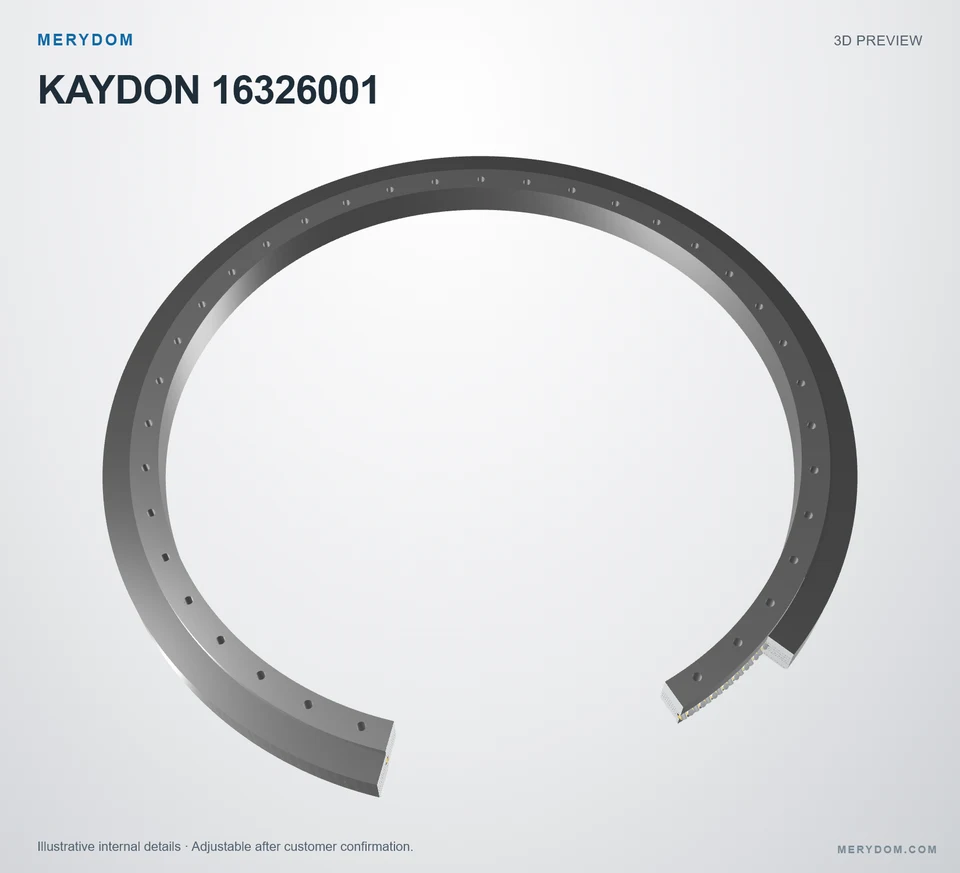

Kaydon 16326001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16326001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16326001 reference belongs to the Xr Series and uses a cross roller, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16326001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16326001.
- Overall OD (Do)
- 131.890 in
- Overall ID (di)
- 112.205 in
- Overall height
- 7.874 in
- Gear arrangement
- Ungeared
- Mounting holes
- 40 / 40 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

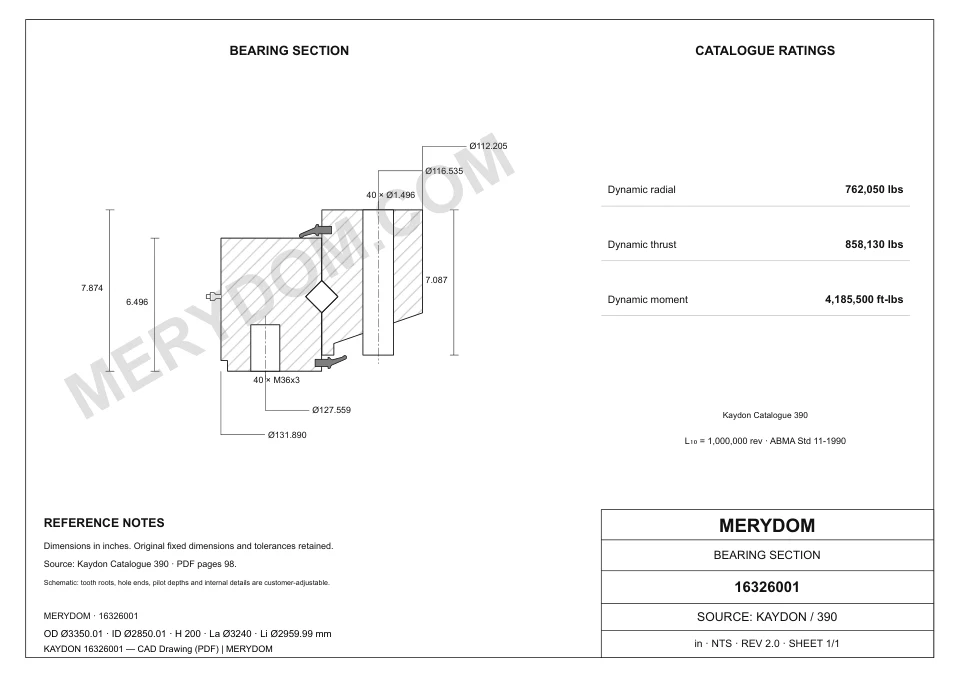

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 131.890 inapproximately 3,350 mm
- Overall inside diameter (di)
- 112.205 inapproximately 2,850.01 mm
- Outer ring body OD (Dr)
- 131.250 inapproximately 3,333.8 mm
- Inner ring body ID (dr)
- 120.866 inapproximately 3,070 mm
- Overall height (H)
- 7.874 inapproximately 200 mm
- Assembly weight (G)
- 6500 lbapproximately 2,948.35 kg
Mounting
- Outer ring bolt circle (Lo)
- 127.559 inapproximately 3,240 mm
- Inner ring bolt circle (Li)
- 116.535 inapproximately 2,959.99 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16326001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16326001 |
| Certified interchangeable with | Kaydon 16326001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16326001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Do) | 131.890 inapproximately 3,350 mm |
| Overall inside diameter (di) | 112.205 inapproximately 2,850.01 mm |
| Overall height (H) | 7.874 inapproximately 200 mm |
| Outer ring body OD (Dr) | 131.250 inapproximately 3,333.8 mm |
| Inner ring body ID (dr) | 120.866 inapproximately 3,070 mm |
| Outer ring bolt circle (Lo) | 127.559 inapproximately 3,240 mm |
| Inner ring bolt circle (Li) | 116.535 inapproximately 2,959.99 mm |
| Assembly weight (G) | 6500 lbapproximately 2,948.35 kg |
| Ratings | |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 762050.0000000000 lbfapproximately 3,389.77 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 858130.0000000000 lbfapproximately 3,817.15 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 4185500.0000000000 ft·lbfapproximately 5,674.78 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 40 holes · M36x3 |
| Inner ring bolt holes (ni) | 40 holes · 1.496 |
| Gear | |
| Integral gear | Not applicable |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16326001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
