Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration

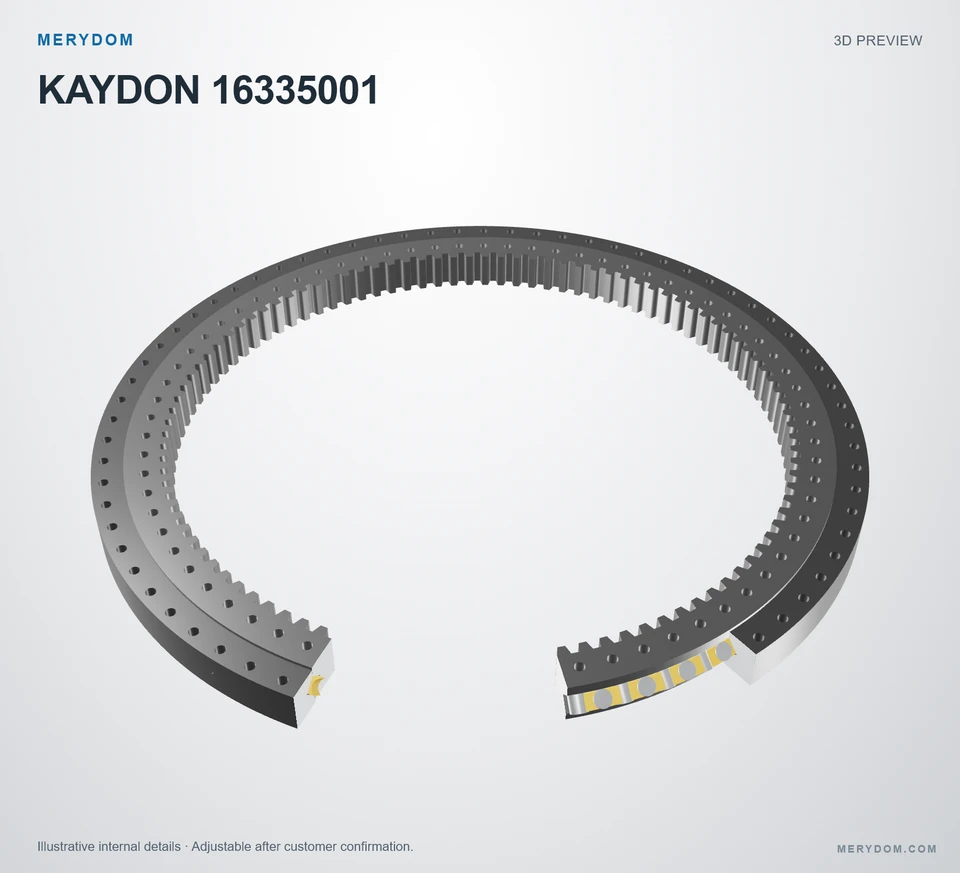

Kaydon 16335001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16335001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16335001 reference belongs to the Xr Series and uses a cross roller, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16335001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16335001.
- Overall OD (Do)
- 121.496 in
- Overall ID (di)
- 97.717 in
- Overall height
- 6.772 in
- Gear arrangement
- Internal gear
- Mounting holes
- 72 / 72 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

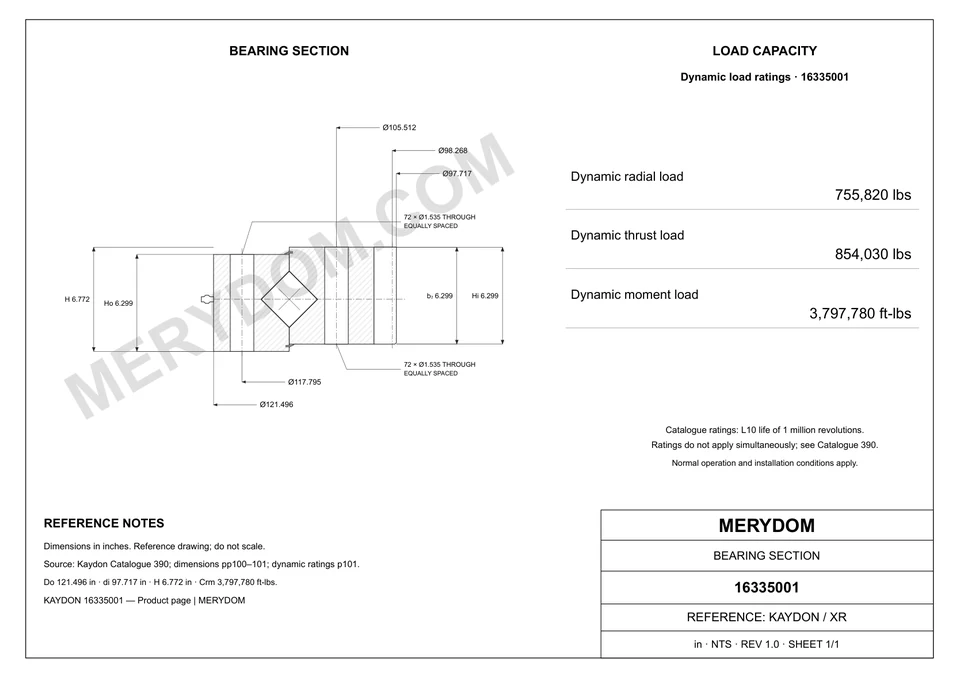

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 121.496 inapproximately 3,086 mm
- Overall inside diameter (di)
- 97.717 inapproximately 2,482.01 mm
- Overall height (H)
- 6.772 inapproximately 172.01 mm
- Assembly weight (G)
- 6080 lbapproximately 2,757.842 kg
Mounting
- Outer ring bolt circle (Lo)
- 117.795 inapproximately 2,991.99 mm
- Inner ring bolt circle (Li)
- 105.512 inapproximately 2,680 mm
Gear
- Gear pitch diameter (D2)
- 98.268 inapproximately 2,496.01 mm
- Gear tooth count (z2)
- 104
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16335001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16335001 |
| Certified interchangeable with | Kaydon 16335001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16335001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 121.496 inapproximately 3,086 mm |
| Overall inside diameter (di) | 97.717 inapproximately 2,482.01 mm |
| Overall height (H) | 6.772 inapproximately 172.01 mm |
| Outer ring bolt circle (Lo) | 117.795 inapproximately 2,991.99 mm |
| Inner ring bolt circle (Li) | 105.512 inapproximately 2,680 mm |
| Gear pitch diameter (D2) | 98.268 inapproximately 2,496.01 mm |
| Assembly weight (G) | 6080 lbapproximately 2,757.842 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 134270 lbfapproximately 597.26 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 755820.0000000000 lbfapproximately 3,362.05 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 854030.0000000000 lbfapproximately 3,798.91 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 3797780.0000000000 ft·lbfapproximately 5,149.1 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 72 holes · 1.535 |
| Inner ring bolt holes (ni) | 72 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 24 (source (24)) |
| Number of teeth (z2) | 104 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16335001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 16335001.
