Kaydon 16368001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16368001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

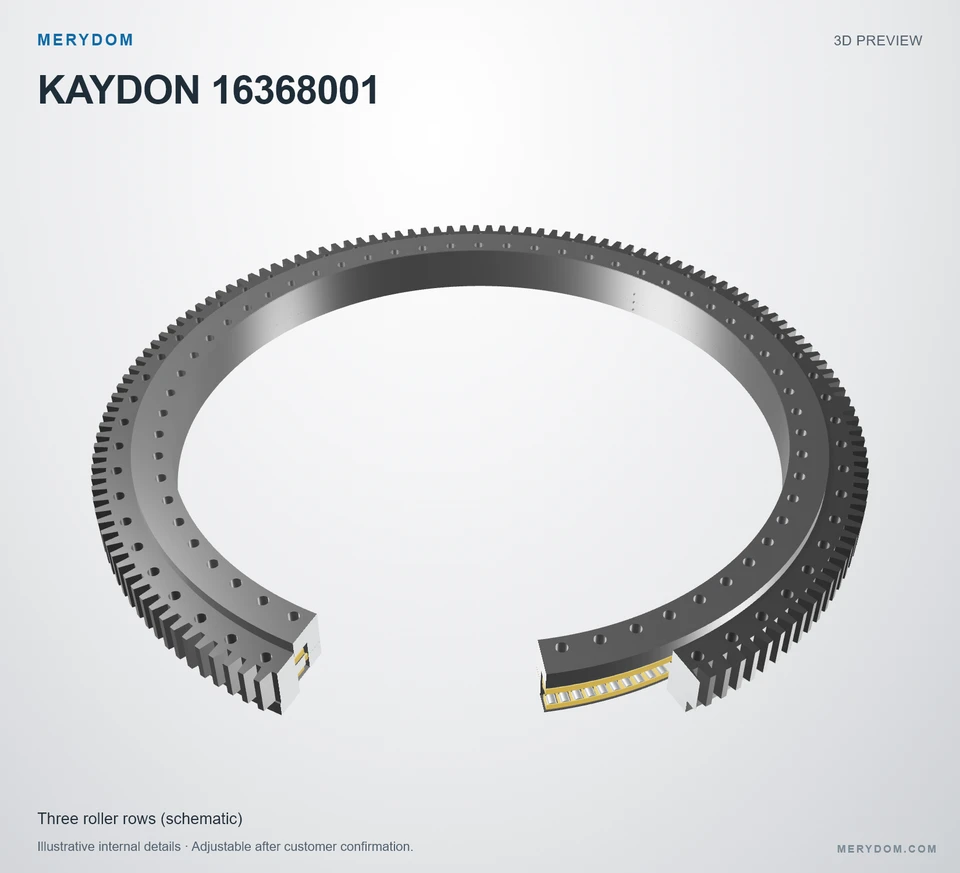

The Kaydon 16368001 reference belongs to the Tr Series and uses a three-row roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16368001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16368001.
- Overall OD (Do)
- 71.338 in
- Overall ID (di)
- 57.000 in
- Overall height
- 5.850 in
- Gear arrangement
- External gear
- Mounting holes
- 60 / 60 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

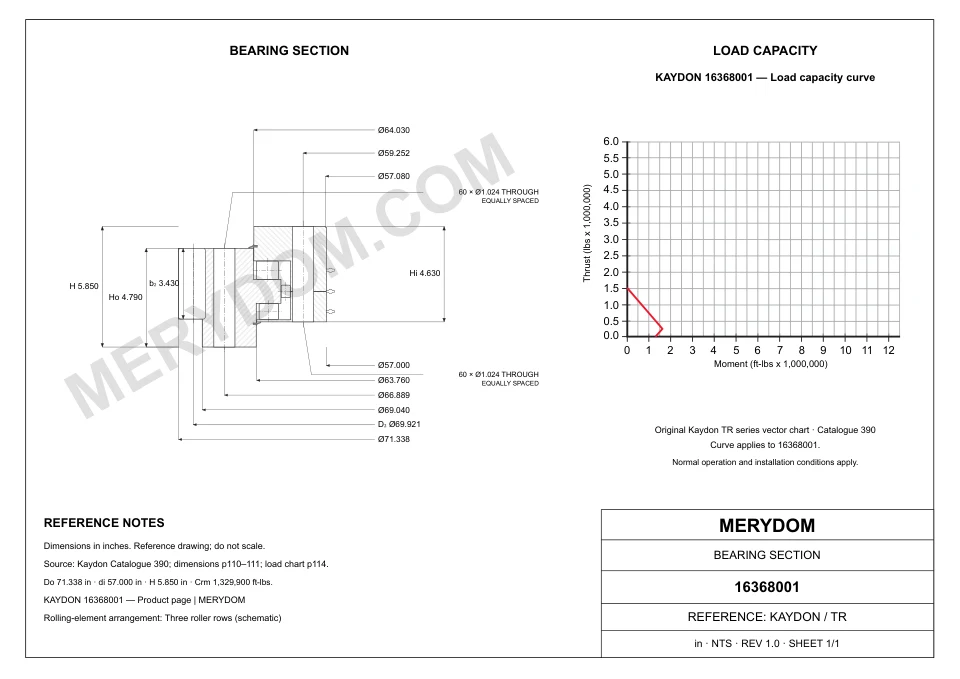

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 71.338 inapproximately 1,811.99 mm
- Overall inside diameter (di)
- 57.000 inapproximately 1,448 mm
- Outer ring body OD (Dr)
- 69.040 inapproximately 1,753.6 mm
- Outer ring inner diameter (Di)
- 63.760 inapproximately 1,619.5 mm
- Inner ring outer diameter (do)
- 64.030 inapproximately 1,626.4 mm
- Inner ring body ID (dr)
- 57.080 inapproximately 1,449.8 mm
- Overall height (H)
- 5.850 inapproximately 148.6 mm
- Assembly weight (G)
- 1600 lbapproximately 725.748 kg
Mounting
- Outer ring bolt circle (Lo)
- 66.889 inapproximately 1,698.98 mm
- Inner ring bolt circle (Li)
- 59.252 inapproximately 1,505 mm
Gear
- Gear pitch diameter (D2)
- 69.921 inapproximately 1,775.99 mm
- Gear tooth count (z2)
- 148
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16368001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16368001 |
| Certified interchangeable with | Kaydon 16368001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16368001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 71.338 inapproximately 1,811.99 mm |
| Overall inside diameter (di) | 57.000 inapproximately 1,448 mm |
| Overall height (H) | 5.850 inapproximately 148.6 mm |
| Outer ring body OD (Dr) | 69.040 inapproximately 1,753.6 mm |
| Outer ring inner diameter (Di) | 63.760 inapproximately 1,619.5 mm |
| Inner ring outer diameter (do) | 64.030 inapproximately 1,626.4 mm |
| Inner ring body ID (dr) | 57.080 inapproximately 1,449.8 mm |
| Outer ring bolt circle (Lo) | 66.889 inapproximately 1,698.98 mm |
| Inner ring bolt circle (Li) | 59.252 inapproximately 1,505 mm |
| Gear pitch diameter (D2) | 69.921 inapproximately 1,775.99 mm |
| Assembly weight (G) | 1600 lbapproximately 725.748 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 27510 lbfapproximately 122.37 kN |
| Moment load rating (Crm) | 1329900 ft·lbfapproximately 1,803.1 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 60 holes · 1.024 |
| Inner ring bolt holes (ni) | 60 holes · 1.024 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 12 (source (12)) |
| Number of teeth (z2) | 148 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

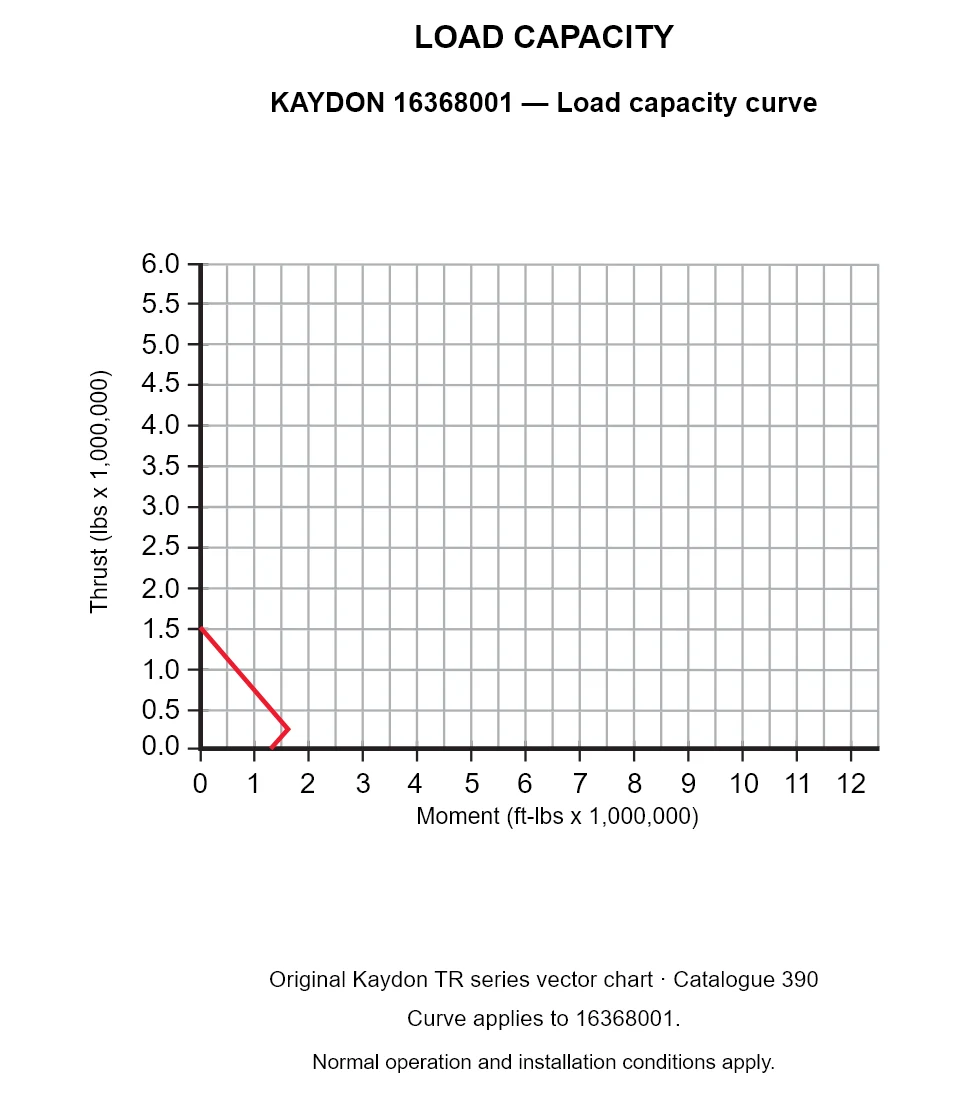

Tr Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16368001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
