Kaydon 16382001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16382001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16382001 reference belongs to the Tr Series and uses a three-row roller, internal gear slewing bearing configuration.

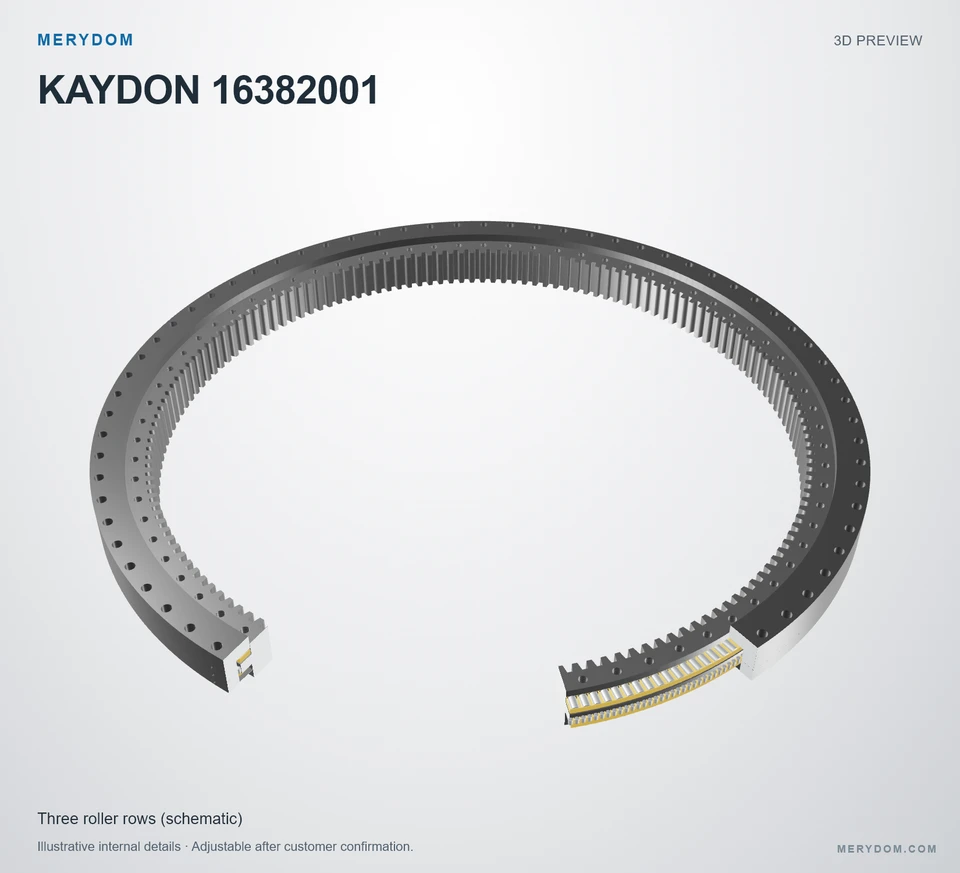

Rolling-element arrangement: Three independent roller rows
Catalogue 390, p103: upper and lower rows transmit thrust and moment loads; the middle row transmits radial loads. Roller sizes/counts, yellow cage frames and separator blocks, and internal clearances are illustrative.

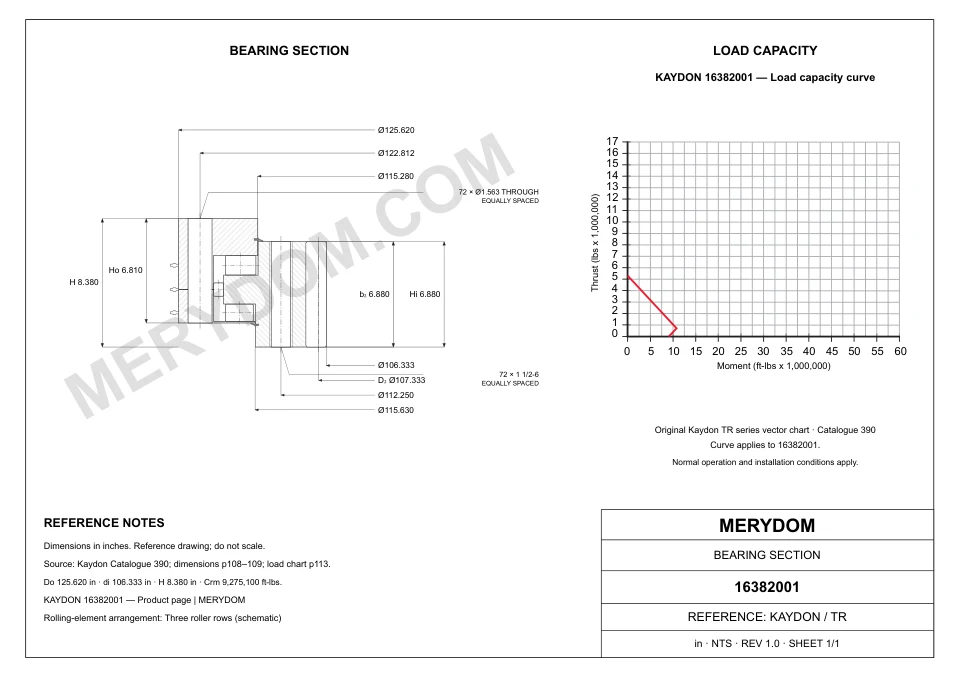

Mounting threads follow the catalogue specifications. Where the catalogue does not define thread depth or hole end condition, the drawings and 3D model show illustrative through threads over the ring height; these are adjustable reference details, not manufacturer-verified machining dimensions.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16382001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16382001.
- Overall OD (Do)
- 125.620 in
- Overall ID (di)
- 106.333 in
- Overall height
- 8.380 in
- Gear arrangement
- Internal gear
- Mounting holes
- 72 / 72 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 125.620 inapproximately 3,190.7 mm
- Overall inside diameter (di)
- 106.333 inapproximately 2,700.86 mm
- Outer ring inner diameter (Di)
- 115.280 inapproximately 2,928.1 mm
- Inner ring outer diameter (do)
- 115.630 inapproximately 2,937 mm
- Overall height (H)
- 8.380 inapproximately 212.9 mm
- Assembly weight (G)
- 5800 lbapproximately 2,630.836 kg
- Inner ring height (Hi)
- 6.880 inapproximately 174.8 mm
- Outer ring height (Ho)
- 6.810 inapproximately 173 mm
Mounting
- Outer ring bolt circle (Lo)
- 122.812 inapproximately 3,119.42 mm
- Inner ring bolt circle (Li)
- 112.250 inapproximately 2,851.2 mm
Gear
- Gear pitch diameter (D2)
- 107.333 inapproximately 2,726.26 mm
- Diametral pitch (Pd)
- 1.5
- Gear tooth count (z2)
- 161
- Catalogue gear face width (b2)
- 6.880 inapproximately 174.8 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16382001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16382001 |
| Certified interchangeable with | Kaydon 16382001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16382001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 125.620 inapproximately 3,190.7 mm |
| Overall inside diameter (di) | 106.333 inapproximately 2,700.86 mm |
| Overall height (H) | 8.380 inapproximately 212.9 mm |
| Inner ring height (Hi) | 6.880 inapproximately 174.8 mm |
| Outer ring height (Ho) | 6.810 inapproximately 173 mm |
| Outer ring inner diameter (Di) | 115.280 inapproximately 2,928.1 mm |
| Inner ring outer diameter (do) | 115.630 inapproximately 2,937 mm |
| Outer ring bolt circle (Lo) | 122.812 inapproximately 3,119.42 mm |
| Inner ring bolt circle (Li) | 112.250 inapproximately 2,851.2 mm |
| Gear pitch diameter (D2) | 107.333 inapproximately 2,726.26 mm |
| Assembly weight (G) | 5800 lbapproximately 2,630.836 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 93140 lbfapproximately 414.31 kN |
| Moment load rating (Crm) | 9275100 ft·lbfapproximately 12,575.35 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 72 holes · 1.563 |
| Inner ring bolt holes (ni) | 72 holes · 1 1/2-6 |
| Gear | |
| Pitch system | DP |
| Source diametral pitch (Pd) | 1.5 DP |
| Equivalent module (derived reference only) (m) | 16.933333 mm |
| Number of teeth (z2) | 161 |
| Catalogue gear face width (b2) | 6.880 inapproximately 175 mm |
| Profile shift coefficient (x2) | -0.25 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

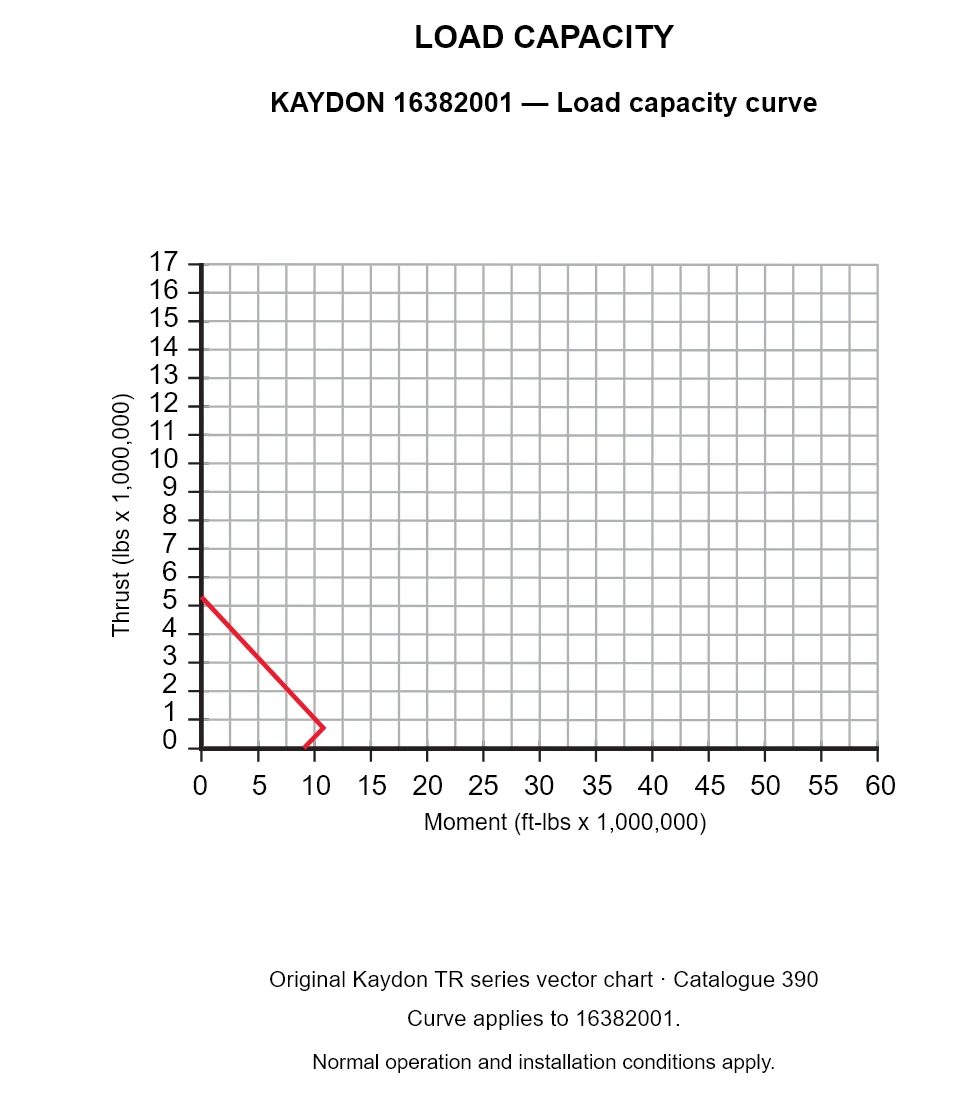

KAYDON 16382001 — Load capacity curve
KAYDON 16382001 — Load capacity curve
KAYDON 16382001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16382001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
