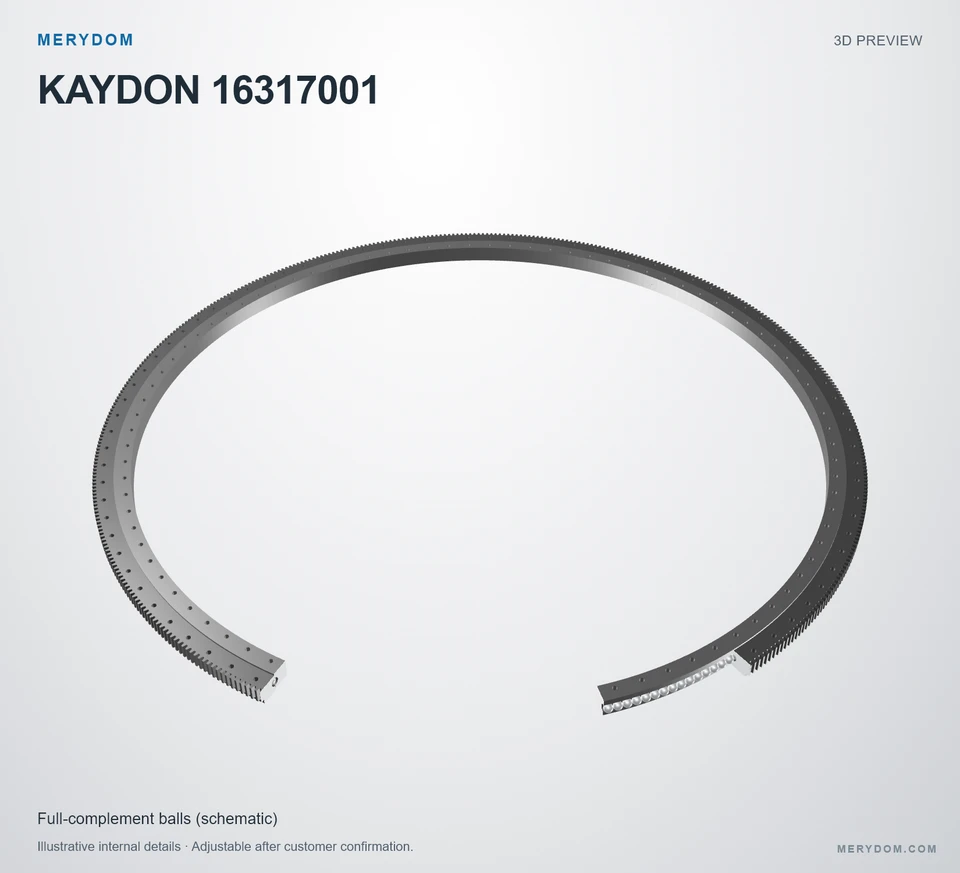

Kaydon 16317001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16317001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16317001 reference belongs to the Xt Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16317001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16317001.
- Overall OD (Do)
- 218.268 in
- Overall ID (di)
- 197.244 in
- Overall height
- 5.512 in
- Gear arrangement
- External gear
- Mounting holes
- 90 / 90 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

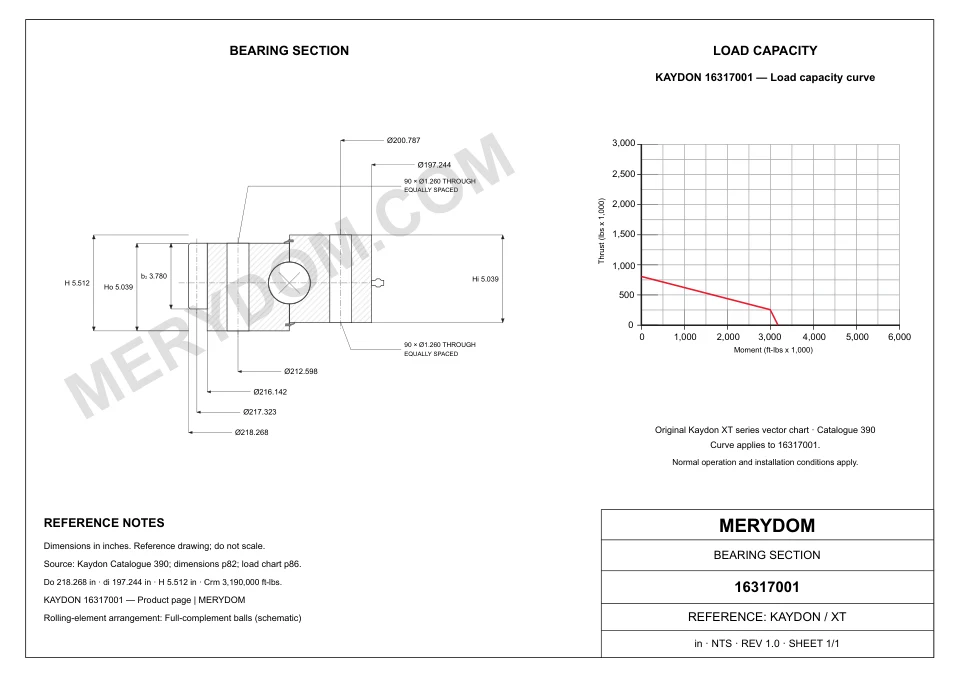

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 218.268 inapproximately 5,544.01 mm
- Overall inside diameter (di)
- 197.244 inapproximately 5,010 mm
- Outer ring body OD (Dr)
- 216.142 inapproximately 5,490.01 mm
- Overall height (H)
- 5.512 inapproximately 140 mm
- Assembly weight (G)
- 8700 lbapproximately 3,946.254 kg
Mounting
- Outer ring bolt circle (Lo)
- 212.598 inapproximately 5,399.99 mm
- Inner ring bolt circle (Li)
- 200.787 inapproximately 5,099.99 mm
Gear
- Gear pitch diameter (D2)
- 217.323 inapproximately 5,520 mm
- Gear tooth count (z2)
- 460
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16317001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16317001 |
| Certified interchangeable with | Kaydon 16317001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16317001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 218.268 inapproximately 5,544.01 mm |
| Overall inside diameter (di) | 197.244 inapproximately 5,010 mm |
| Overall height (H) | 5.512 inapproximately 140 mm |
| Outer ring body OD (Dr) | 216.142 inapproximately 5,490.01 mm |
| Outer ring bolt circle (Lo) | 212.598 inapproximately 5,399.99 mm |
| Inner ring bolt circle (Li) | 200.787 inapproximately 5,099.99 mm |
| Gear pitch diameter (D2) | 217.323 inapproximately 5,520 mm |
| Assembly weight (G) | 8700 lbapproximately 3,946.254 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 31100 lbfapproximately 138.34 kN |
| Moment load rating (Crm) | 3190000 ft·lbfapproximately 4,325.06 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 90 holes · 1.260 |
| Inner ring bolt holes (ni) | 90 holes · 1.260 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 12 (source (12)) |
| Number of teeth (z2) | 460 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

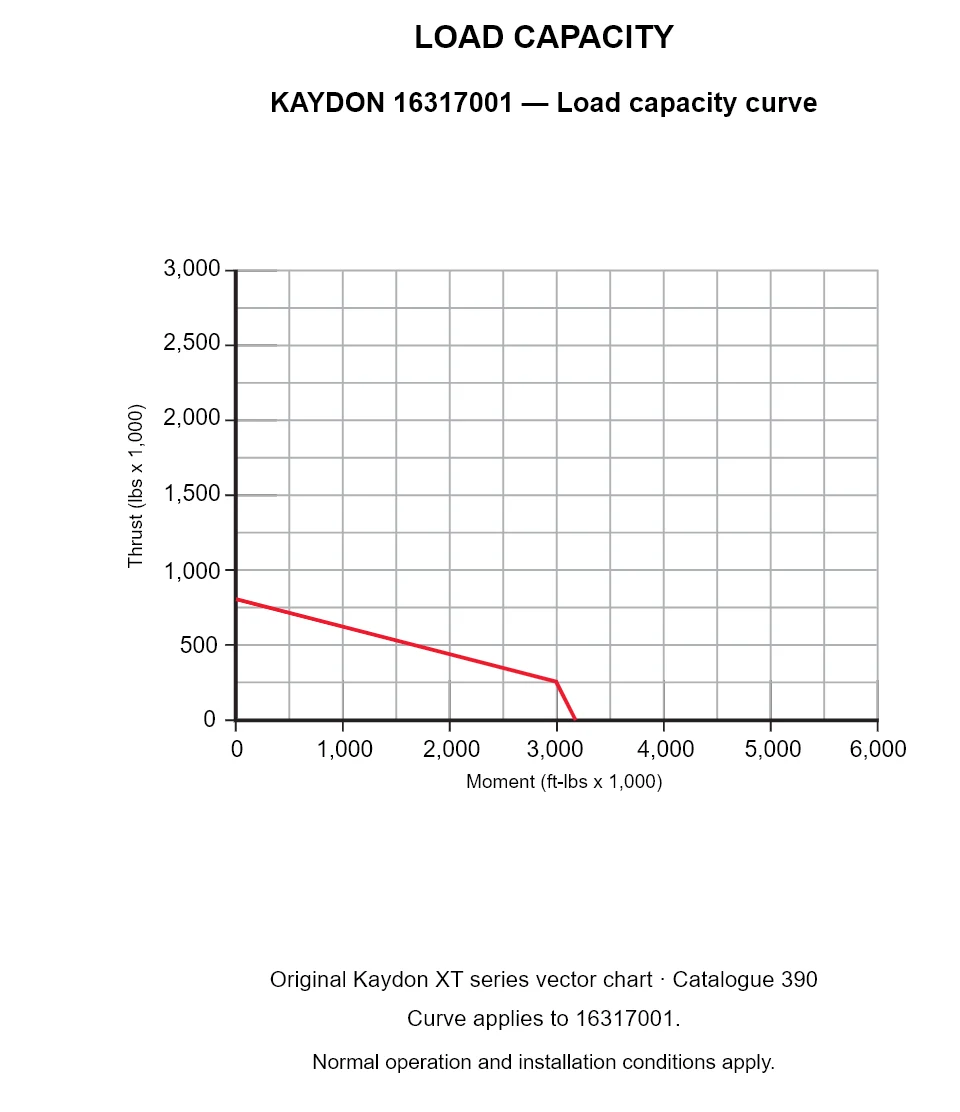

Xt Series load chart
