Kaydon 16316001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16316001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

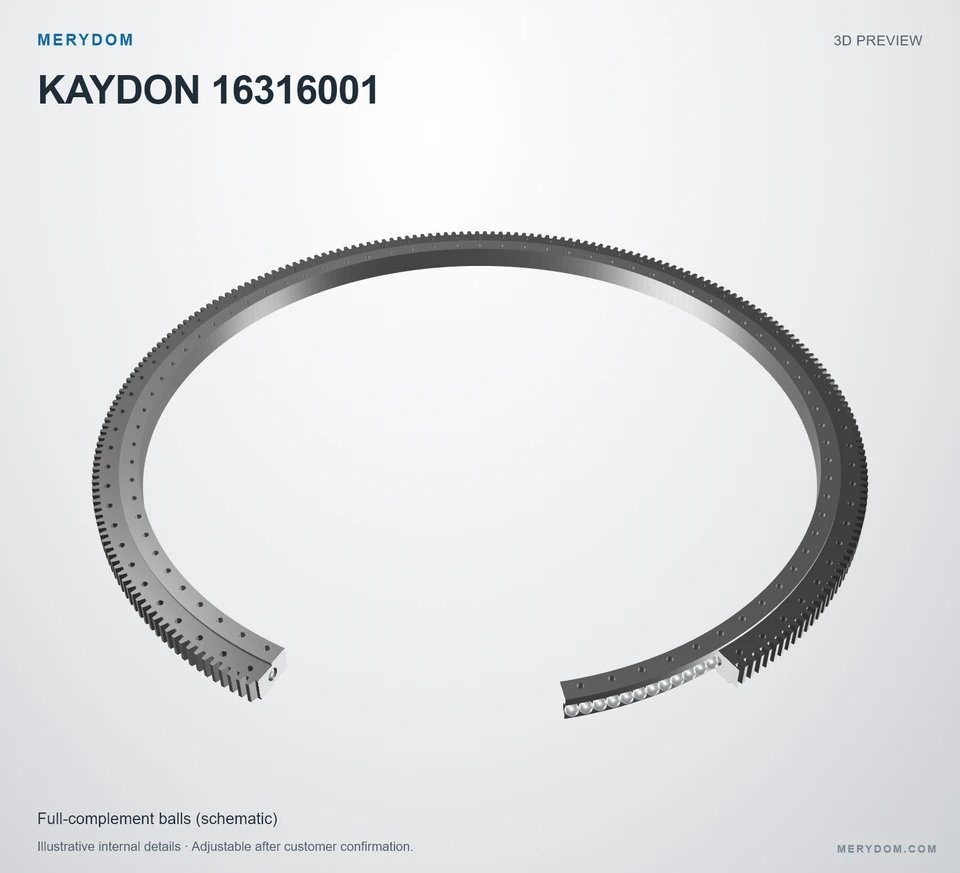

The Kaydon 16316001 reference belongs to the Xt Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16316001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16316001.
- Overall OD (Do)
- 196.850 in
- Overall ID (di)
- 173.622 in
- Overall height
- 7.000 in
- Gear arrangement
- External gear
- Mounting holes
- 80 / 80 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

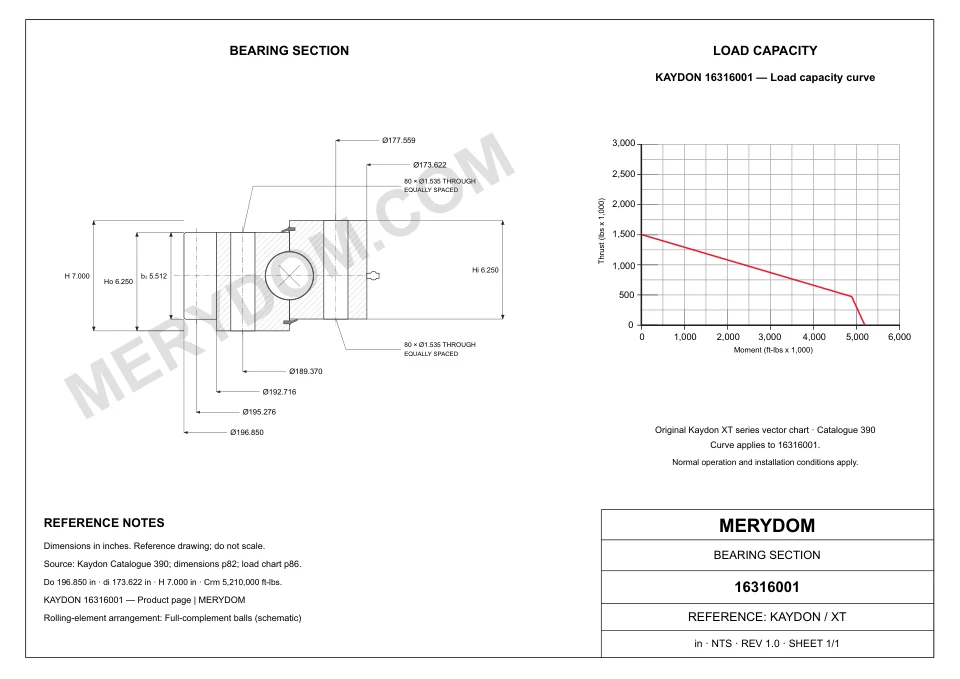

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 196.850 inapproximately 5,000 mm
- Overall inside diameter (di)
- 173.622 inapproximately 4,410 mm
- Outer ring body OD (Dr)
- 192.716 inapproximately 4,894.99 mm
- Overall height (H)
- 7.000 inapproximately 178 mm
- Assembly weight (G)
- 10100 lbapproximately 4,581.283 kg
Mounting
- Outer ring bolt circle (Lo)
- 189.370 inapproximately 4,810 mm
- Inner ring bolt circle (Li)
- 177.559 inapproximately 4,510 mm
Gear
- Gear pitch diameter (D2)
- 195.276 inapproximately 4,960.01 mm
- Gear tooth count (z2)
- 248
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16316001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16316001 |
| Certified interchangeable with | Kaydon 16316001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16316001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 196.850 inapproximately 5,000 mm |
| Overall inside diameter (di) | 173.622 inapproximately 4,410 mm |
| Overall height (H) | 7.000 inapproximately 178 mm |
| Outer ring body OD (Dr) | 192.716 inapproximately 4,894.99 mm |
| Outer ring bolt circle (Lo) | 189.370 inapproximately 4,810 mm |
| Inner ring bolt circle (Li) | 177.559 inapproximately 4,510 mm |
| Gear pitch diameter (D2) | 195.276 inapproximately 4,960.01 mm |
| Assembly weight (G) | 10100 lbapproximately 4,581.283 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 81000 lbfapproximately 360.31 kN |
| Moment load rating (Crm) | 5210000 ft·lbfapproximately 7,063.81 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 80 holes · 1.535 |
| Inner ring bolt holes (ni) | 80 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 20 (source (20)) |
| Number of teeth (z2) | 248 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

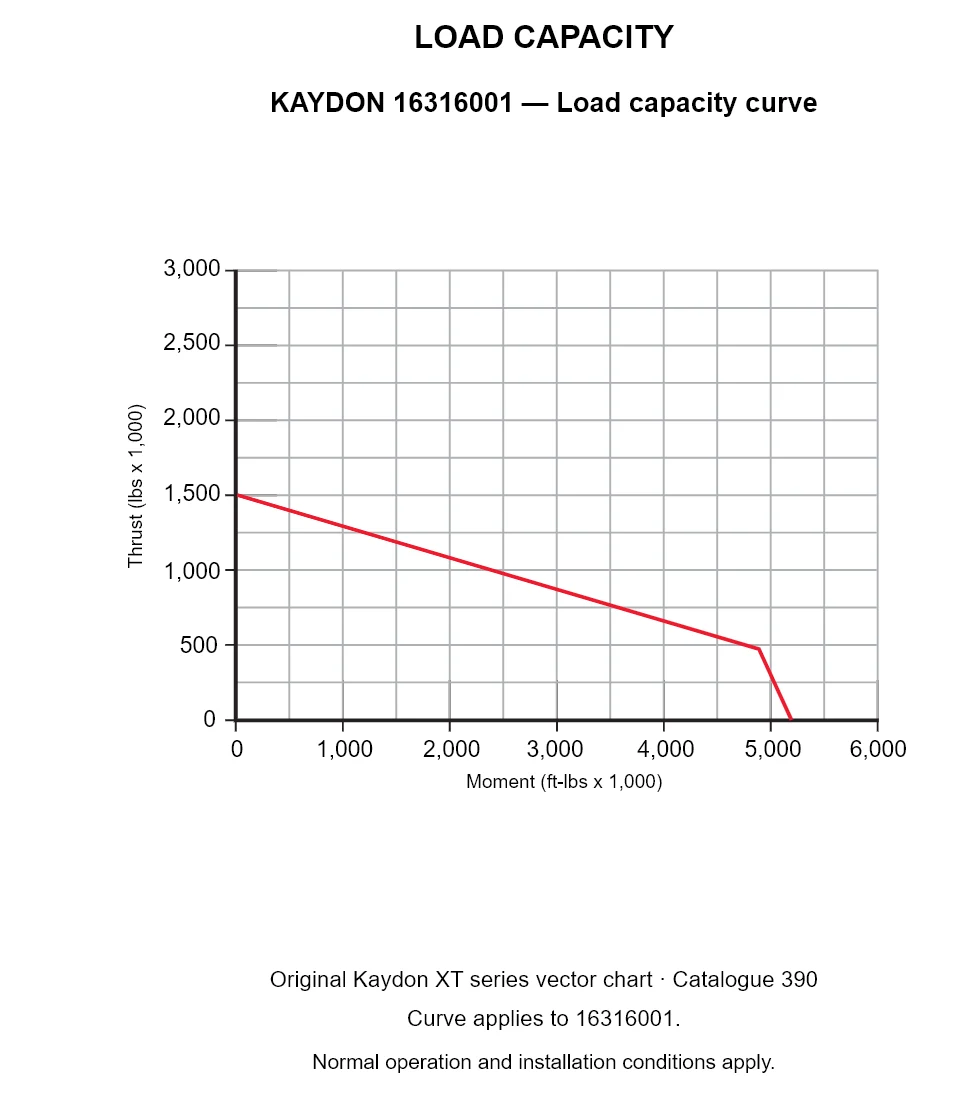

Xt Series load chart
