Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
Kaydon 16348001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16348001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16348001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.

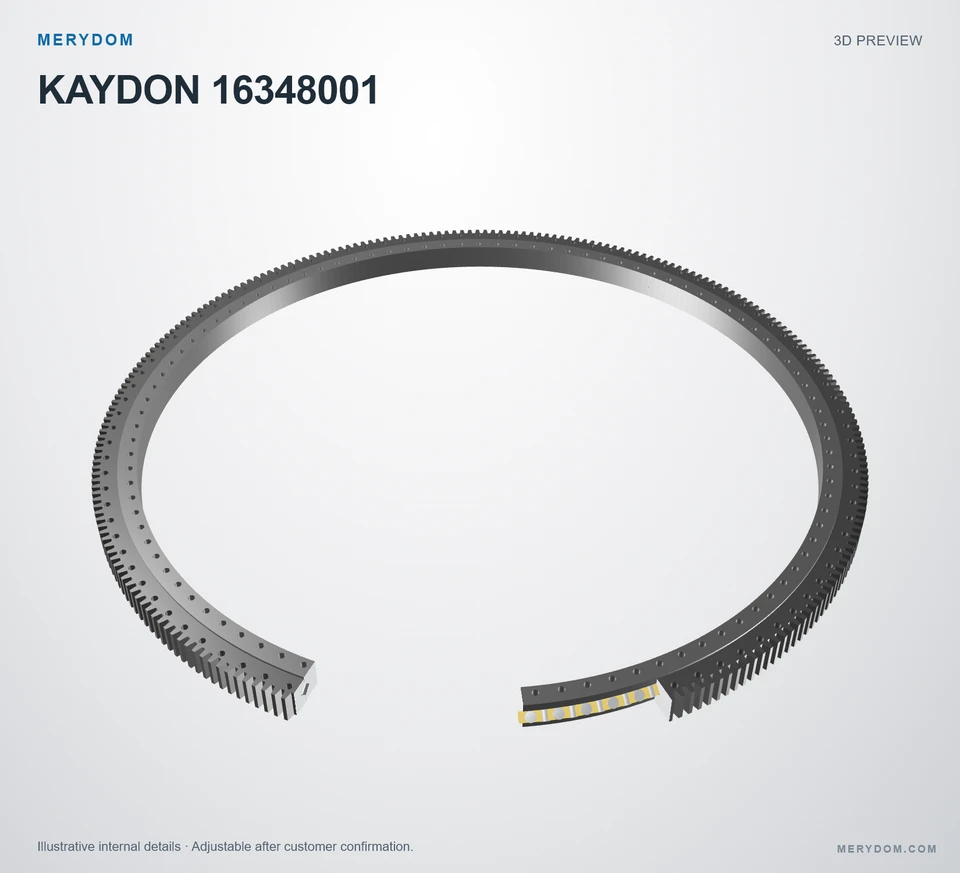

Crossed cylindrical rollers in V-shaped raceways. Roller dimensions, count and separators are illustrative.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16348001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16348001.
- Overall OD (Do)
- 159.843 in
- Overall ID (di)
- 141.732 in
- Overall height
- 6.142 in
- Gear arrangement
- External gear
- Mounting holes
- 100 / 100 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

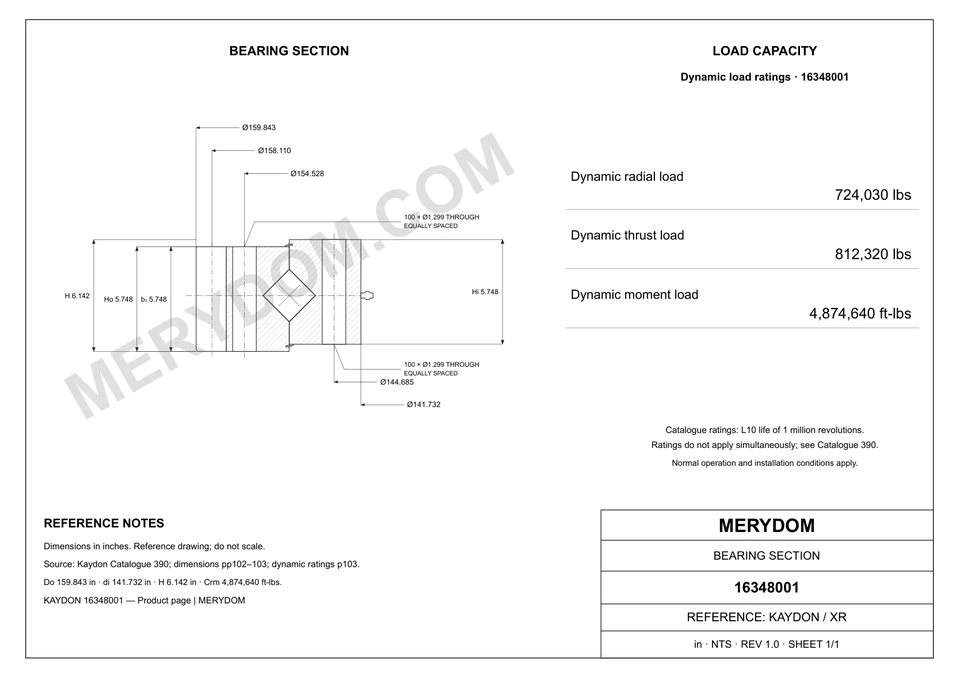

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 159.843 inapproximately 4,060.01 mm
- Overall inside diameter (di)
- 141.732 inapproximately 3,599.99 mm
- Overall height (H)
- 6.142 inapproximately 156.01 mm
- Assembly weight (G)
- 5480 lbapproximately 2,485.686 kg
- Inner ring height (Hi)
- 5.748 inapproximately 146 mm
- Outer ring height (Ho)
- 5.748 inapproximately 146 mm
Mounting
- Outer ring bolt circle (Lo)
- 154.528 inapproximately 3,925.01 mm
- Inner ring bolt circle (Li)
- 144.685 inapproximately 3,675 mm
Gear
- Gear pitch diameter (D2)
- 158.110 inapproximately 4,016 mm
- Gear tooth count (z2)
- 251
- Catalogue gear face width (b2)
- 5.748 inapproximately 146 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16348001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16348001 |
| Certified interchangeable with | Kaydon 16348001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16348001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 159.843 inapproximately 4,060.01 mm |
| Overall inside diameter (di) | 141.732 inapproximately 3,599.99 mm |
| Overall height (H) | 6.142 inapproximately 156.01 mm |
| Inner ring height (Hi) | 5.748 inapproximately 146 mm |
| Outer ring height (Ho) | 5.748 inapproximately 146 mm |
| Outer ring bolt circle (Lo) | 154.528 inapproximately 3,925.01 mm |
| Inner ring bolt circle (Li) | 144.685 inapproximately 3,675 mm |
| Gear pitch diameter (D2) | 158.110 inapproximately 4,016 mm |
| Assembly weight (G) | 5480 lbapproximately 2,485.686 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 67650 lbfapproximately 300.92 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 724030.0000000000 lbfapproximately 3,220.65 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 812320.0000000000 lbfapproximately 3,613.38 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 4874640.0000000000 ft·lbfapproximately 6,609.12 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 100 holes · 1.299 |
| Inner ring bolt holes (ni) | 100 holes · 1.299 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 16 (source (16)) |
| Number of teeth (z2) | 251 |
| Catalogue gear face width (b2) | 5.748 inapproximately 146 mm |
| Profile shift coefficient (x2) | +.500 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16348001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 16348001.
